Toyota COROLLA 车侧通风装置 — Figure 6102

Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 2 PNC and OE references.

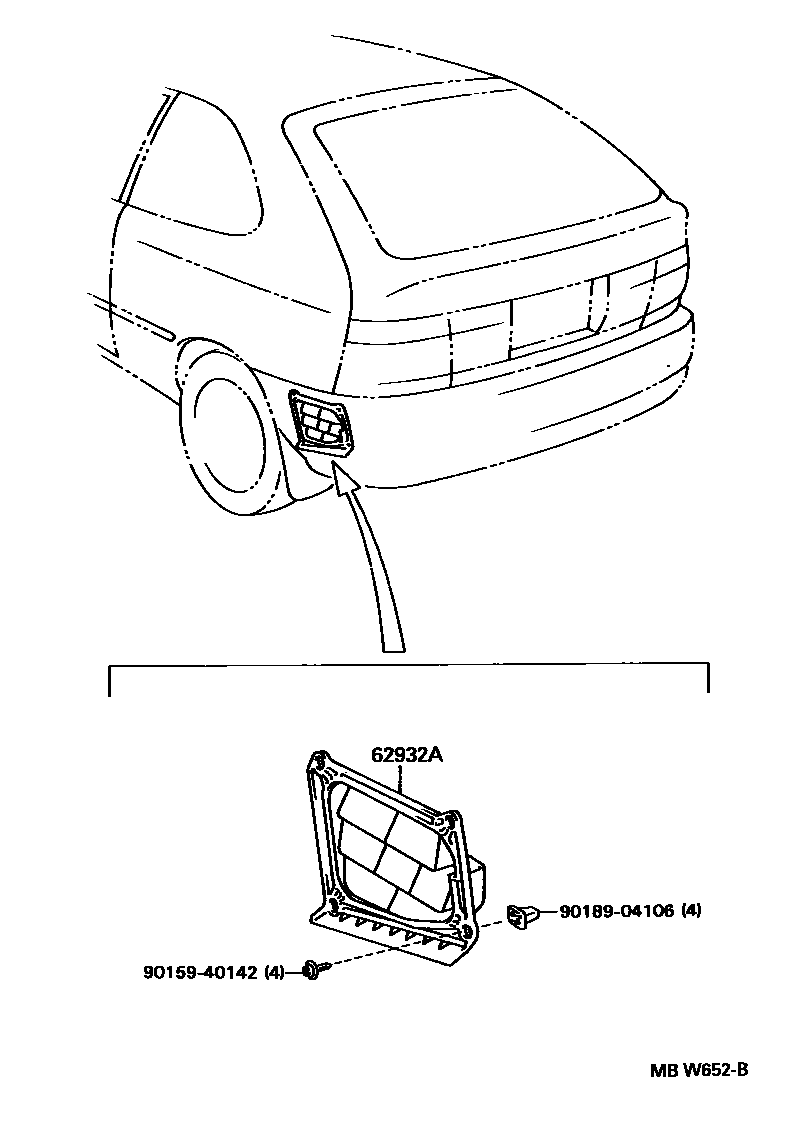

Toyota COROLLA 车侧通风装置 EPC diagram — MBW652B
车侧通风装置 — MBW652B (199205 – 999999)

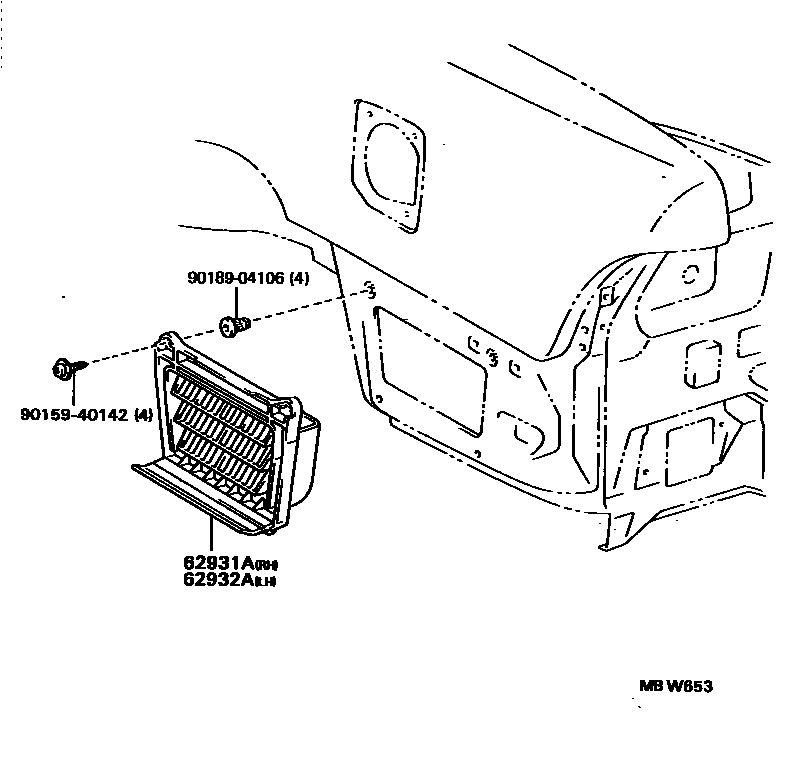

Toyota COROLLA 车侧通风装置 EPC diagram — MBW653
车侧通风装置 — MBW653 (199205 – 199505)

PNC and OE references

PNCPart nameOE numbers
62931ARight side ventilation duct62930-12120
62932ALeft side ventilation duct62930-12110 · 62930-12130 · 62930-12140
