Toyota COROLLA 地板隔热垫 — Figure 5802

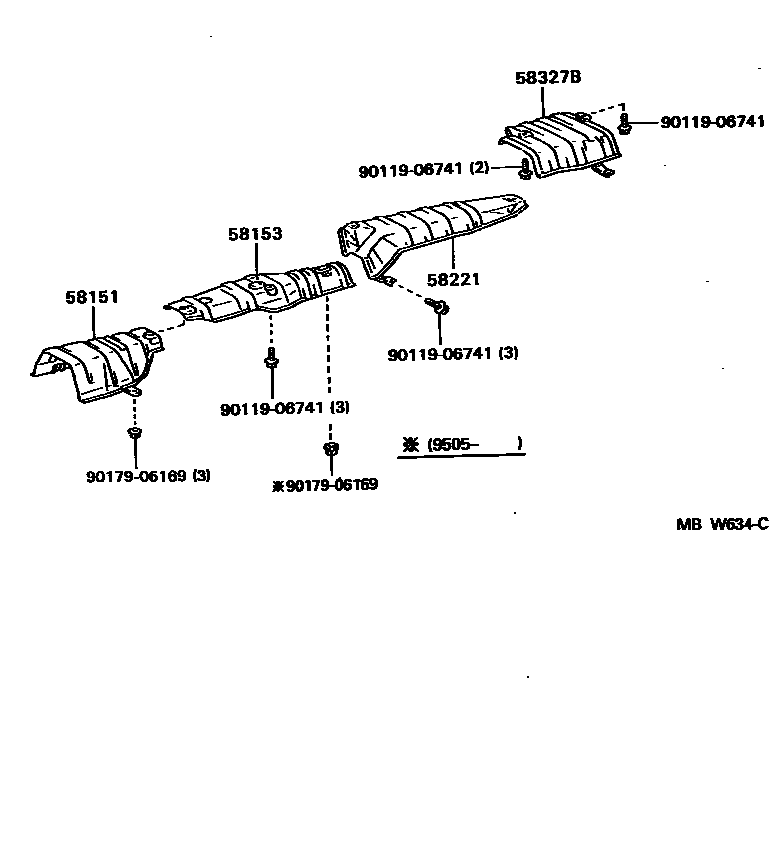

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-12140 · 58041-12150 · 58151-12200 |
| 58153 | Front floor insulation mat No. 2 | 58153-12110 · 58153-12120 · 58153-12140 |
| 58221 | Central Floor Insulating Mat No. 1 | 58044-12010 · 58044-12030 · 58044-12040 |
| 58327B | Main muffler heat insulation pad | 58031-12070 · 58031-12090 · 58327-12130 |
