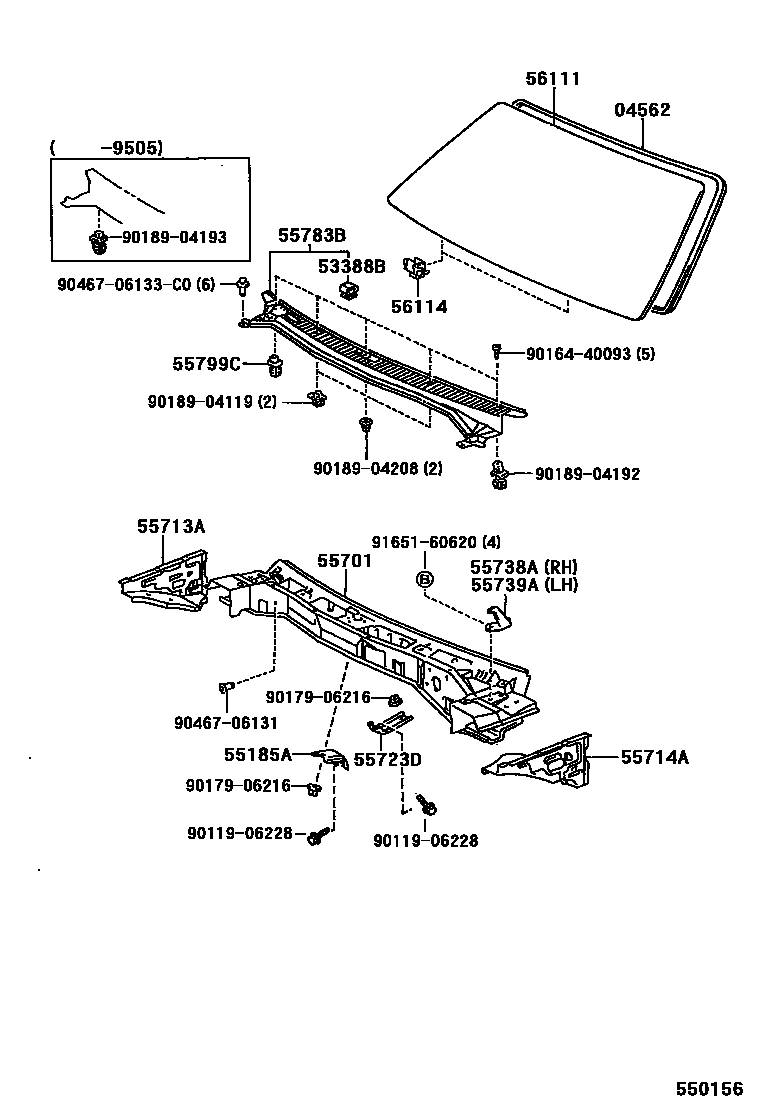

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 53388B | Engine cover rear cushion | 53388-12040 |
| 55185A | cowl panel to cowl bracket | 55185-12010 |
| 55701 | Front apron sub-assembly | 55700-12801 · 55700-12840 · 55700-12860 · 55700-12870 · 55700-12890 · 55700-12906 · 55700-1A020 · 55700-1A030 · 55700-1A031 · 55700-1A160 |
| 55713A | Right front wall upper side panel | 55713-12080 · 55713-12081 · 55713-12090 |
| 55714A | Left front wall upper side panel | 55714-12080 · 55714-12081 · 55714-12090 |
| 55723D | Dashboard reinforcement to cowl bracket | 55723-12060 |
| 55738A | Engine cover right block | 55738-12090 |
| 55739A | Engine cover left block | 55739-12050 |
| 55783B | Ventilation grille on center cowl No. 1 | 55708-12080 · 55708-12130 · 55708-12140 |
| 55799C | Ventilation grille clips on front apron | 55799-12010 |
| 56111 | windshield | 56111-1A440 · 56111-1A460 · 56111-1A530 · 56111-1A550 |
| 56114 | windshield stopper | 56110-12010 |
