Toyota COROLLA 仪表板和手套箱 — Figure 5501

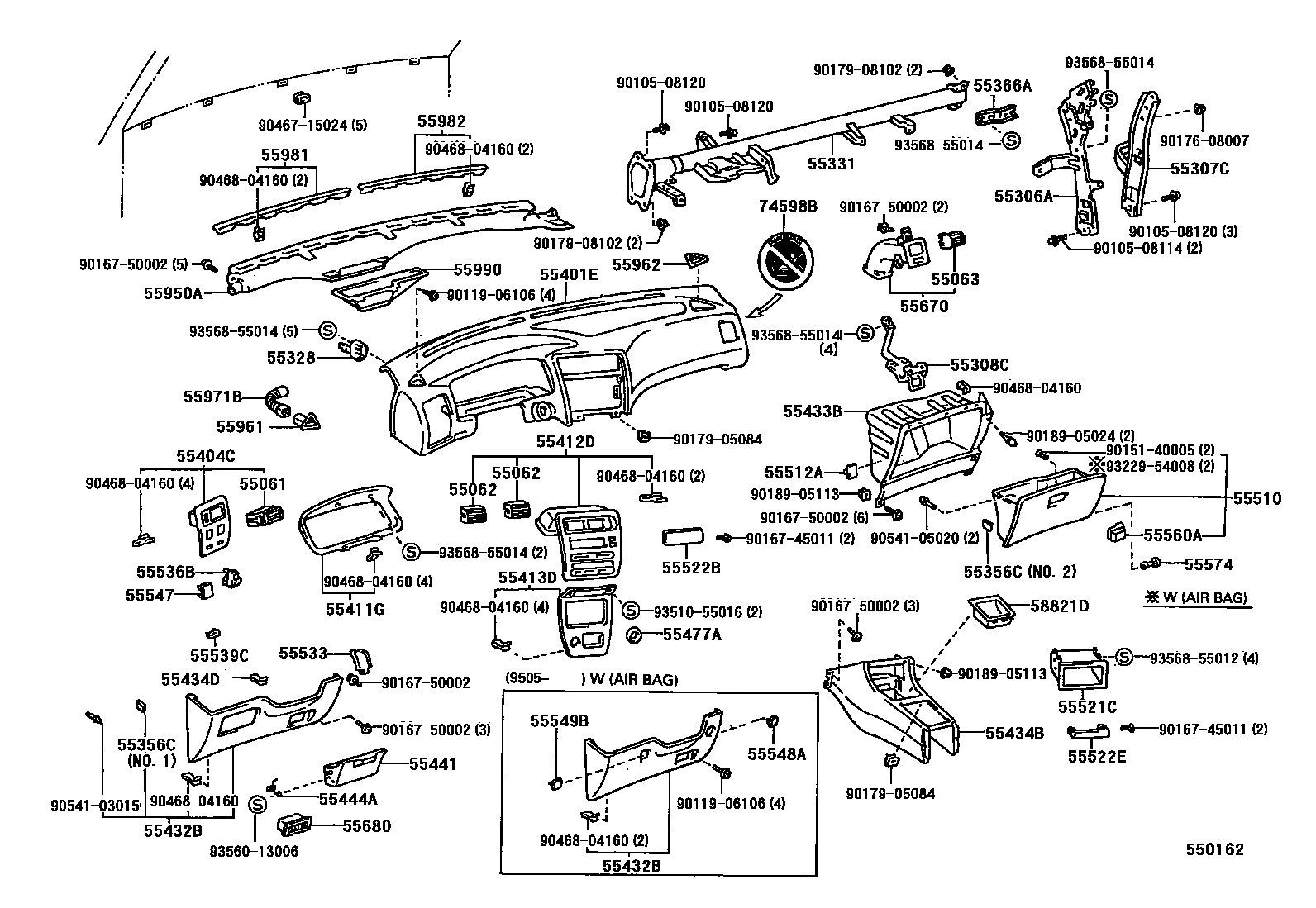

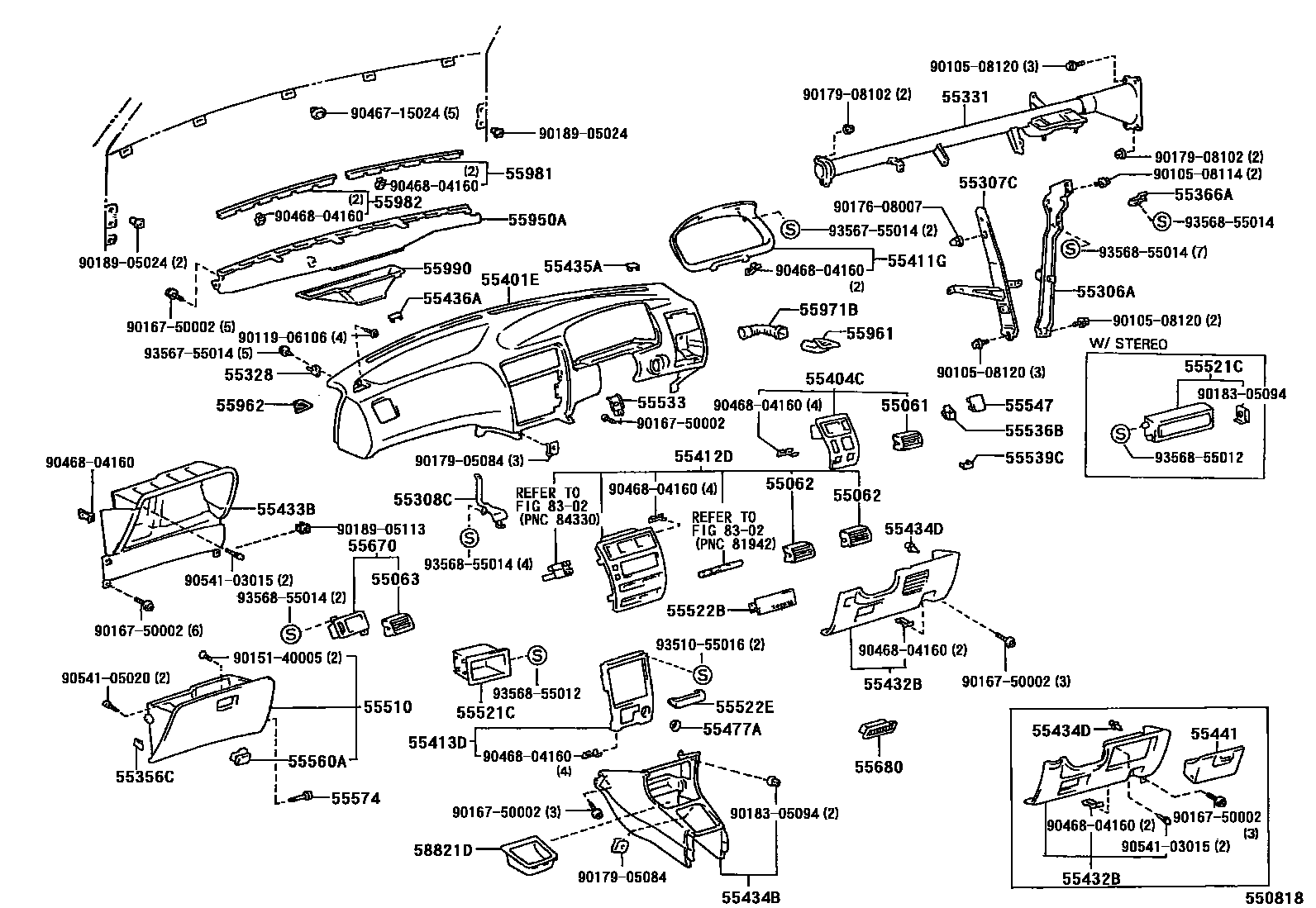

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55061 | No. 1 air register sub-assembly on the instrument panel | 55061-12150 · 55061-12170 |
| 55062 | No. 2 air register sub-assembly on the instrument panel | 55062-12060 · 55062-12080 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12150 · 55306-12180 · 55306-12200 · 55306-12210 · 55306-12220 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12200 · 55307-12201 · 55307-12220 · 55307-12230 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12180 · 55308-12200 · 55308-12210 |
| 55328 | Instrument panel pin 1 | 55328-12060 |
| 55331 | Dashboard reinforcement | 55330-12240 · 55330-12260 · 55330-12261 · 55330-12291 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-12060 |
| 55366A | Radio No. 1 mounting bracket | 55366-12040 · 55366-12050 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-12580 · 55404-12600 · 55404-12620 · 55404-12640 · 55404-12650 · 55404-12660 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-12870 · 55411-12890 |
| 55412D | Center instrument cluster decorative panel | 55405-12570 · 55405-12590 · 55405-12680 · 55405-12690 · 55405-12760 · 55405-12790 · 55405-12860 |
| 55413D | Center instrument cluster lower decorative panel | 55413-12420 · 55413-12430 |
| 55444A | Dashboard storage box spring | 55444-12040 |
| 55477A | Cigarette lighter hole frame | 55477-12100 |
| 55521C | stereo system hole cover | 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-12120 |
| 55522E | Coaster opening cover | 55522-12110 |
| 55533 | automatic clock hole cover | 55533-12130 |
| 55536B | Light switch hole cover | 55536-12010 |
| 55539C | Spare switch hole cover | 55539-12110 |
| 55547 | Remote control rearview mirror hole cover | 55547-12020 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55680 | Instrument panel No. 1 down-regulator assembly | 55680-12050 |
| 55950A | Defroster nozzle assembly | 55950-12140 · 55950-12160 · 55950-12170 · 55950-12180 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-12110 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-12050 · 55981-12070 |
| 55982 | Defroster No. 2 nozzle decorative strip | 55982-12050 · 55982-12070 |
| 55990 | Central defroster nozzle assembly | 55990-12010 · 55990-12020 |

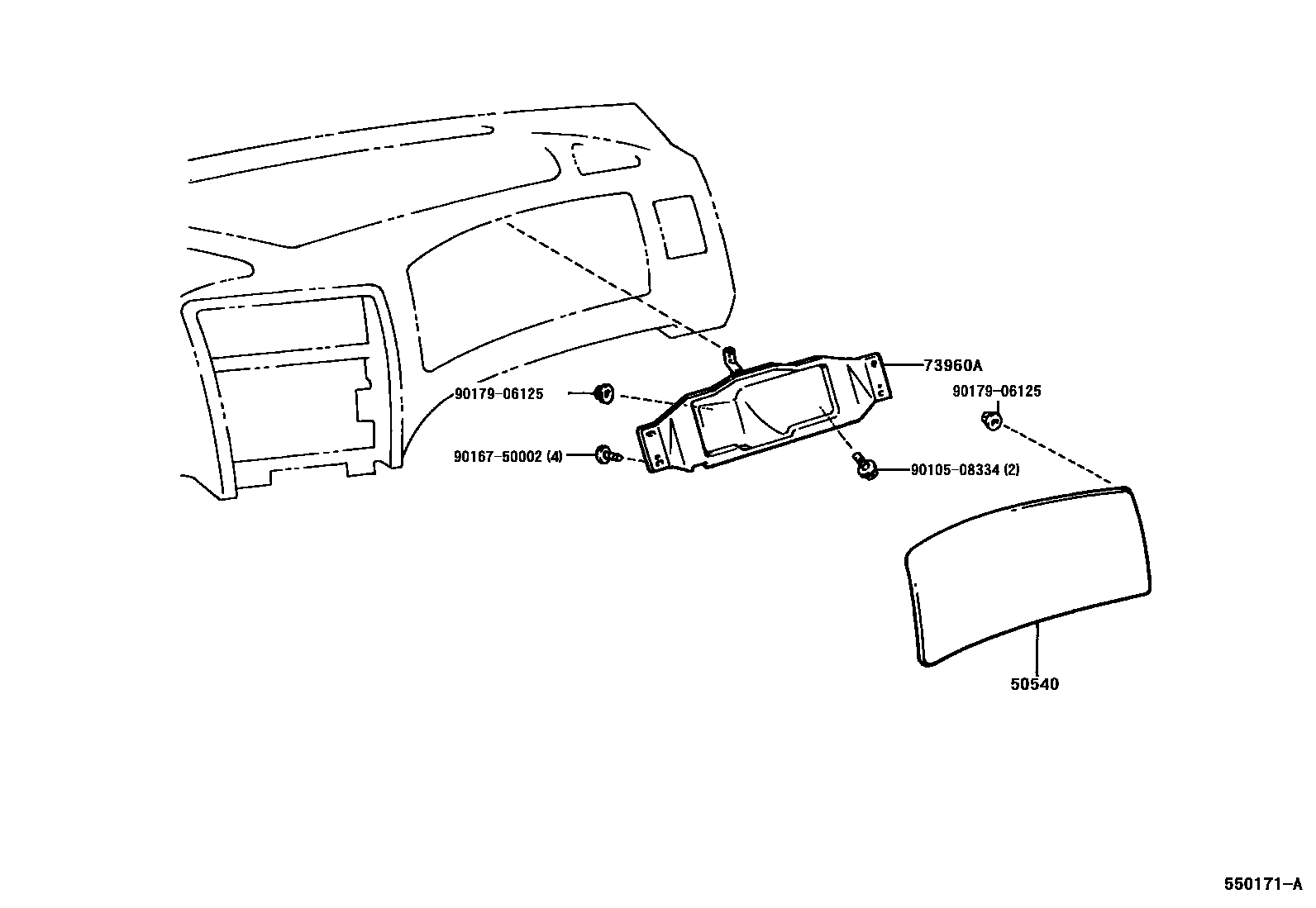

| 73960A | Dashboard passenger air bag assembly without cover | 73960-12010 |
| 74598B | Passenger air bag warning label | 74598-20010 |
