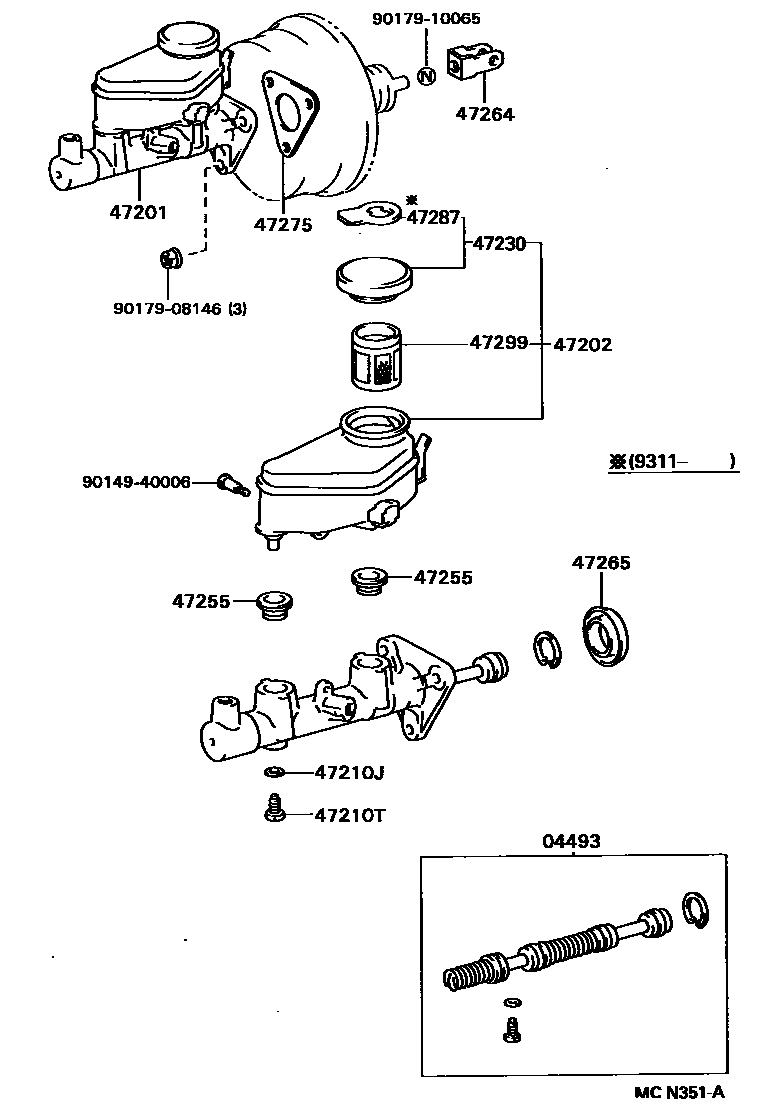

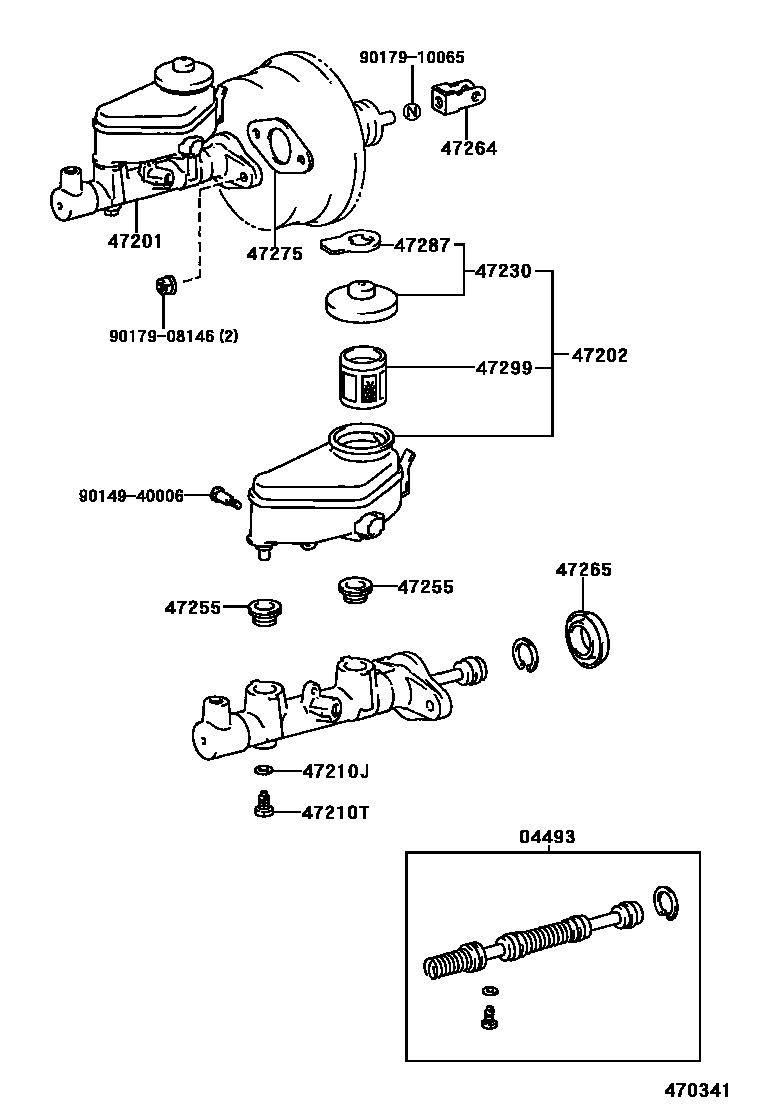

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-10130 · 04493-12180 · 04493-12200 · 04493-16080 |
| 47201 | Brake master cylinder sub-assembly | 47201-02010 · 47201-12790 · 47201-12800 · 47201-12810 · 47201-12820 · 47201-12830 · 47201-12890 · 47201-1A010 · 47201-1A090 · 47201-1A100 · 47201-1A110 · 47201-1A120 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-12390 · 47220-02020 · 47220-17020 · 47220-17050 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 · 47230-20100 · 47230-20140 |
| 47255 | Master pump reservoir seal | 47255-03010 · 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-16020 · 47264-33010 |
| 47265 | Master pump dust jacket | 47265-03010 · 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-12020 · 47275-32010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-24010 |
