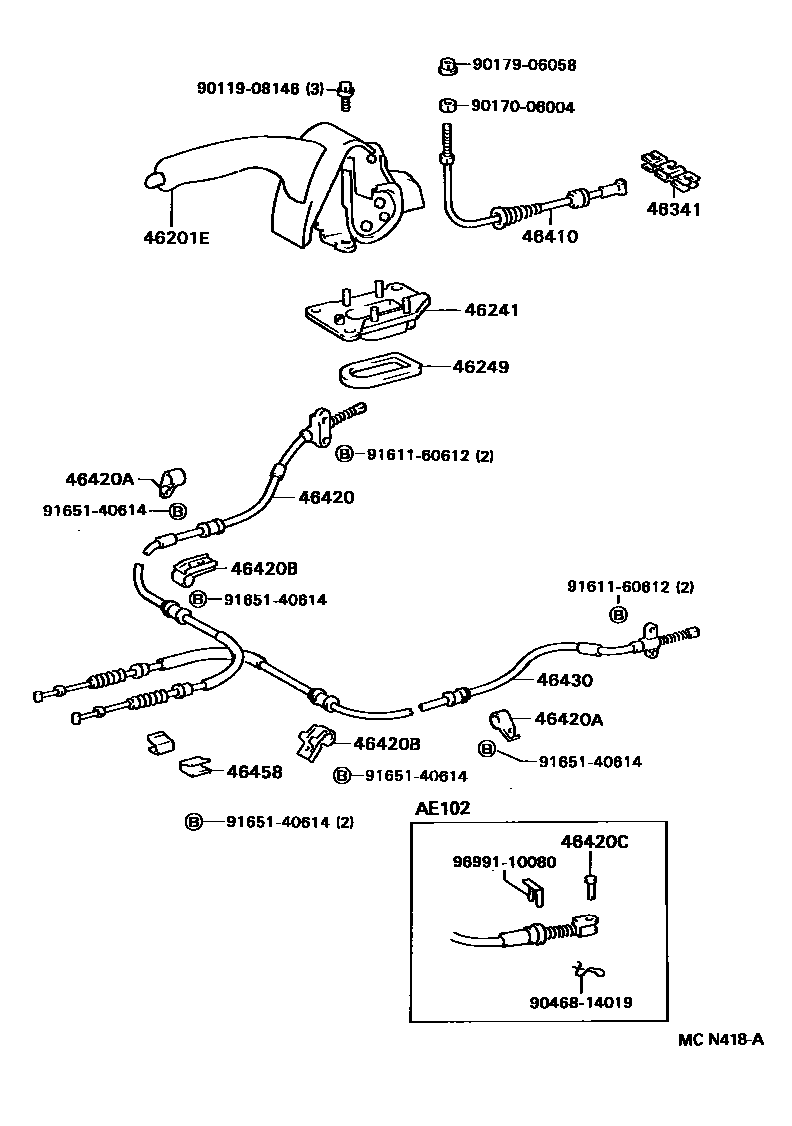

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46241 | Parking brake lever dust cover | 46241-02010 · 46241-12090 · 46241-12110 |
| 46249 | Parking brake hole cover | 46249-02010 · 46249-12010 |
| 46341 | Parking brake balancer | 46341-12020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12210 · 46410-12250 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02030 · 46420-12390 · 46420-12400 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01746 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01744 · 90949-01747 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08040 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02030 · 46430-12290 · 46430-12300 |
| 46458 | Cable fixings | 46458-50010 |
