Toyota COROLLA vacuum tube — Figure 1708

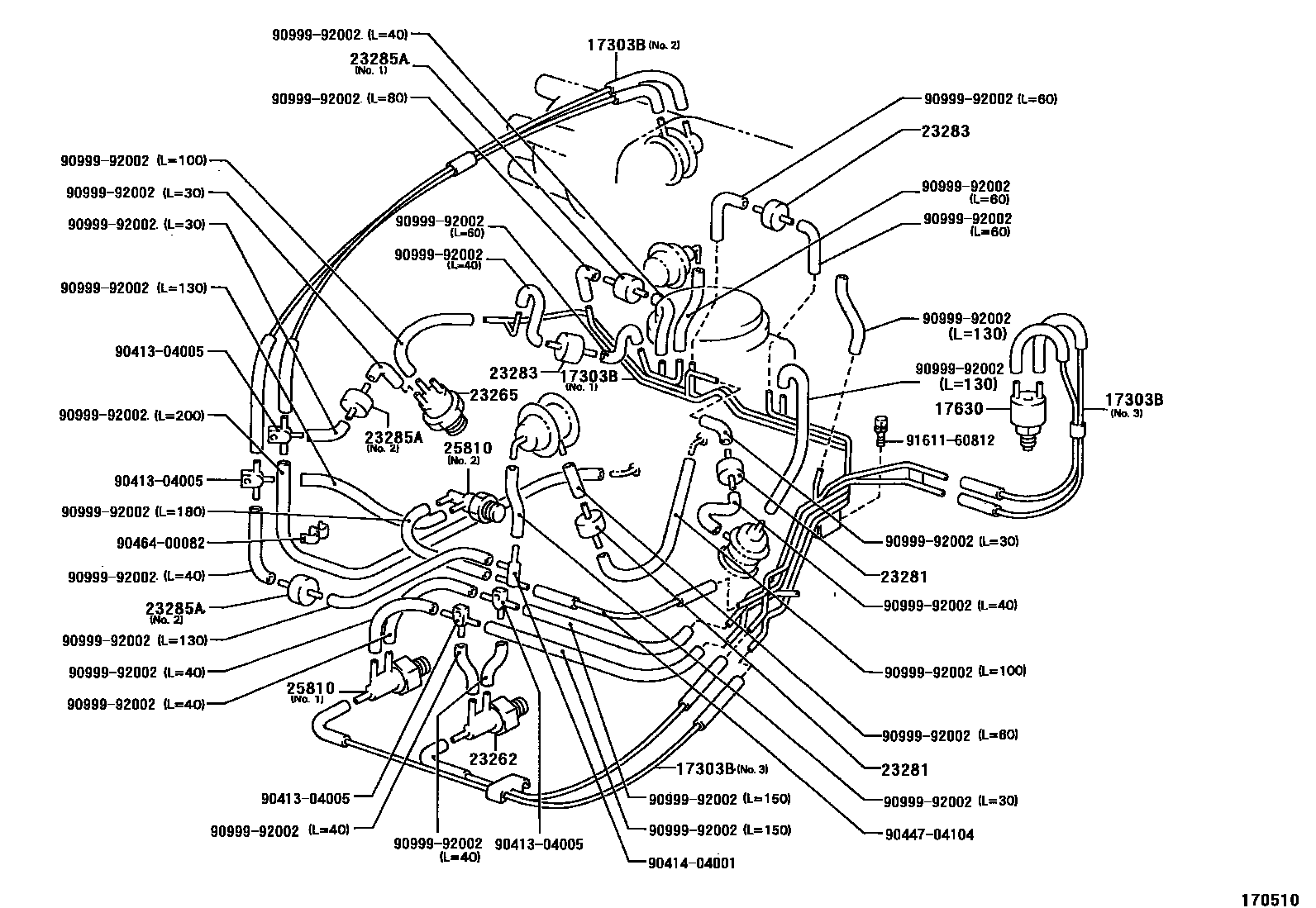

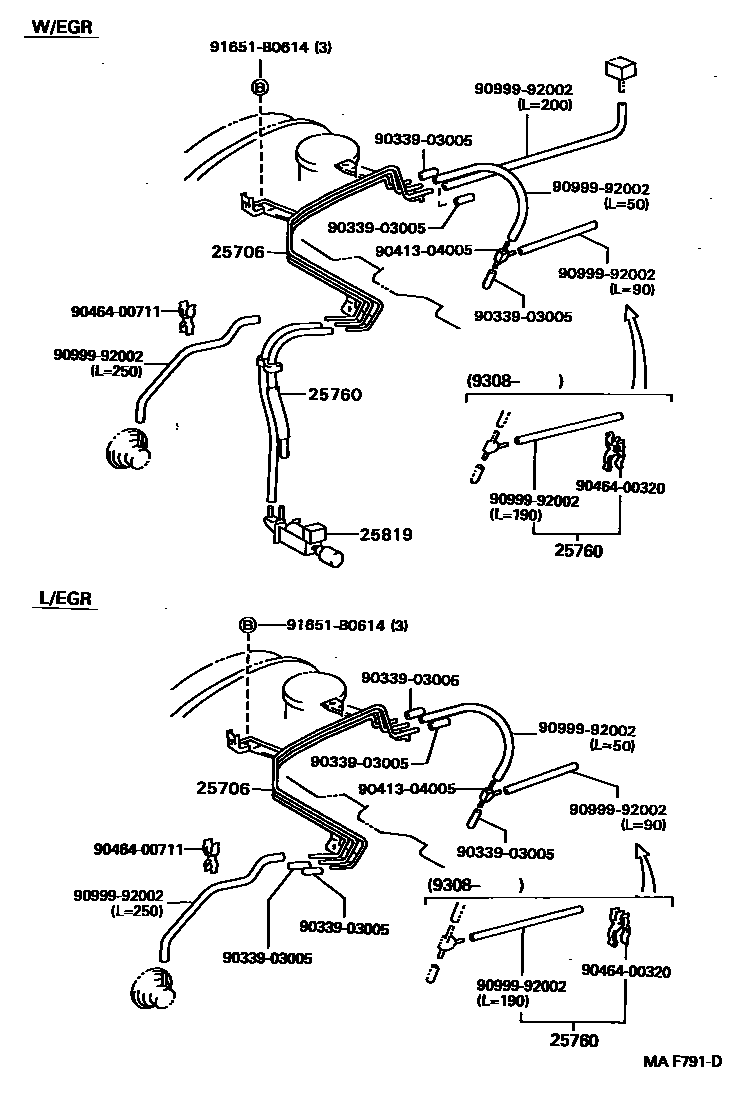

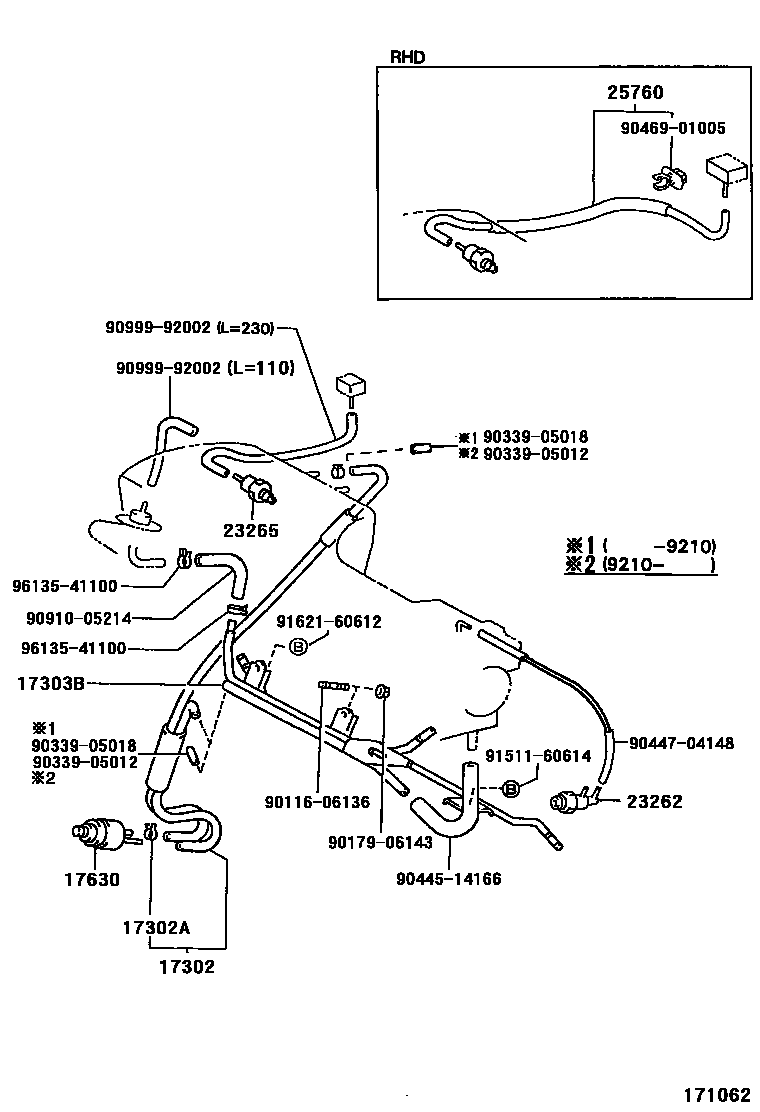

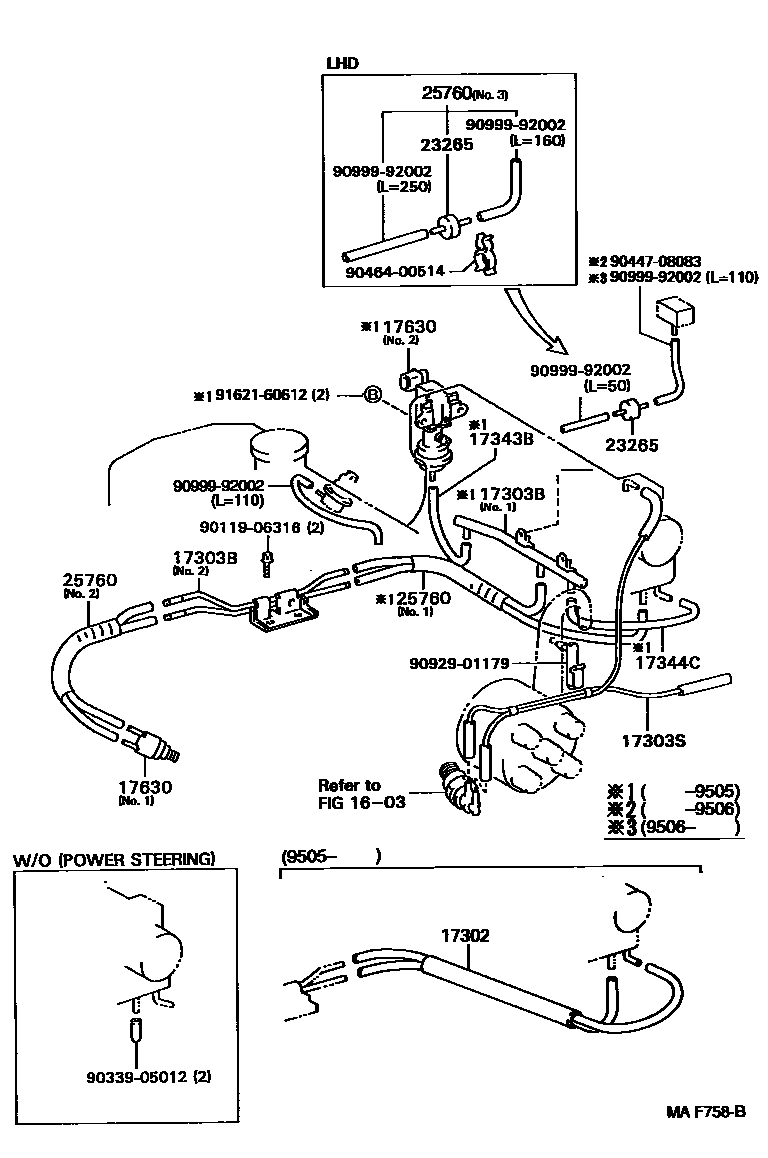

Toyota COROLLA EPC diagram 1708, vacuum tube, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-11050 · 17302-15010 |
| 17302A | Hose clip | 96132-51000 · 96132-51100 |
| 17303B | No. 1 air pipe sub-assembly | 17303-11401 · 17303-11440 · 17303-11460 · 17303-11550 · 17303-11570 · 17303-11700 · 17303-15060 |
| 17303S | No. 3 air pipe sub-assembly | 17303-11800 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-11080 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-11030 |
| 17630 | Air control valve assembly | 17630-11050 · 17630-11060 · 17630-15030 · 17630-15080 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25820-11040 · 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11027 · 90917-11030 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01101 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01091 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-64070 |
| 25760 | Vacuum transfer hose assembly | 25760-11190 · 25760-11250 · 25760-11260 · 25760-11330 · 25760-15020 · 25760-64060 · 25760-64120 |
| 25810 | Bimetal valve assembly | 25810-11070 · 25810-11080 |
| 25819 | Vacuum regulating valve assembly | 25819-64030 · 25819-64090 |
