Toyota COROLLA Air Cleaner — Figure 1703

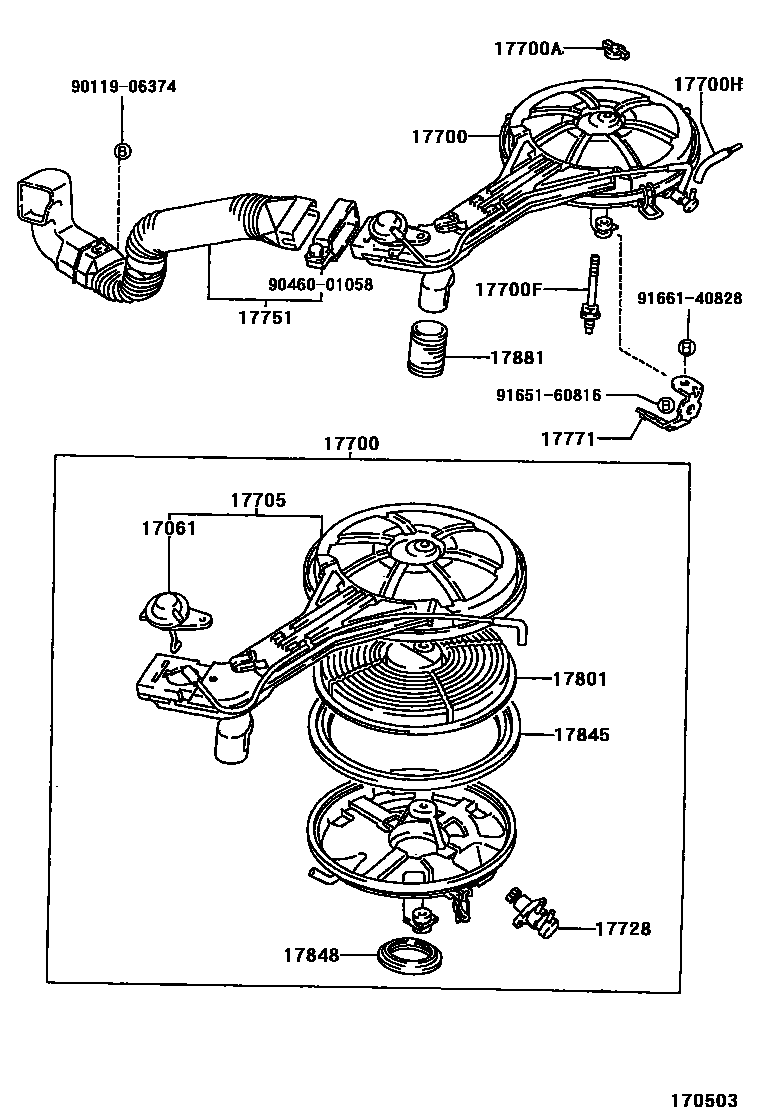

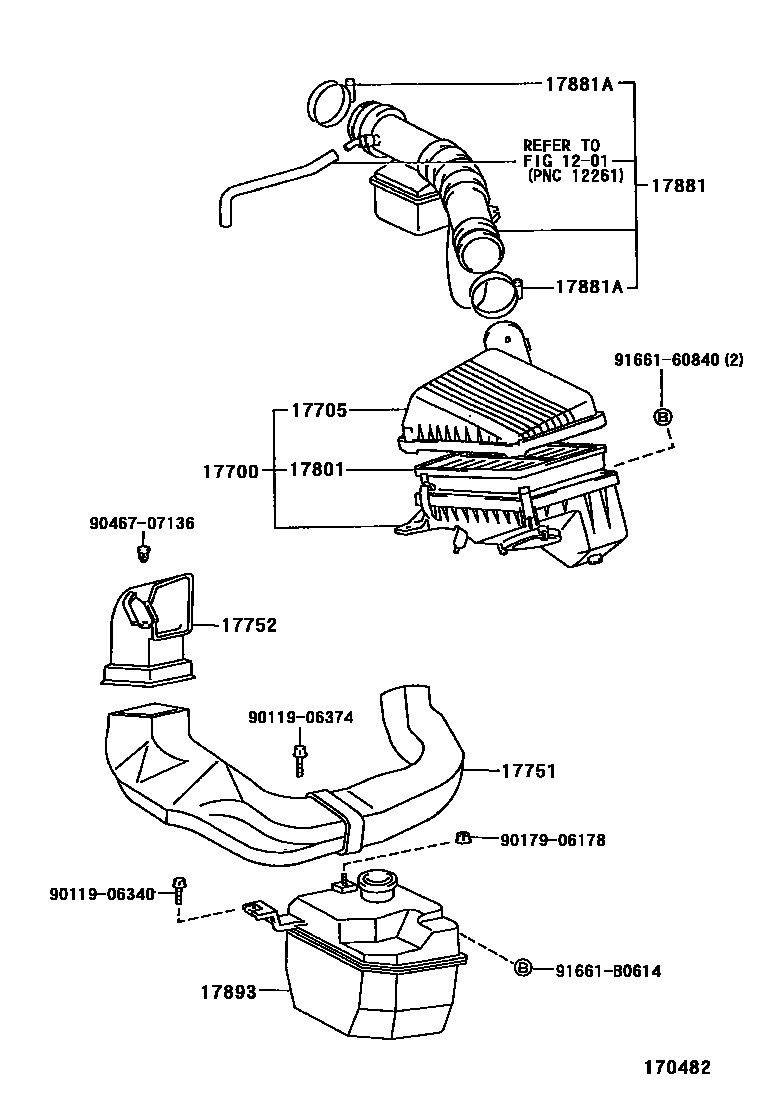

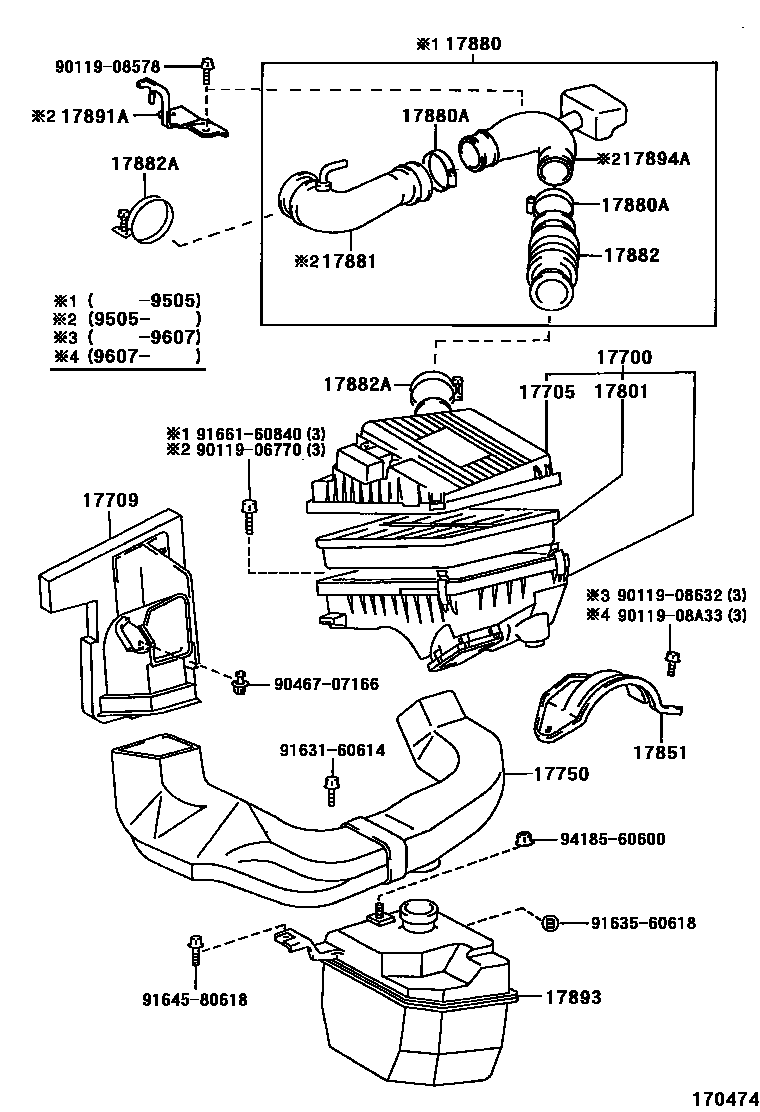

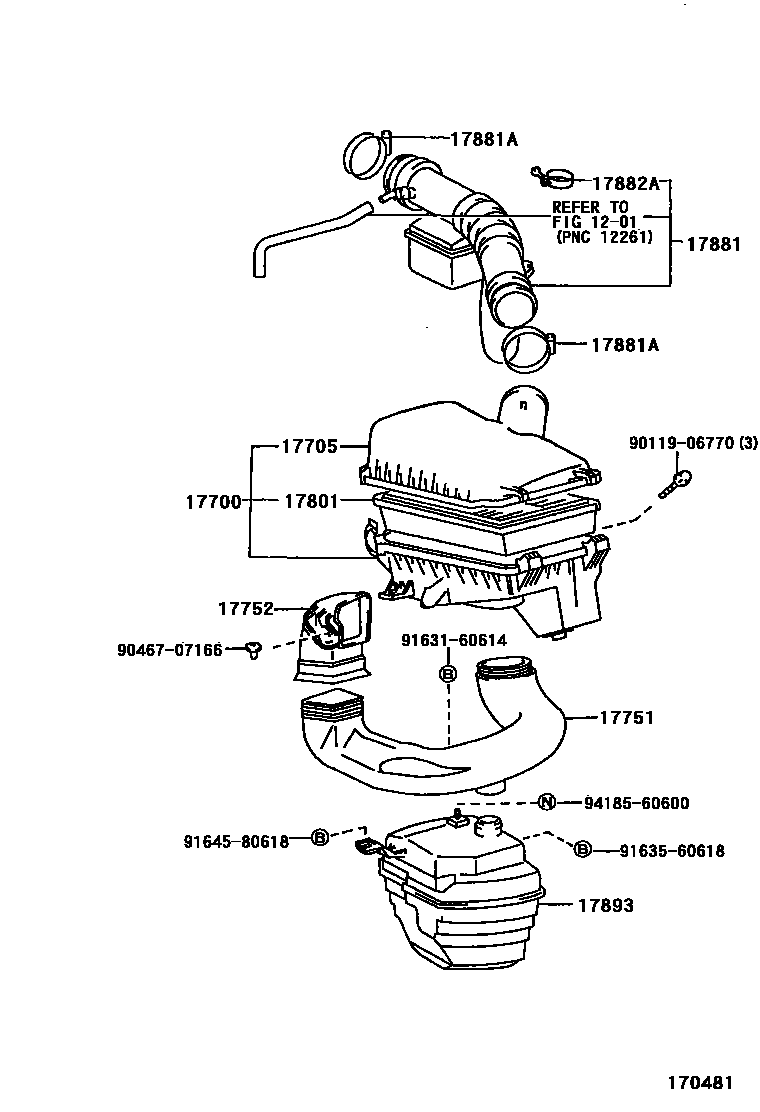

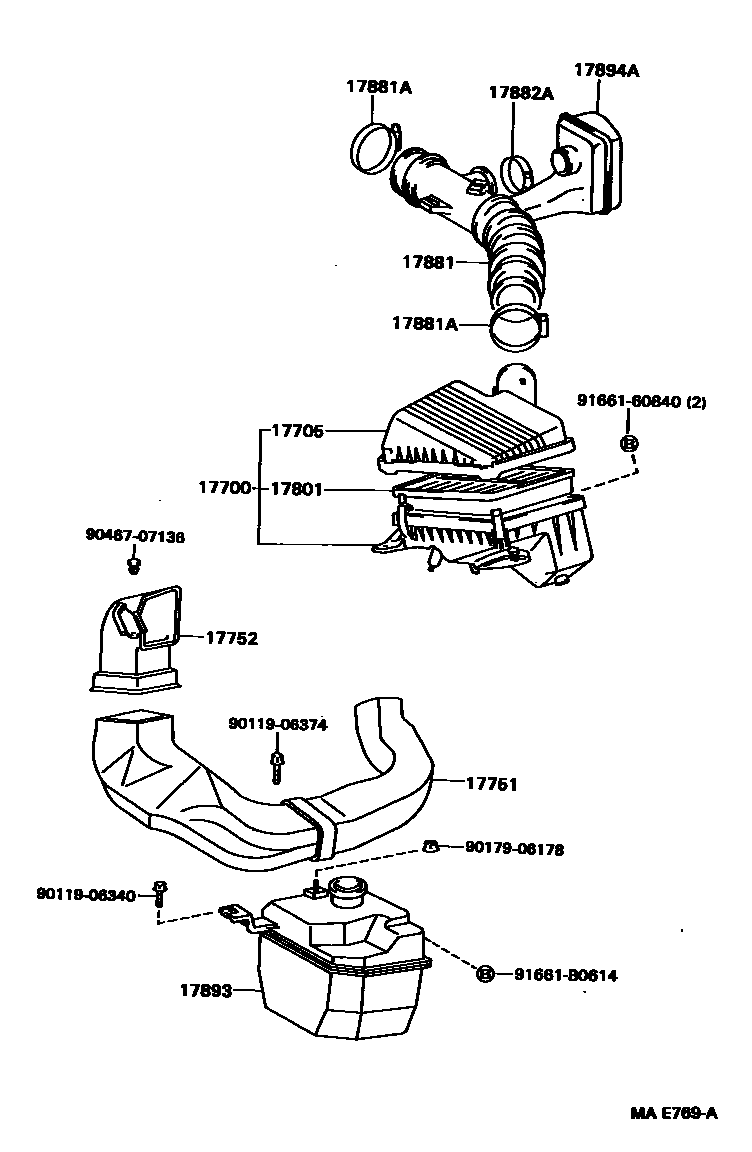

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-10010 |
| 17700 | air filter assembly | 17700-02040 · 17700-11750 · 17700-11790 · 17700-11890 · 17700-15270 · 17700-15340 · 17700-64270 · 17700-64340 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06142 |
| 17700H | air hose | 17341-10010 |
| 17705 | Air filter cover sub-assembly | 17705-02040 · 17705-11360 · 17705-11510 · 17705-11550 · 17705-15160 · 17705-15180 · 17705-64160 |
| 17709 | Air filter air inlet sub-assembly | 17709-64010 · 17709-64011 |
| 17728 | thermostat valve | 17728-11080 |
| 17750 | Air filter air inlet cover seal assembly | 17750-64010 · 17750-64020 |
| 17751 | No. 1 air filter air inlet | 17750-02010 · 17750-11010 · 17750-11011 · 17750-15010 · 17751-15050 |
| 17752 | No. 2 air filter air inlet | 17752-15040 · 17753-02010 · 17753-15010 |
| 17771 | Air filter inlet pipe bracket | 17771-11020 |
| 17801 | Air filter element sub-assembly | 17801-02030 · 17801-11090 · 17801-11100 · 17801-15070 · 17801-64070 |
| 17845 | air cleaner cover gasket | 17845-10020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10021 |
| 17851 | air filter bracket | 17851-64030 · 17851-64040 · 17851-64041 |
| 17880 | Air cleaner hose assembly | 17880-64191 |
| 17880A | hose clamp | 90460-65007 · 96111-10630 |
| 17881 | No. 1 air cleaner hose | 17880-11170 · 17880-11260 · 17881-02030 · 17881-02040 · 17881-10033 · 17881-15170 · 17881-15180 · 17881-15190 · 17881-64300 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-70003 · 90460-73001 · 90460-73007 · 96111-10690 · 96111-10730 |
| 17882 | No. 2 air cleaner hose | 17882-64070 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90080-46097 · 90080-46146 · 90460-42002 · 90460-55012 · 96111-10380 · 96111-10650 |
| 17891A | Air filter hose clamp | 17891-64010 |
| 17893 | Intake resonator | 17893-02010 · 17893-15040 · 17893-15050 |
| 17894A | No. 2 intake resonator | 17894-02010 · 17894-02020 · 17894-15020 · 17894-15030 · 17894-15040 · 17894-64040 |
