Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 6 images and 23 PNC and OE references.

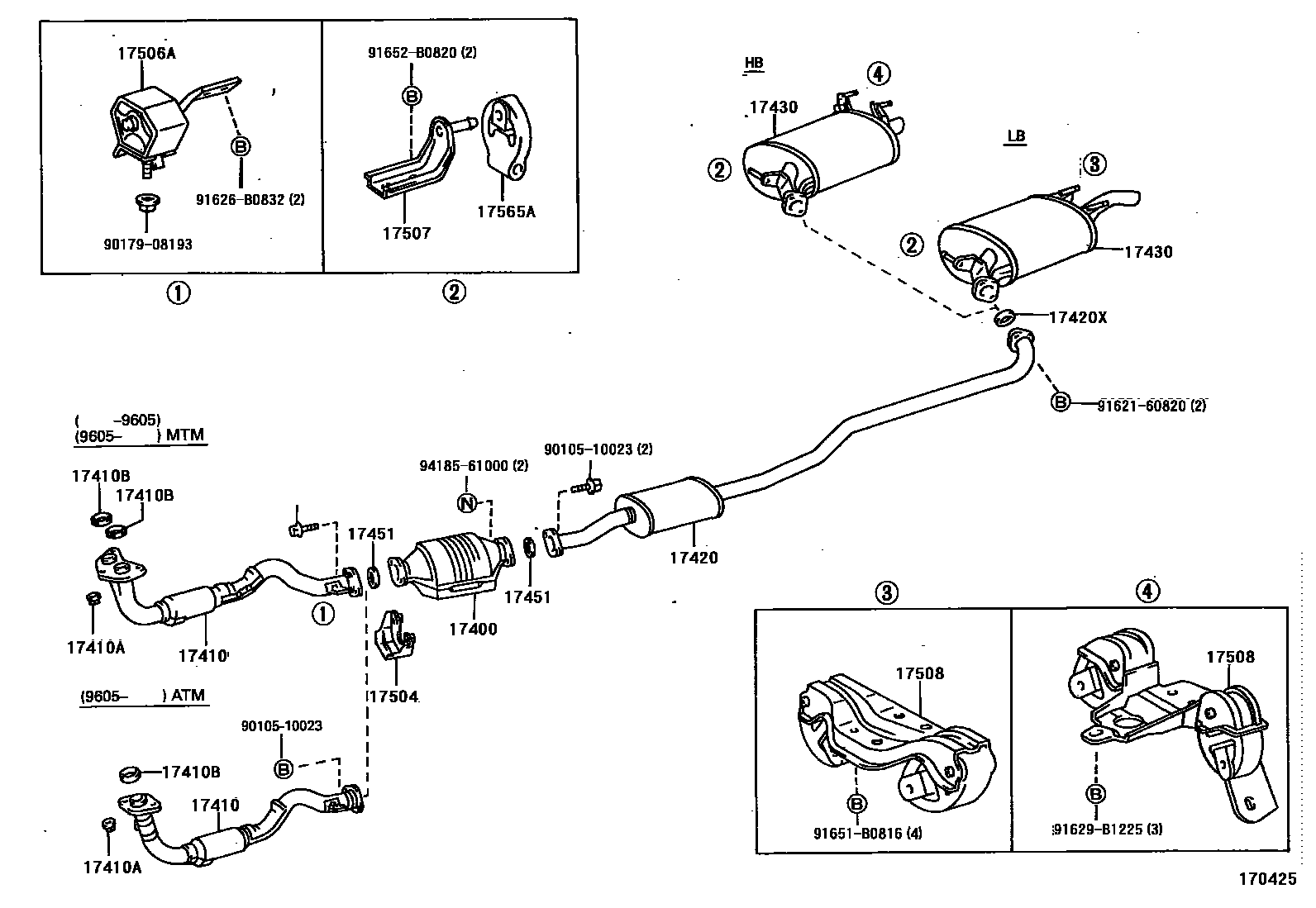

Toyota COROLLA Exhaust Pipe EPC diagram — 170425
Exhaust Pipe — 170425 (199205 – 999999)

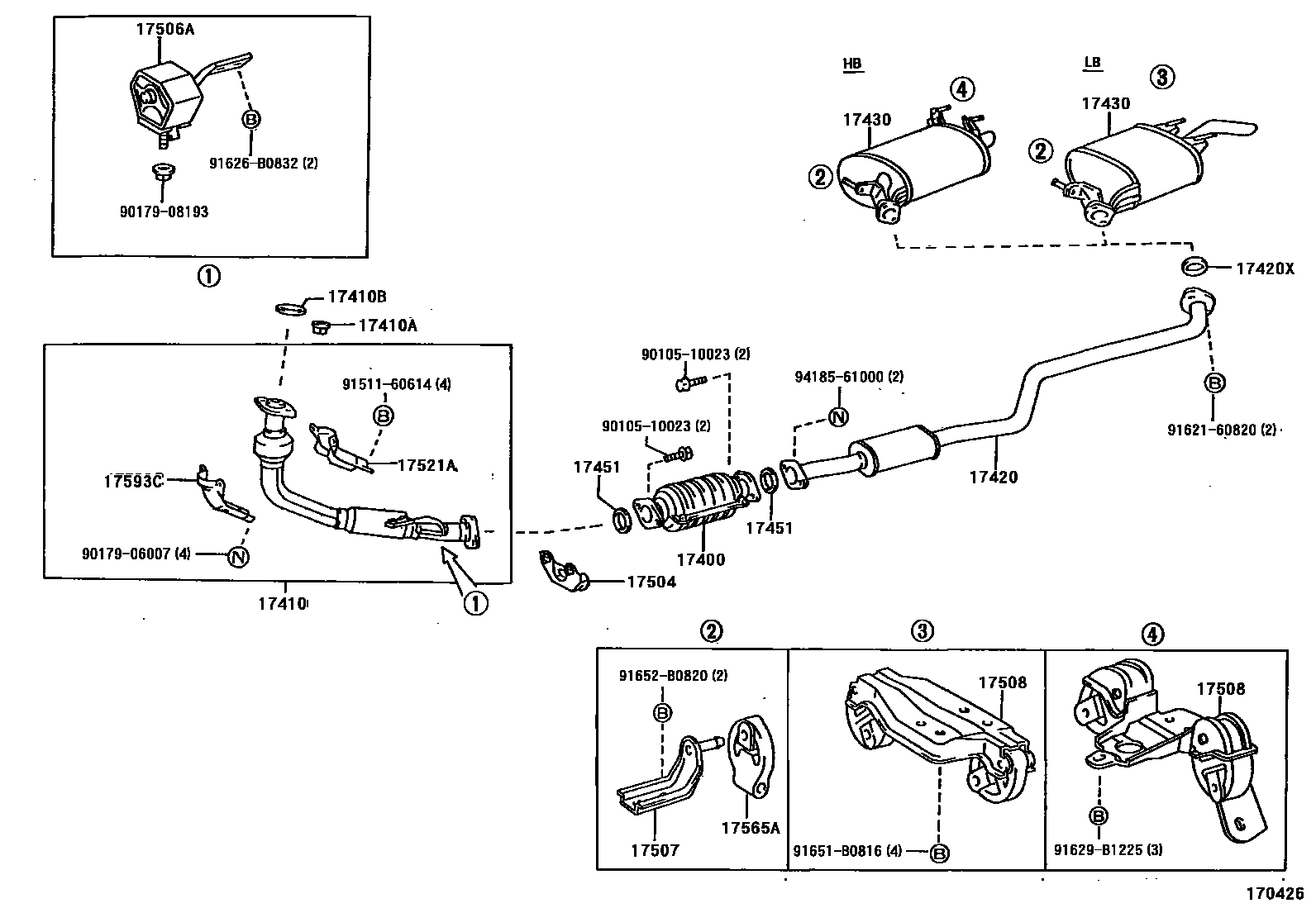

Toyota COROLLA Exhaust Pipe EPC diagram — 170426
Exhaust Pipe — 170426 (199305 – 999999)

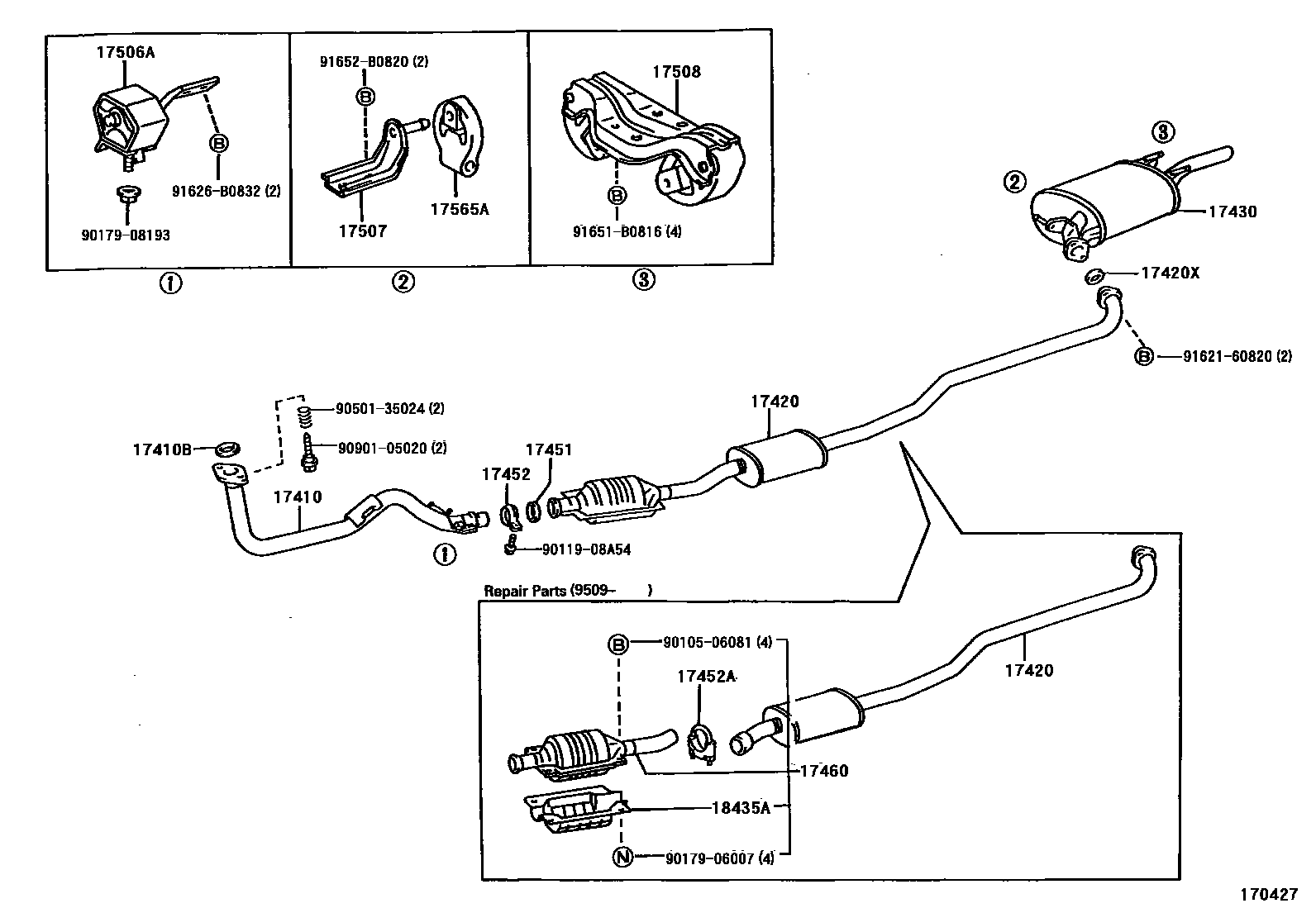

Toyota COROLLA Exhaust Pipe EPC diagram — 170427
Exhaust Pipe — 170427 (199505 – 999999)

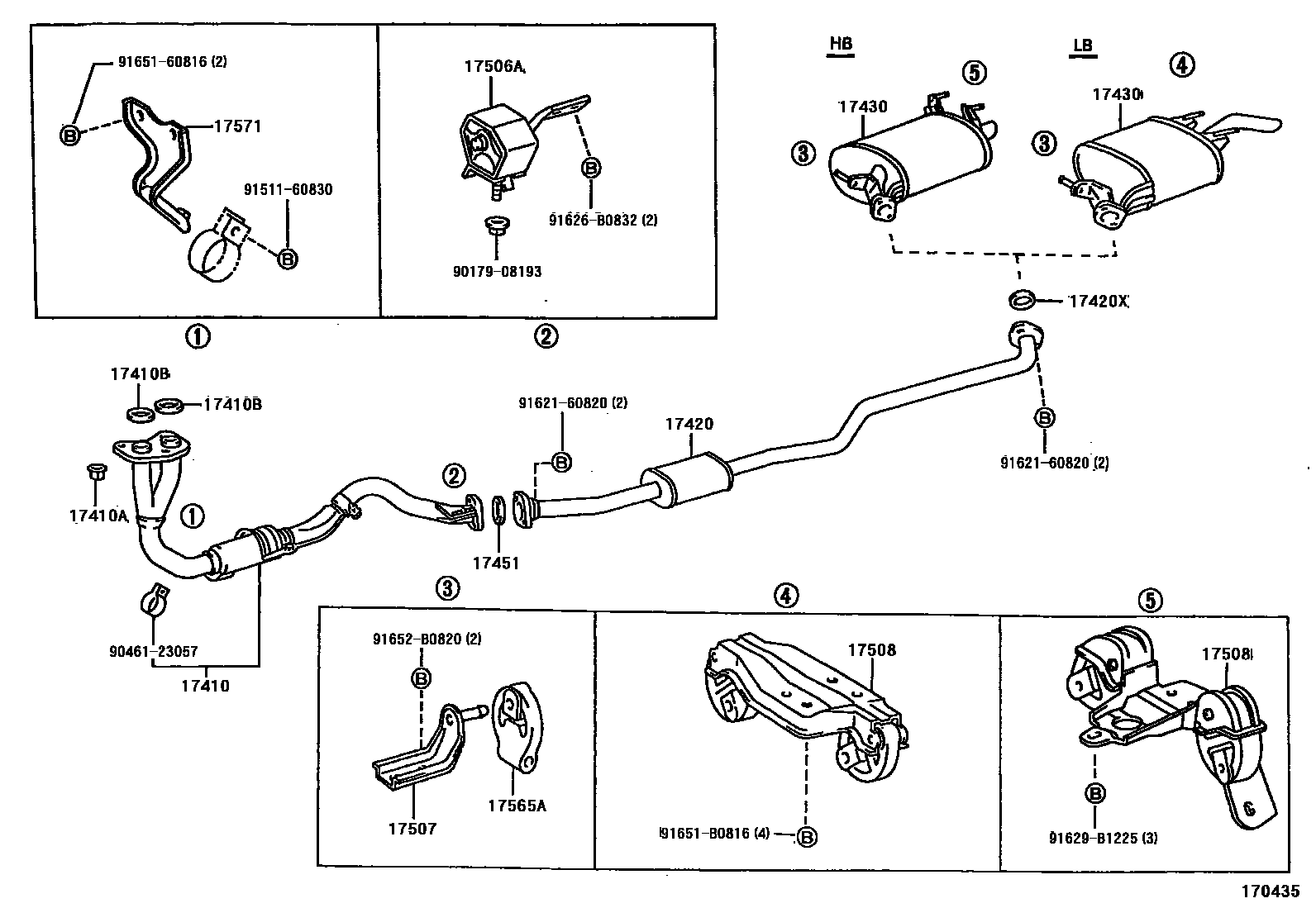

Toyota COROLLA Exhaust Pipe EPC diagram — 170435
Exhaust Pipe — 170435 (199205 – 199505)

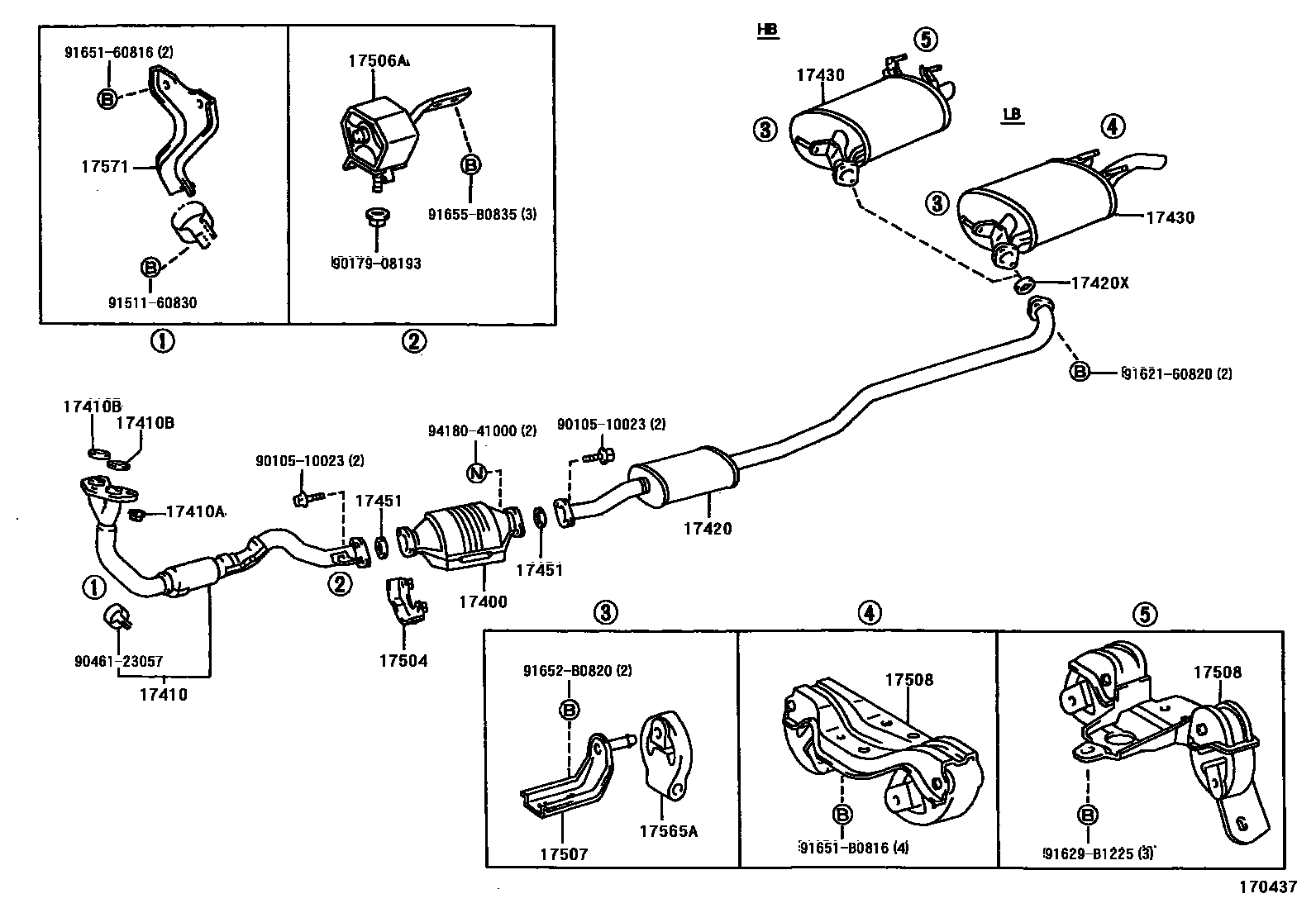

Toyota COROLLA Exhaust Pipe EPC diagram — 170437
Exhaust Pipe — 170437 (199205 – 199505)

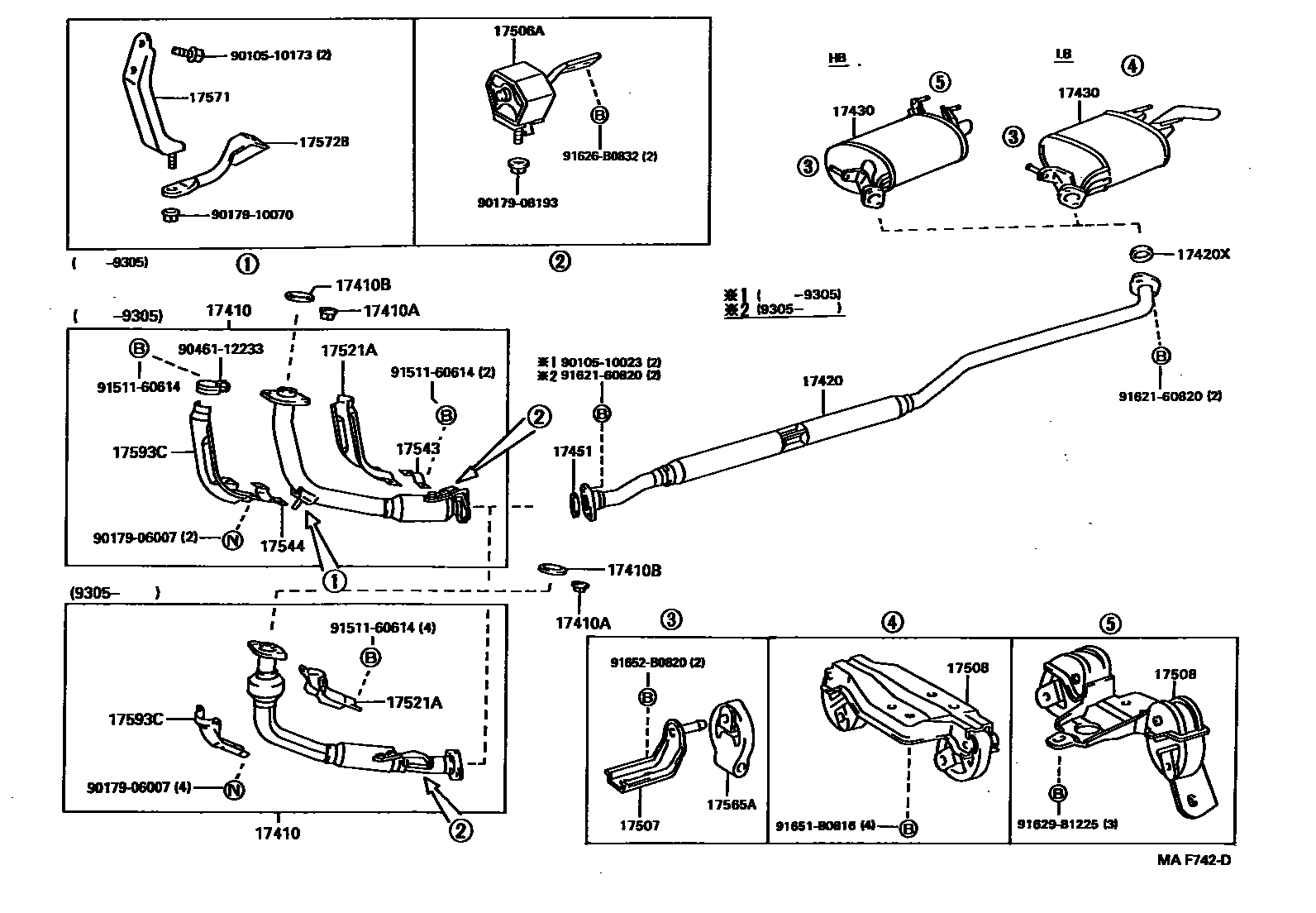

Toyota COROLLA Exhaust Pipe EPC diagram — MAF742D
Exhaust Pipe — MAF742D (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-16250 · 18450-16610 · 18450-64010
17410Front exhaust pipe assembly17410-11580 · 17410-11610 · 17410-11810 · 17410-1A030 · 17410-1A040 · 17410-1A360 · 17410-64532 · 17410-64600 · 17410-64601
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket90917-06061 · 90917-06065 · 90917-06069 · 90917-06077 · 90917-06080
17420Central exhaust pipe assembly17420-11230 · 17420-11350 · 17420-11360 · 17420-16580 · 17420-16590 · 17420-64131 · 17420-64200 · 17420-64210
17420XCenter exhaust pipe liner90917-06074
17430Exhaust tailpipe assembly17430-11640 · 17430-1A220 · 17430-1A290 · 17430-1A300 · 17430-64680 · 17430-64770
17451Exhaust pipe gasket90917-06043 · 90917-06045 · 90917-06057 · 90917-06074 · 90917-06082
17452Exhaust pipe clamp90461-15013
17452AExhaust pipe clamp17452-16120
17460Three-way catalytic converter assembly with tube17460-11020
17504Three-way catalytic converter bracket sub-assembly17504-16011 · 17504-42010 · 17582-41030
17506ANo. 1 exhaust pipe bracket sub-assembly17506-15070 · 17506-15080 · 17506-16090 · 17506-16120 · 17506-16140
17507No. 2 exhaust pipe bracket sub-assembly17507-15040
17508No. 3 exhaust pipe bracket sub-assembly17508-15050 · 17508-16070 · 17508-16080
17521ANo. 1 upper exhaust pipe protection device17521-64040 · 17521-64100
17543No. 3 exhaust pipe protection device stay17543-64010
17544No. 4 exhaust pipe protection device stay17544-64010
17565ANo. 4 exhaust pipe lifting lug17565-16230
17571No. 1 exhaust pipe bracket17571-11110 · 17571-11190 · 17571-64130
17572BNo. 2 exhaust pipe bracket17572-64120
17593CNo. 1 lower exhaust pipe protection device17593-64040 · 17593-64090
18435AIntegrated three-way catalytic converter protection device18435-11020
