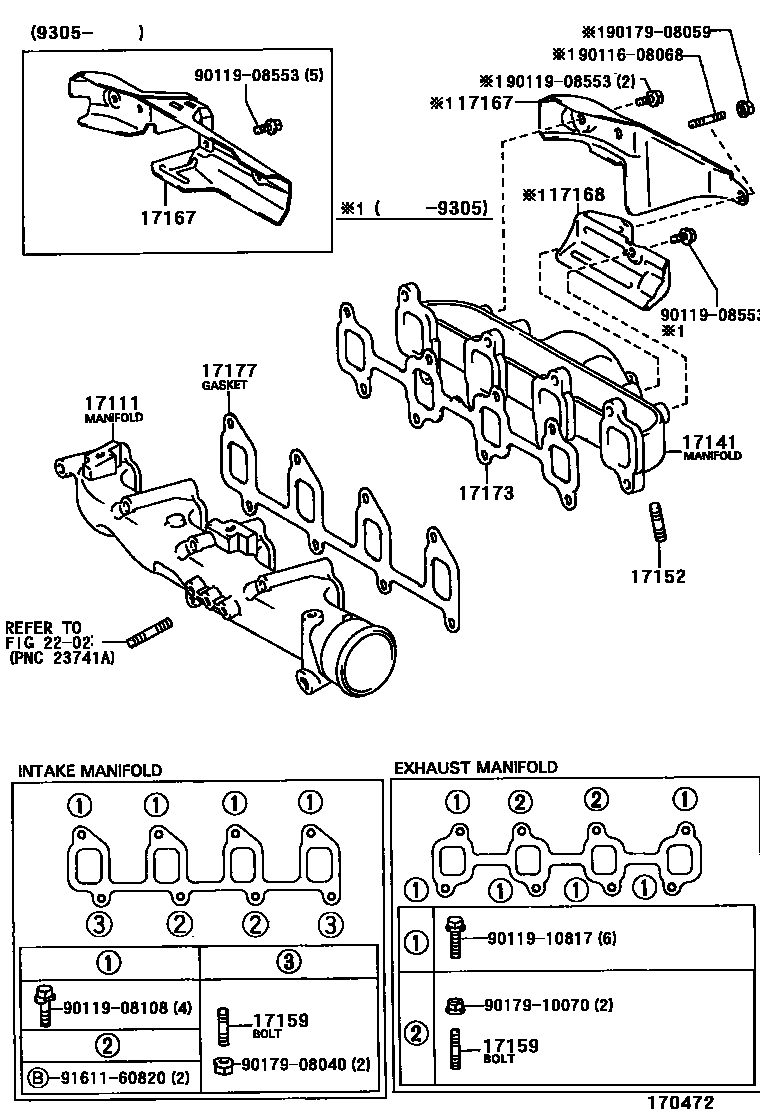

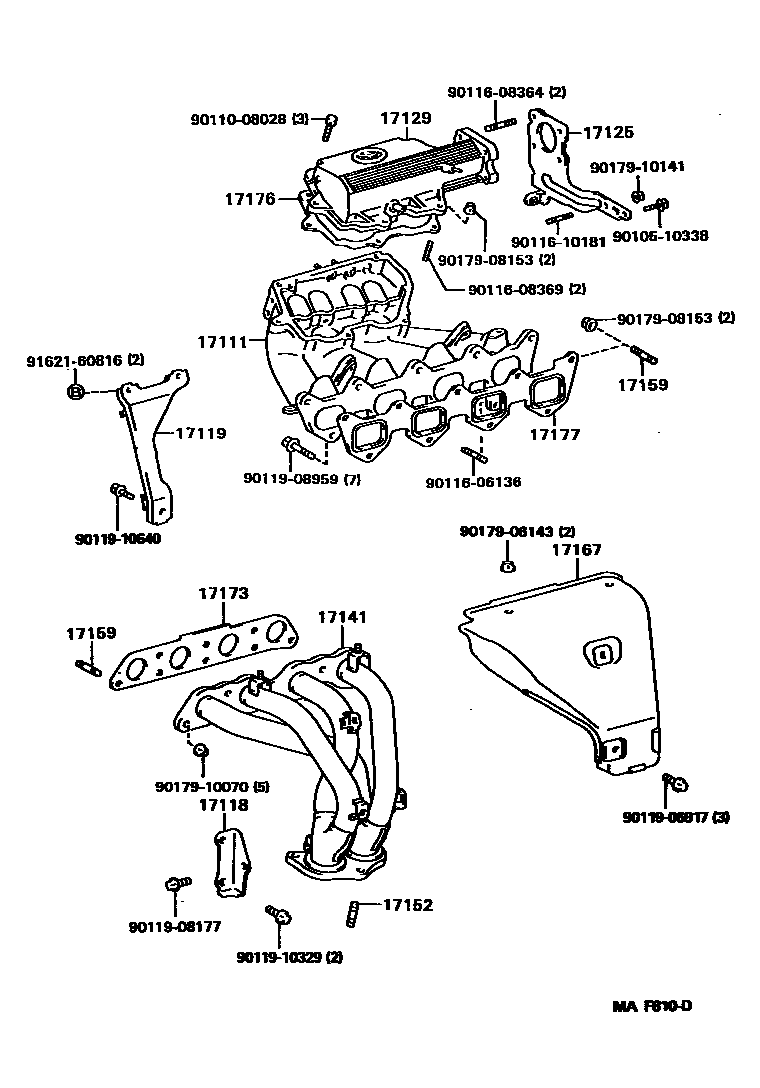

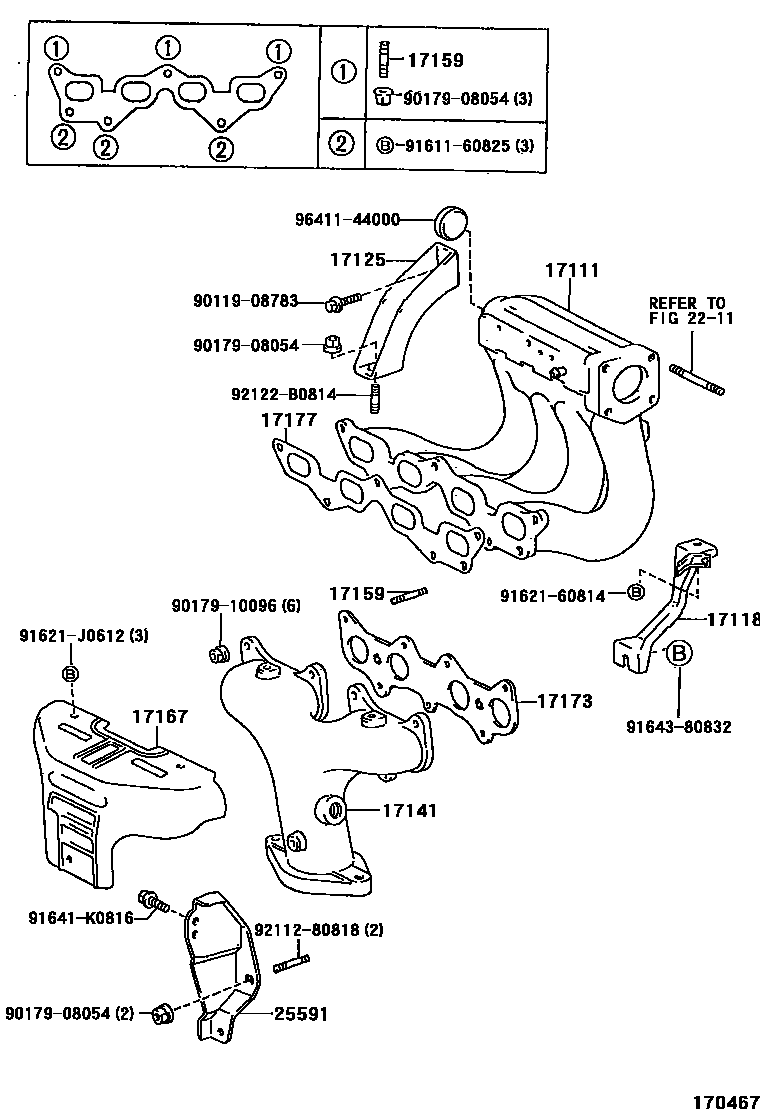

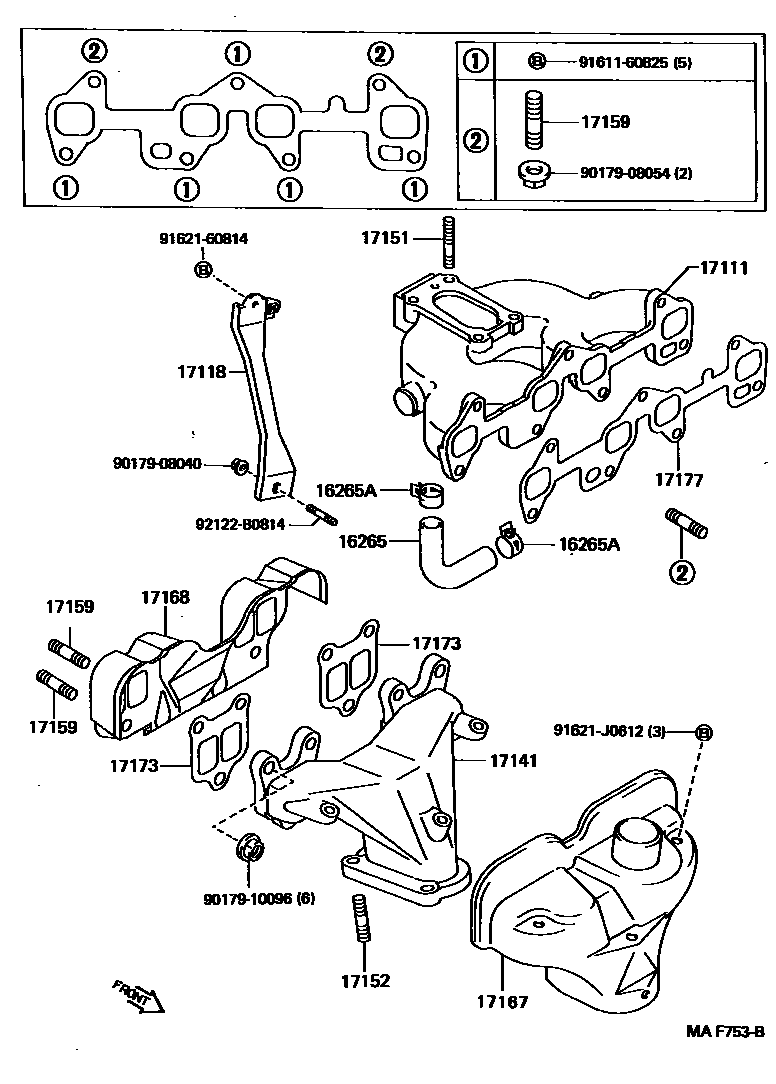

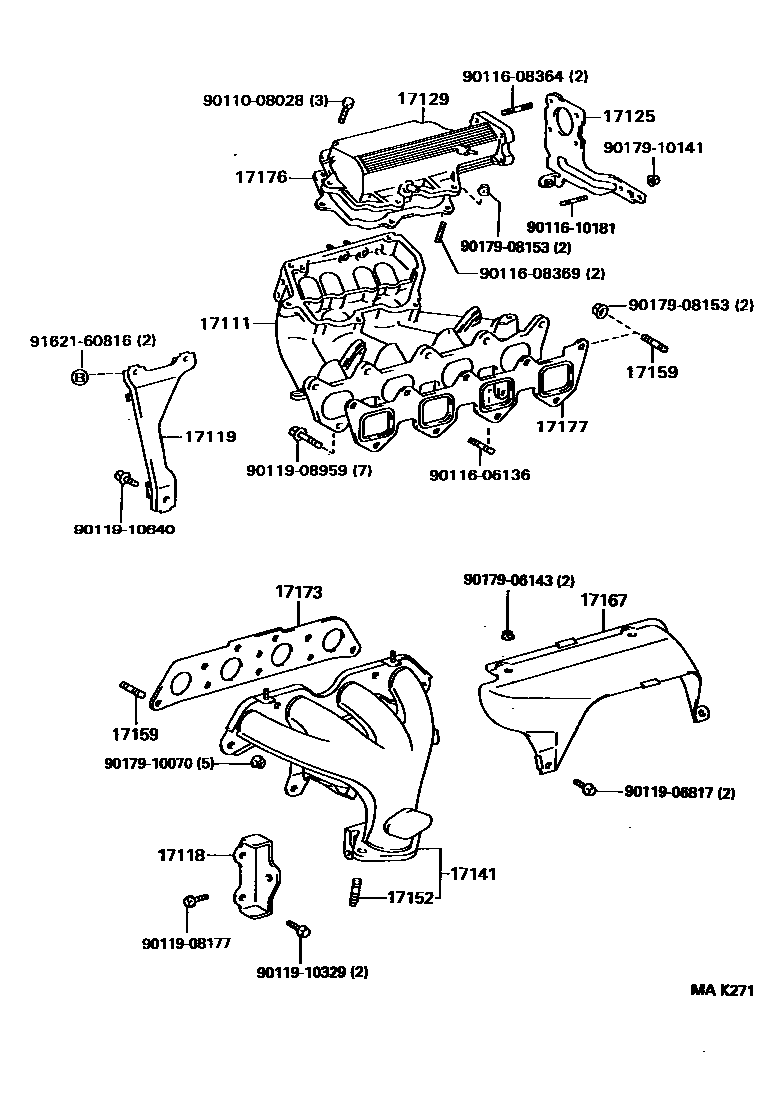

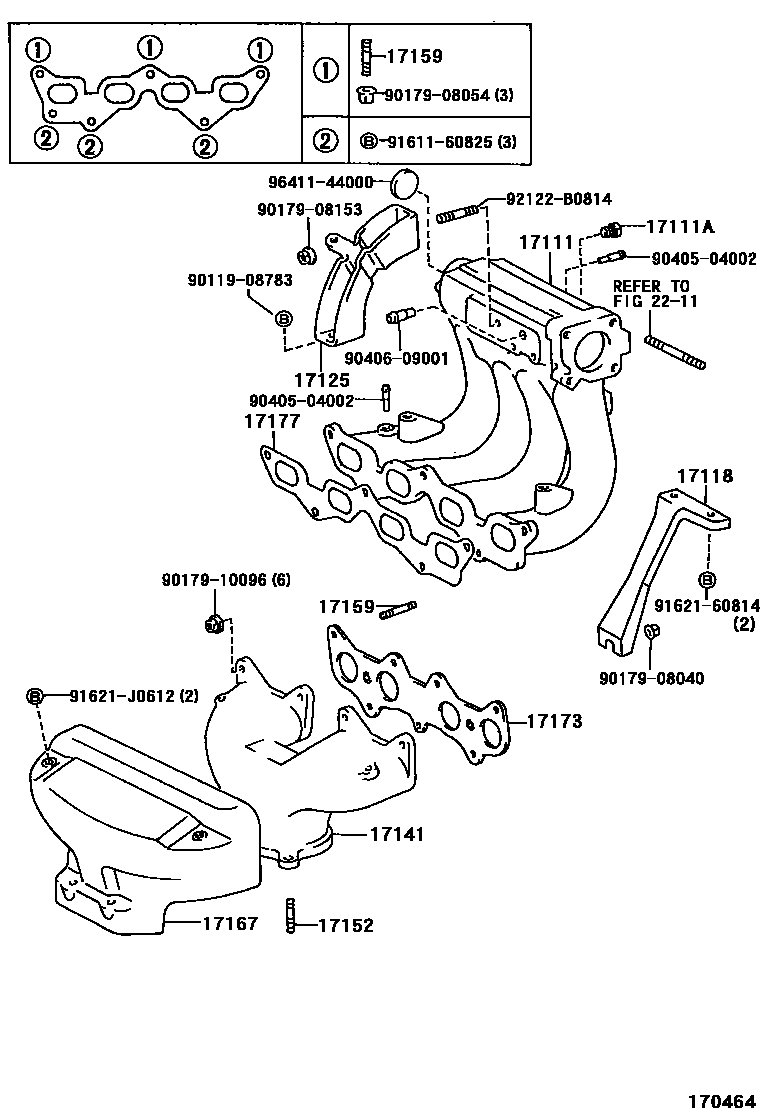

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 16265-11010 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-21001 |
| 17111 | Intake Manifold | 17101-11210 · 17101-11231 · 17101-11330 · 17101-16190 · 17101-16200 · 17111-64150 · 17111-64180 |
| 17111A | No. 1 screw plug | 90345-51006 · 90345-51008 |
| 17118 | Manifold stays | 17118-02080 · 17118-11110 · 17118-11130 · 17118-11280 · 17118-16100 · 17118-16140 |
| 17119 | No. 2 manifold stay | 17012-15010 · 17012-16020 |
| 17125 | No. 1 pressure tank stay | 17125-11030 · 17125-11050 · 17125-15020 · 17125-16080 |
| 17129 | Intake pressure tank | 17109-15010 · 17109-16030 |
| 17141 | exhaust manifold | 17141-11041 · 17141-11210 · 17141-11320 · 17141-16320 · 17141-16330 · 17141-16371 · 17141-64091 · 17141-64101 · 17141-64200 · 17141-64210 |
| 17151 | Studs (for manifold to carburetor) | 92122-40828 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10058 · 90116-10146 · 90126-10003 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10095 · 90116-10131 · 90116-10196 · 90126-10017 · 92112-60825 · 92112-61028 · 92122-60820 · 92122-61025 · 92122-61028 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-11030 · 17167-02050 · 17167-11260 · 17167-11310 · 17167-16170 · 17167-16171 · 17167-64070 · 17167-64090 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-10011 · 17168-64050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-10021 · 17173-11040 · 17173-15040 · 17173-64060 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-15010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15030 · 17177-10020 · 17177-11020 · 17177-11021 · 17177-11070 · 17177-64020 |
| 25591 | Manifold bracket | 25591-11080 |
