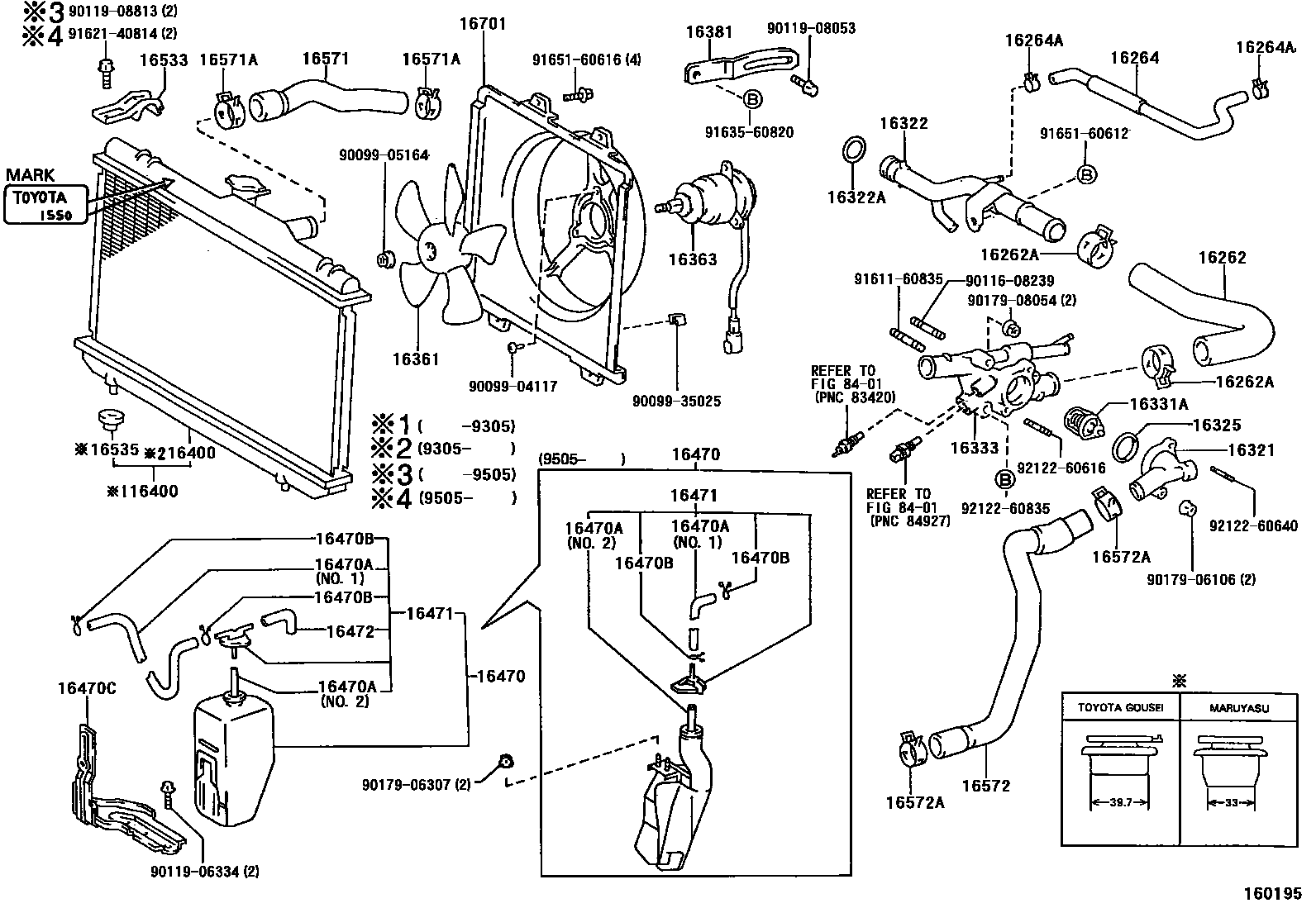

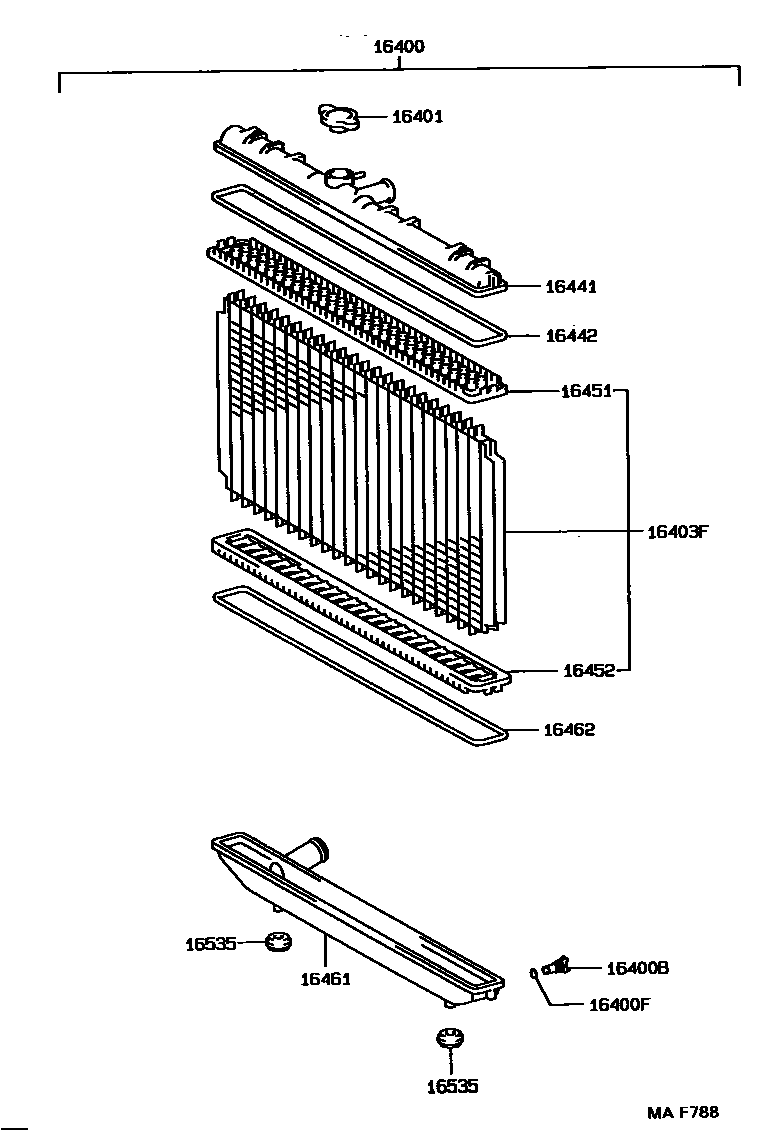

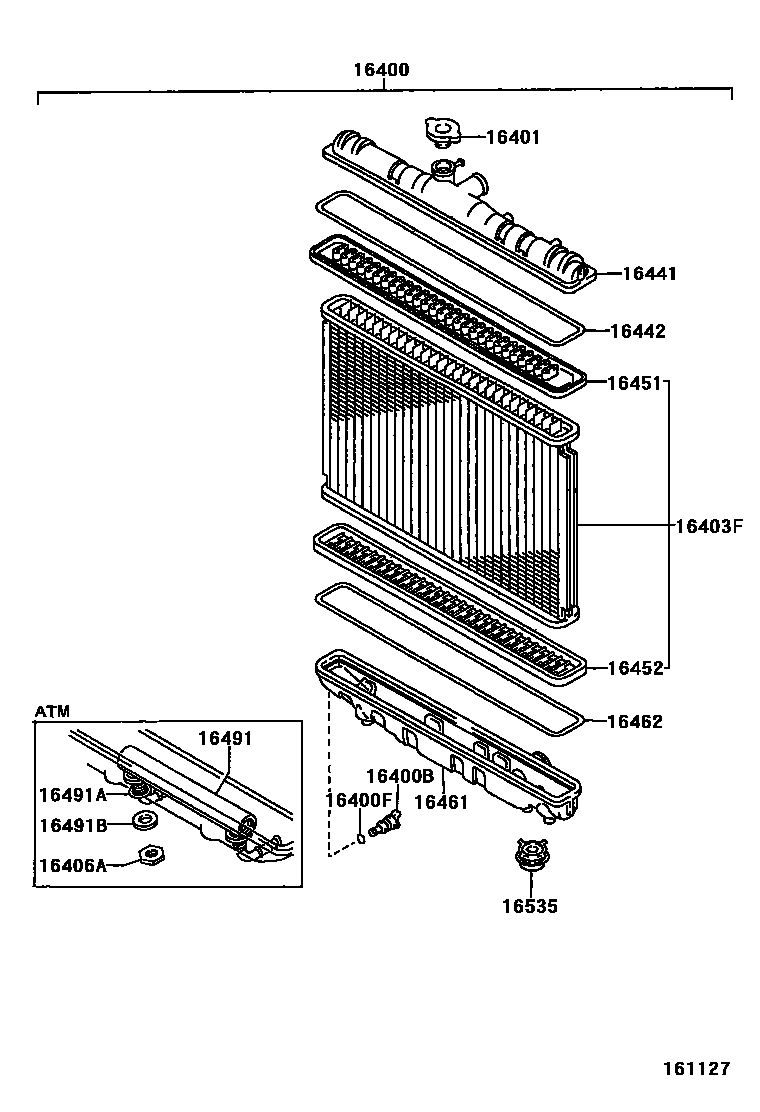

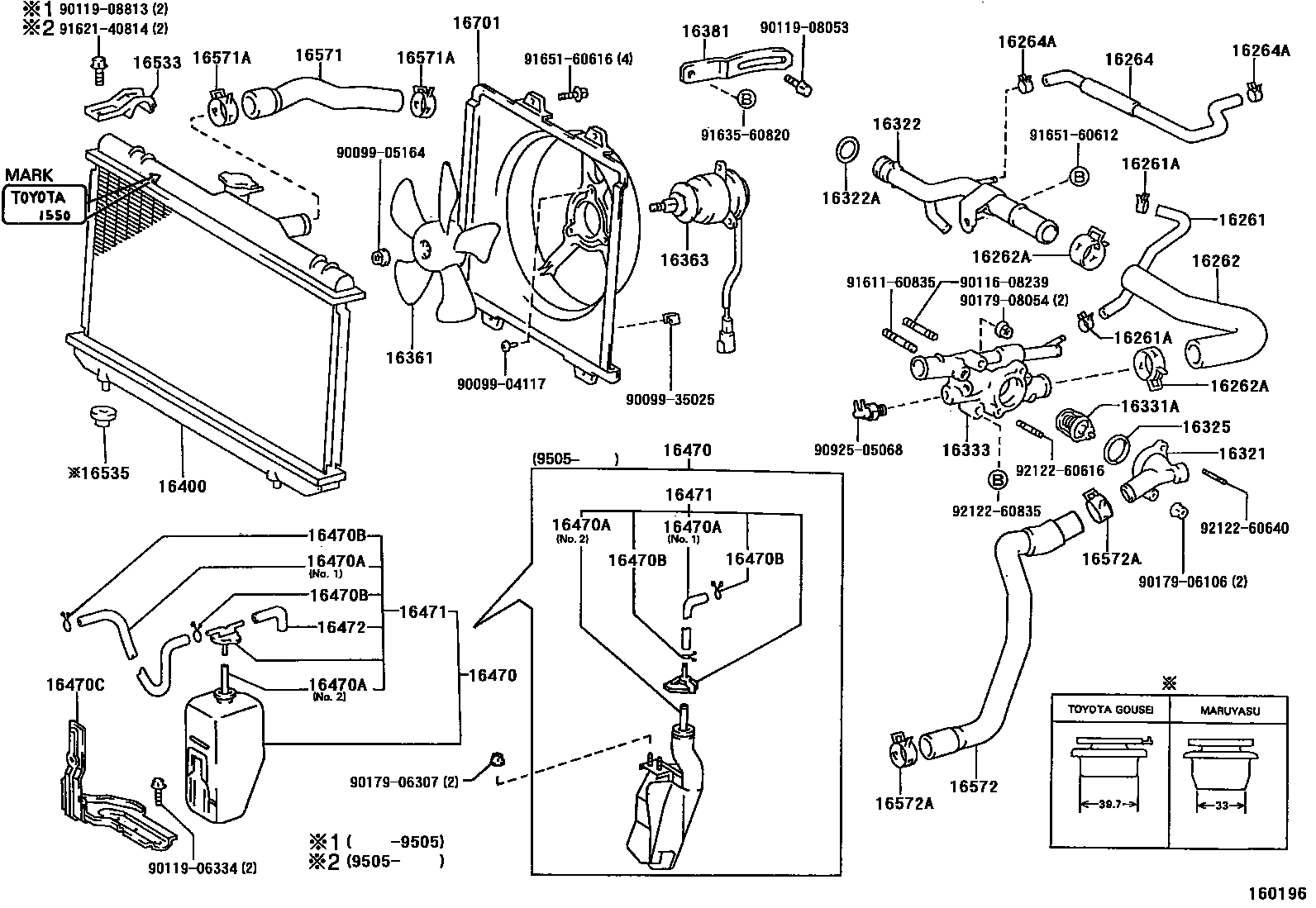

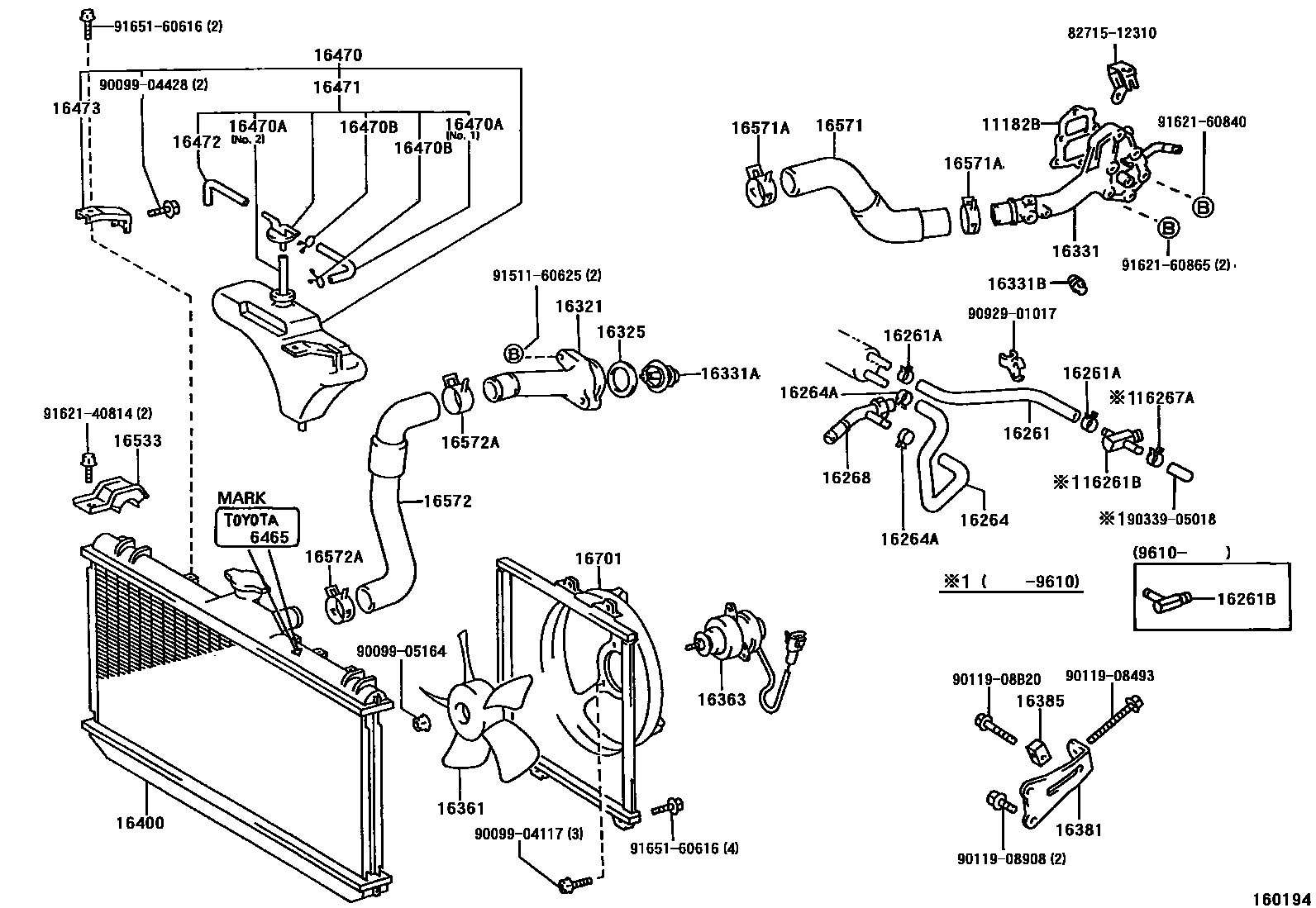

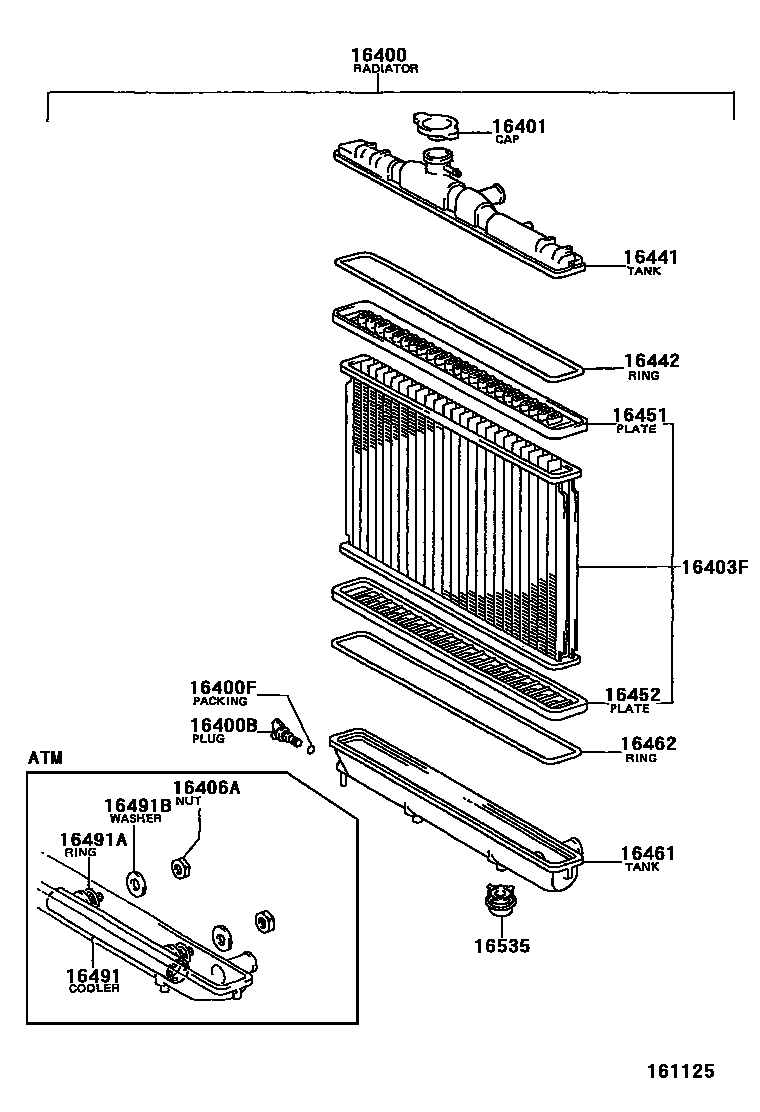

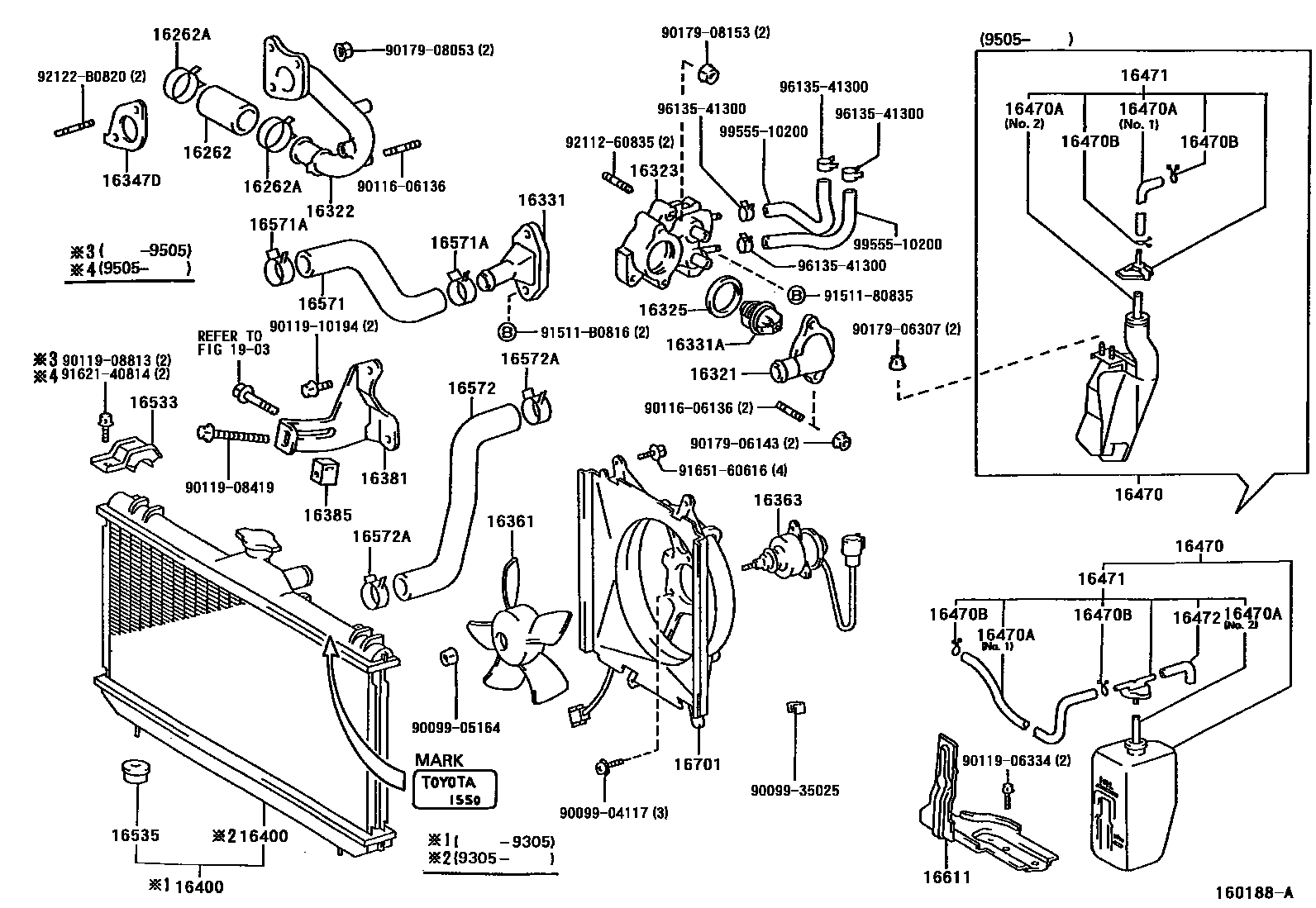

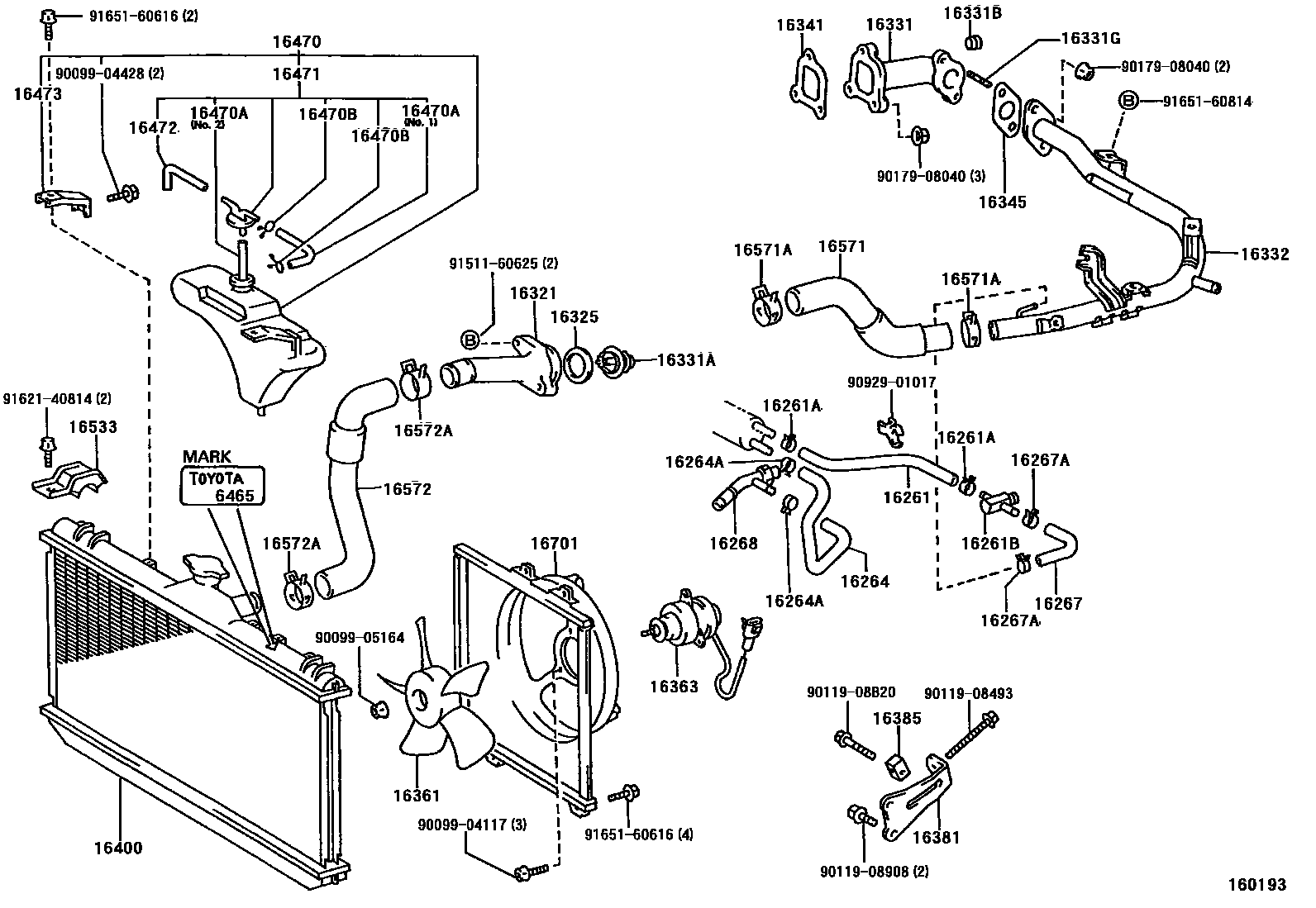

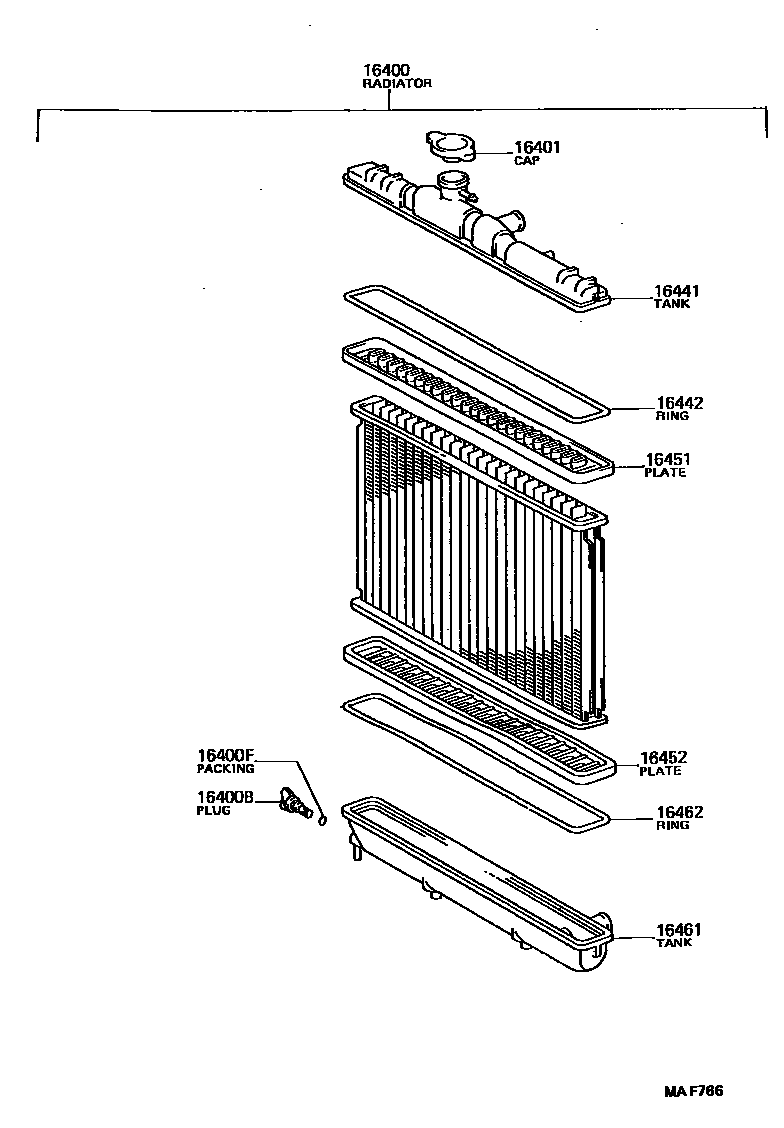

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11182B | Rear cylinder head gasket | 11182-64021 |
| 16261 | HOSE, WATER BY-PASS | 16261-11030 · 16261-64060 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-15022 |
| 16261B | Connector (for water bypass hose) | 90404-53050 · 90404-53075 |
| 16262 | water inlet hose | 16262-10010 · 16262-10011 · 16262-10020 · 16262-10022 · 16262-15040 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-37002 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11050 · 16264-11051 · 16264-11090 · 16264-64090 · 16265-11040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-13001 · 90467-15022 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-64010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-64061 |
| 16321 | water inlet | 16321-11011 · 16321-15040 · 16321-64020 |
| 16322 | PIPE, WATER INLET | 16322-11081 · 16322-11161 · 16322-11162 · 16322-15050 · 16322-16060 |
| 16322A | O-RING, WATER INLET | 96711-35028 · 96761-35028 |
| 16323 | HOUSING, WATER INLET | 16323-16420 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-15080 · 16331-64030 · 16331-64070 · 16331-64120 |
| 16331A | thermostat | 90916-03046 · 90916-03115 |
| 16331B | Screw plug (for water outlet) | 90345-53030 |
| 16331G | Stud bolts (for water inlet) | 92122-60816 |
| 16332 | No. 1 outlet pipe | 16306-64021 |
| 16333 | Water outlet shell | 16333-11160 · 16333-11190 · 16333-11210 |
| 16341 | GASKET, WATER OUTLET | 16341-64021 |
| 16345 | Outlet pipe gasket | 16345-64041 |
| 16347D | water bypass liner | 16347-15010 |
| 16361 | Fan | 16361-02050 · 16361-11010 · 16361-11020 · 16361-63020 |
| 16363 | cooling fan motor | 16363-02040 · 16363-15120 · 16363-74020 |
| 16381 | Fan belt adjustment lever | 16381-11030 · 16381-15080 · 16381-64080 |
| 16385 | Fan belt adjustment slider | 16385-15020 · 16385-64011 |
| 16400 | Radiator assembly | 16400-15500 · 16400-15501 · 16400-15530 · 16400-15531 · 16400-15690 · 16400-16490 · 16400-16491 · 16400-64630 · 16400-64631 · 16400-64650 · 16400-64651 · 16400-64720 · 16400-64721 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-15520 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-15500 · 16403-15700 · 16403-16440 · 16403-16490 · 16403-64630 · 16403-64640 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16441 | Radiator water tank | 16441-15500 · 16441-15520 · 16441-16490 · 16441-64640 |
| 16442 | O-ring (for radiator tank) | 16442-11380 · 16442-15520 · 16442-16490 · 16462-62050 |
| 16451 | Radiator core upper plate | 16451-11380 · 16451-15520 · 16451-16490 · 16452-62050 |
| 16452 | Radiator core lower plate | 16452-11420 · 16452-15520 · 16452-16490 · 16452-62050 |
| 16461 | Radiator lower tank | 16461-15480 · 16461-15500 · 16461-15520 · 16461-16490 · 16461-64650 |
| 16462 | O-ring (for radiator lower tank) | 16462-11420 · 16462-15520 · 16462-16490 · 16462-62050 |
| 16470 | Radiator reservoir assembly | 16470-15080 · 16470-15081 · 16470-15090 · 16470-64130 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16471-15080 · 16471-64130 · 16478-15090 · 16478-64130 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16611-15020 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15090 · 16405-15091 · 16405-15100 · 16405-64080 |
| 16472 | Breather hose | 16477-15080 · 16477-64130 |
| 16473 | Bracket (for radiator reservoir) | 16473-64130 |
| 16491 | Oil cooler (for ATM) | 16491-11310 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16533 | Radiator upper bracket | 16533-02020 · 16533-15120 · 16533-15130 · 16533-64120 · 16533-64160 |
| 16535 | Radiator lower support | 16535-15050 · 16535-74010 · 16535-74070 · 90916-04002 · 90916-04003 |
| 16571 | Radiator water inlet hose | 16571-02030 · 16571-02040 · 16571-02060 · 16571-11130 · 16571-15160 · 16571-16180 · 16571-64160 · 16571-64250 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-34003 · 90467-37002 · 90467-37005 |
| 16572 | Radiator outlet hose | 16572-02030 · 16572-02050 · 16572-11220 · 16572-11230 · 16572-11231 · 16572-15210 · 16572-16150 · 16572-64200 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-34003 · 90467-37002 |
| 16611 | Radiator reservoir bracket | 16611-15020 |
| 16701 | Fan cover sub-assembly | 16711-02050 · 16711-02051 · 16711-15260 · 16711-15261 · 16711-15270 · 16711-15271 · 16711-15280 · 16711-15281 · 16711-16220 · 16711-16221 · 16711-16230 · 16711-16231 · 16711-64300 · 16711-64301 · 16711-64400 · 16711-64401 |
