Toyota COROLLA Crankshaft & Piston — Figure 1301

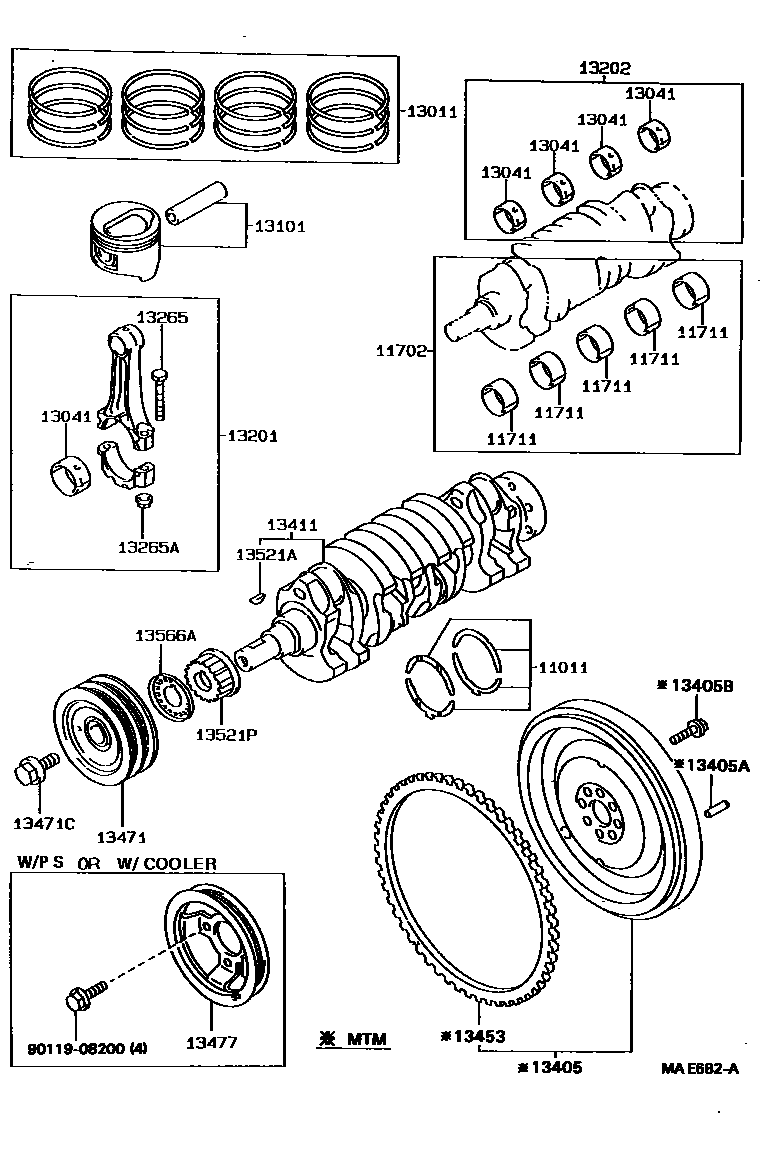

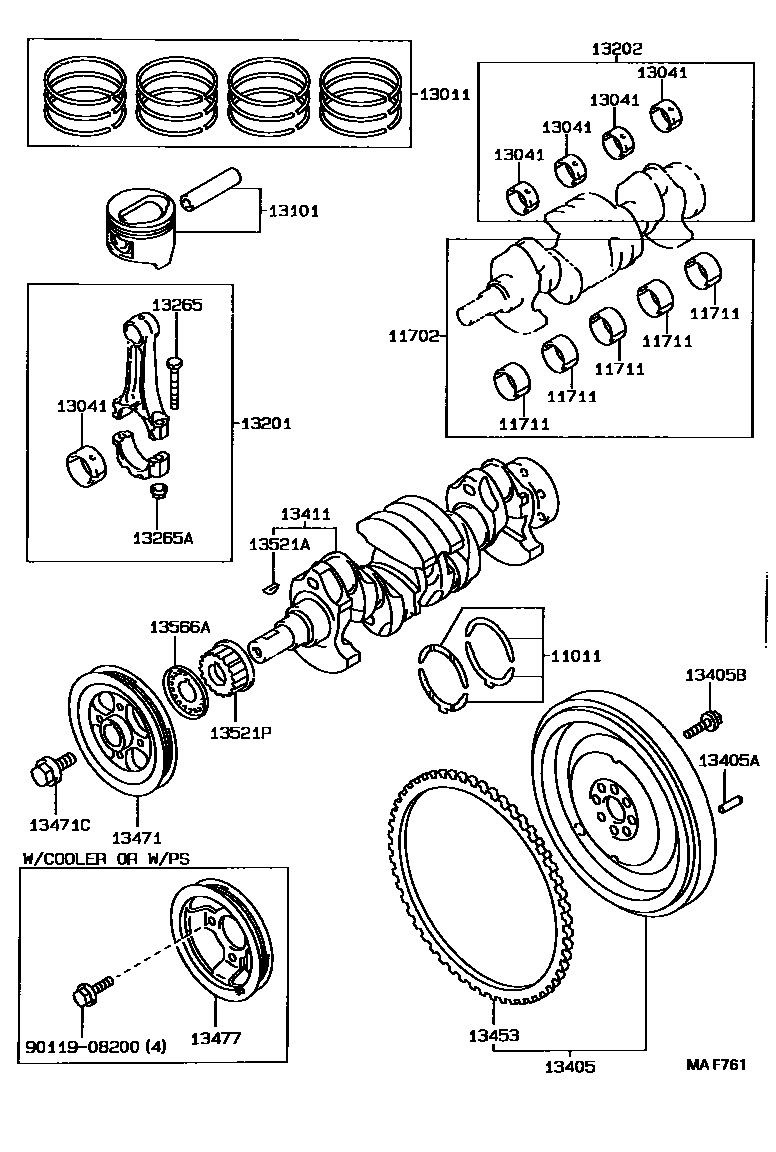

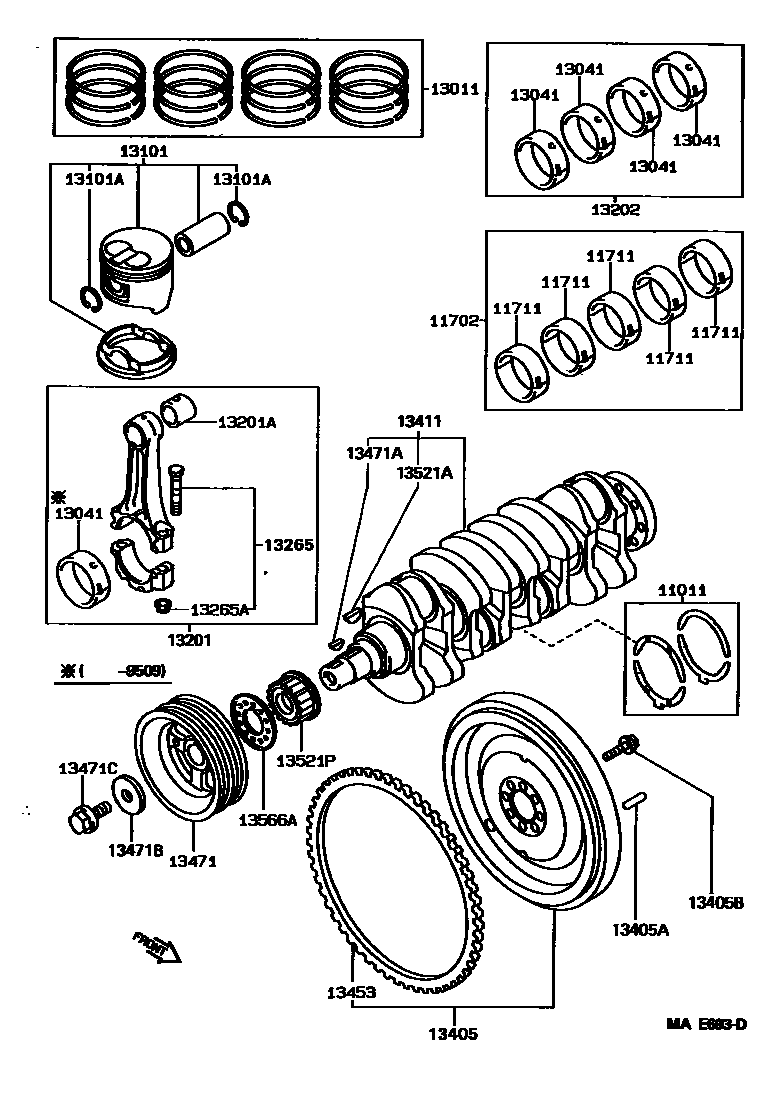

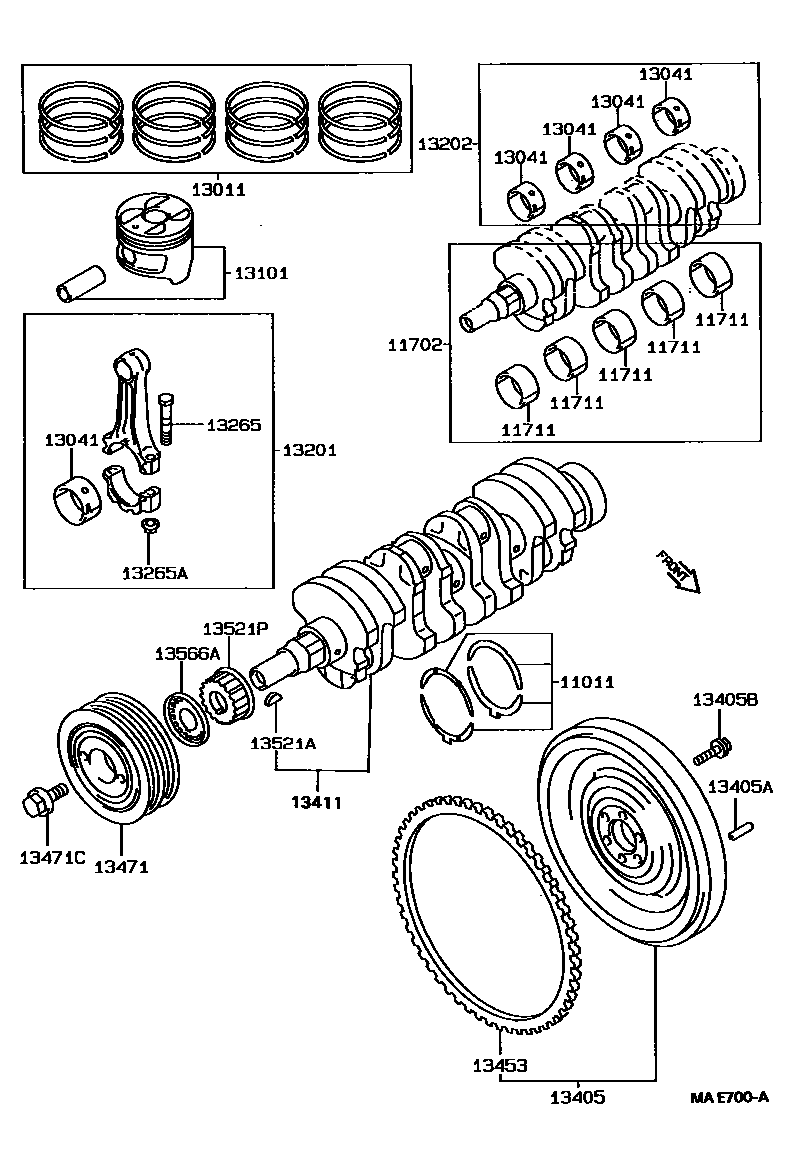

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-10010 · 11011-15010 · 11011-15020 · 11011-64010 · 11012-10020 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-10011 · 11704-10012 · 11704-16010 · 11704-16030 · 11704-64040 · 11704-64070 · 11704-64071 |
| 13011 | Piston ring assembly | 13011-11063 · 13011-11072 · 13011-11122 · 13011-11150 · 13011-16260 · 13011-16300 · 13011-64190 · 13011-64191 · 13011-64212 · 13013-11063 · 13013-11072 · 13013-16260 · 13013-16300 · 13013-64190 · 13013-64191 · 13013-64212 |
| 13101 | Piston sub-assembly with pin | 13103-11090 · 13103-16190 · 13103-16200 · 13103-64140 · 13103-64141 · 13103-64190 |
| 13101A | Bore snap ring (for piston pin) | 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-19075 · 13201-19076 · 13201-19135 · 13201-19145 · 13201-64031 · 13201-64032 · 13201-69076 · 13201-69115 |
| 13201A | Bushing (for connecting rod small end) | 90999-73102 · 90999-73138 |
| 13202 | Connecting rod bearing assembly | 13204-10020 · 13204-15030 · 13204-16090 · 13204-64041 · 13204-64070 · 13204-64071 · 13204-64072 |
| 13265 | Connecting rod bolts | 13265-10020 · 13265-10022 · 13265-15030 · 13265-16050 · 13265-49015 · 13265-49045 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08014 · 90179-09008 · 90179-10042 |
| 13405 | Flywheel sub-assembly | 13405-11031 · 13405-15090 · 13405-64020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 · 90105-10071 · 90105-10138 |
| 13411 | crankshaft | 13401-11050 · 13401-11051 · 13411-02900 · 13411-02901 · 13411-16900 · 13411-16903 · 13411-64901 · 13411-64904 · 13411-64906 · 13411-64908 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-10030 · 13453-64011 |
| 13471 | crankshaft pulley | 13408-11012 · 13408-64060 · 13470-16050 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-20516 · 95161-30516 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90201-14030 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12051 · 90105-14089 · 90119-12230 · 90119-12314 |
| 13477 | No. 2 crankshaft pulley | 88451-12040 · 88451-12050 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 95161-20622 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-11010 · 13521-11020 · 13521-15020 · 13521-64011 |
| 13566A | timing belt guide | 13566-10011 · 13566-11020 · 13566-15020 · 13566-64011 |
