Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

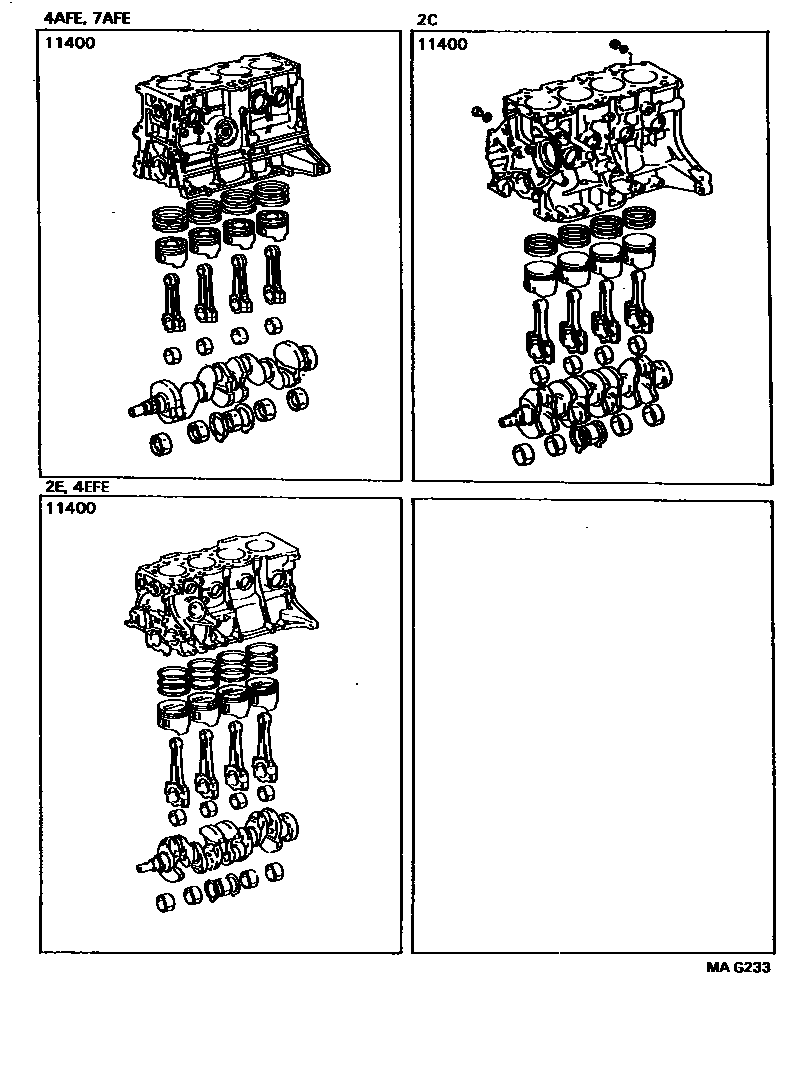

Toyota COROLLA Short Block Assembly EPC diagram — MAG233
Short Block Assembly — MAG233 (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-11080 · 11400-11081 · 11400-11082 · 11400-11092 · 11400-11093 · 11400-11130 · 11400-11131 · 11400-11132 · 11400-16370 · 11400-16380 · 11400-64370 · 11400-64480 · 11400-64520
