Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

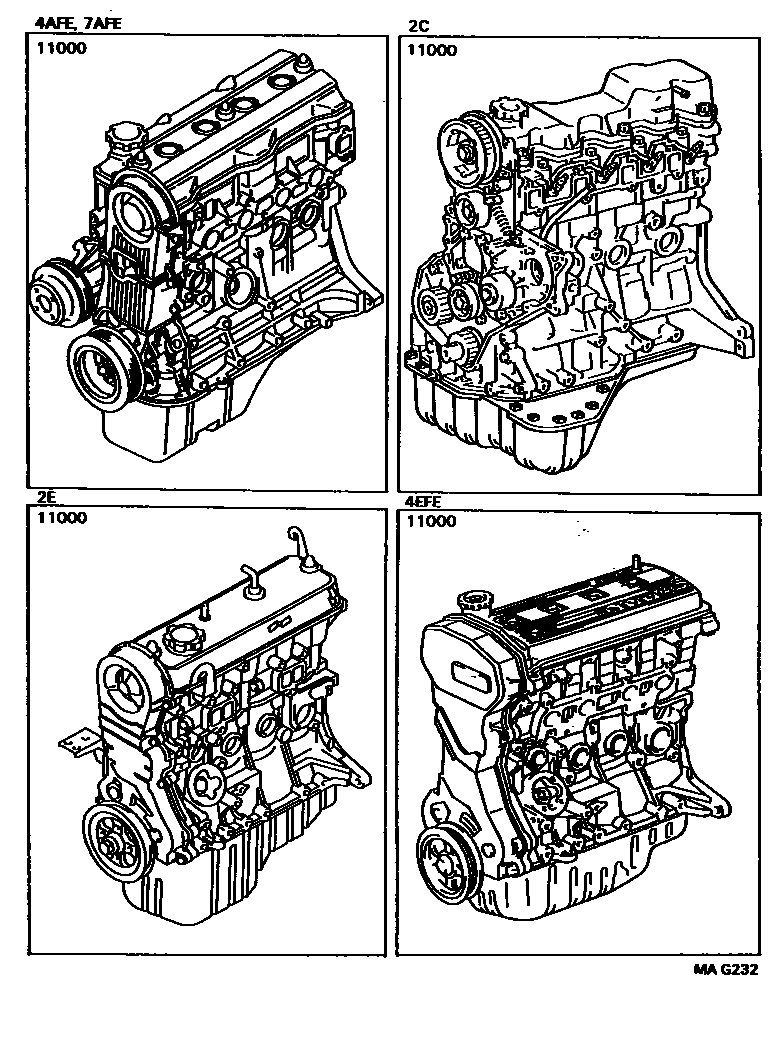

Toyota COROLLA Partial Engine Assembly EPC diagram — MAG232
Partial Engine Assembly — MAG232 (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-11560 · 19000-11590 · 19000-11670 · 19000-1A250 · 19000-1A260 · 19000-1A270 · 19000-64680 · 19000-64780 · 19000-64781 · 19000-64890 · 19000-6A090
