Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

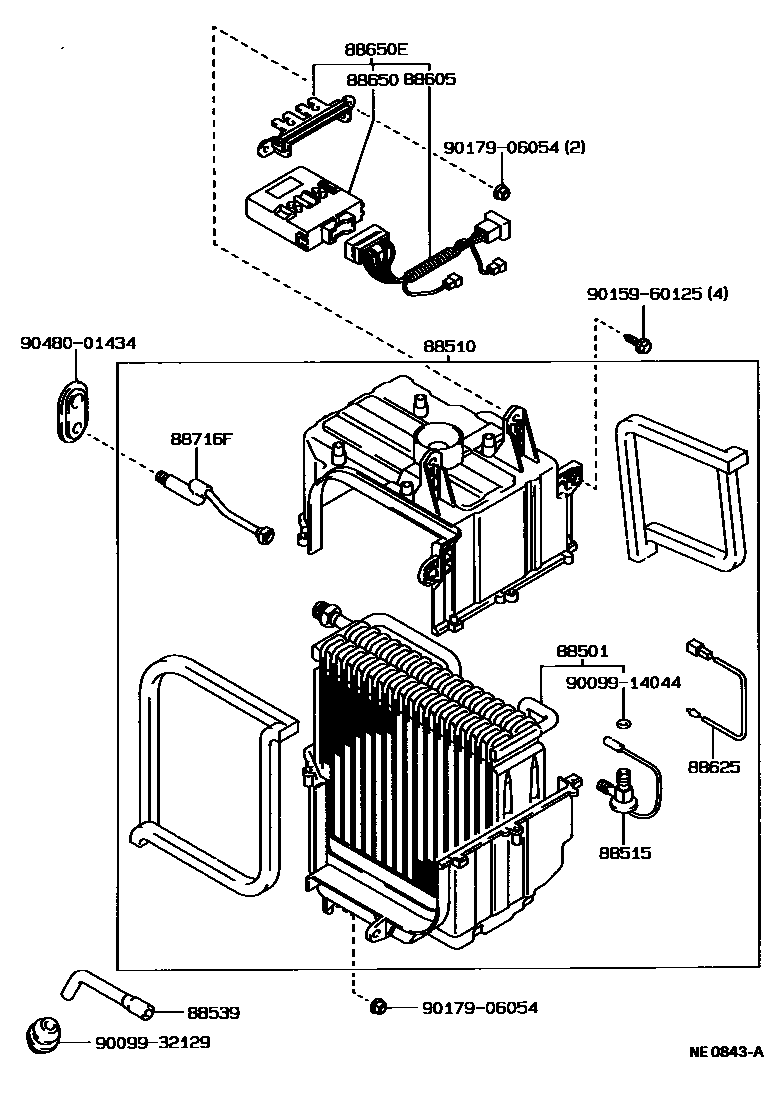

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12340 |
| 88510 | Cooler device assembly | 88510-12760 |
| 88515 | Cooler expansion valve | 88515-16040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12100 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1A270 · 88605-1A291 · 88605-1A292 · 88605-1A350 · 88605-1A370 · 88605-1E170 · 88605-1E171 · 88605-1E172 |
| 88625 | Cooler No. 1 Thermistor | 88625-12230 · 88625-32040 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12610 · 88650-12670 · 88650-12710 · 88650-12720 · 88650-1A010 · 88650-1A240 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-12460 · 88650-12461 · 88650-12462 · 88650-12463 · 88650-12481 · 88650-12482 · 88650-12540 · 88650-12560 · 88650-1A020 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-12310 |
