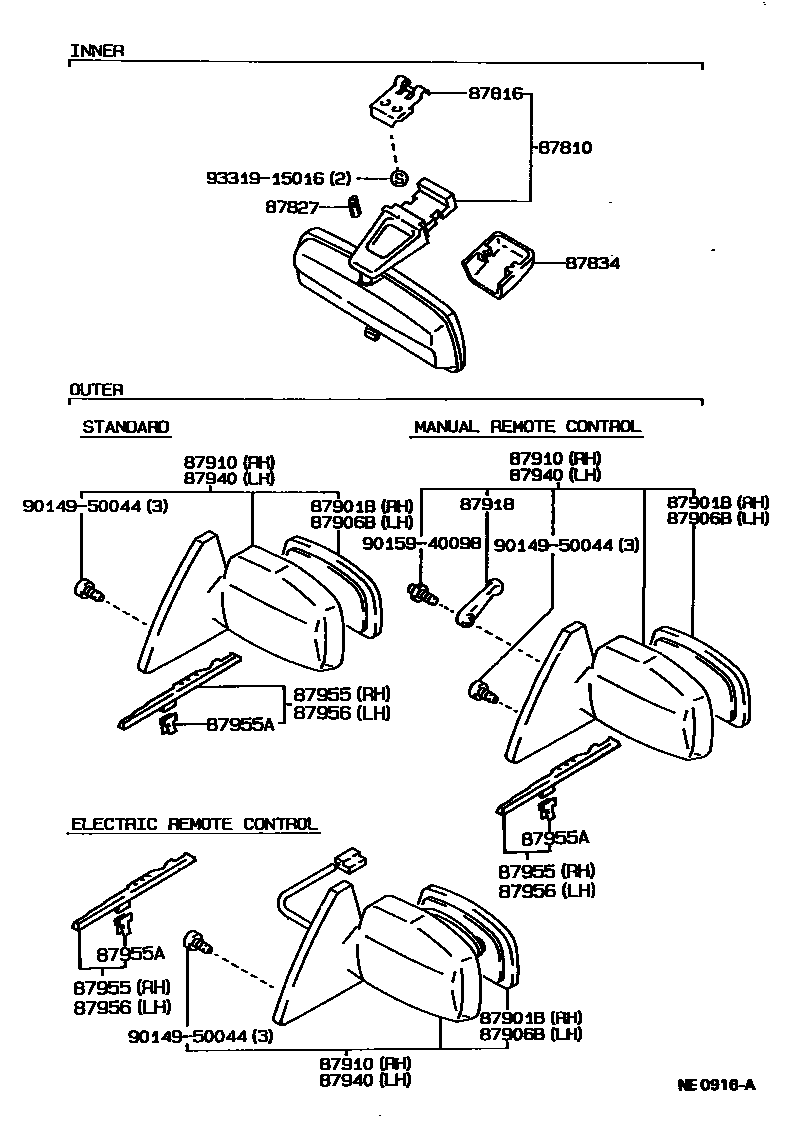

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-87003 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A280 · 87931-1A290 · 87931-1A310 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1A360 · 87961-1A370 · 87961-1A390 |
| 87910 | Right exterior rearview mirror assembly | 87910-1A260 · 87910-1A270 · 87910-1A280 · 87910-1A290 · 87910-1A300 · 87910-1A310 · 87910-1A520 · 87910-1A530 · 87910-1A540 · 87910-1A550 · 87910-1A560 · 87910-1A570 |
| 87918 | Exterior rearview mirror control handle | 87918-12020 · 87918-12030 |
| 87940 | Left exterior rearview mirror assembly | 87940-1A340 · 87940-1A350 · 87940-1A360 · 87940-1A370 · 87940-1A380 · 87940-1A390 · 87940-1A520 · 87940-1A530 · 87940-1A540 · 87940-1A550 · 87940-1A560 · 87940-1A570 |
| 87955 | Right exterior mirror base lower pad | 87955-12040 · 87955-12050 |
| 87955A | Door glass seal strip clip | 68211-12160 |
| 87956 | Left side exterior mirror base lower pad | 87956-12040 · 87956-12050 |
