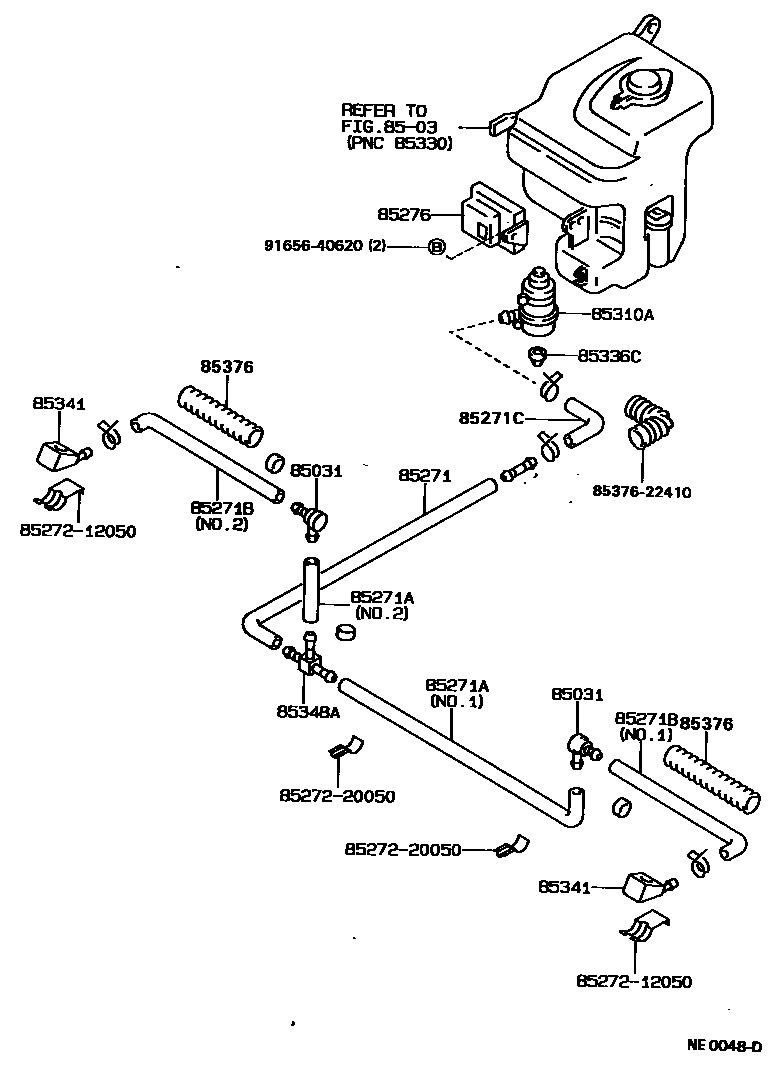

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271 | No. 1 headlight washer hose | 85375-12380 · 85375-12760 |
| 85271A | No. 2 headlight washer hose | 85343-12050 · 85376-14301 · 85377-12510 · 90445-14071 |
| 85271B | No. 3 headlight washer hose | 85375-12510 · 85376-12380 · 85377-12380 |
| 85271C | No. 4 headlight washer hose | 85343-95700 |
| 85276 | Cleaner control relay | 85276-12050 · 85276-22070 |
| 85310A | Headlight washer motor and pump assembly | 85280-12050 · 85310-12190 · 85310-22100 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-12320 · 85035-12340 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85376 | No. 1 headlight washer hose protection device | 85377-12090 |
