Toyota COROLLA Headlamp — Figure 8101

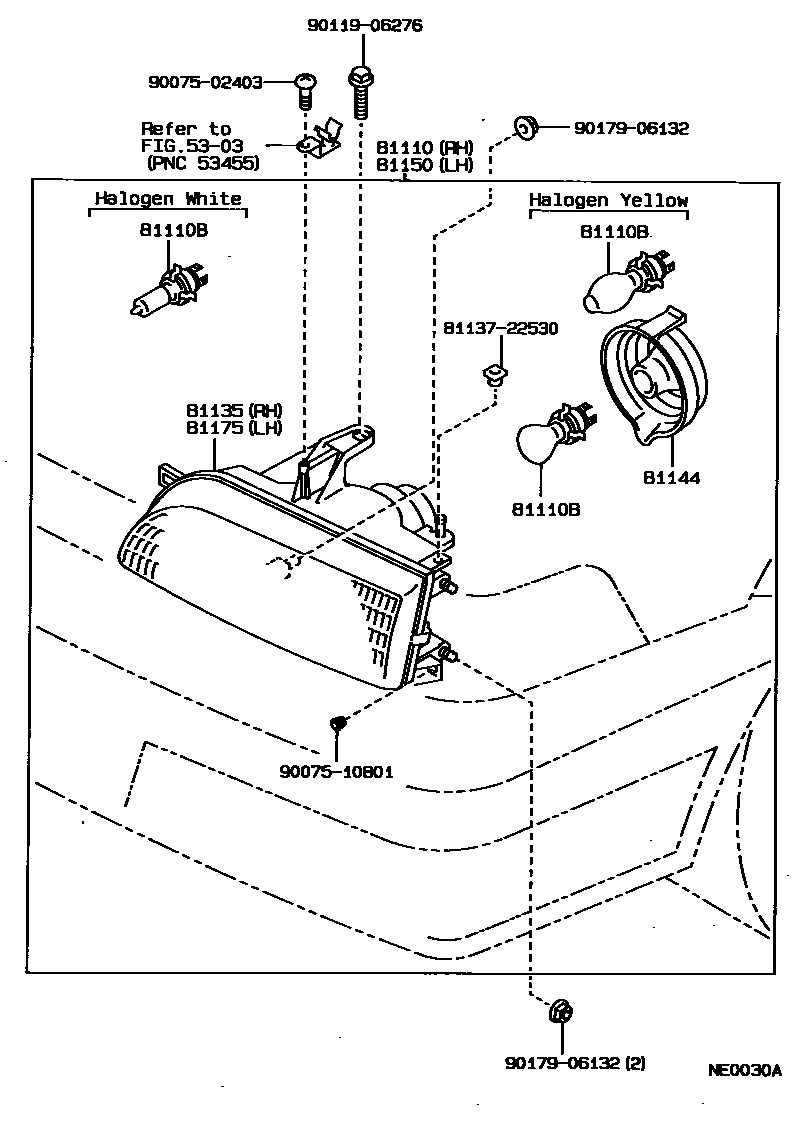

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-1A790 · 81110-1A800 · 81110-1A810 · 81110-1A820 · 81110-1A830 · 81110-1E110 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 |
| 81135 | Right headlight assembly | 81130-1A790 · 81130-1A800 · 81130-1A810 · 81130-1A820 · 81130-1E110 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81160-1A790 · 81160-1A800 · 81160-1A810 · 81160-1A820 · 81160-1A830 · 81160-1E110 |
| 81175 | Left headlight assembly | 81170-1A790 · 81170-1A800 · 81170-1A810 · 81170-1A820 · 81170-1E110 |
