Toyota COROLLA 燃油箱和燃油管 — Figure 7701

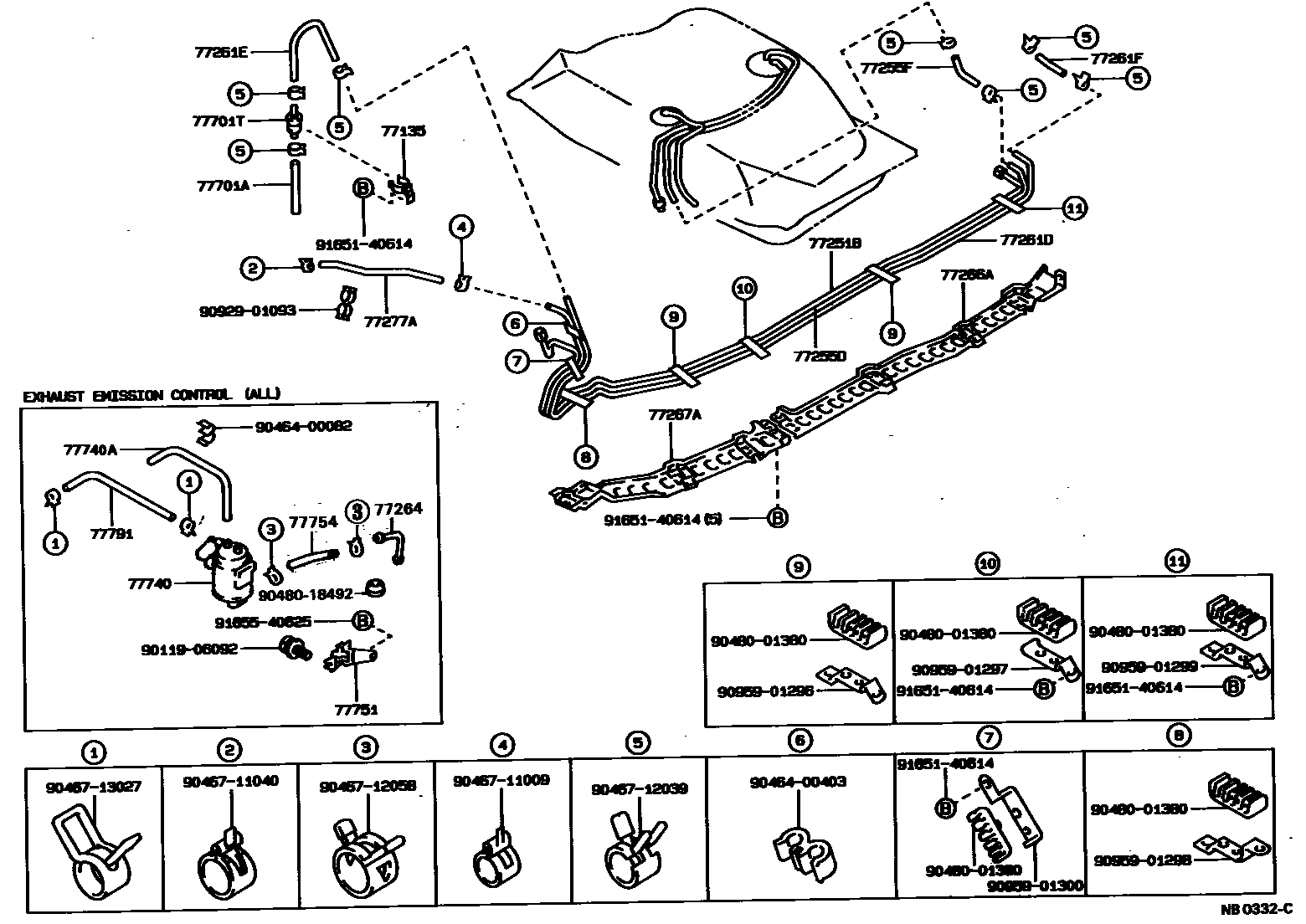

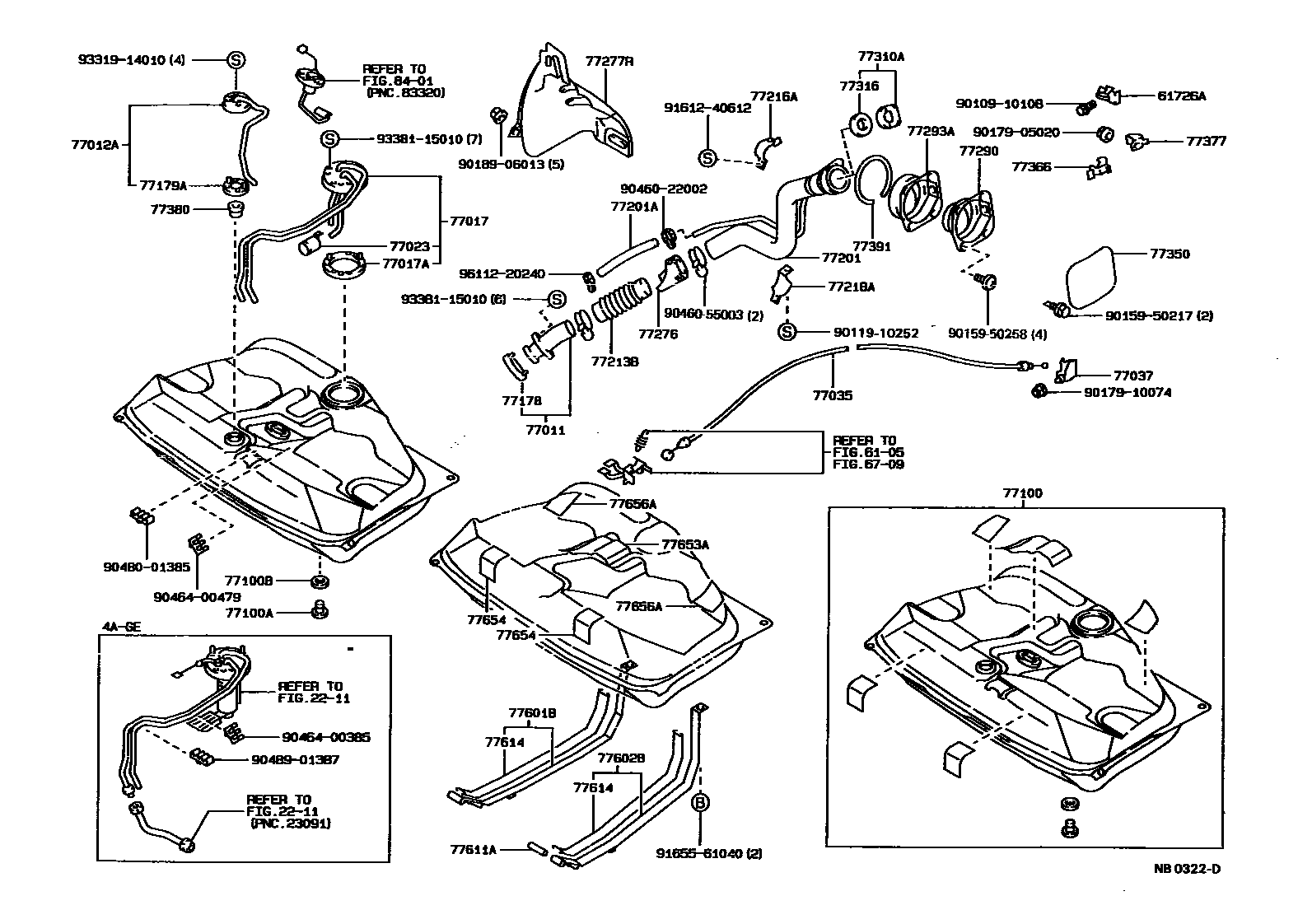

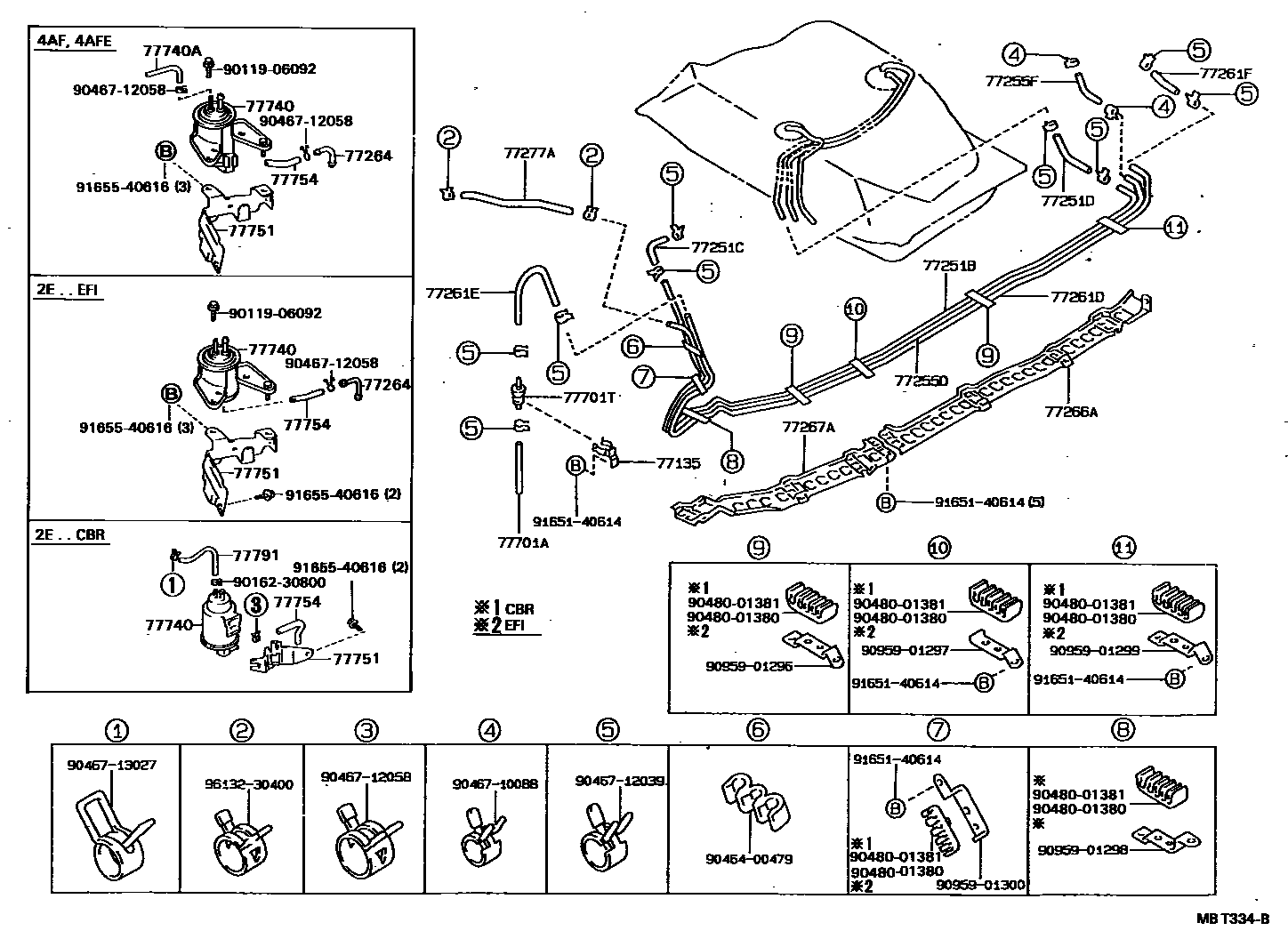

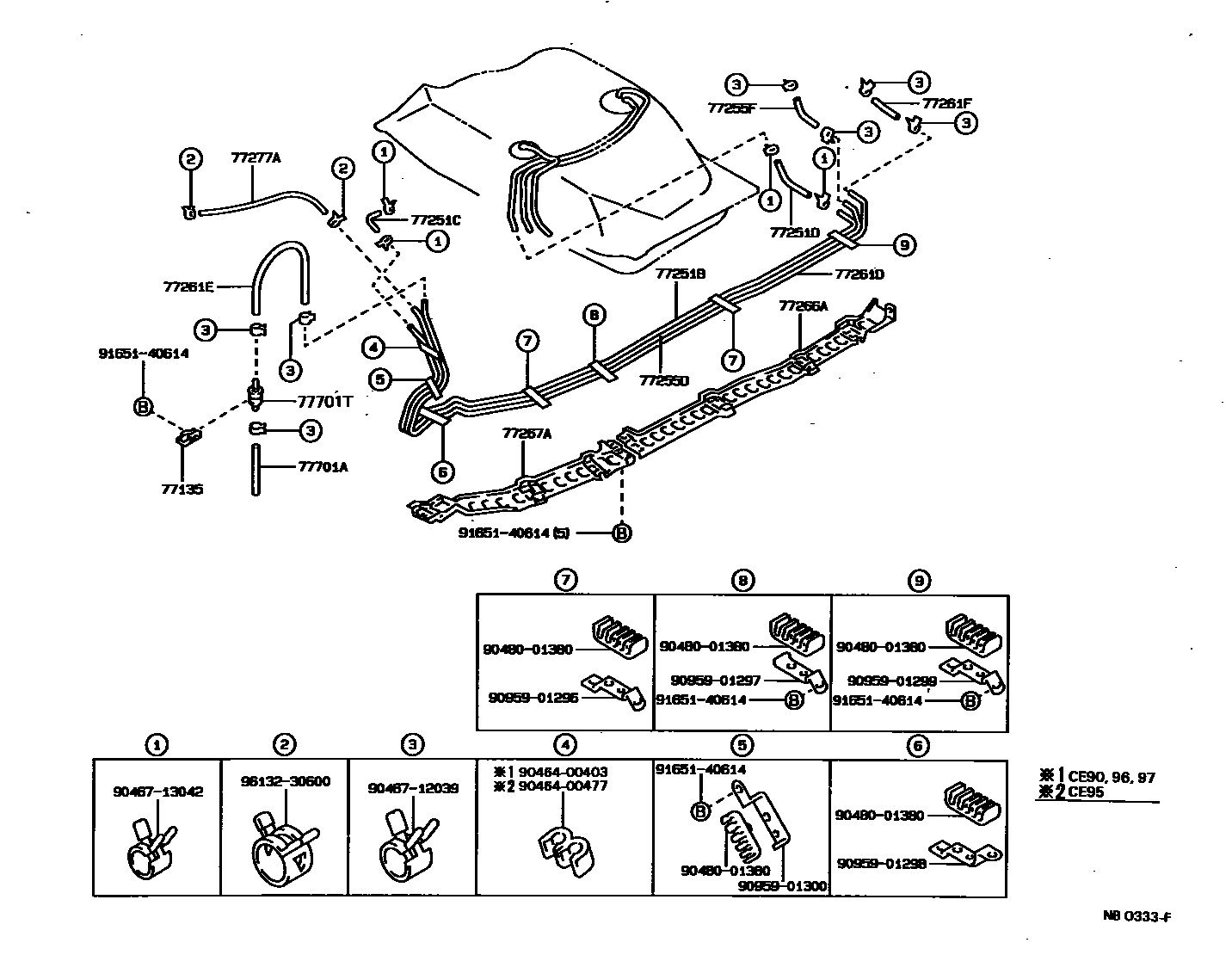

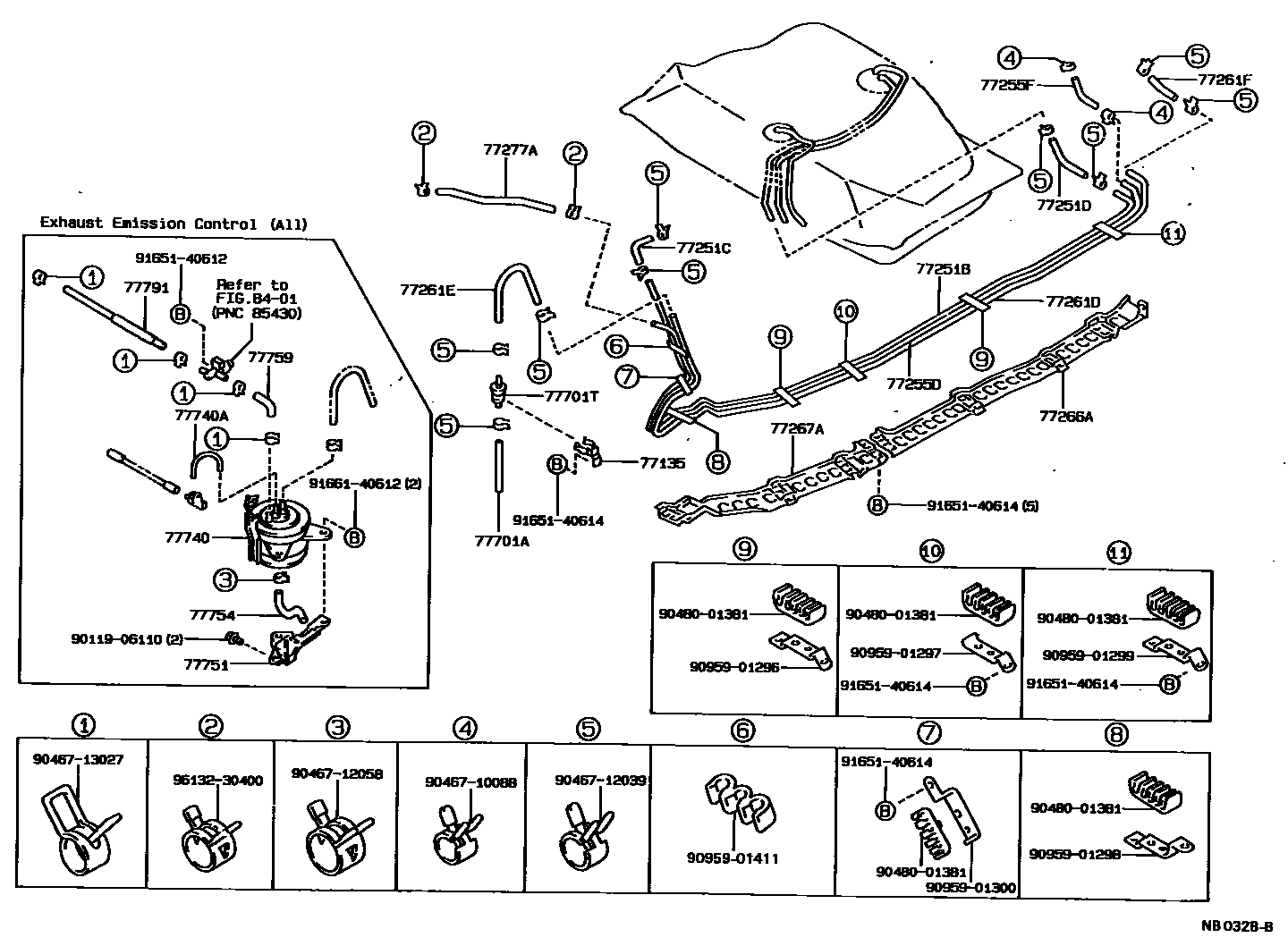

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61726A | Fuel inlet cover | 61726-12050 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12040 · 77011-12080 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-12010 · 77012-12030 |
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-12310 · 77017-12320 · 77017-12330 |
| 77017A | fuel tank vent pipe gasket | 77169-12020 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-14030 · 77023-32010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12230 · 77035-12260 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12050 |
| 77100 | fuel tank assembly | 77001-19545 · 77001-19555 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77135 | One-way valve bracket | 77135-20050 · 77135-32010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-12010 · 77178-20010 |
| 77179A | fuel tank breather gasket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12340 · 77201-12350 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-22011 |
| 77213B | Fuel tank to filler pipe hose | 77213-12140 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12040 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-12010 · 77218-12020 |
| 77251B | main fuel pipe | 77251-12370 · 77251-12380 · 77251-12390 · 77251-12400 · 77251-12410 · 77251-12470 · 77251-12510 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-12100 · 77259-12150 · 77279-12070 · 95333-08020 · 95333-08030 |
| 77251D | No. 2 fuel hose (for main fuel line) | 90445-14133 · 95333-06020 · 95333-08020 |
| 77255D | fuel return pipe | 77255-12340 · 77255-12350 · 77255-12360 · 77255-12410 · 77255-12420 · 77255-12430 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 95333-04015 · 95333-06020 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12250 · 77261-12260 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-12120 · 77259-12130 · 77259-12140 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 95333-06020 |
| 77264 | Carbon canister to front side member pipe | 77264-12160 |
| 77266A | No. 1 fuel line protection device | 77266-12030 |
| 77267A | No. 2 fuel pipe protection device | 77267-12060 |
| 77276 | Fuel hose protector | 77276-12040 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-11011 · 23271-15210 · 23271-64110 · 23271-64111 · 90447-11021 · 90447-12091 · 90447-12097 · 90447-12102 · 90447-12103 · 90447-12117 |
| 77277R | Fuel tank filler pipe protection device | 77277-12090 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12060 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-12030 |
| 77310A | Fuel tank cap assembly | 77310-12100 · 77310-16010 · 77310-16011 · 77310-35061 |
| 77316 | fuel tank cap gasket | 77316-12050 · 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-12160 · 77350-12220 |
| 77366 | Fuel filler cap hinge spring | 77360-12010 |
| 77377 | Fuel filler cap lock retainer | 77377-12040 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77391 | fuel inlet ring | 77391-14020 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12100 · 77601-12110 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12060 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77614 | Fuel tank strap seat | 77681-12010 |
| 77653A | No. 3 fuel tank liner | 77653-12070 · 77653-12090 |
| 77654 | No. 2 fuel tank liner | 77652-16050 · 77652-16060 |
| 77656A | No. 4 fuel tank liner | 77654-12030 · 77654-12060 |
| 77701A | No. 1 fuel hose (for breather valve) | 77249-12050 |
| 77701T | Check valve (for main fuel tank) | 90917-10069 · 90917-10082 |
| 77740 | Carbon canister assembly | 77704-12361 · 77740-12480 · 77740-12520 · 77740-12550 · 77740-12560 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04075 · 90447-04108 · 90447-04125 · 90999-92002 · 90999-92003 · 95413-49939 |
| 77751 | Carbon canister base bracket | 77750-12020 · 77750-12040 · 77751-12140 · 77753-12010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12080 · 77754-12090 · 77754-12110 · 77754-12130 |
| 77759 | Carbon canister hose | 77759-12080 |
| 77791 | External vent valve to carburetor hose | 77209-12070 · 77791-12100 · 90447-14051 |
