Toyota COROLLA 挡泥板和扰流板 — Figure 7601

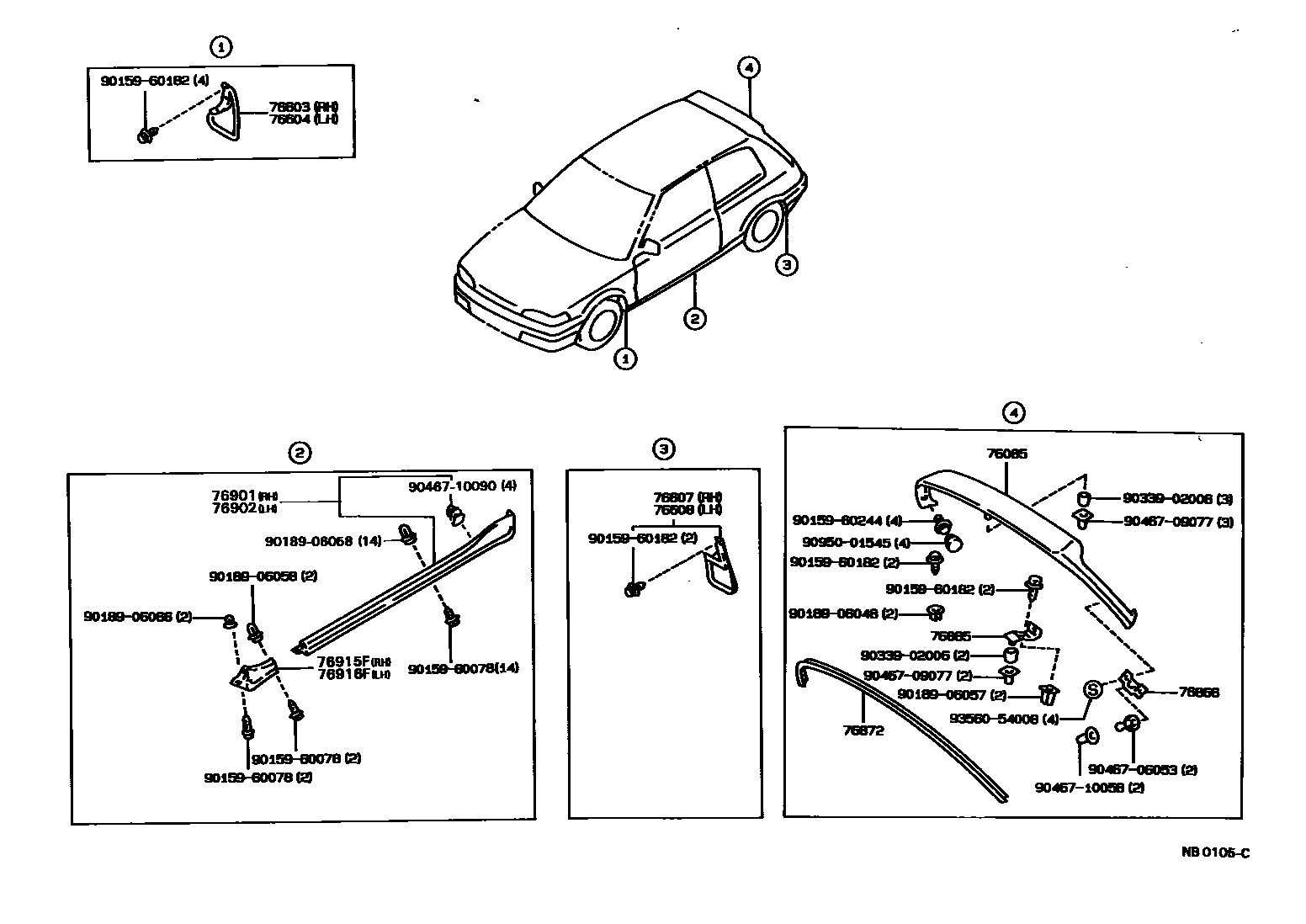

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-12900 |
| 76603 | Right front fender fender sub-assembly | 76621-12050 |
| 76604 | Left front fender fender sub-assembly | 76622-12050 |
| 76607 | Right rear side fender sub-assembly | 76625-19225 |
| 76608 | Left rear side fender sub-assembly | 76626-19235 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-12030 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12070 |
| 76885 | No. 5 rear spoiler fixing piece | 76885-12050 |
| 76901 | Right fender sub-assembly | 76911-12020 |
| 76902 | Left fender sub-assembly | 76912-12020 |
| 76915F | Right front fender | 76915-12020 |
| 76916F | Left front fender | 76916-12020 |
