Toyota COROLLA 侧防护条 — Figure 7503

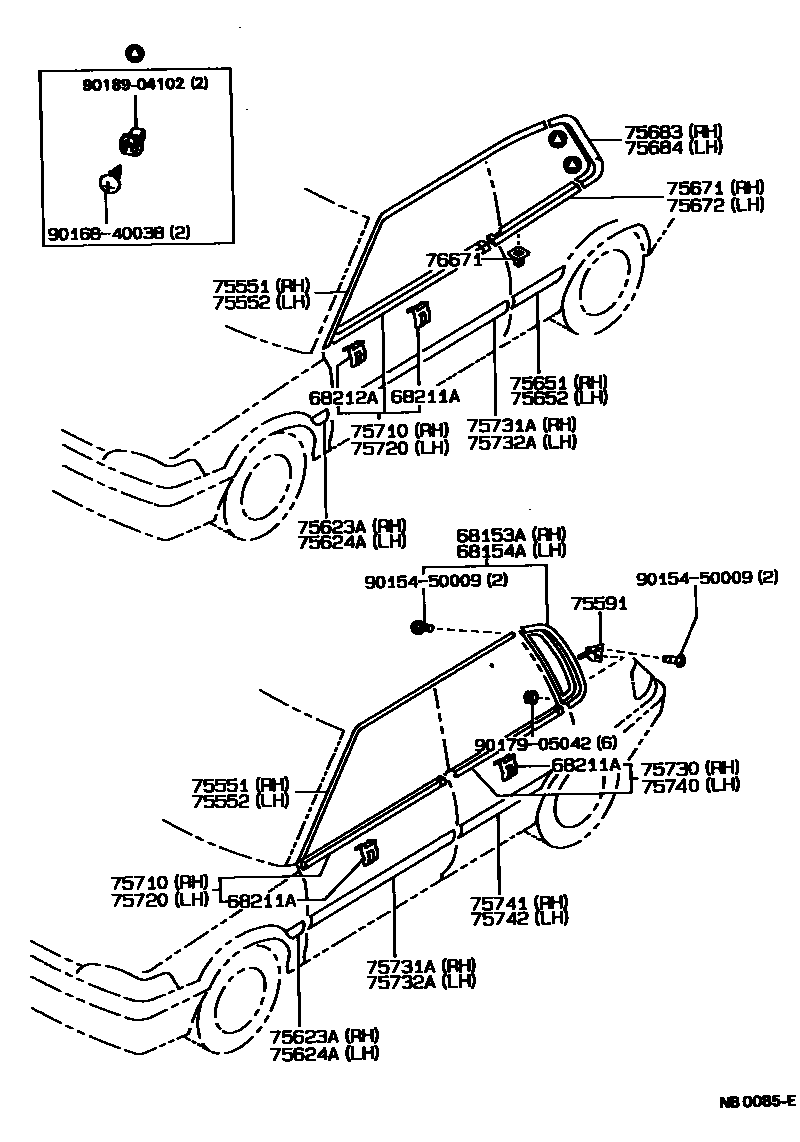

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68153A | Right corner window No. 2 glass protective strip | 68153-12060 |
| 68154A | No. 2 glass protective strip for left corner window | 68154-12060 |
| 68211A | Door belt line protection strip clip | 68211-12130 |
| 68212A | Car door glass outer seal strip clip | 68212-12010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12410 · 75551-12420 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12410 · 75552-12420 |
| 75591 | No. 1 front side panel decorative panel protective strip fixings | 75591-12060 |
| 75623A | Right front fender outer rear protective strip | 75623-12460 |
| 75624A | Left front fender outer rear protective strip | 75624-12460 |
| 75651 | Right side outer protective strip | 75651-12710 |
| 75652 | Left side outer protective strip | 75652-12710 |
| 75671 | Right corner window decorative strip | 75660-12210 |
| 75672 | Left corner window decorative strip | 75670-12210 |
| 75683 | Right rear side panel waistline protection strip | 75683-12080 |
| 75684 | Left rear side panel waistline protection strip | 75684-12080 |
| 75710 | Right front door waistline protection strip assembly | 75710-12410 · 75710-12430 |
| 75720 | Left front door waistline protection strip assembly | 75720-12410 · 75720-12430 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12130 |
| 75731A | Right front door outer protective strip | 75731-12860 · 75731-1A010 |
| 75732A | Left front door outer protective strip | 75732-12700 · 75732-12740 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12220 |
| 75741 | Right rear door outer protective strip | 75741-12630 |
| 75742 | Left rear door outer protective strip | 75742-12610 |
| 76671 | No. 1 corner window decoration with clip | 76671-12010 |
