Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 7 PNC and OE references.

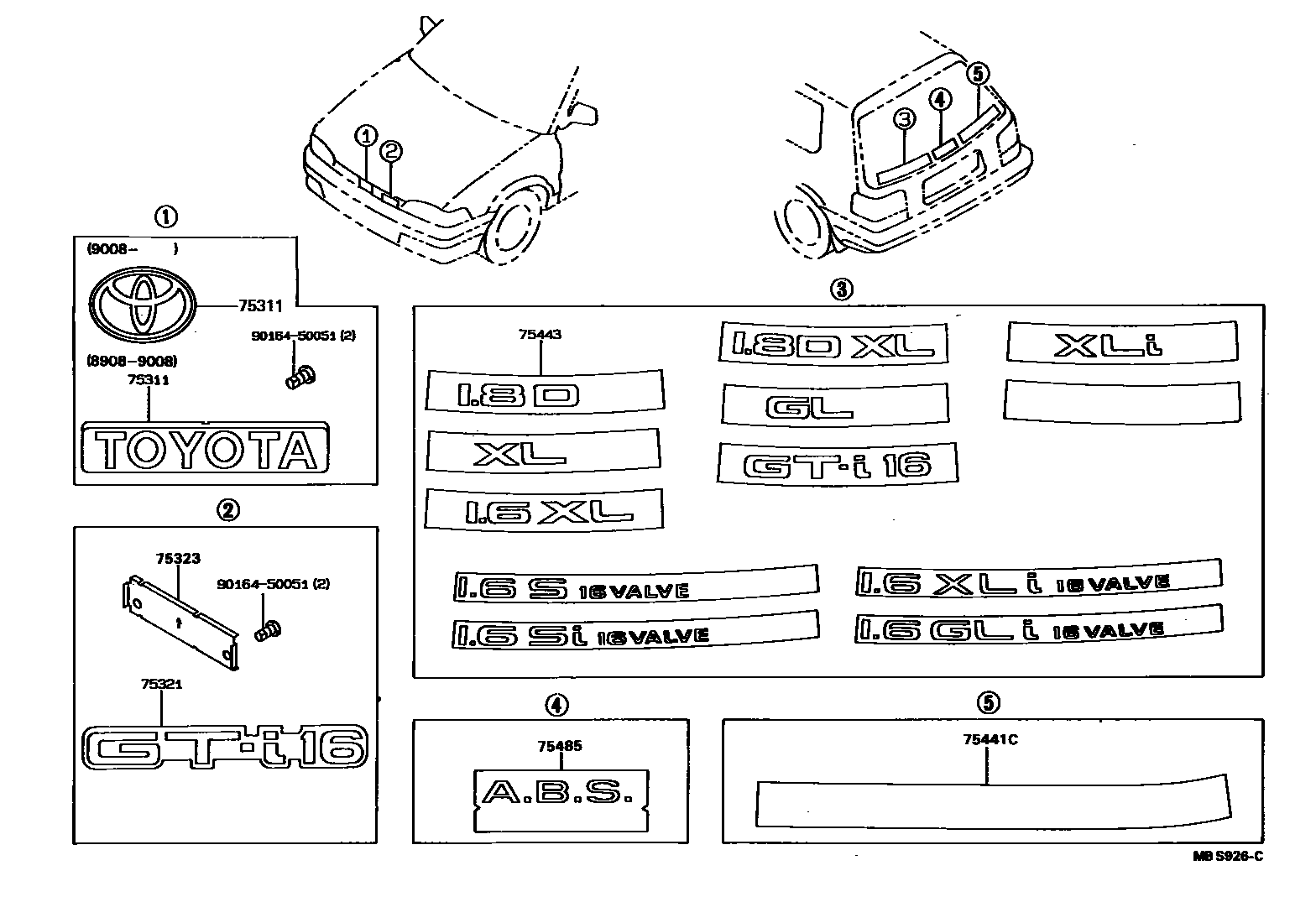

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBS926C
丰田徽标和铭牌(车外和车内) — MBS926C (198908 – 999999)

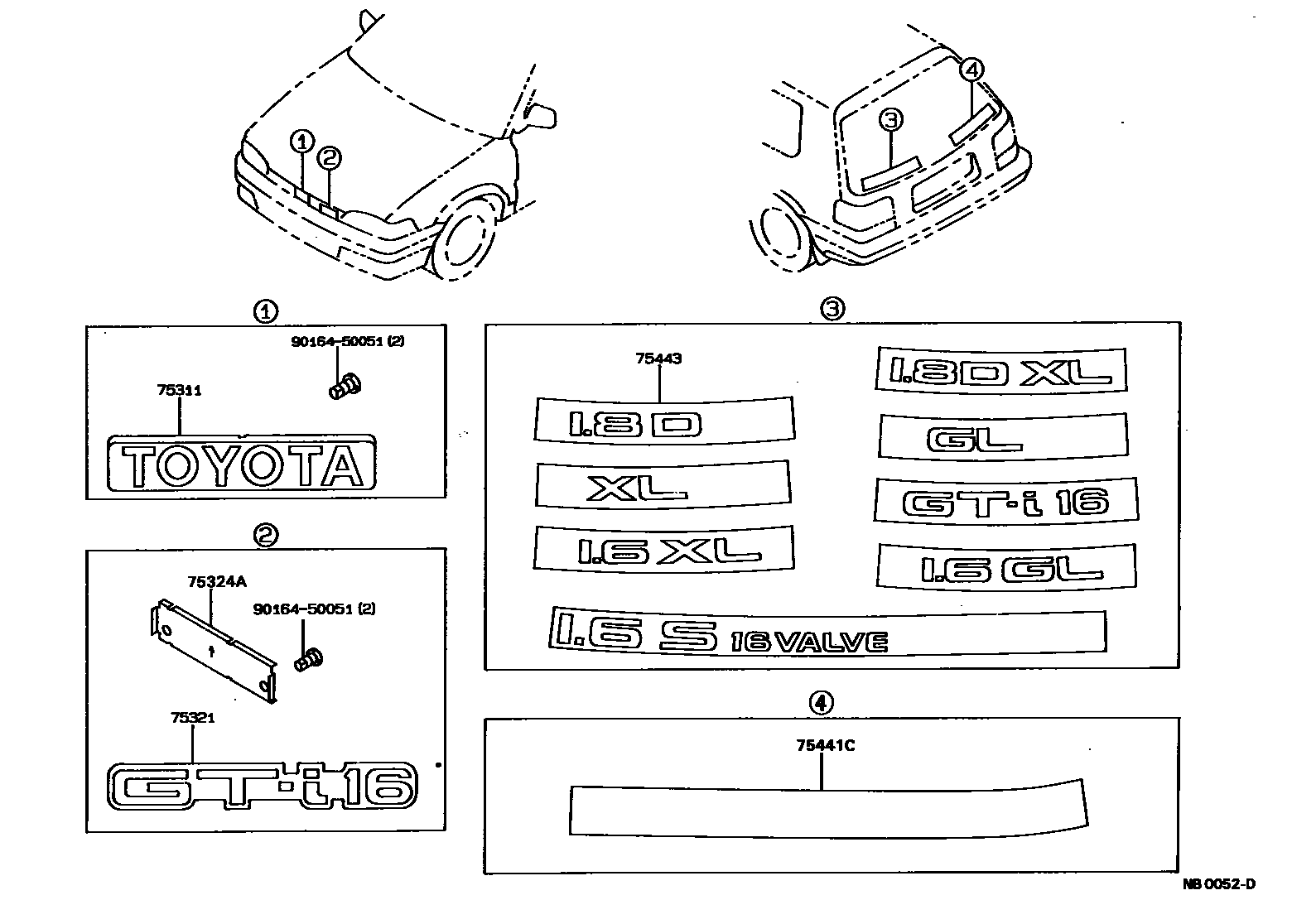

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — NB0052D
丰田徽标和铭牌(车外和车内) — NB0052D (198705 – 198908)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-1A460 · 75311-1A461
75321Radiator grille or front plate75321-12210
75323Radiator grille fixings75324-12090
75324ARadiator grille nameplate fasteners75324-12090
75441CBack door nameplate75441-12500
75443No. 3 nameplate on back door75443-12870 · 75443-12880 · 75443-12890 · 75443-1A010 · 75443-1A020 · 75443-1A021 · 75443-1A030 · 75443-1A031 · 75443-1A040 · 75443-1A320 · 75443-1A330 · 75443-1A340 · 75443-1A430 · 75443-1A490 · 75443-1A500
75485Back window nameplate75485-12190
