Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 3 PNC and OE references.

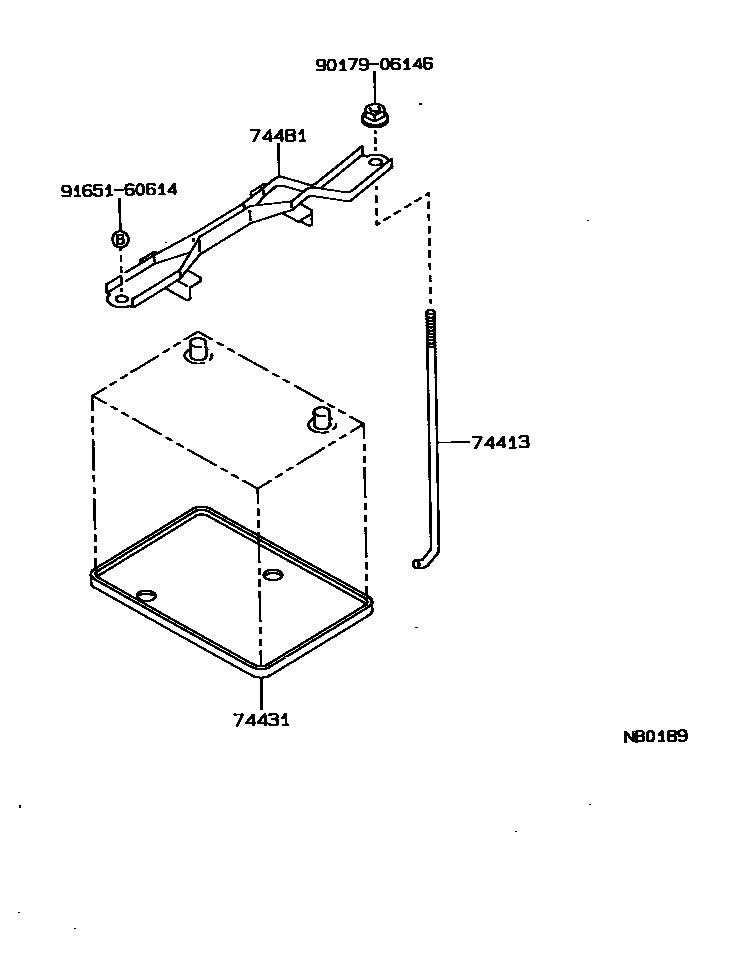

Toyota COROLLA battery holder EPC diagram — NB0189
battery holder — NB0189 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
74413Battery clamp bolt74451-12050
74431battery tray74431-12010 · 74431-14020 · 74431-14030 · 74431-14040
74481Battery fixing clip74404-12260 · 74404-12270 · 74404-12280
