Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 3 PNC and OE references.

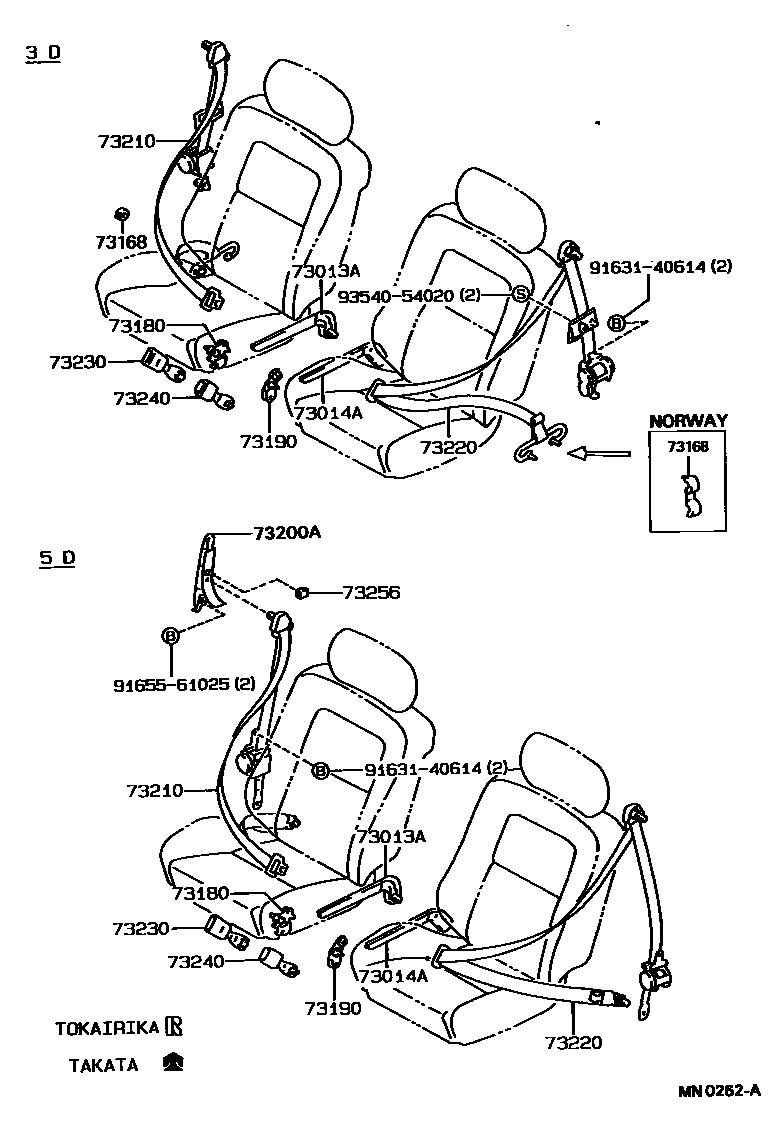

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MN0262A
安全带和儿童保护座椅 — MN0262A (198705 – 999999)

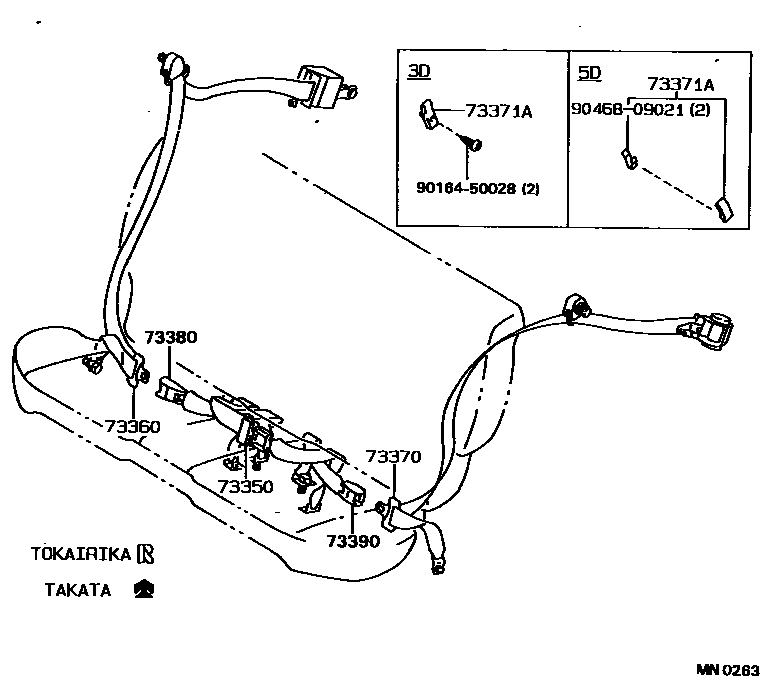

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MN0263
安全带和儿童保护座椅 — MN0263 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
73168Front seat belt shoulder anchor stop73168-10010
73180Right seat belt inner anchor bracket assembly73011-12030
73190Left side seat belt inner anchor bracket assembly73012-12030
