Toyota COROLLA 背门锁和背门把手 — Figure 6709

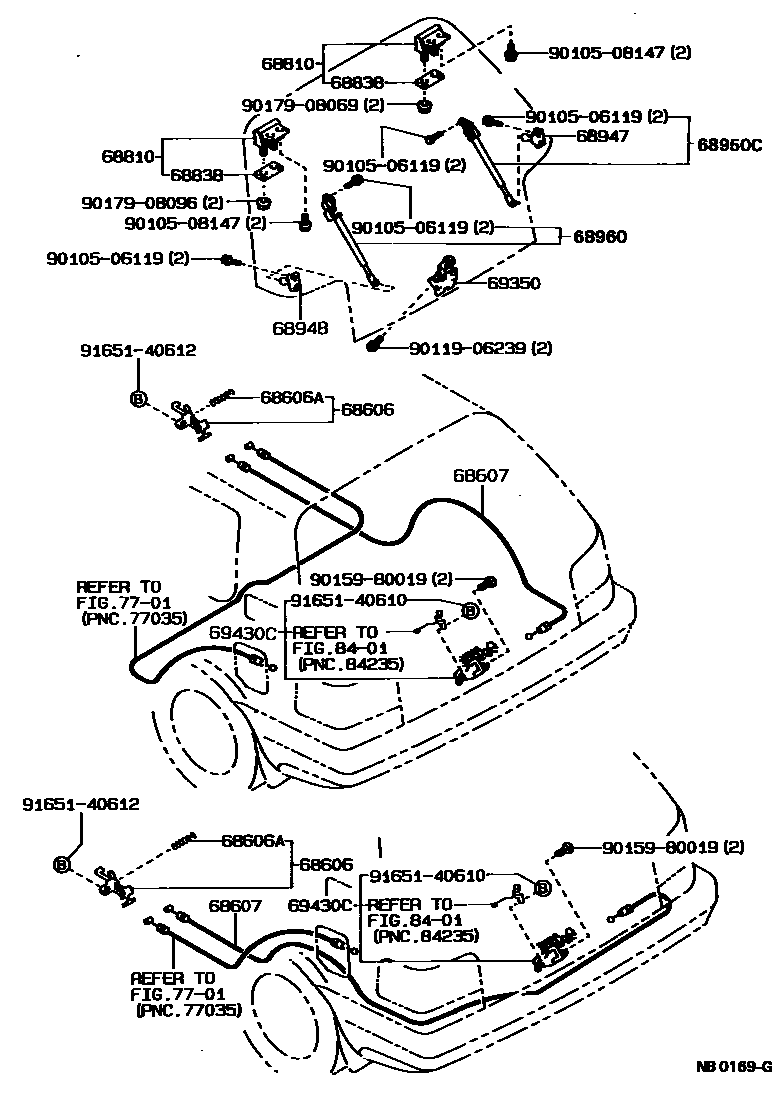

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-12050 · 64606-12060 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12530 · 64607-12540 |
| 68810 | Back door upper hinge assembly | 68801-12040 · 68801-12041 |
| 68838 | Back door hinge No. 1 gasket | 68838-10010 · 68838-10011 |
| 68947 | Back door right damping strut lower bracket | 68947-12010 |
| 68948 | Rear door left damping strut lower bracket | 68948-12010 |
| 68950C | Back door right support rod assembly | 68950-19605 · 68950-19606 · 68950-19615 · 68950-19616 · 68950-19805 · 68950-19815 |
| 68960 | Back door left support rod assembly | 68960-19295 · 68960-19296 · 68960-19305 · 68960-19306 · 68960-19495 · 68960-19505 |
| 69350 | Rear door lock assembly | 69350-12130 |
| 69430C | Back door lock assembly | 69430-12240 · 69430-16110 |
