Toyota COROLLA 背门板和背门玻璃 — Figure 6708

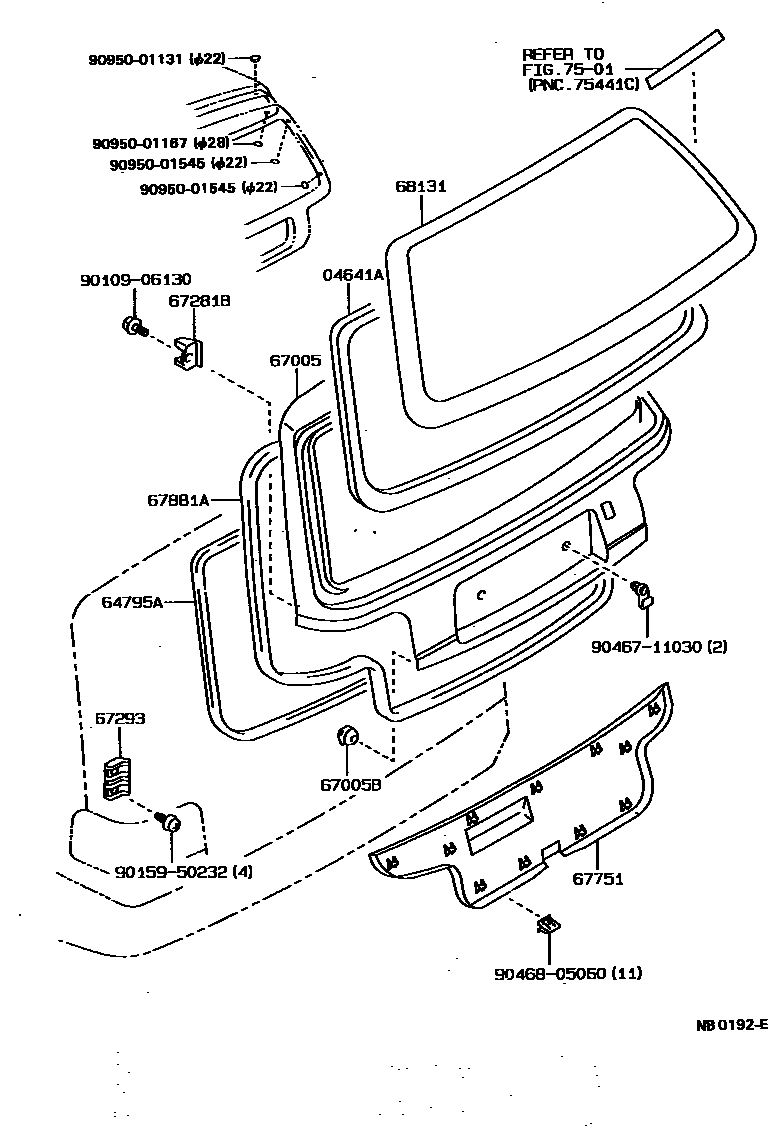

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-12010 |
| 64795A | Rear window opening decorative strip | 64795-12030 |
| 67005 | Rear door panel sub-assembly | 67005-1A360 · 67005-1A370 · 67005-1A390 · 67005-1A520 |
| 67005B | Cushion pad (for back door panel) | 90541-17002 |
| 67281B | Back door lower block | 67281-12050 |
| 67293 | Back door lower block cushion | 67293-12040 |
| 67881A | Back door seal | 67881-12210 |
| 68131 | back door glass | 68131-12540 · 68131-12560 · 68131-12570 · 68131-12580 · 68131-12660 · 68131-12670 · 68131-12720 · 68131-1A010 · 68131-1A100 · 68131-1A110 · 68131-1A120 |
