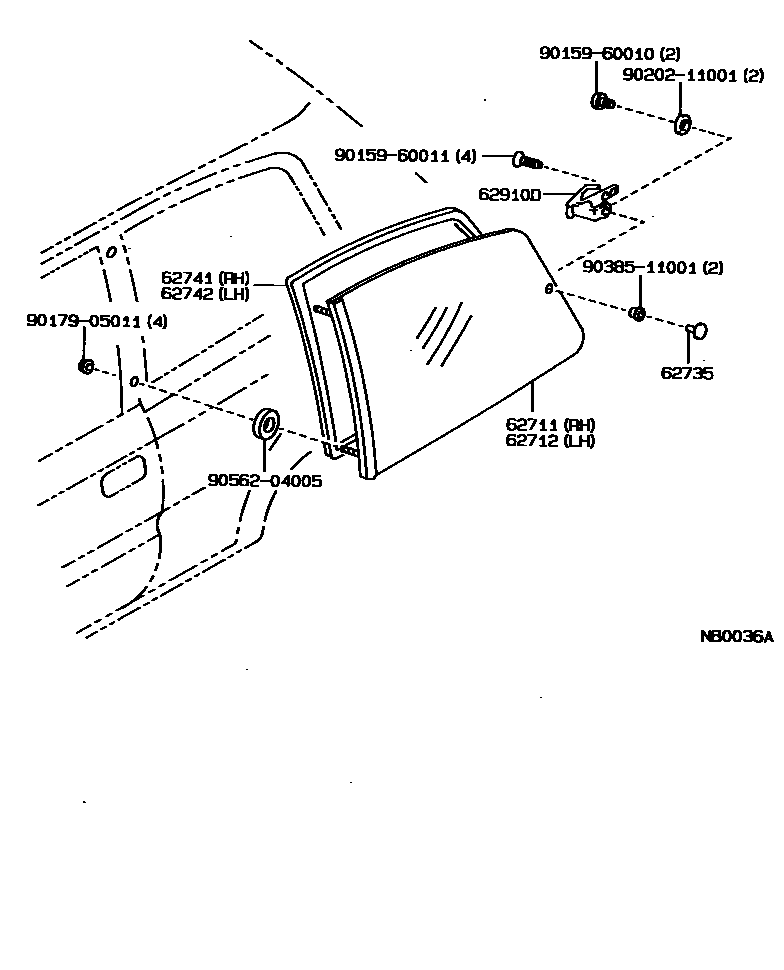

Toyota COROLLA 角窗 — Figure 6103
Toyota COROLLA EPC diagram 6103, 角窗, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62071-12180 · 62071-12200 · 62071-12210 · 62711-12590 · 62711-12600 · 62711-12680 |
| 62712 | Left corner window glass | 62072-12180 · 62072-12200 · 62072-12210 · 62712-12590 · 62712-12600 · 62712-12730 |
| 62735 | Corner window hinge fixings | 62735-14010 |
| 62741 | Right corner window sealing strip | 62741-12150 |
| 62742 | Left corner window sealing strip | 62741-12150 |
| 62910D | Corner window lock assembly | 62910-12090 |
