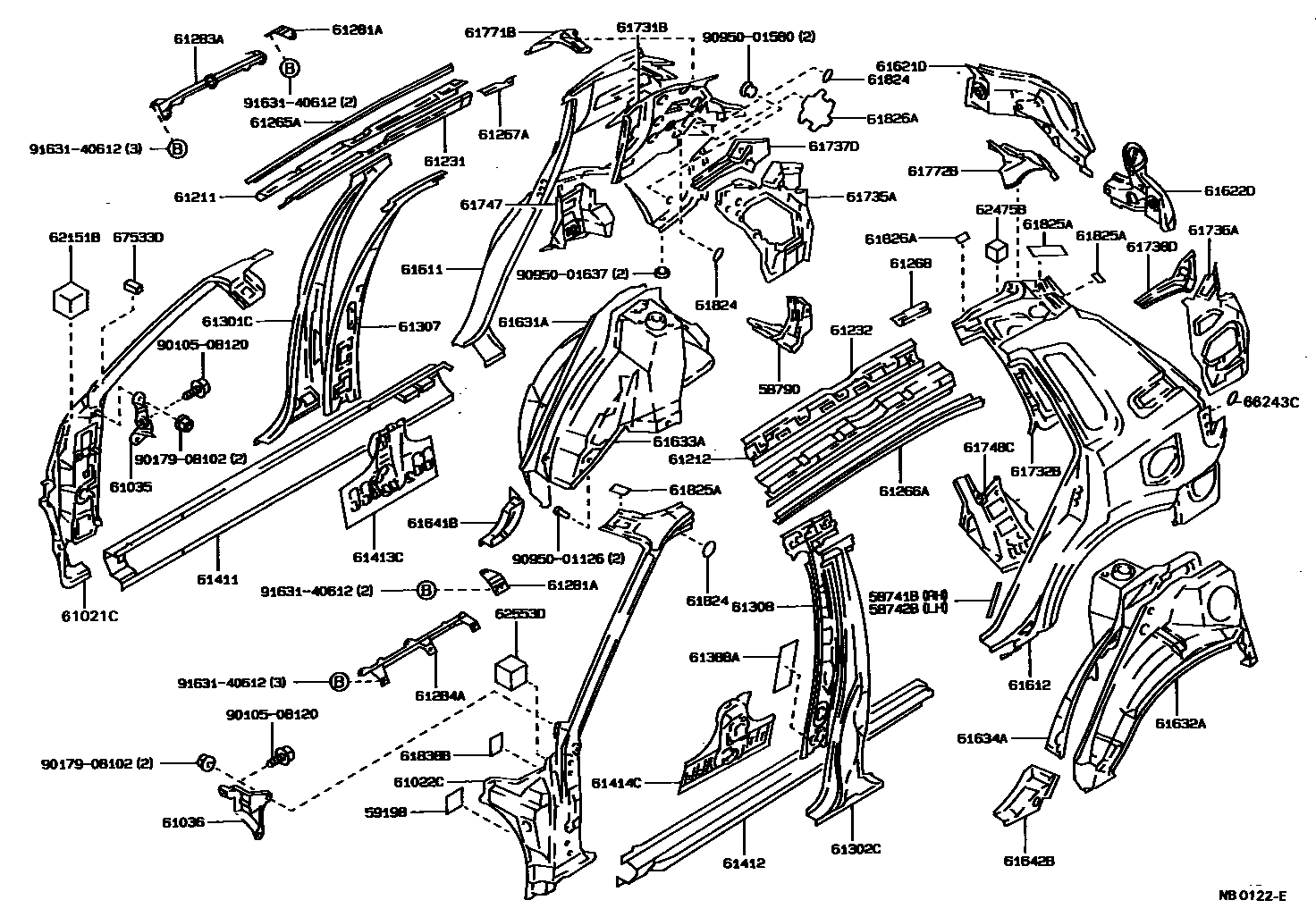

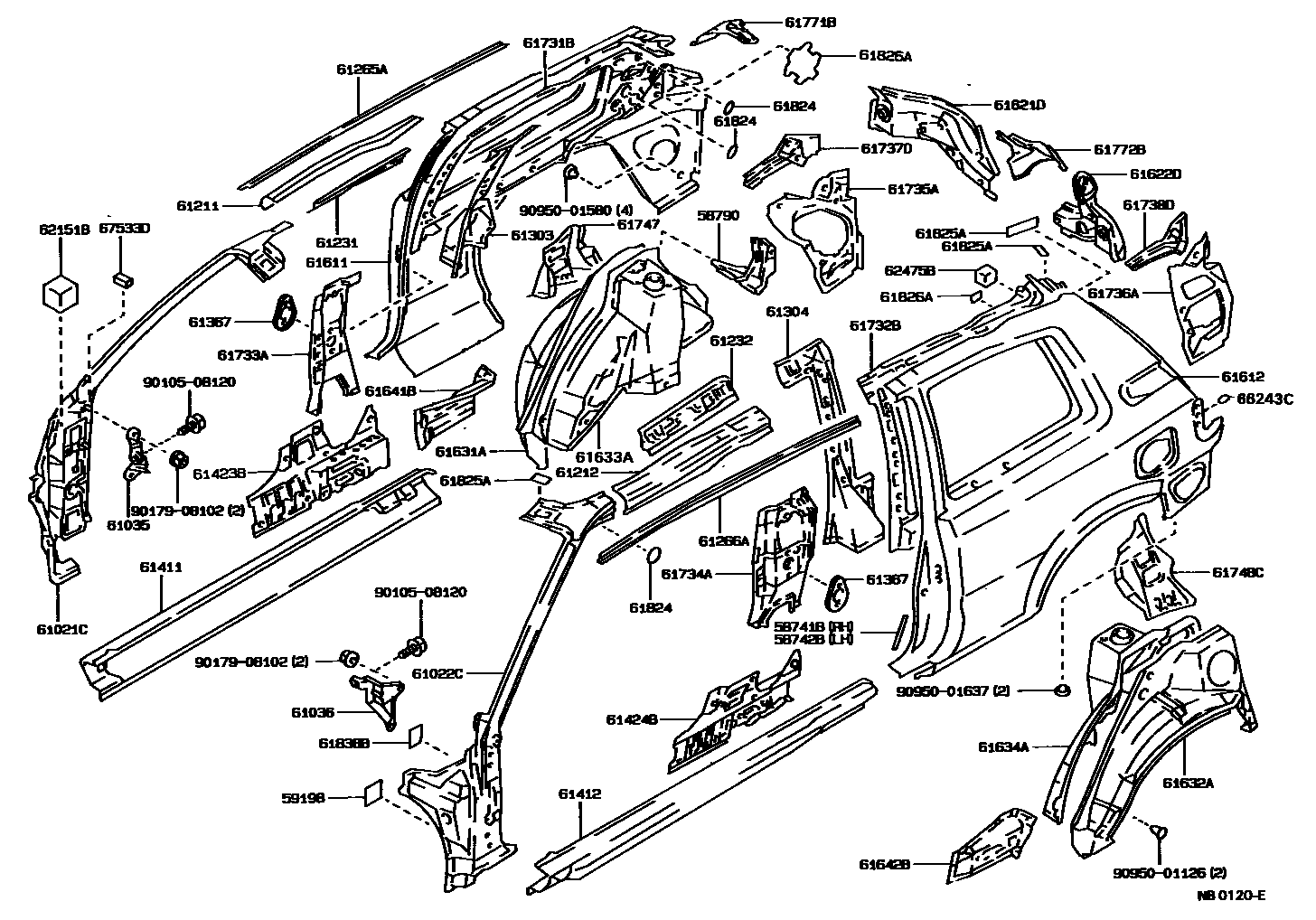

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12040 · 58741-12050 · 58741-12060 |
| 58742B | Left side enclosure protection panel | 58741-12060 · 58742-12040 · 58742-12050 |
| 58790 | Jack bracket assembly | 58790-12050 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61021C | Right body front pillar sub-assembly | 61021-12640 · 61021-12780 |
| 61022C | Left body front pillar sub-assembly | 61022-12650 · 61022-12790 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12040 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12040 |
| 61211 | Roof right outer longitudinal beam | 61211-12240 · 61211-12250 |
| 61212 | Roof left outer longitudinal beam | 61212-12240 · 61212-12250 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12470 · 61231-12490 |
| 61232 | Roof left inner longitudinal beam | 61232-12390 · 61232-12400 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12130 · 61265-12140 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12130 · 61266-12140 |
| 61267A | Roof right rear gutter | 61267-12090 |
| 61268 | Roof left rear gutter | 61268-12090 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-12030 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-12030 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-12030 |
| 61301C | Right body outer center pillar sub-assembly | 61301-12190 |
| 61302C | Left body outer center pillar sub-assembly | 61302-12250 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-12070 · 61303-12090 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-12060 · 61304-12080 |
| 61307 | Right body inner center pillar sub-assembly | 61307-12020 |
| 61308 | Left body inner center pillar sub-assembly | 61308-12020 |
| 61367 | Seat belt anchors to center pillar lower reinforcement | 61367-14010 |
| 61388A | Right body center pillar end plate | 61388-12010 |
| 61411 | Right door outer sill panel | 61411-12370 · 61411-12380 · 61411-12390 |
| 61412 | Left door outer sill panel | 61412-12360 · 61412-12370 · 61412-12380 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-12040 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-12060 |
| 61423B | Right side door sill panel No. 3 reinforcement | 61423-12040 |
| 61424B | Left side door sill panel No. 3 reinforcement | 61424-12030 |
| 61611 | Right side hoarding | 61611-12925 · 61611-12926 · 61611-12927 |
| 61612 | left side panel | 61612-12909 · 61612-12910 · 61612-12912 · 61612-12915 |
| 61621D | Back door right opening slot | 61621-12901 · 61621-12905 |
| 61622D | Rear door left opening slot | 61622-12901 · 61622-12905 |
| 61631A | Right wheel cover outer panel | 61631-12230 |
| 61632A | Left side wheel cover outer panel | 61632-12230 |
| 61633A | Right wheel housing lining panel | 61607-12210 |
| 61634A | Left side wheel housing lining panel | 61608-12220 |
| 61641B | Right wheel housing corner panel | 61641-12040 · 61641-12050 |
| 61642B | Left side wheel housing corner panel | 61642-12040 · 61642-12050 |
| 61731B | Roof right inner panel | 61731-12907 · 61731-12909 |
| 61732B | Roof left inner panel | 61732-12907 · 61732-12909 |
| 61733A | Right front roof inner panel | 61733-12130 |
| 61734A | Left front roof inner panel | 61734-12130 |
| 61735A | Right rear roof inner panel | 61735-12270 · 61735-12271 |
| 61736A | Left rear roof inner panel | 61736-12240 · 61736-12241 |
| 61737D | Roof right inner reinforcement | 61737-12100 |
| 61738D | Roof left inner reinforcement | 61738-12110 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12120 · 61747-12130 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12120 · 61748-12130 |
| 61771B | Opening frame on the upper right corner of the back door | 61771-12010 |
| 61772B | Opening frame at the upper left corner of the back door | 61772-12010 |
| 61824 | Noise Control Panel No. 1 | 61824-12020 · 61824-12040 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 · 61825-12020 |
| 61826A | Noise Control Panel No. 3 | 61826-12020 · 61826-12030 |
| 61838B | No. 5 Noise Control Panel | 61838-12010 |
| 62151B | Front cowl side silencer pads | 62151-12100 · 62151-12130 |
| 62475B | Roof inner seal | 62475-12040 |
| 62553D | No. 3 column pad | 62553-12120 |
| 66243C | Rear body protection piece No. 1 | 66243-20010 |
| 67533D | Right front door lower door frame decorative pad | 67533-12010 |
