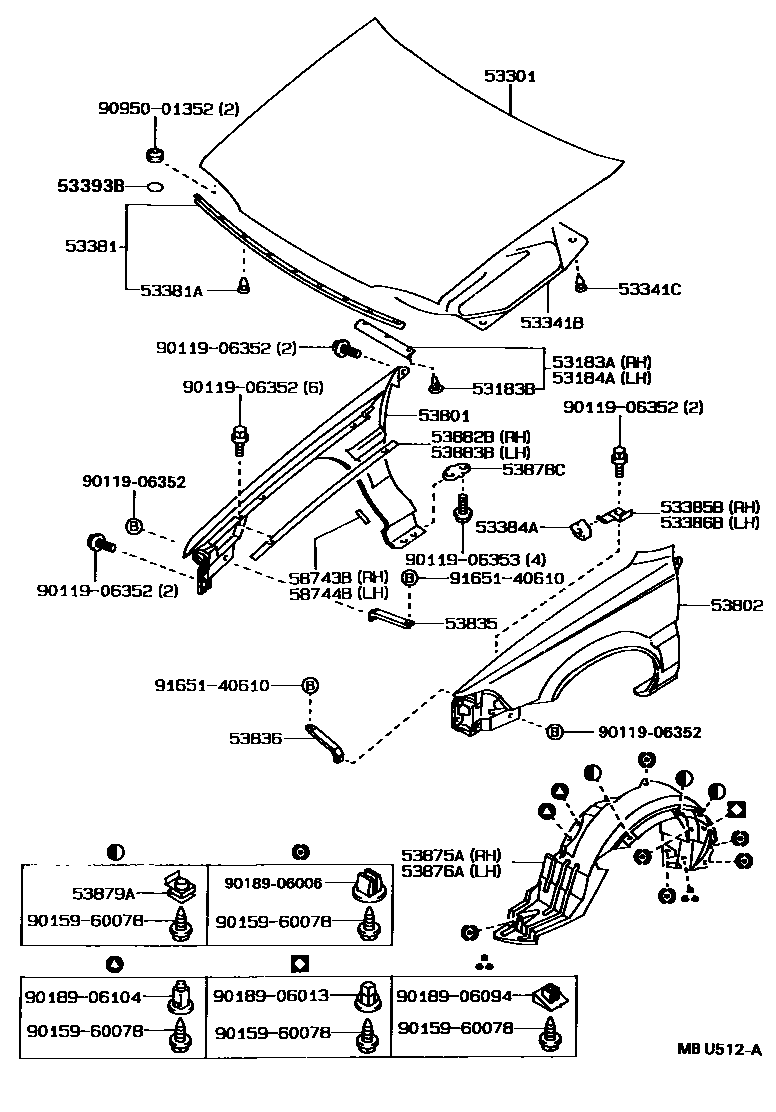

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183A | Right headlight cover seal | 53183-12050 |
| 53183B | Clip (for headlight cover seal) | 90467-08011 |
| 53184A | Left headlight cover seal | 53184-12040 |
| 53301 | Engine cover sub-assembly | 53301-12590 |
| 53341B | engine cover gasket | 53341-12040 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-12140 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-12030 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-12020 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53386-12020 |
| 53393B | Engine cover front protector | 53393-12020 |
| 53801 | Right front fender sub-assembly | 53801-1E500 |
| 53802 | Left front fender sub-assembly | 53802-1E380 |
| 53835 | Right front fender to extension stay | 53835-12050 |
| 53836 | Left front fender to extension stay | 53835-12050 |
| 53875A | Right front fender lining | 53875-12150 |
| 53876A | Left front fender lining | 53876-12140 |
| 53878C | front fender spacer | 53878-20030 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882B | Right front fender seal | 53882-12080 |
| 53883B | Left front fender seal | 53882-12080 |
| 58743B | Right front fender protector | 58743-12010 |
| 58744B | Left front fender protector | 58743-12010 |
