Toyota COROLLA 燃油泵和燃油管 — Figure 2301

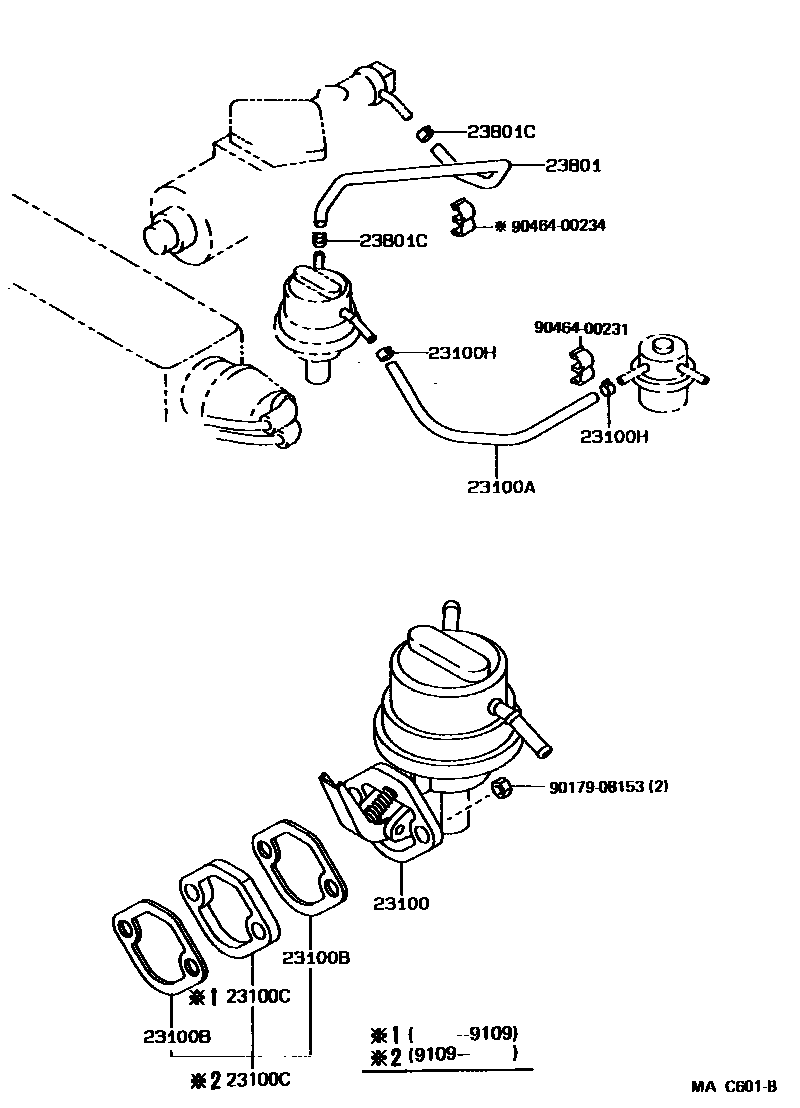

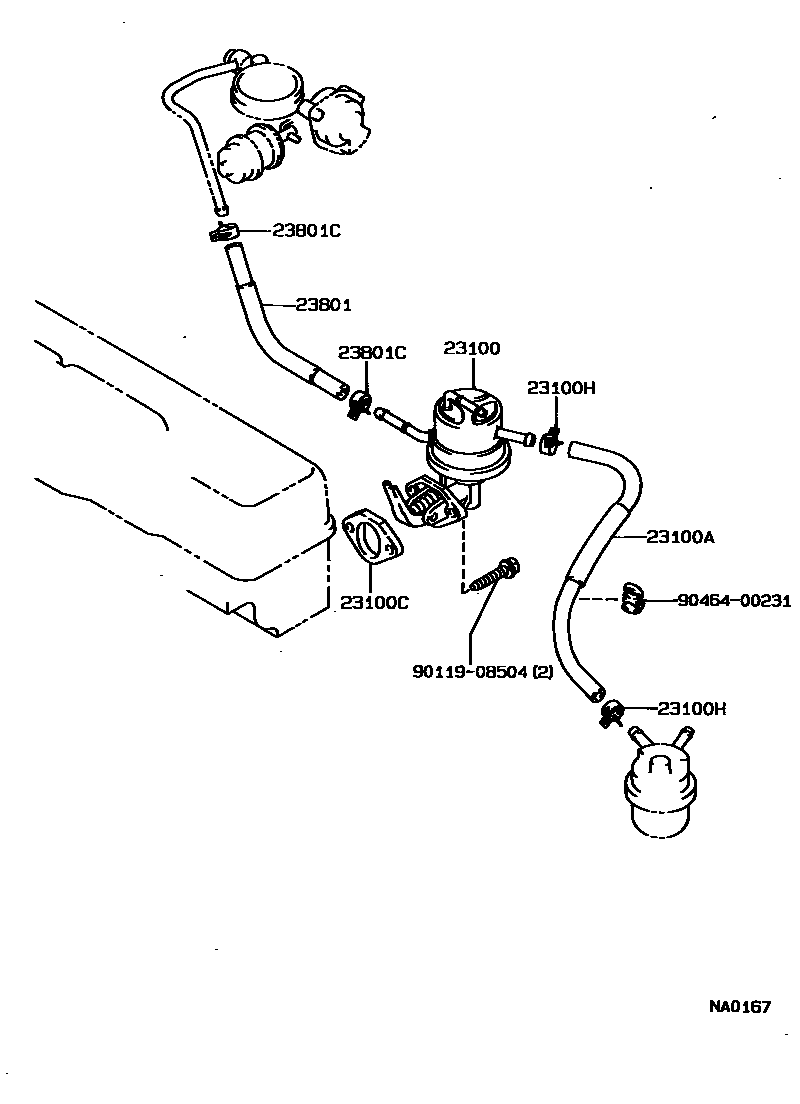

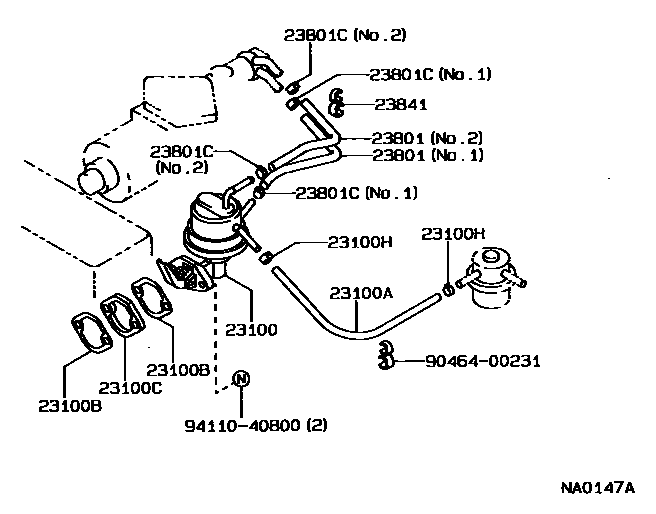

Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-11040 · 23100-11041 · 23100-11070 · 23100-11071 · 23100-11080 · 23100-15080 · 23100-15081 · 23100-16040 · 23100-16041 |
| 23100A | fuel hose | 90445-11097 · 90445-12213 · 90447-12098 · 95333-06040 |
| 23100B | fuel pump gasket | 90923-05017 · 90923-05024 |
| 23100C | Fuel pump vibration isolation pad | 23915-10020 · 23915-10021 · 23915-16010 · 23915-63020 |
| 23100H | Clamp (for fuel hose) | 96132-30400 · 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 95333-04030 · 95333-06010 · 95333-06020 · 95333-06030 · 95333-06040 |
| 23801C | Clamp (for carburetor fuel hose) | 90467-11009 · 96132-30400 · 96132-30600 · 96135-41100 |
| 23841 | No. 1 fuel pipe (hose) clamp | 90464-00231 |
