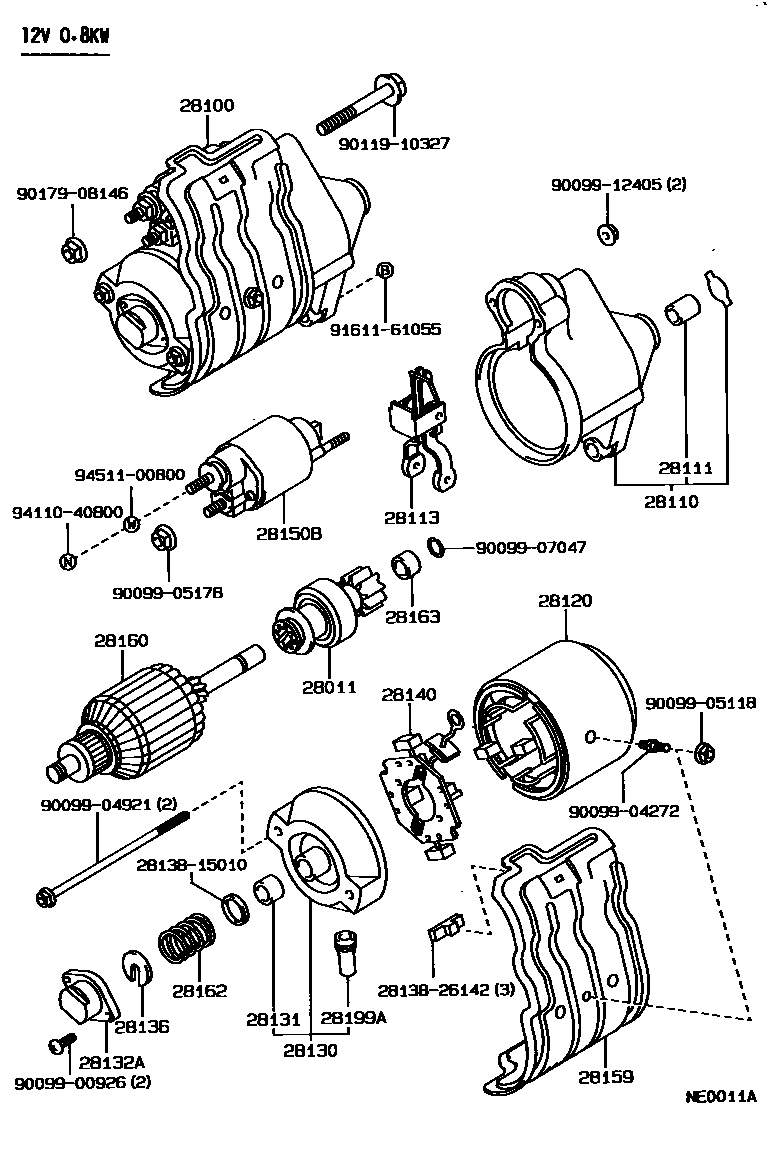

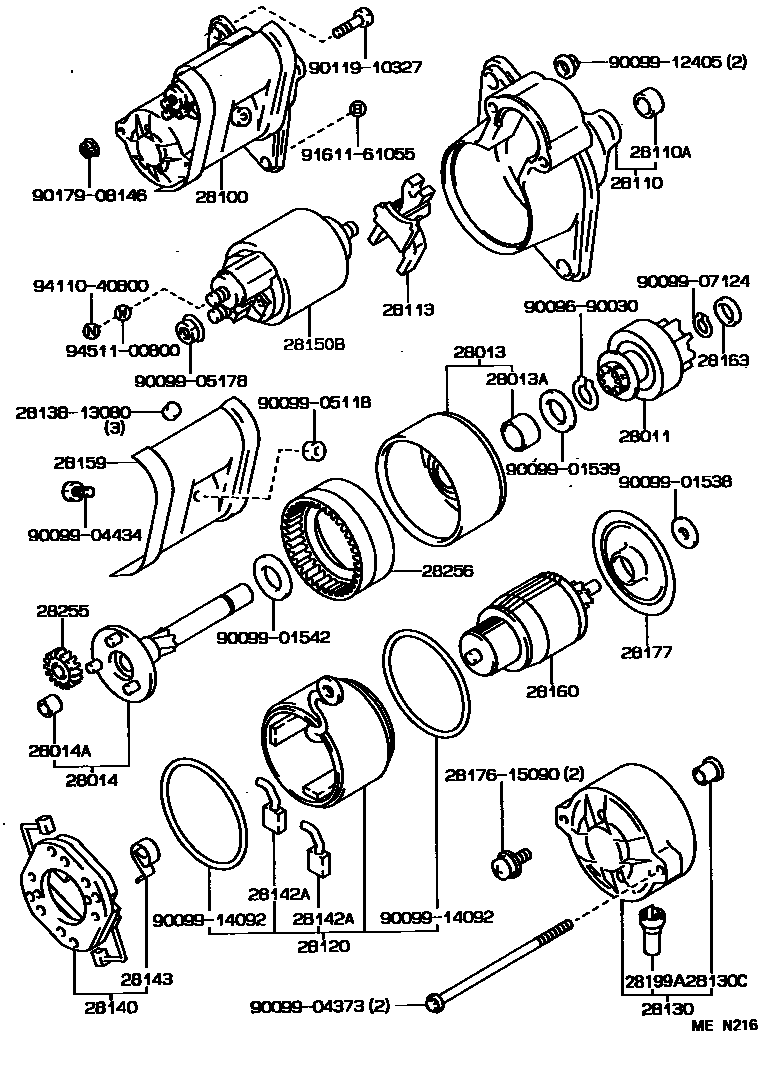

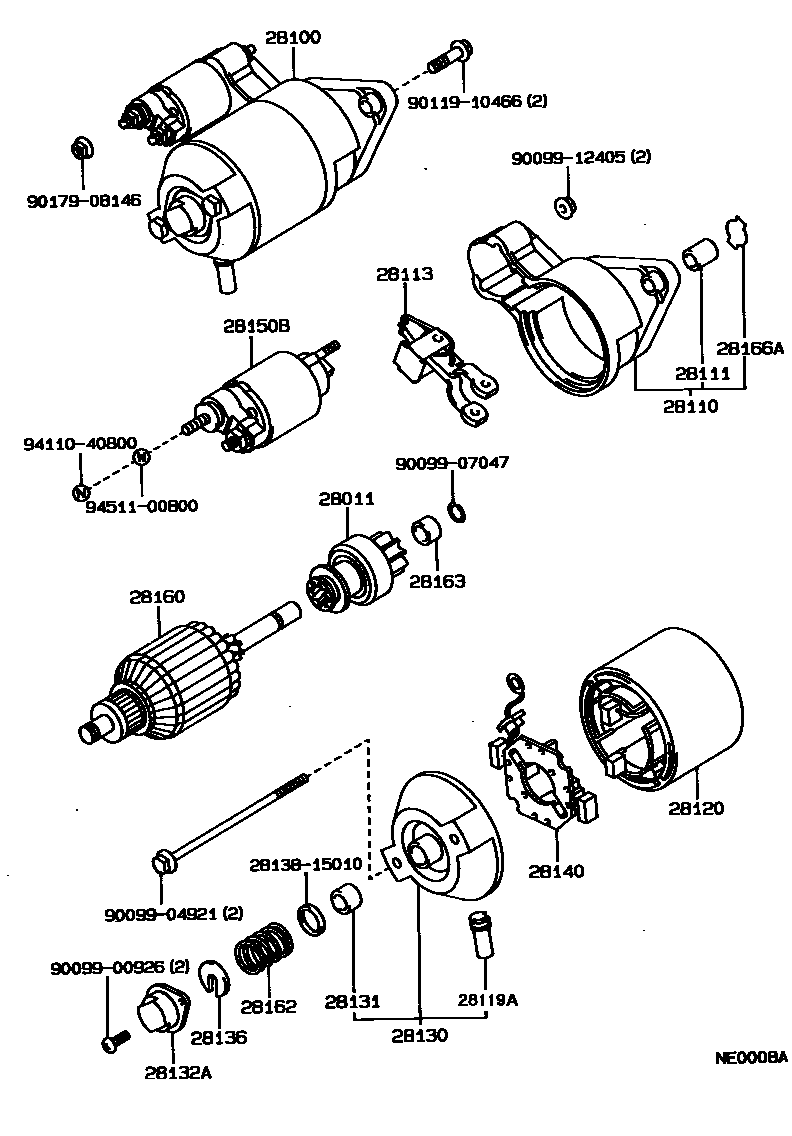

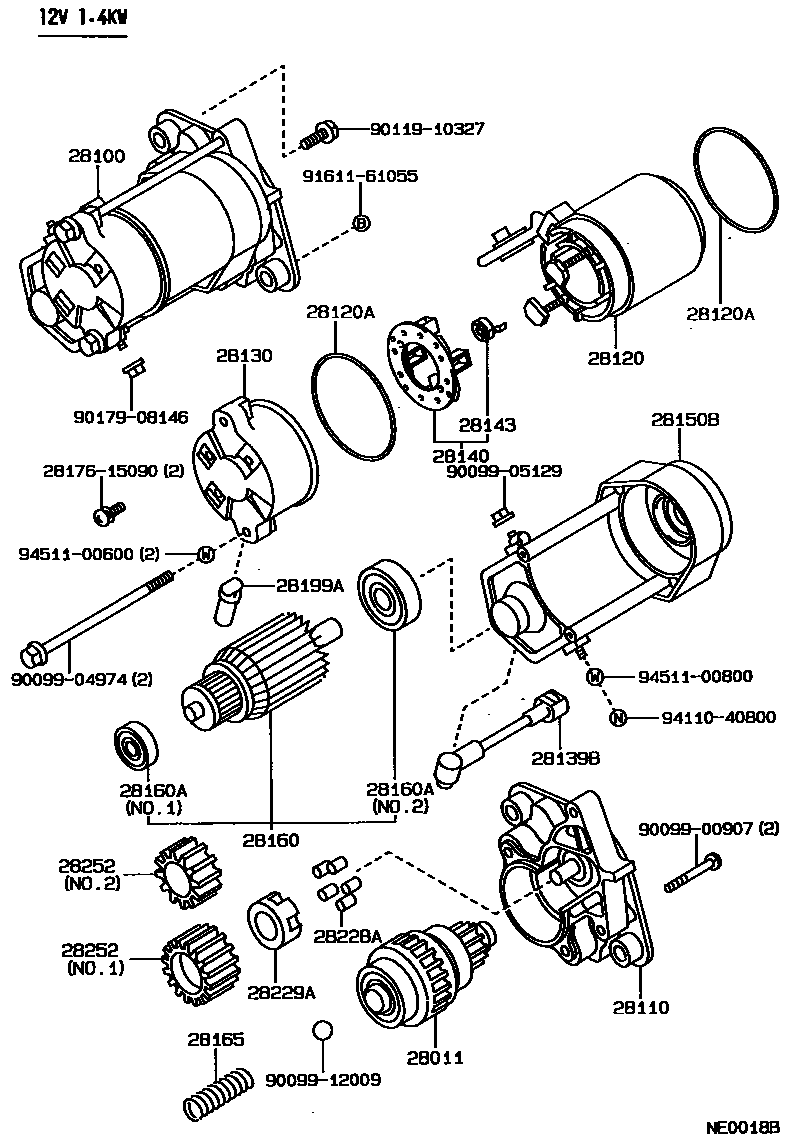

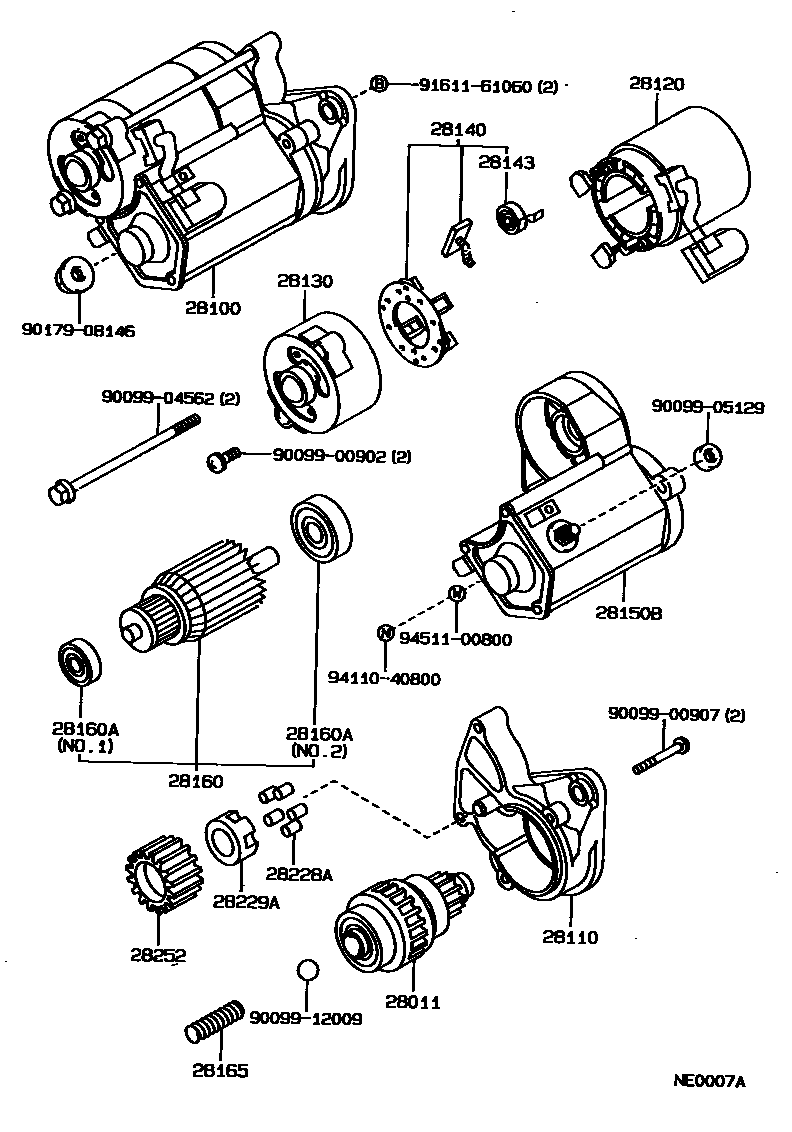

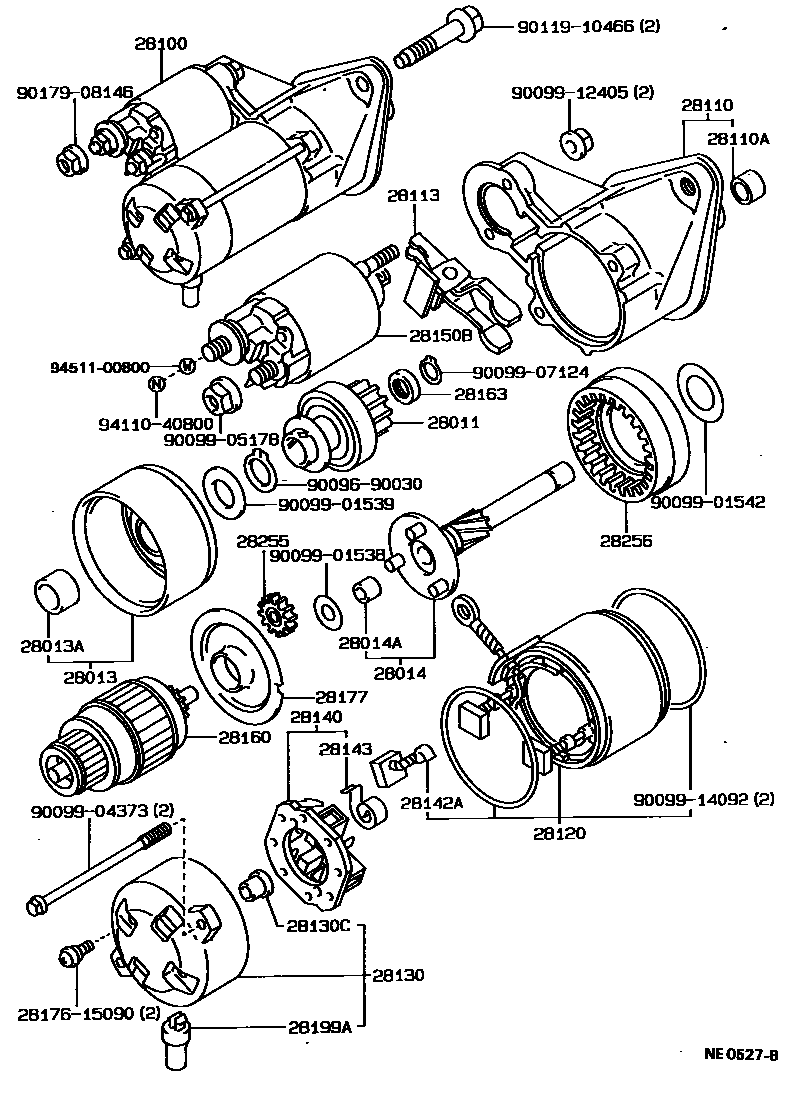

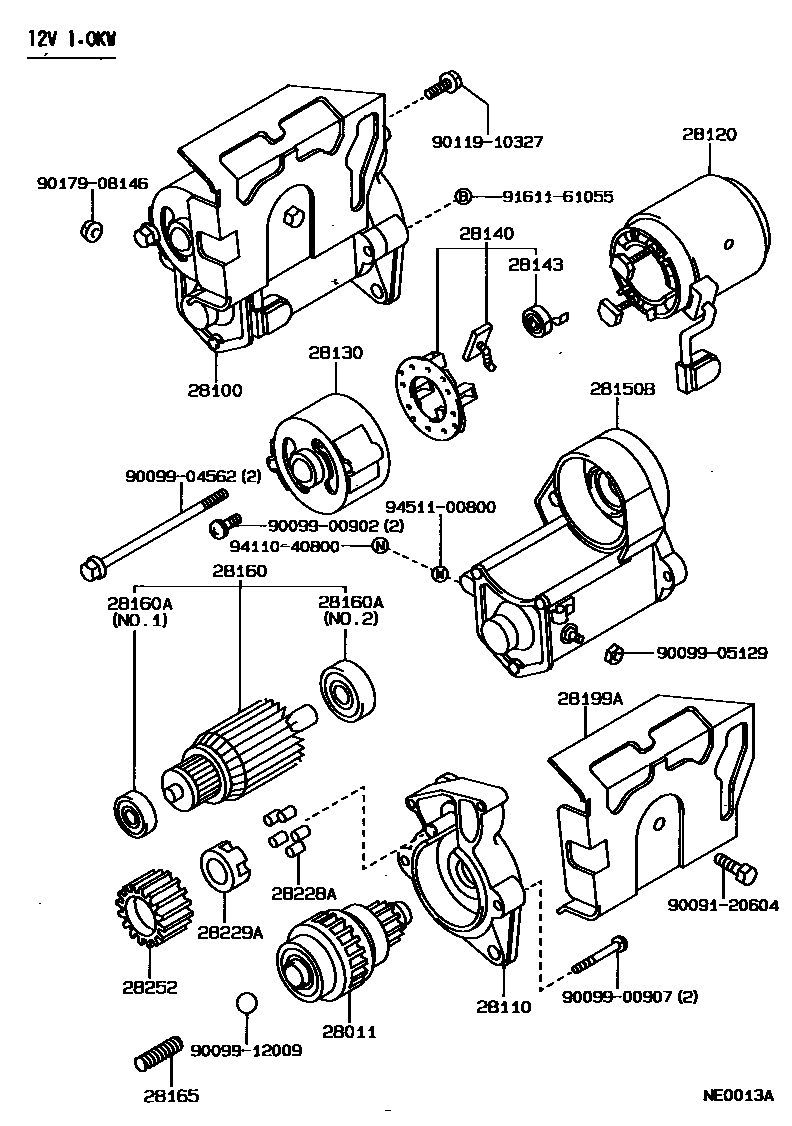

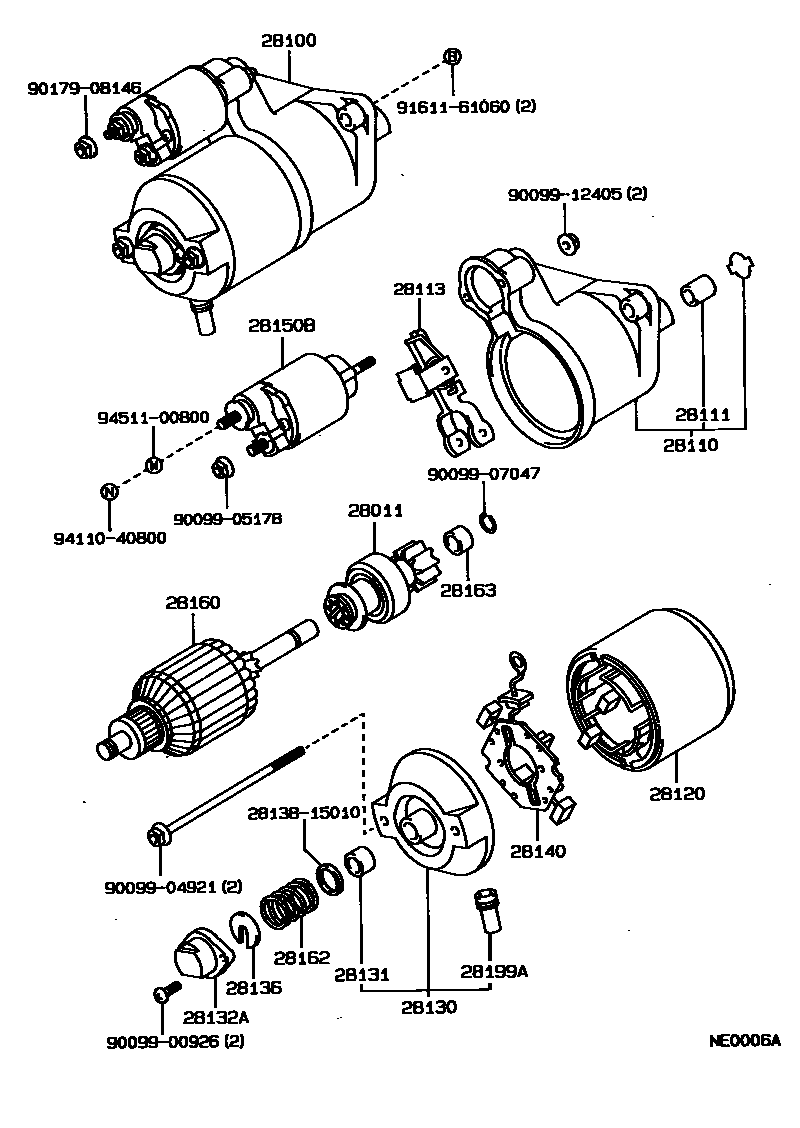

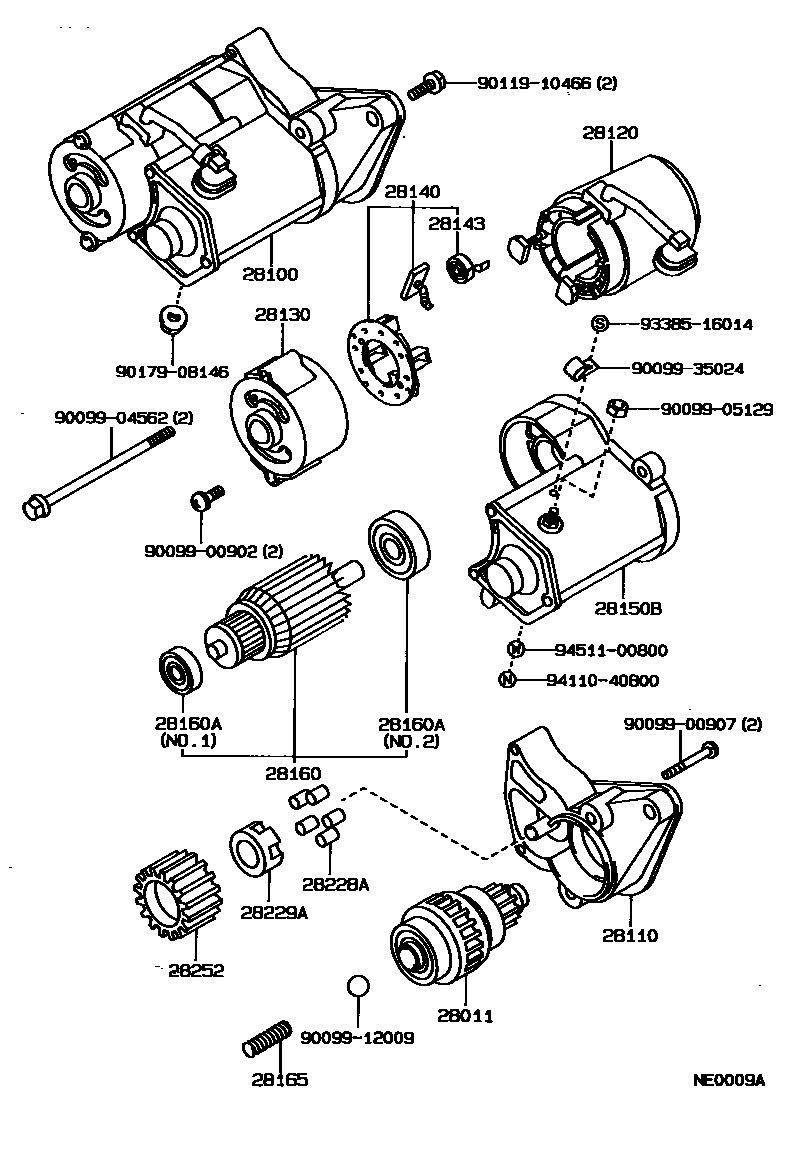

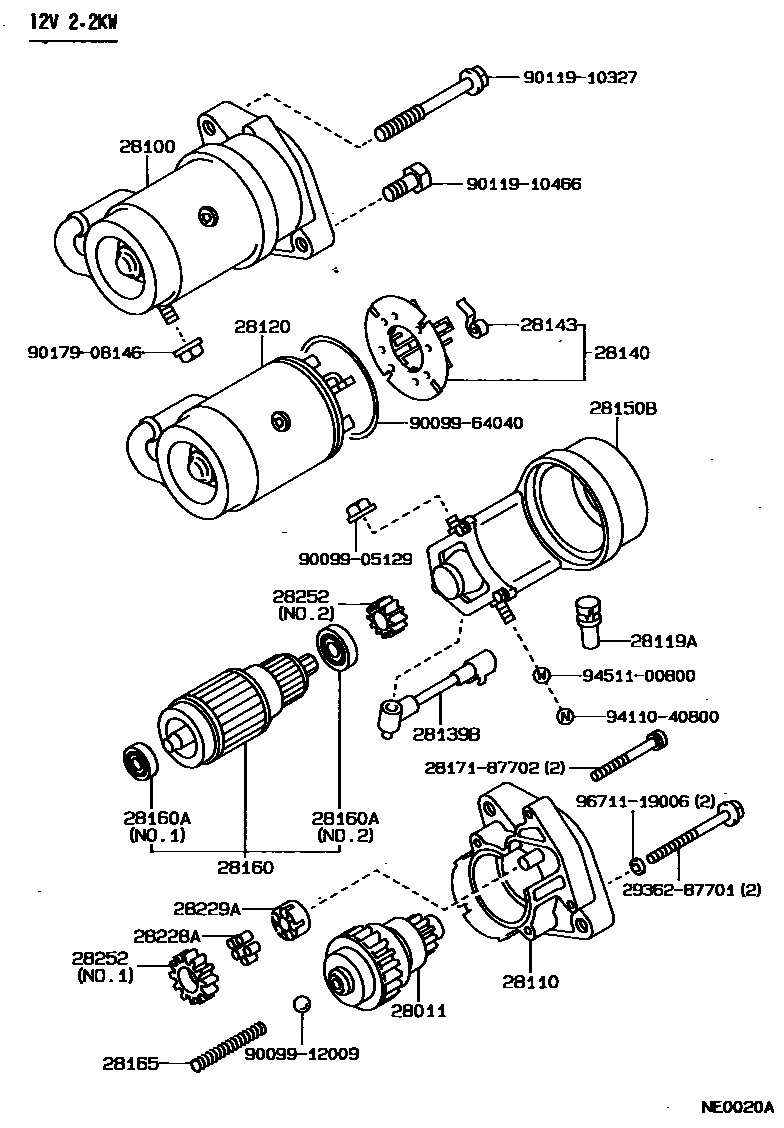

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-10030 · 28011-15010 · 28011-16010 · 28011-26042 · 28011-64010 · 28011-70020 |
| 28013 | No. 1 starter intermediate bearing and shock absorber | 28013-70020 |
| 28013A | No. 2 starter intermediate bearing and shock absorber | 90099-10181 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-70020 |
| 28014A | Planet gear carrier shaft bushing or bearing | 90099-10180 |
| 28100 | Starter assembly | 28100-10030 · 28100-10040 · 28100-15170 · 28100-15180 · 28100-15190 · 28100-16010 · 28100-16020 · 28100-16070 · 28100-16071 · 28100-16110 · 28100-64040 · 28100-64070 |
| 28110 | Starter drive end housing assembly | 28110-10030 · 28110-10040 · 28110-15110 · 28110-15130 · 28110-15190 · 28110-16010 · 28110-16020 · 28110-16070 · 28110-16071 · 28110-64070 · 28115-64040 |
| 28110A | Bearings (for starter housing) | 90099-10182 |
| 28111 | Bushing (for starter housing) | 28111-51011 |
| 28113 | starter pinion drive rod | 28113-15011 · 28113-16010 · 28113-16070 · 28113-70020 |
| 28119A | Starter end frame cover | 28119-54070 · 28199-77090 |
| 28120 | Starter yoke assembly | 28120-13081 · 28120-15010 · 28120-15090 · 28120-26071 · 28120-26140 · 28120-64040 · 28120-70020 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-13010 · 28130-13020 · 28130-15090 · 28130-15190 · 28130-16010 · 28130-16070 · 28130-34060 · 28130-37010 · 28130-64070 · 28130-72010 |
| 28130C | Starter flange bearing | 90099-10183 |
| 28131 | Commutator end frame bushing | 90099-10134 |
| 28132A | Starter commutator end frame cover | 28132-15010 |
| 28136 | starter lock plate | 28136-15010 |
| 28139B | Lead wire | 28139-64010 · 28139-64070 · 28139-64071 |
| 28140 | Starter brush holder assembly | 28140-15010 · 28140-15090 · 28140-26070 · 28140-64040 · 28140-70020 |
| 28142A | starter components | 28142-70020 |
| 28143 | starter brush spring | 28143-70020 · 90099-17112 · 90099-17115 |
| 28150B | Electromagnetic switch assembly | 28150-10020 · 28150-10021 · 28150-13011 · 28150-16110 · 28150-34080 · 28150-37010 · 28150-64040 · 28150-64070 · 28150-64100 · 28150-64101 · 28150-72080 |
| 28159 | Starter protective cover | 28159-13080 · 28159-15160 |
| 28160 | Starter armature assembly | 28160-15010 · 28160-15090 · 28160-15091 · 28160-16010 · 28160-26070 · 28160-26071 · 28160-64040 · 28160-70020 · 28160-70021 |
| 28160A | starter armature bearing | 28253-45020 · 28253-54070 · 90099-10113 · 90099-10143 · 90099-10144 |
| 28162 | starter brake spring | 28162-15010 |
| 28163 | Starter pinion snap nut or snap ring | 28163-40011 · 28163-70020 |
| 28165 | Starter solenoid switch return spring | 28165-26040 |
| 28166A | starter case cover | 28166-24030 |
| 28177 | Plate (for starter armature) | 28177-70020 |
| 28199A | Starter dust protection device | 28199-15090 · 28199-46080 · 28199-63050 · 28199-70020 · 28199-74100 · 28199-77090 |
| 28228A | starter clutch roller | 28228-26040 |
| 28229A | Starter idler gear fixing | 28229-26040 |
| 28252 | starter idler gear | 28251-15090 · 28251-54070 · 28254-45020 · 28254-54070 · 28254-64040 |
| 28255 | Planetary gear | 28255-70020 |
| 28256 | Starter internal gear | 28256-70020 |
