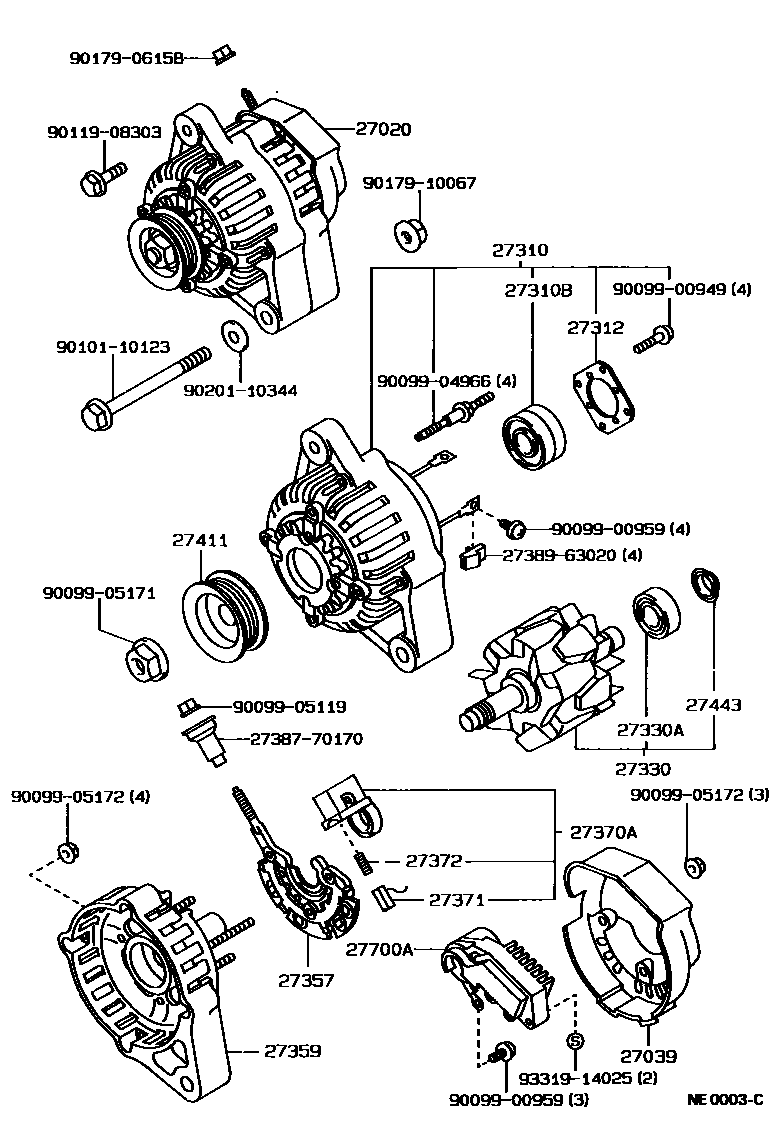

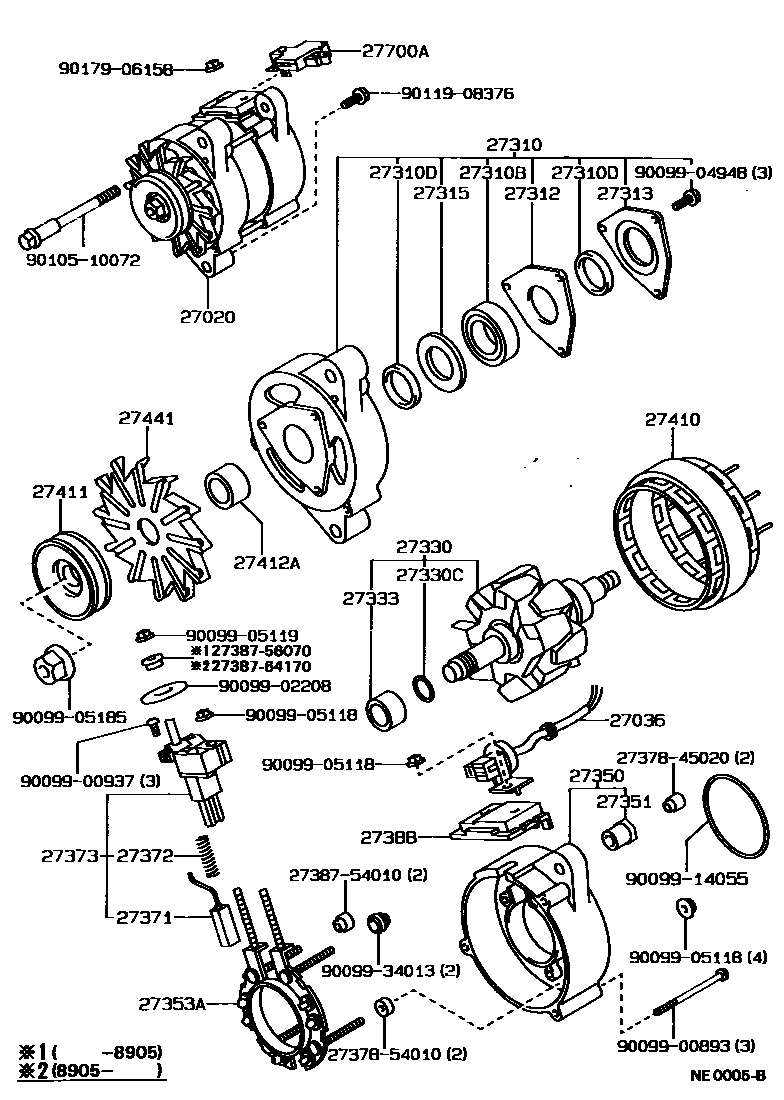

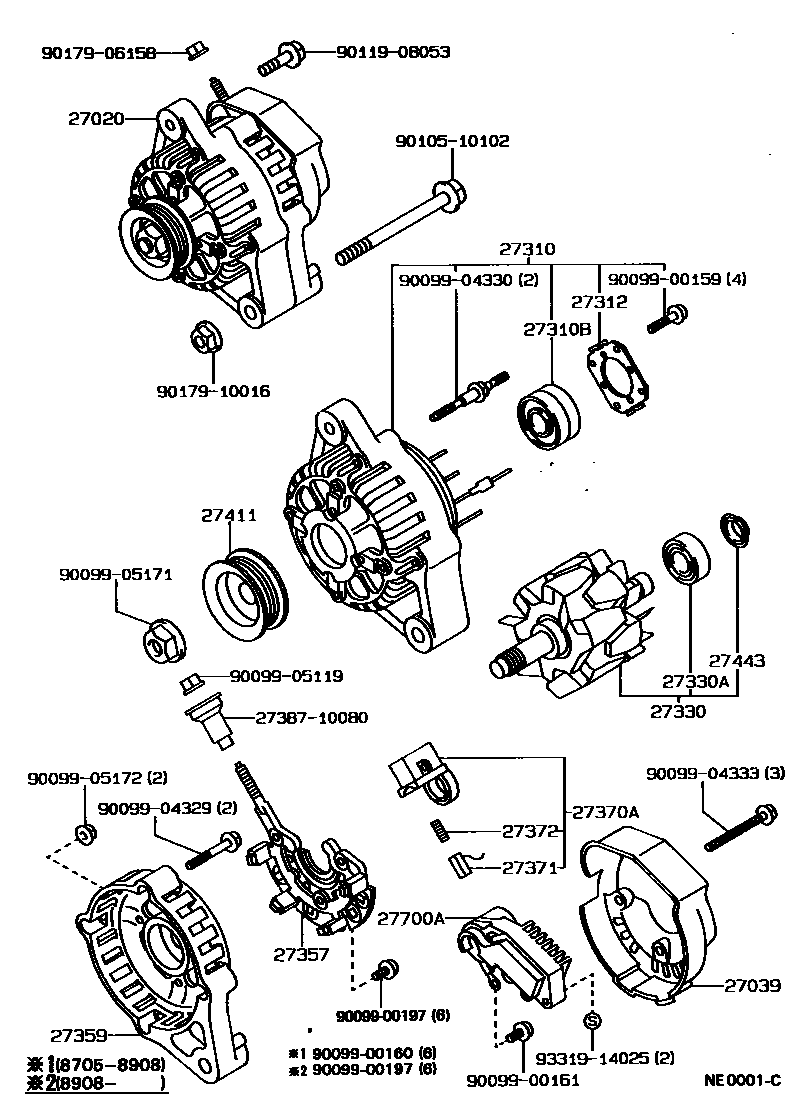

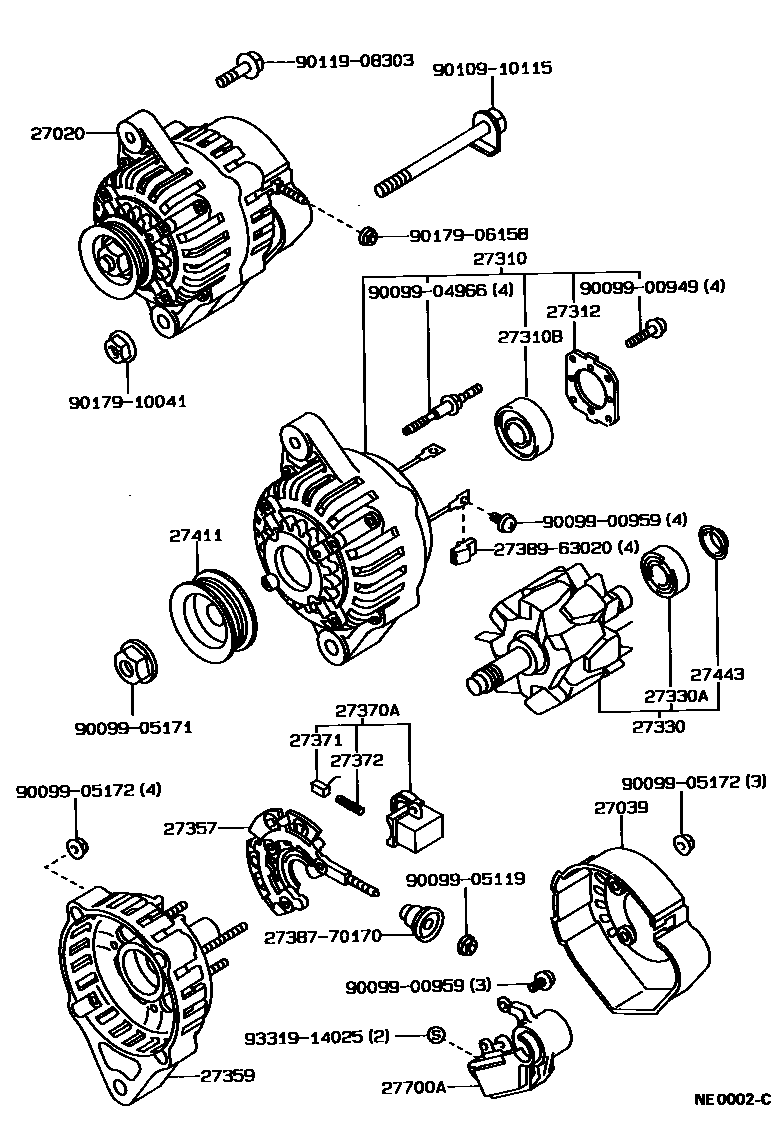

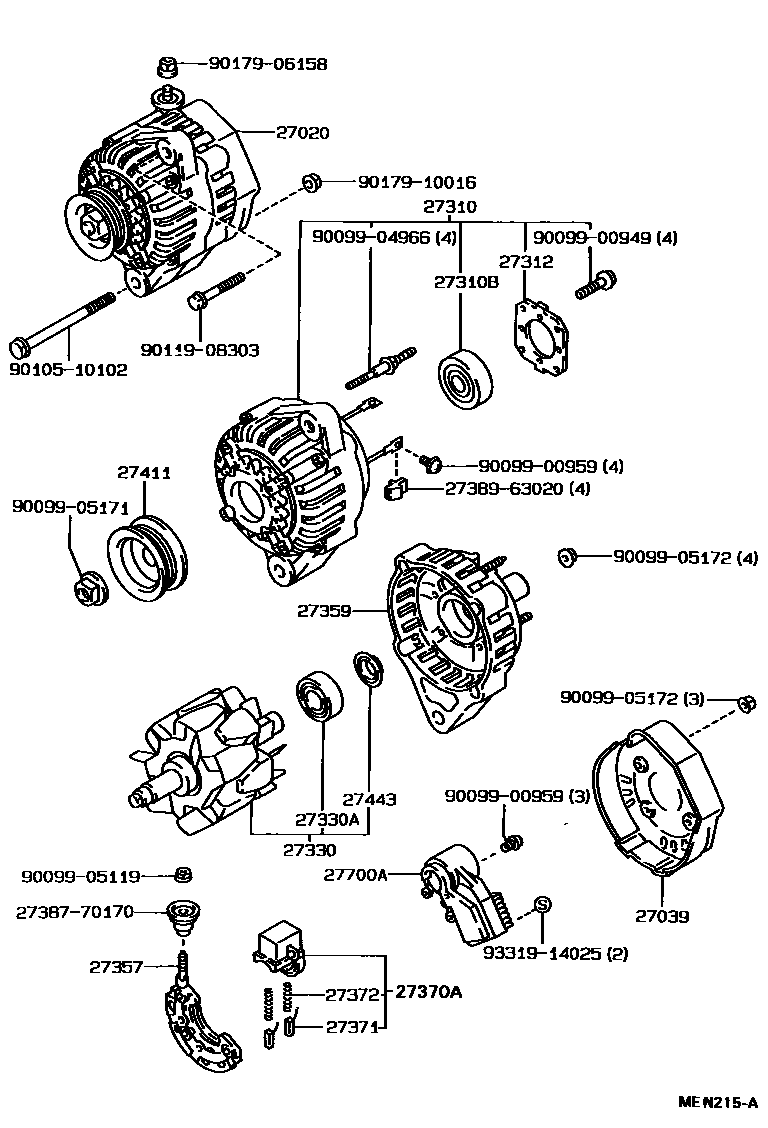

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-64180 · 27020-64210 · 27020-64221 · 27060-10061 · 27060-10080 · 27060-10100 · 27060-11030 · 27060-11080 · 27060-16151 · 27060-16160 · 27060-16170 · 27060-16180 |
| 27036 | Generator lead terminal sub-assembly | 27036-64170 |
| 27039 | Alternator Rear End Cover | 27039-15170 · 27039-72010 · 27039-72110 · 27039-72150 |
| 27310 | Alternator Drive End Frame Assembly | 27310-10021 · 27310-10090 · 27310-16102 · 27310-16103 · 27310-16181 · 27310-16190 · 27310-64060 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10137 · 90099-10159 · 90099-10170 · 90099-10178 |
| 27310D | Felt Pad Washer | 90099-02209 |
| 27312 | Retainer Plate | 27312-57060 · 27312-70200 · 27312-72100 · 27312-72120 |
| 27313 | Generator No. 2 felt pad inner cover | 27313-57060 |
| 27315 | Generator No. 1 felt pad inner cover | 27315-57060 |
| 27330 | Alternator Rotor Assembly | 27330-10021 · 27330-64170 · 27330-64171 · 27330-72100 · 27330-72101 · 27330-72150 |
| 27330A | Bearings (for generator rotor) | 90099-10140 · 90099-10154 |
| 27330C | snap ring | 90099-07103 |
| 27333 | Isolation collar (for generator rotor) | 27333-57060 |
| 27350 | Rectifier end frame assembly | 27350-64060 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-64060 |
| 27353A | Rectifier rack | 27353-64170 · 27353-64180 |
| 27357 | Generator rectifier frame | 27357-63020 · 27357-63040 · 27357-63060 · 27357-72150 |
| 27359 | Generator rectifier end frame | 27359-16081 · 27359-16151 · 27359-16180 · 27359-72150 |
| 27370A | Alternator Brush Holder Assembly | 27370-16011 · 27370-63021 · 27370-70300 |
| 27371 | Generator brushes | 27371-54412 · 27371-56070 · 27371-63020 · 27371-70300 |
| 27372 | Generator brush spring | 27372-56070 · 27372-63020 · 27372-72100 |
| 27373 | Generator A brush holder | 27373-64170 |
| 27388 | Generator brush cover | 27388-64170 |
| 27410 | Generator stator assembly | 27410-43040 |
| 27411 | Alternator Pulley | 27411-10051 · 27411-10070 · 27411-16180 · 27411-16190 · 27411-16191 · 27411-64060 · 27411-64210 · 27411-65010 · 27411-70261 |
| 27412A | Isolation collar (for generator drive end cover) | 27412-64060 |
| 27441 | generator fan | 27441-64060 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-10050 · 27700-10070 · 27700-10071 · 27700-10080 · 27700-11030 · 27700-16010 · 27700-63021 · 27700-64040 · 27700-70030 |
