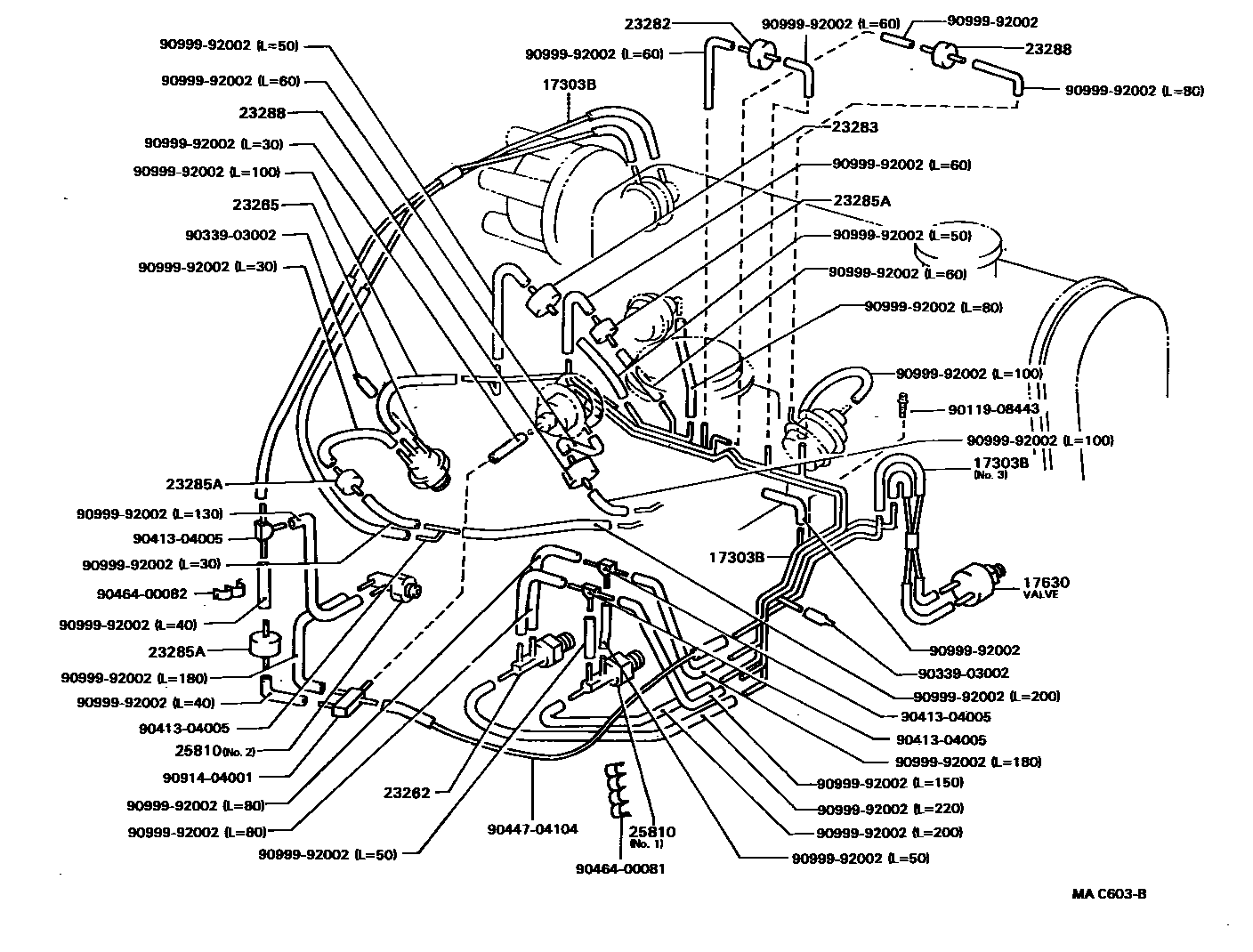

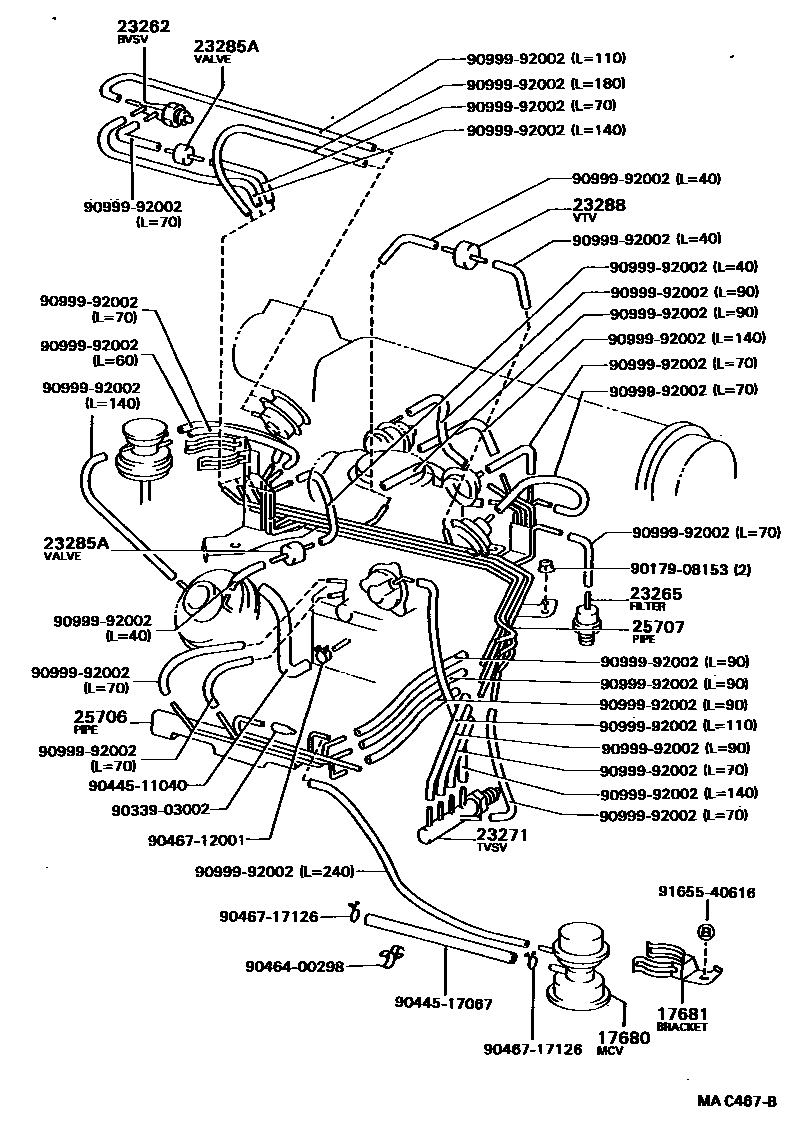

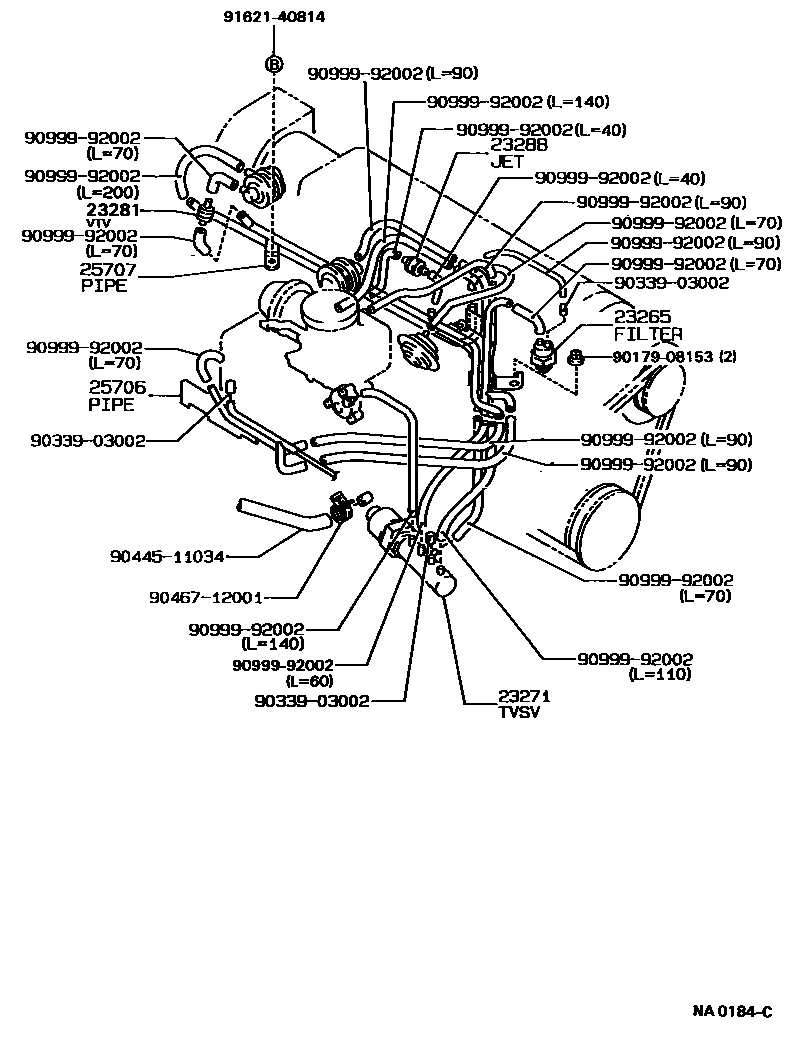

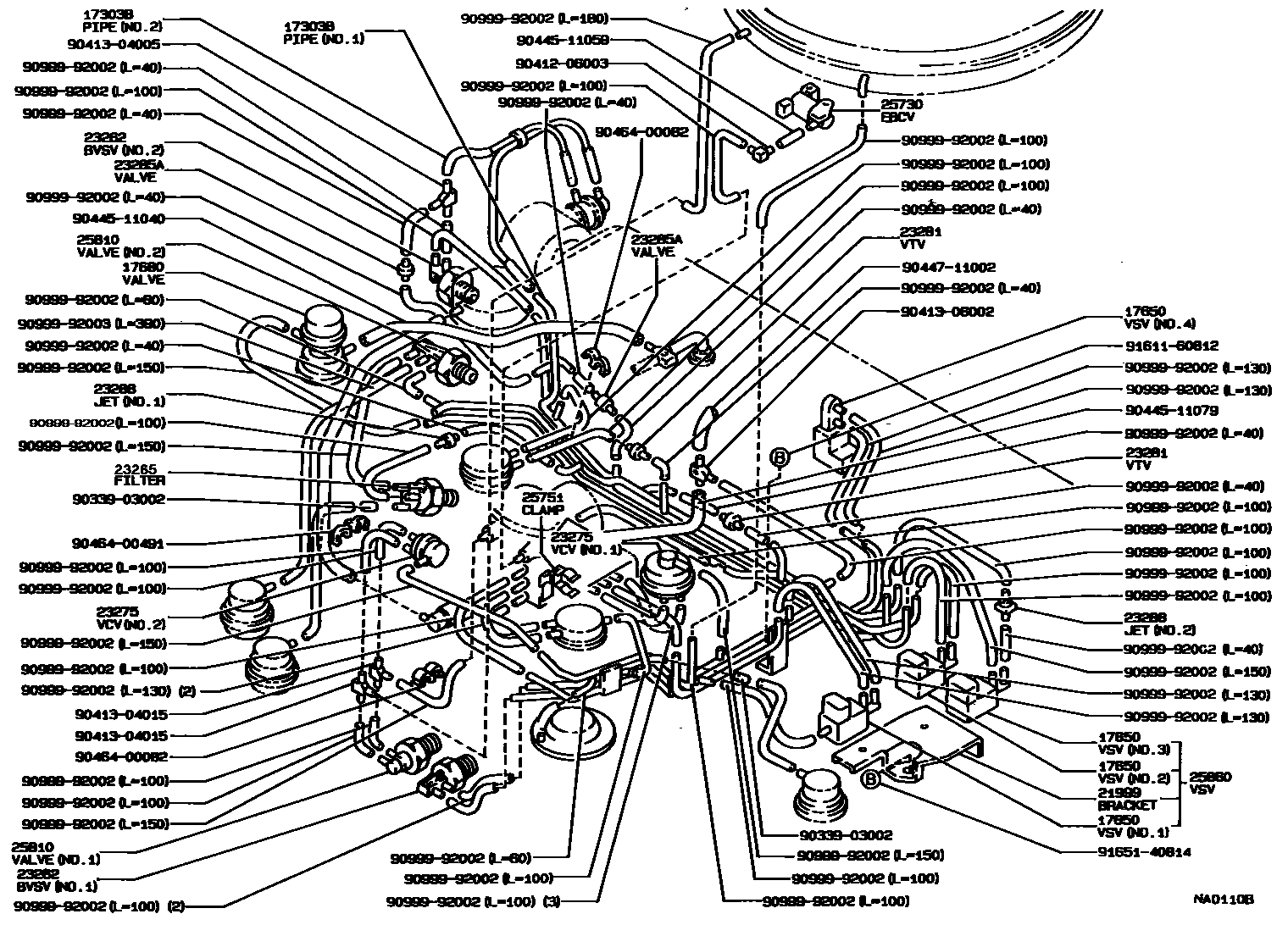

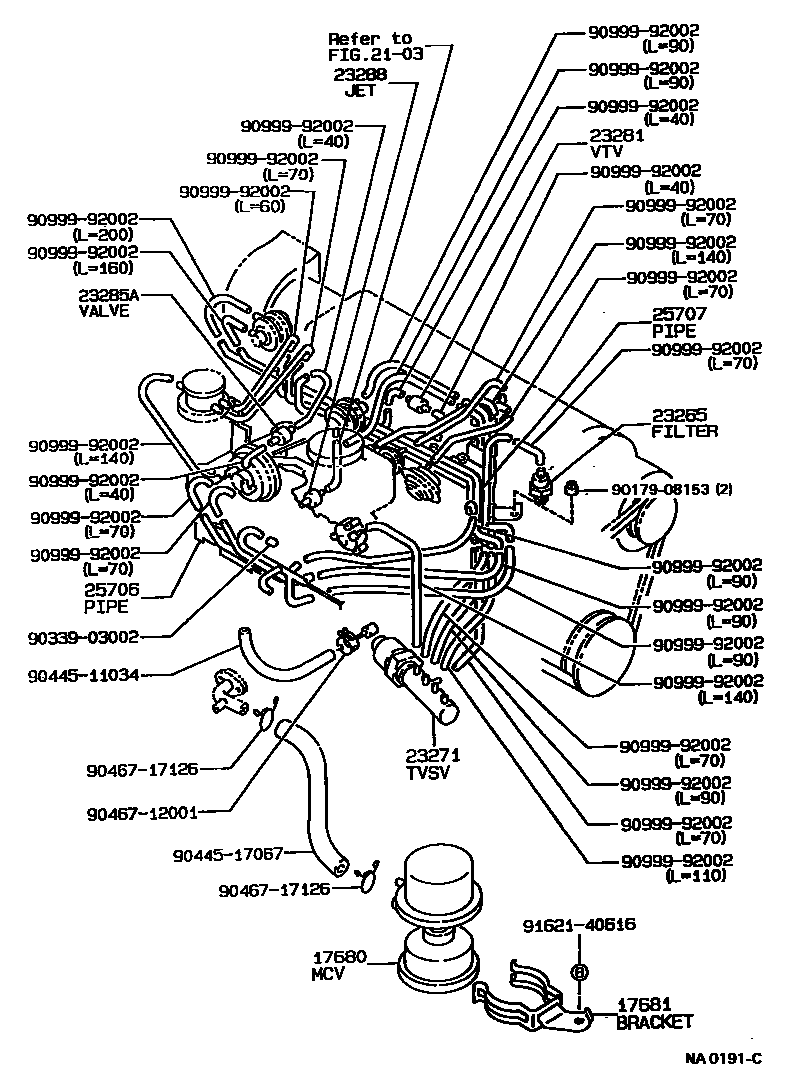

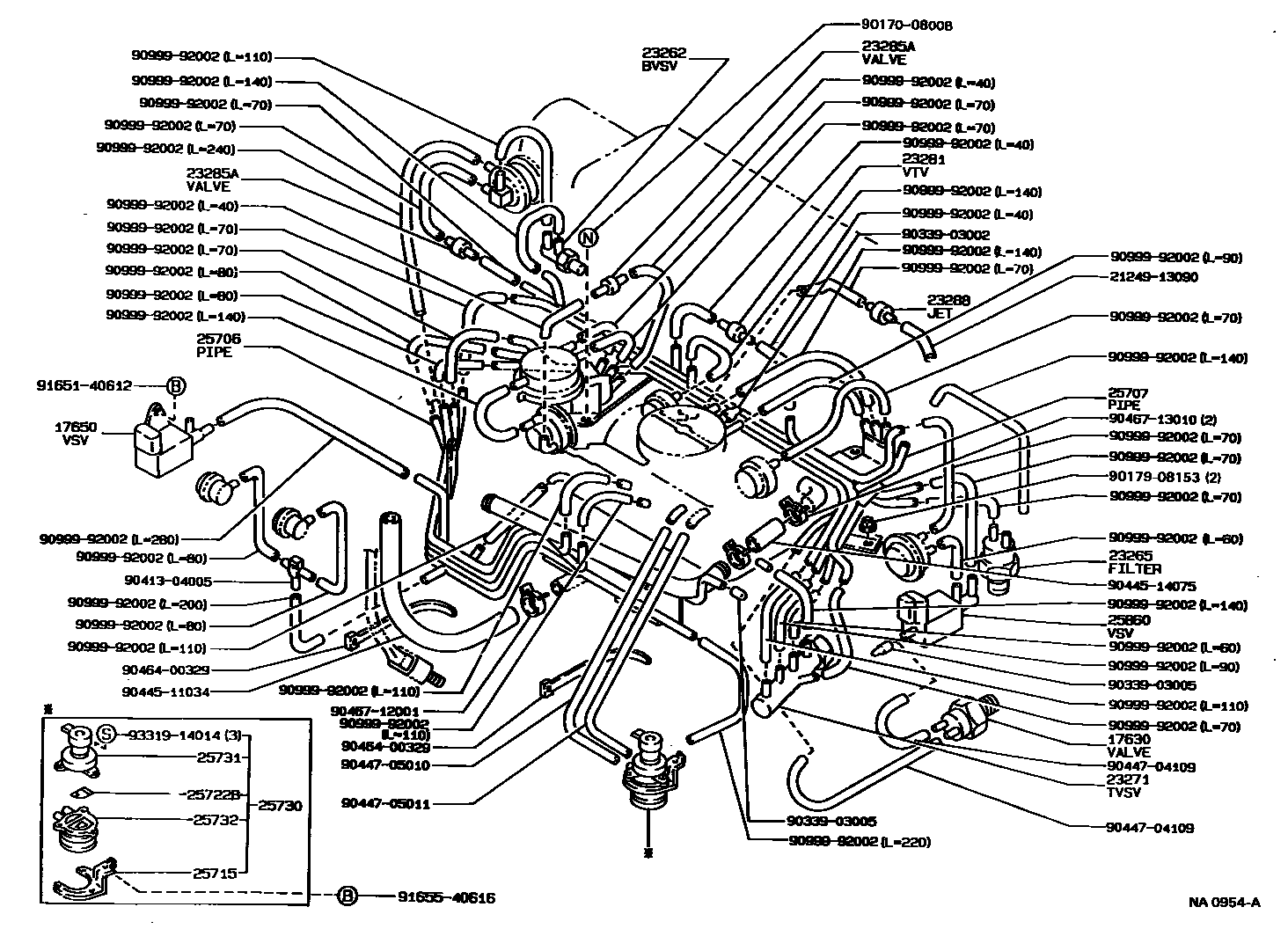

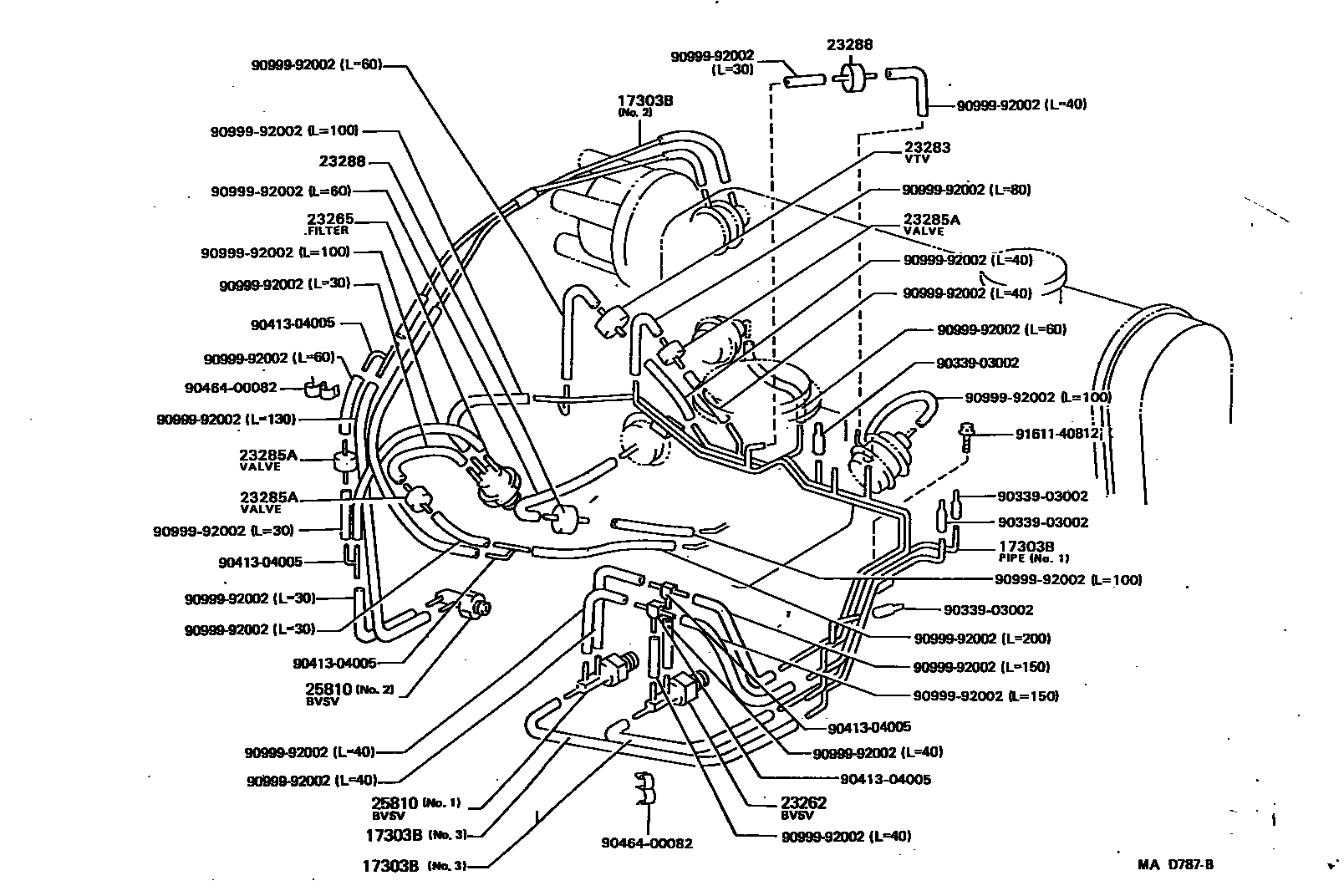

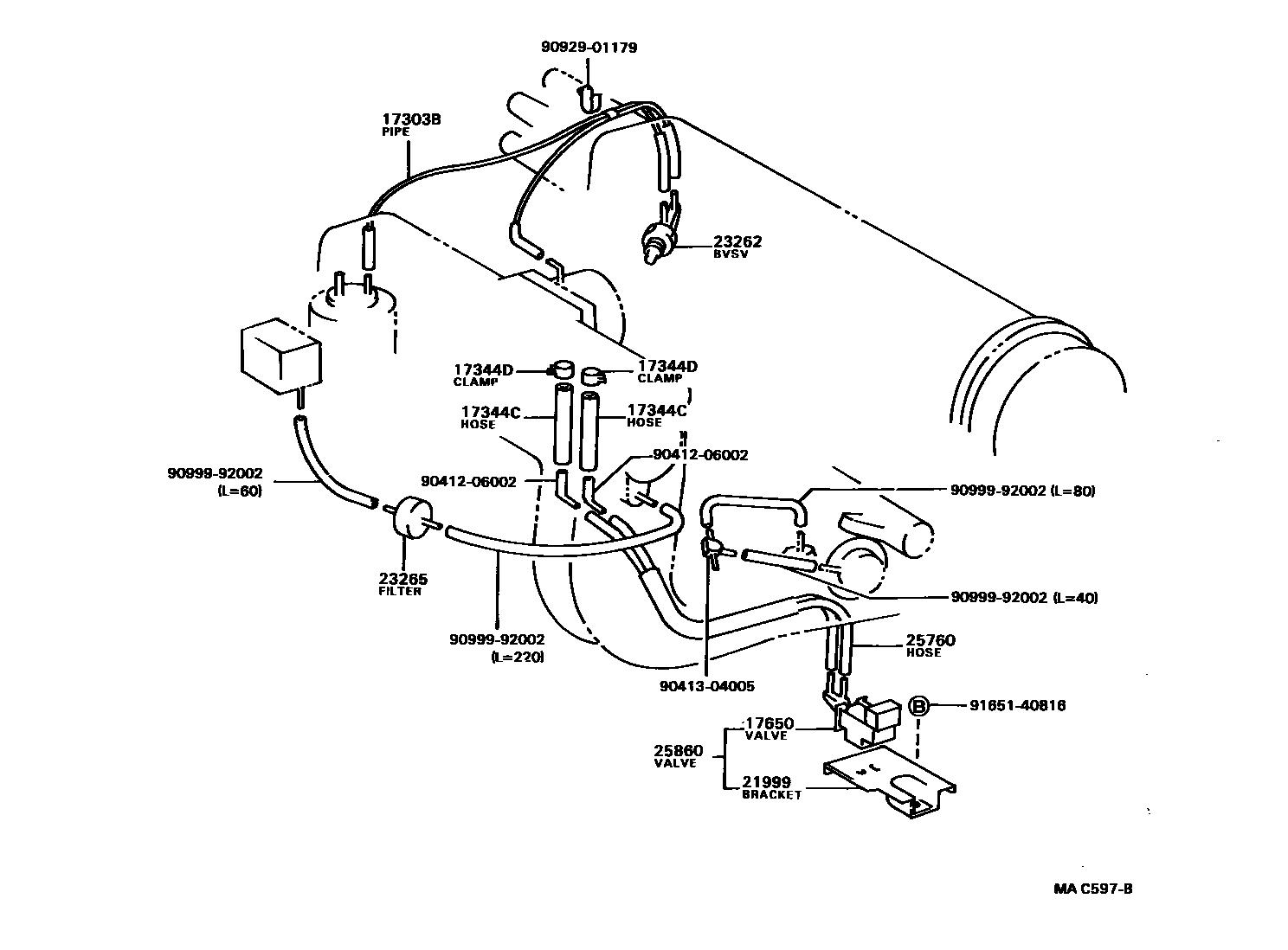

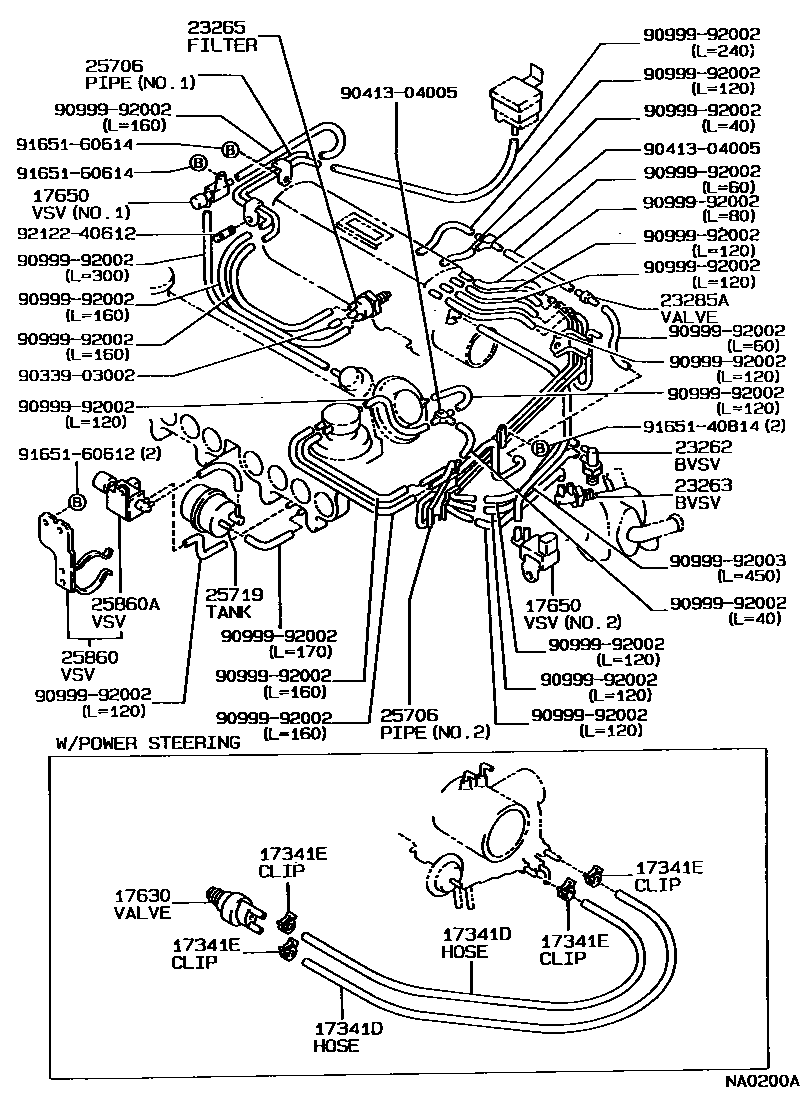

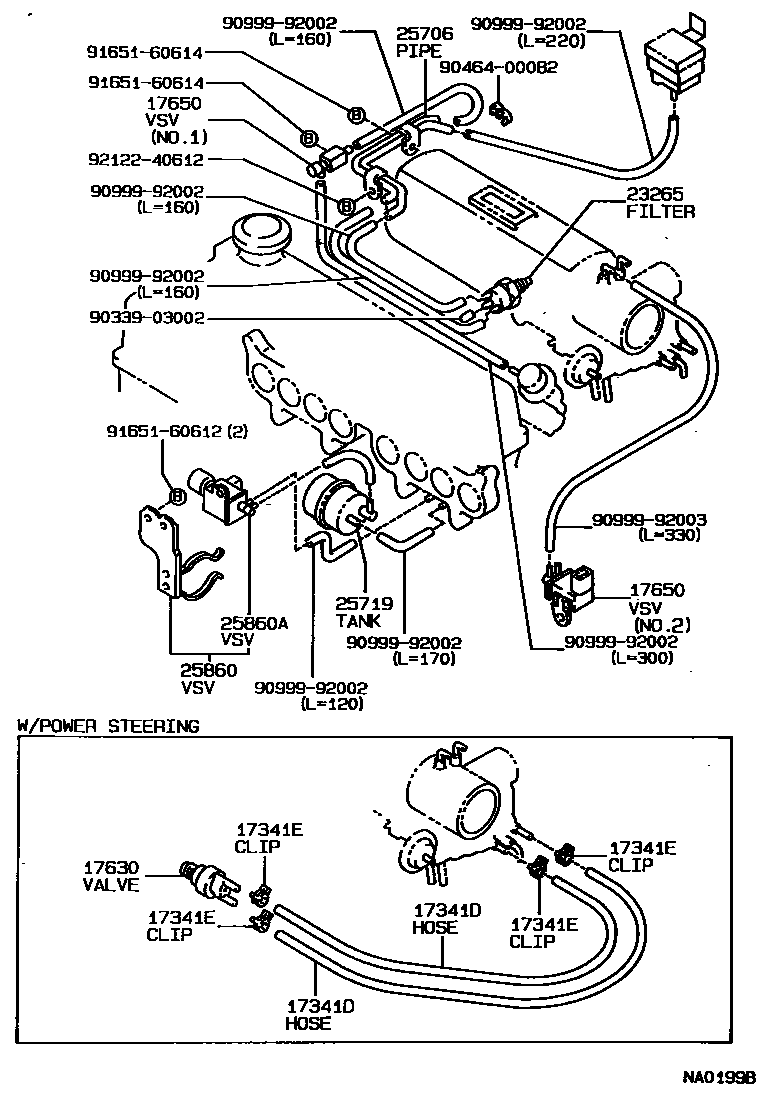

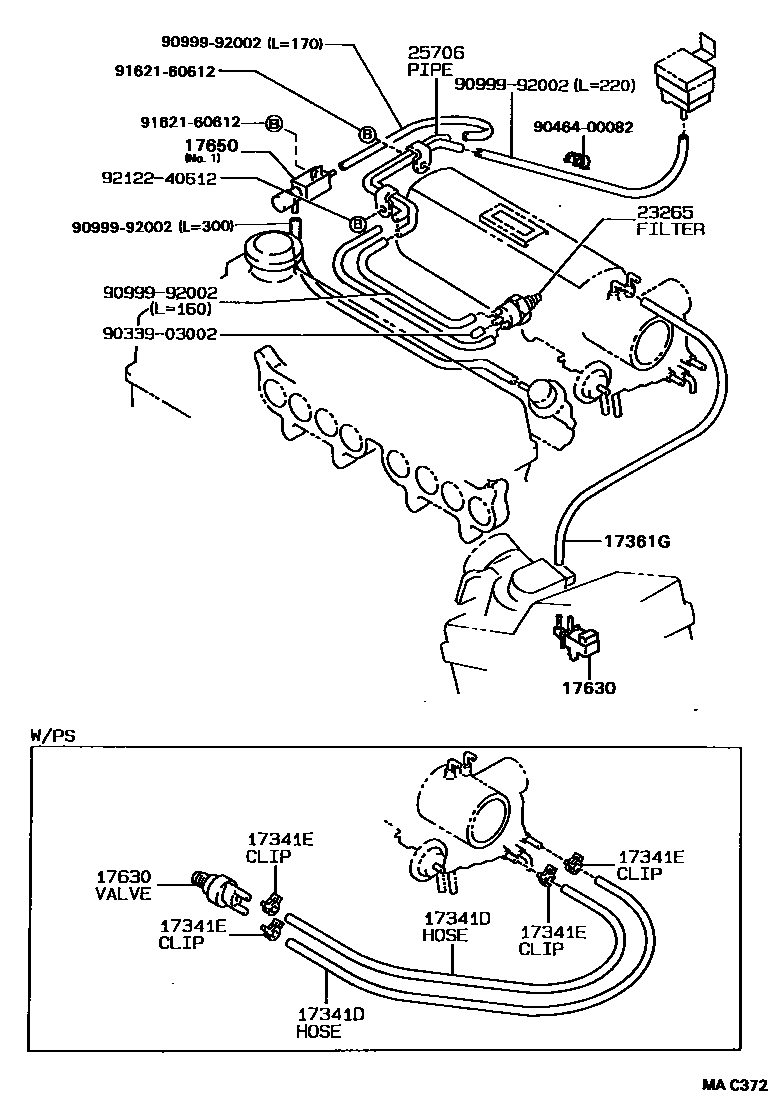

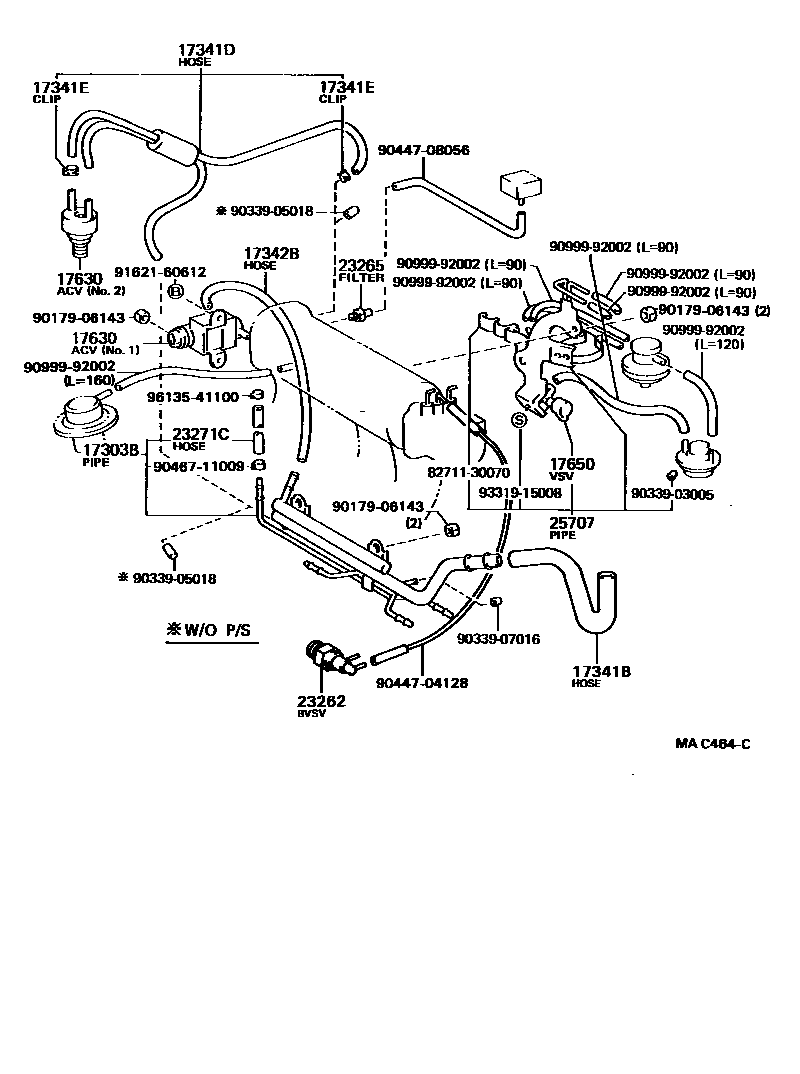

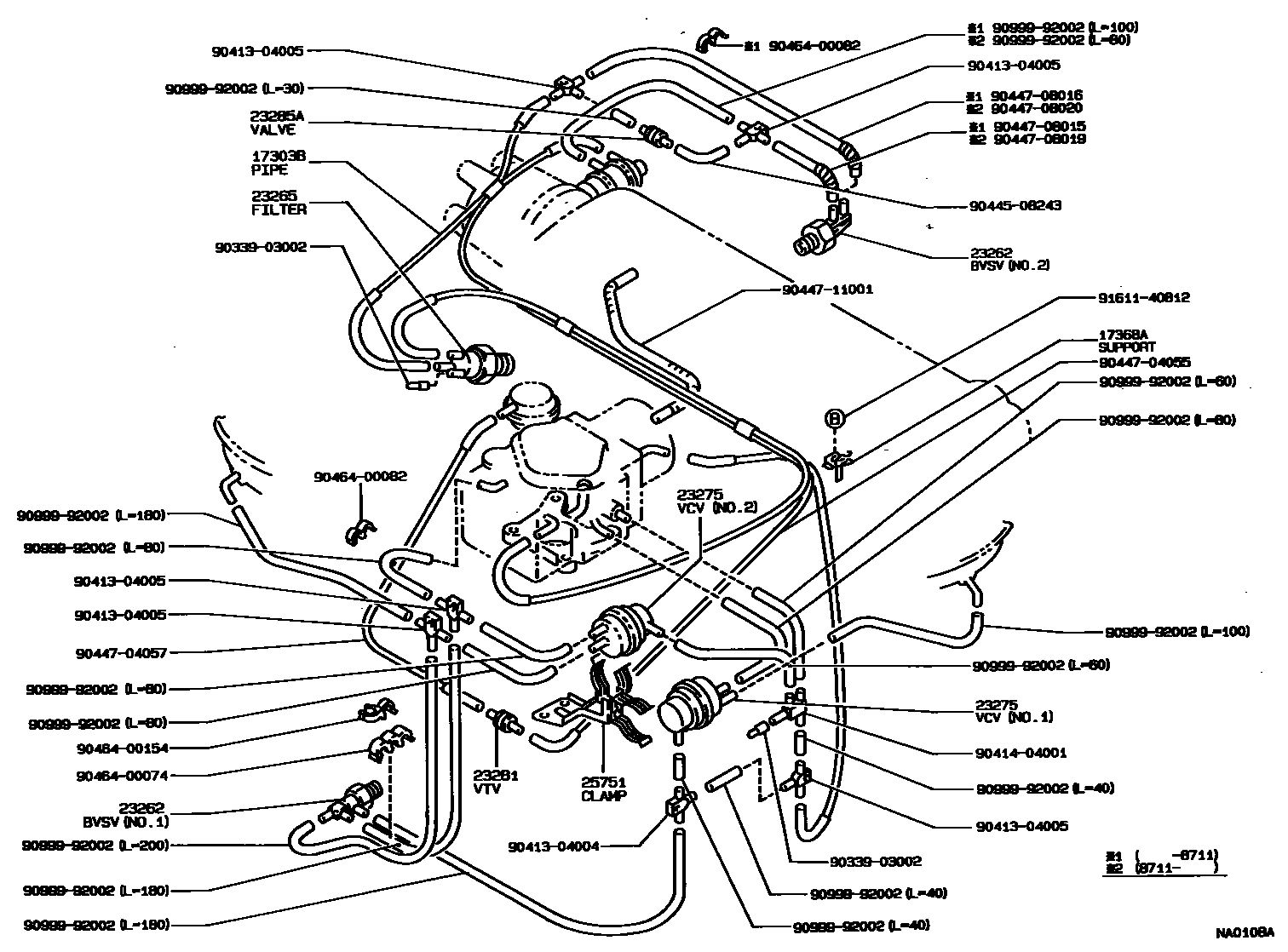

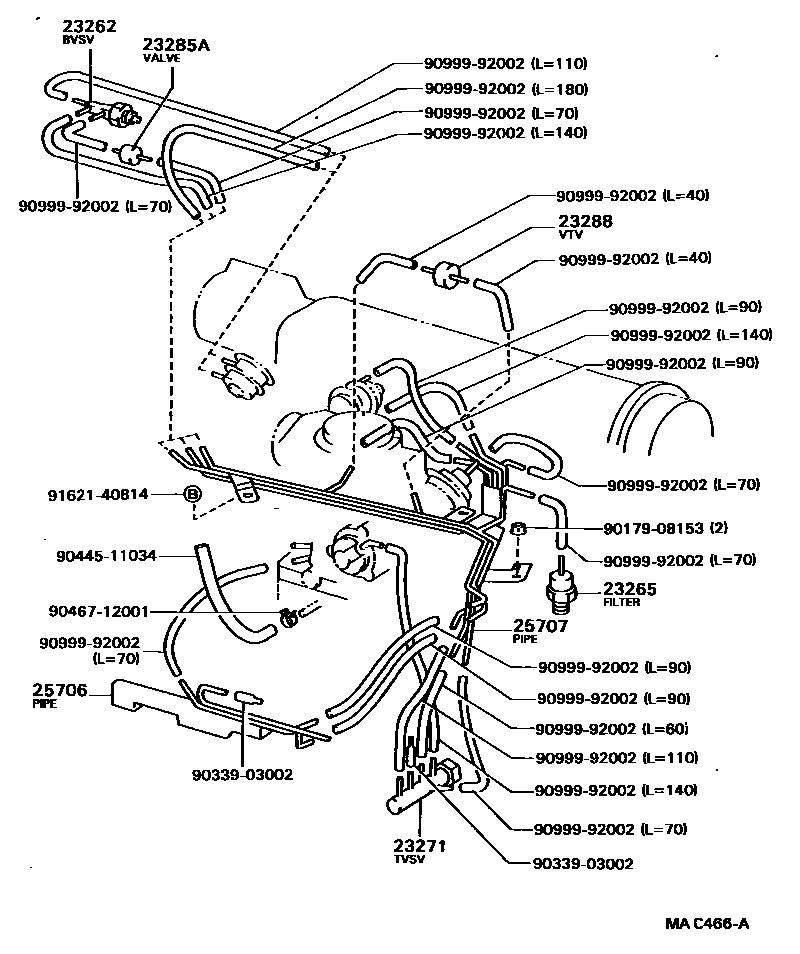

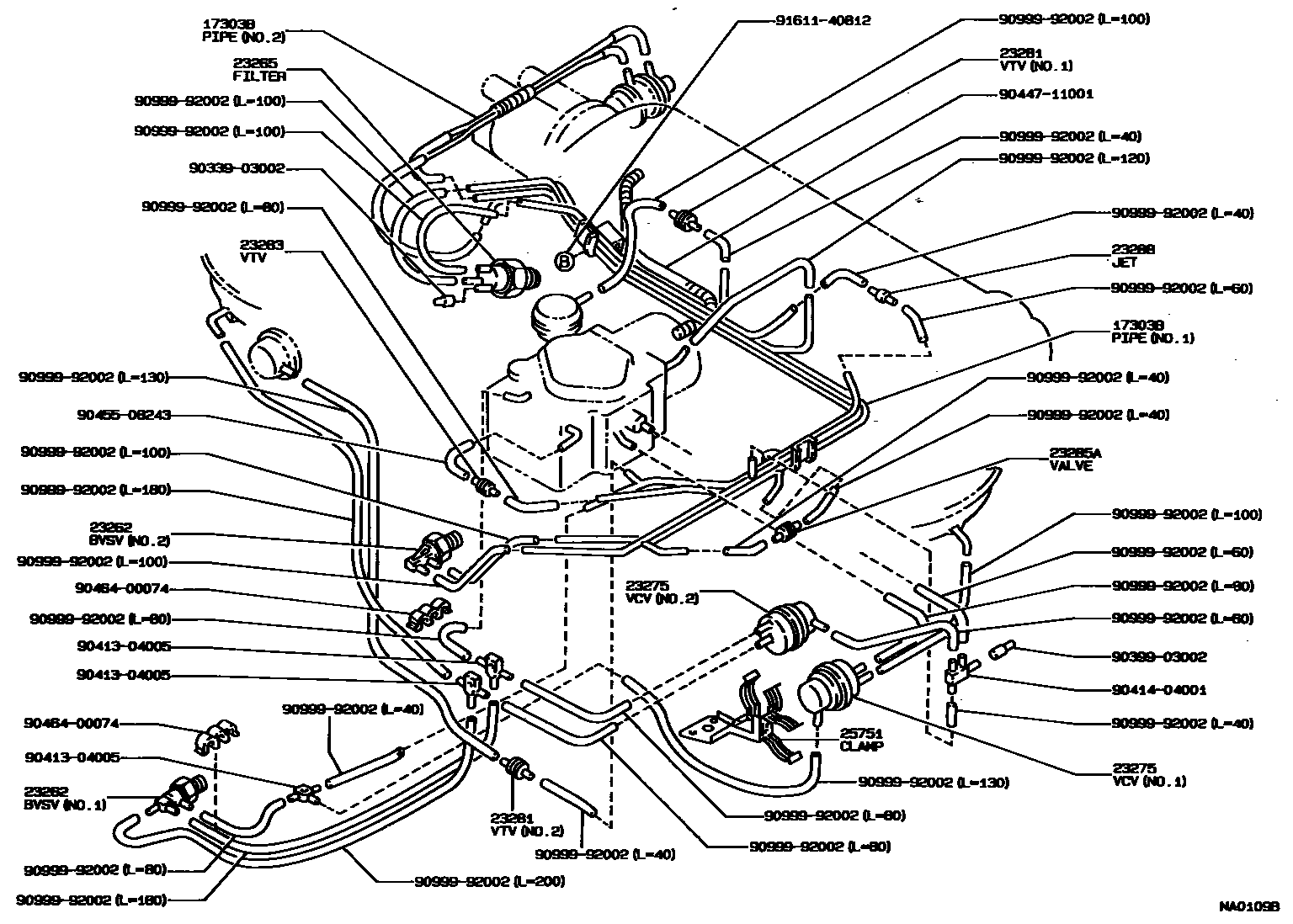

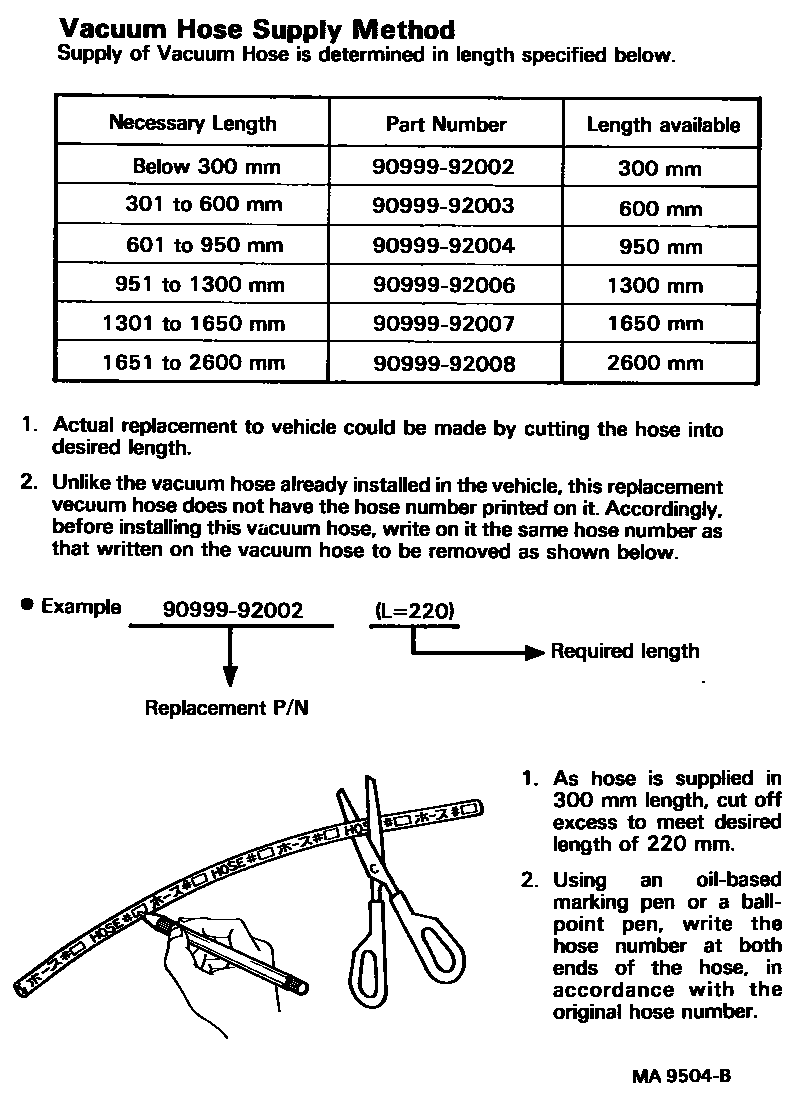

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 16 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-11051 · 17303-11052 · 17303-11161 · 17303-11210 · 17303-11220 · 17303-11290 · 17303-11320 · 17303-11380 · 17303-11440 · 17303-11460 · 17303-11550 · 17303-11570 · 17303-16131 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-15170 |
| 17341D | No. 1 hose (for idle boost) | 17302-16010 · 17341-16110 · 17341-16150 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 90445-10029 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-11010 |
| 17344D | No. 4 clip (for idle lifting hose) | 96132-30400 |
| 17361G | Air pipe (for idle boost) | 17361-16100 |
| 17368A | Air tube support | 17368-11010 |
| 17630 | Air control valve assembly | 17630-15021 · 17630-15030 · 17630-15060 · 17630-16040 · 17630-16070 · 17630-16080 |
| 17650 | Vacuum switch valve assembly | 25860-16090 · 90910-12034 · 90910-12039 · 90910-12045 · 90910-12046 · 90910-12047 · 90910-12048 · 90910-12053 · 90910-12060 · 90910-12065 · 90910-12068 · 90910-12091 · 90910-12094 |
| 17680 | Mixture control valve assembly | 17680-11010 · 17680-16010 |
| 17681 | Mixture control valve bracket | 17681-16020 |
| 21999 | Vacuum switch valve bracket | 21999-11030 · 21999-11090 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25820-11020 · 25820-11040 · 90925-05017 · 90925-05035 · 90925-05047 · 90925-05051 · 90925-05068 · 90925-05085 |
| 23263 | No. 2 bimetallic vacuum switch valve | 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11021 · 90917-11022 · 90917-11023 · 90917-11024 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23271C | fuel hose | 95333-06020 |
| 23275 | Vacuum control valve No. 1 | 90925-03066 · 90925-03175 · 90925-03180 · 90925-03181 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01029 · 90925-01041 · 90925-01095 · 90925-01100 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01021 · 90925-01091 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01021 · 90925-01091 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-01091 · 90925-01101 · 90925-04012 · 90925-04026 · 90925-04029 · 90925-04032 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-16200 · 25706-16210 · 25706-16220 · 25706-16231 · 25706-16240 · 25706-16280 · 25706-16400 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16040 · 25707-16050 · 25707-16051 · 25707-16090 · 25707-16100 · 25707-16140 · 25707-16190 |
| 25715 | Emission control valve bracket | 25715-16020 · 25715-16040 |
| 25719 | Vacuum pressure tank | 25719-16020 |
| 25722B | Electronic exhaust control valve gasket | 25722-16010 |
| 25730 | Electronic exhaust control valve assembly | 25730-11020 · 25730-16060 · 25730-16100 |
| 25731 | Electronic exhaust control valve | 25731-16010 |
| 25732 | Electronic exhaust control filter | 25732-16010 |
| 25751 | No. 1 vacuum control valve clamp | 25751-11050 · 25751-11060 |
| 25760 | Vacuum transfer hose assembly | 25760-11040 |
| 25810 | Bimetal valve assembly | 25810-11010 · 25810-11030 · 25810-11040 · 25810-11050 · 25810-11070 · 25810-11080 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-11070 · 25860-11100 · 25860-16070 · 25860-16100 · 25860-16120 · 89470-12070 |
| 25860A | No. 1 vacuum switch valve | 90910-12052 |
