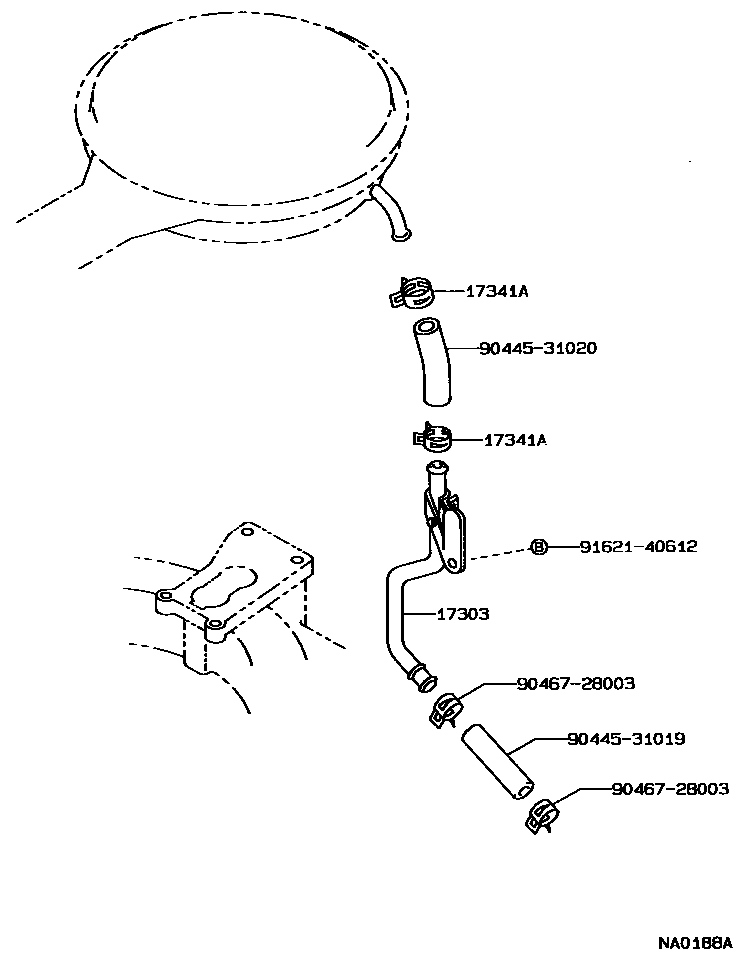

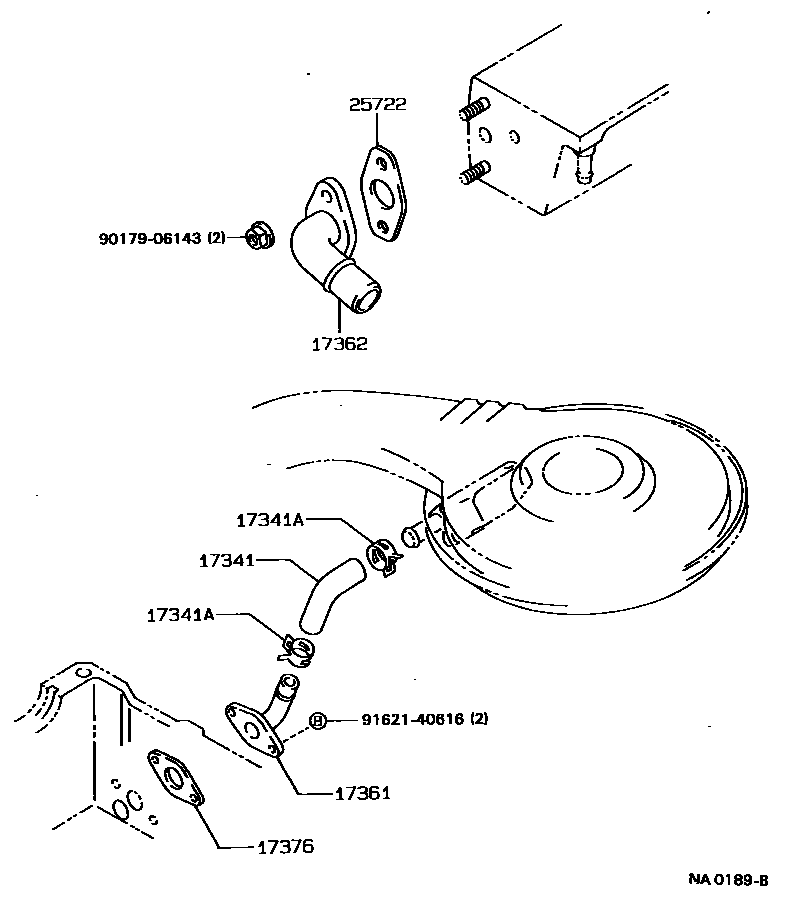

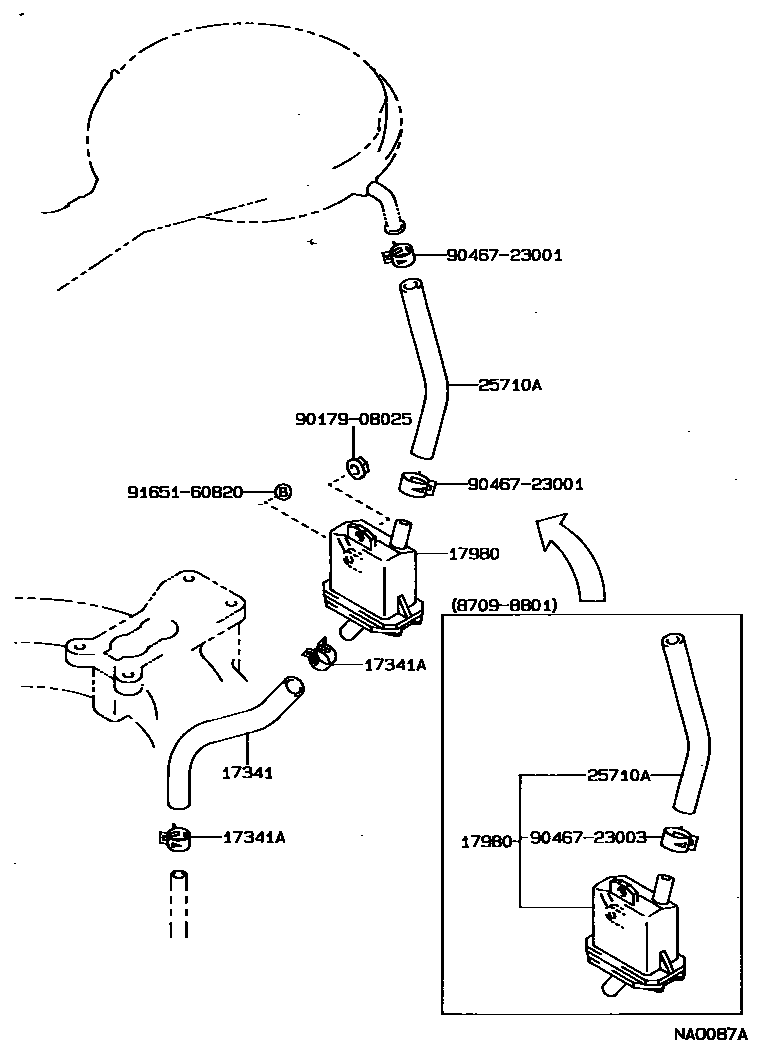

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303 | Air pipe subassembly | 17303-16080 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-11010 · 17341-11011 · 17341-11012 · 17341-11070 · 17341-11130 · 17341-15140 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-26002 · 90467-26004 · 90467-28003 |
| 17351 | jet manifold | 17306-11041 · 17306-11060 |
| 17361 | air tube | 17361-15080 |
| 17362 | No. 2 air pipe | 17361-16070 |
| 17376 | Air tube gasket No. 1 | 17376-15020 |
| 17980 | Secondary air suction filter assembly | 17980-11041 · 17980-11042 |
| 25710A | Hoses (for air bypass valve to air switch valve) | 90445-15010 |
| 25722 | Electronic air control valve gasket | 25722-15020 |
