Toyota COROLLA Exhaust Pipe — Figure 1702

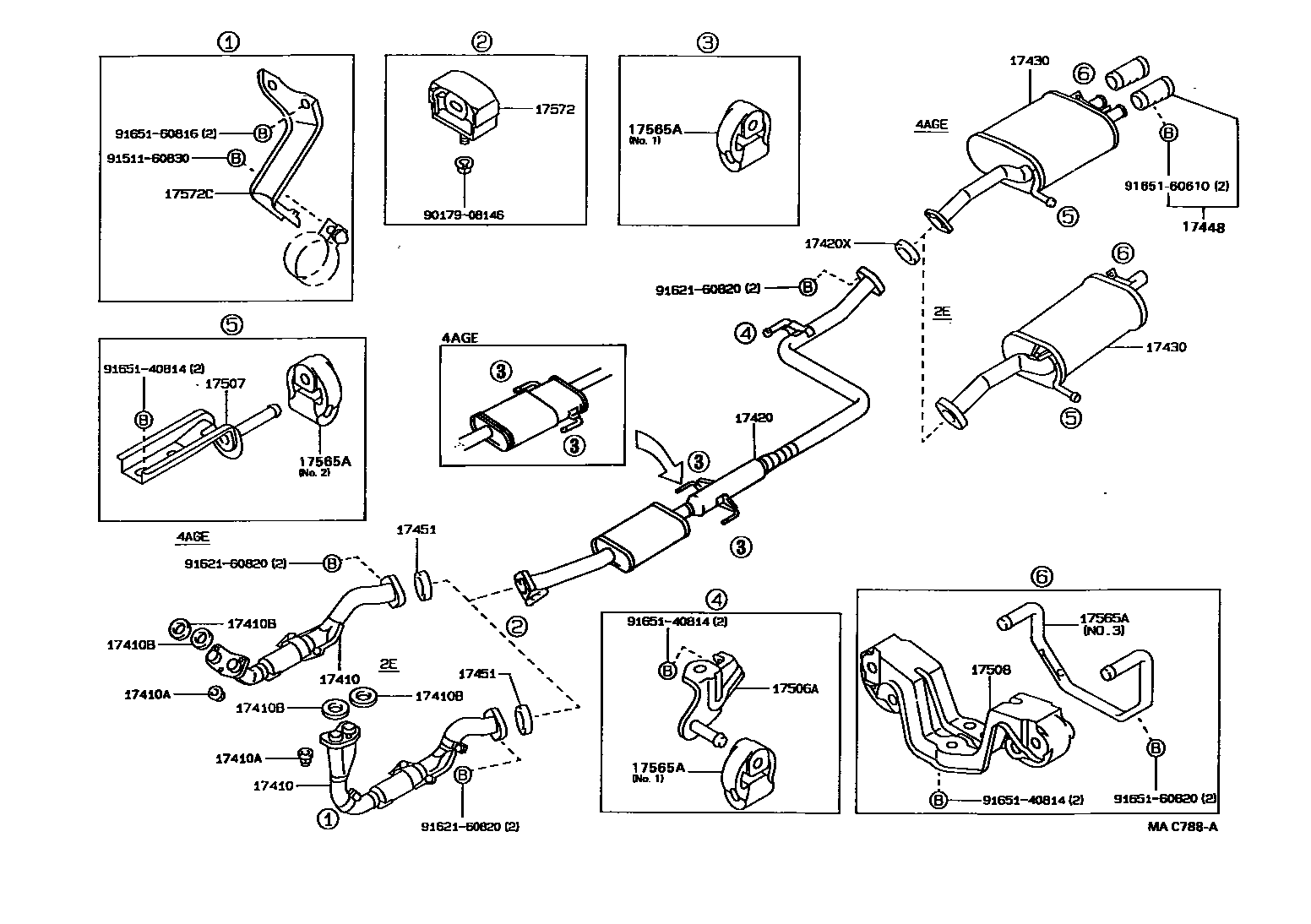

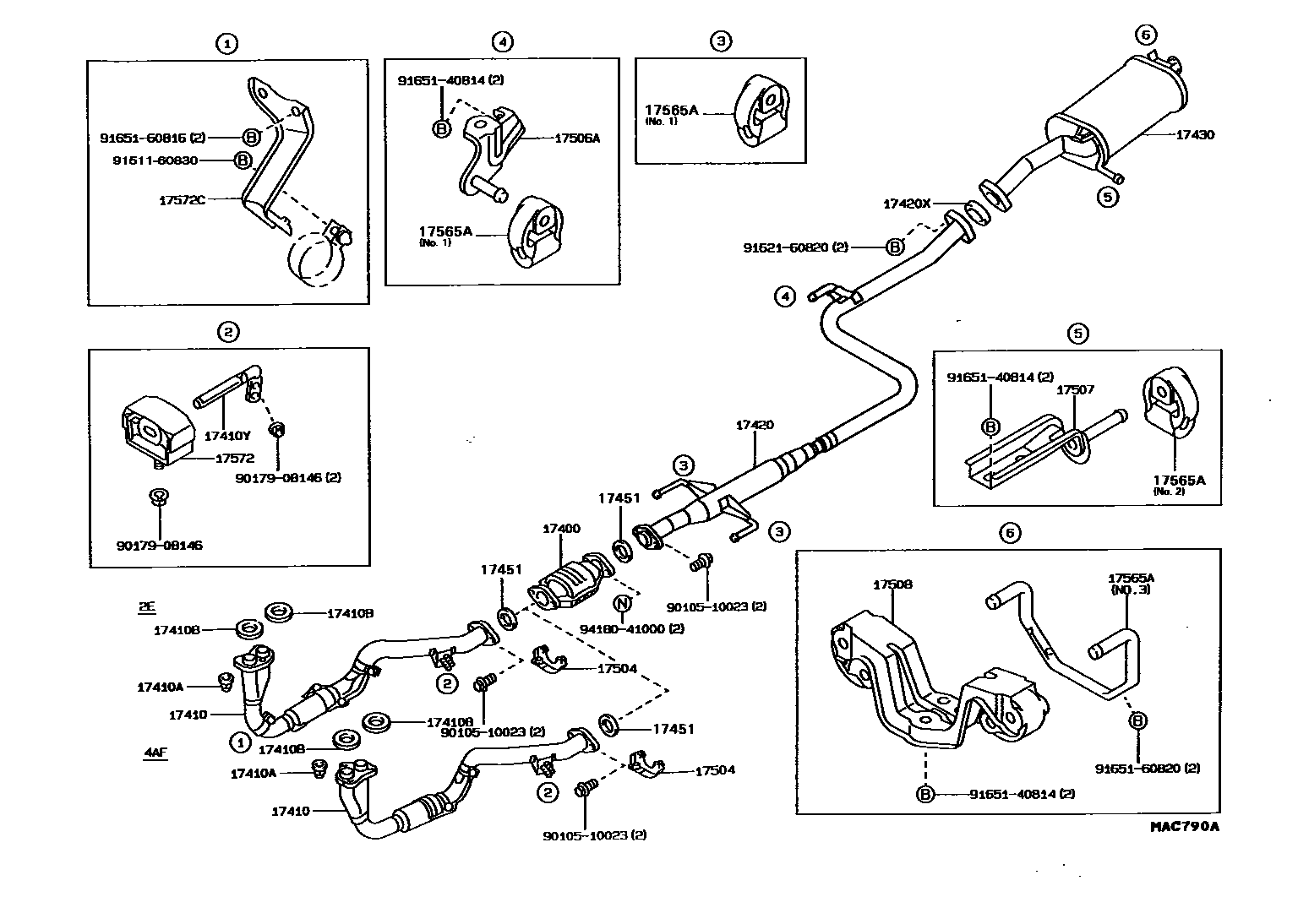

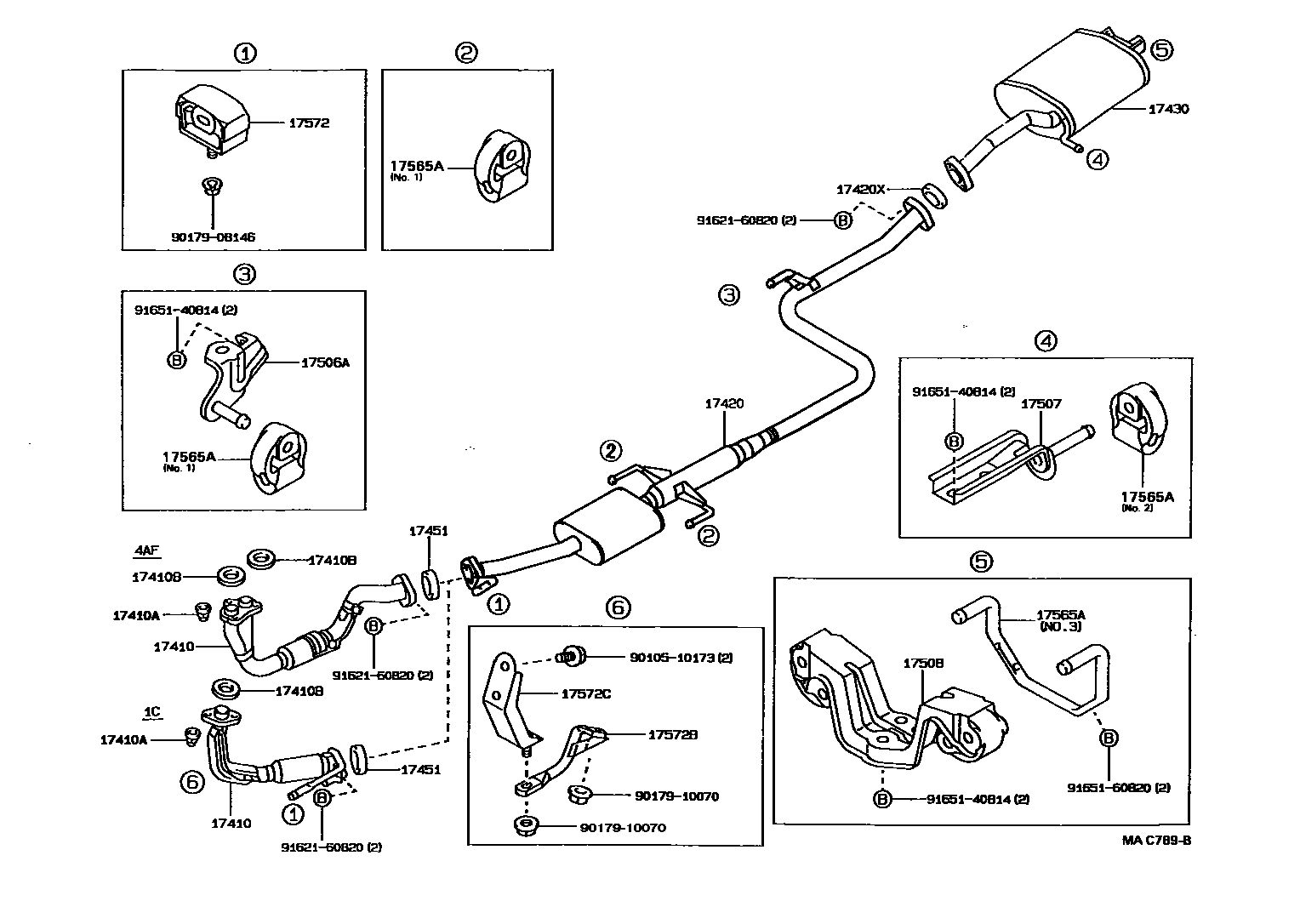

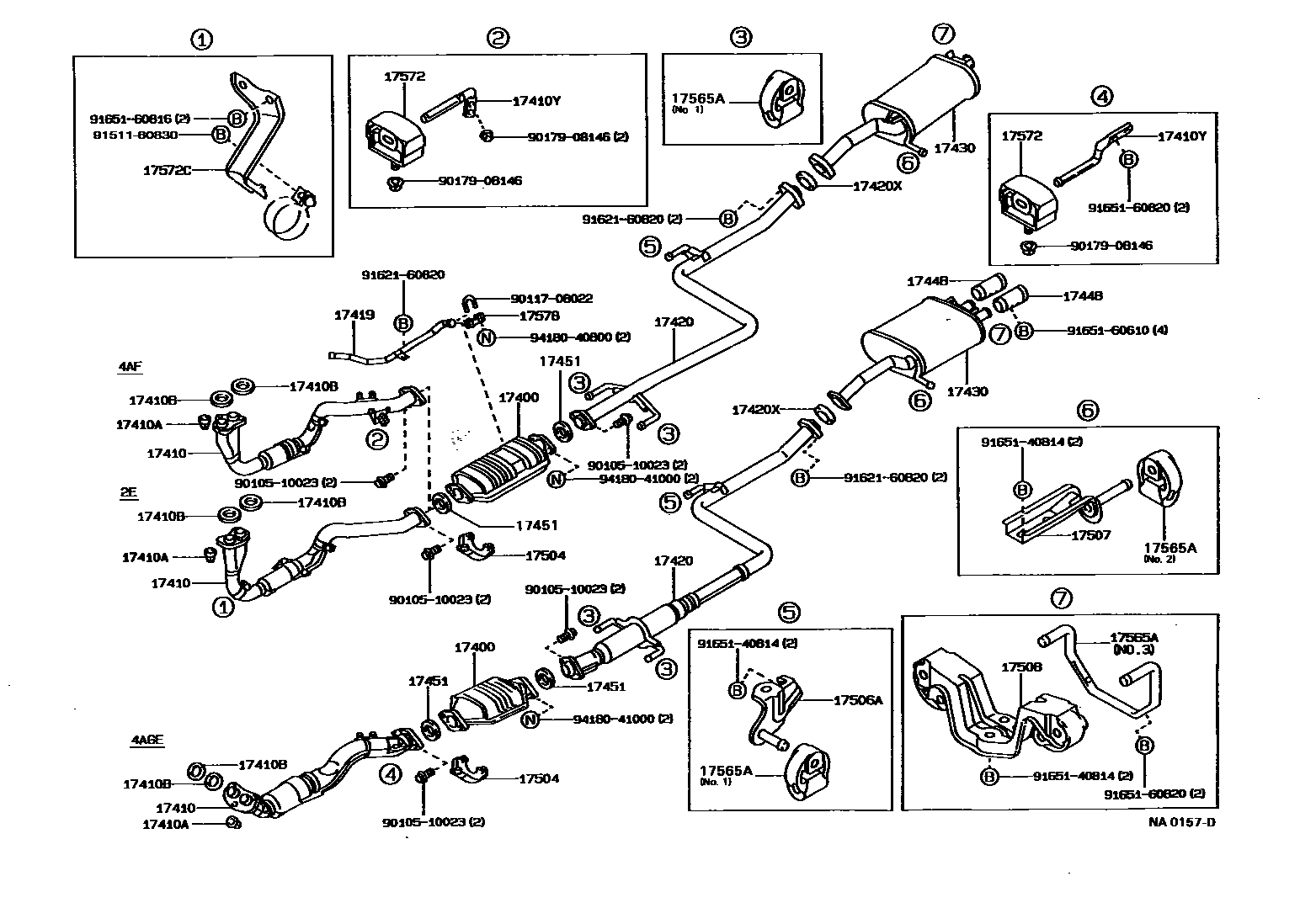

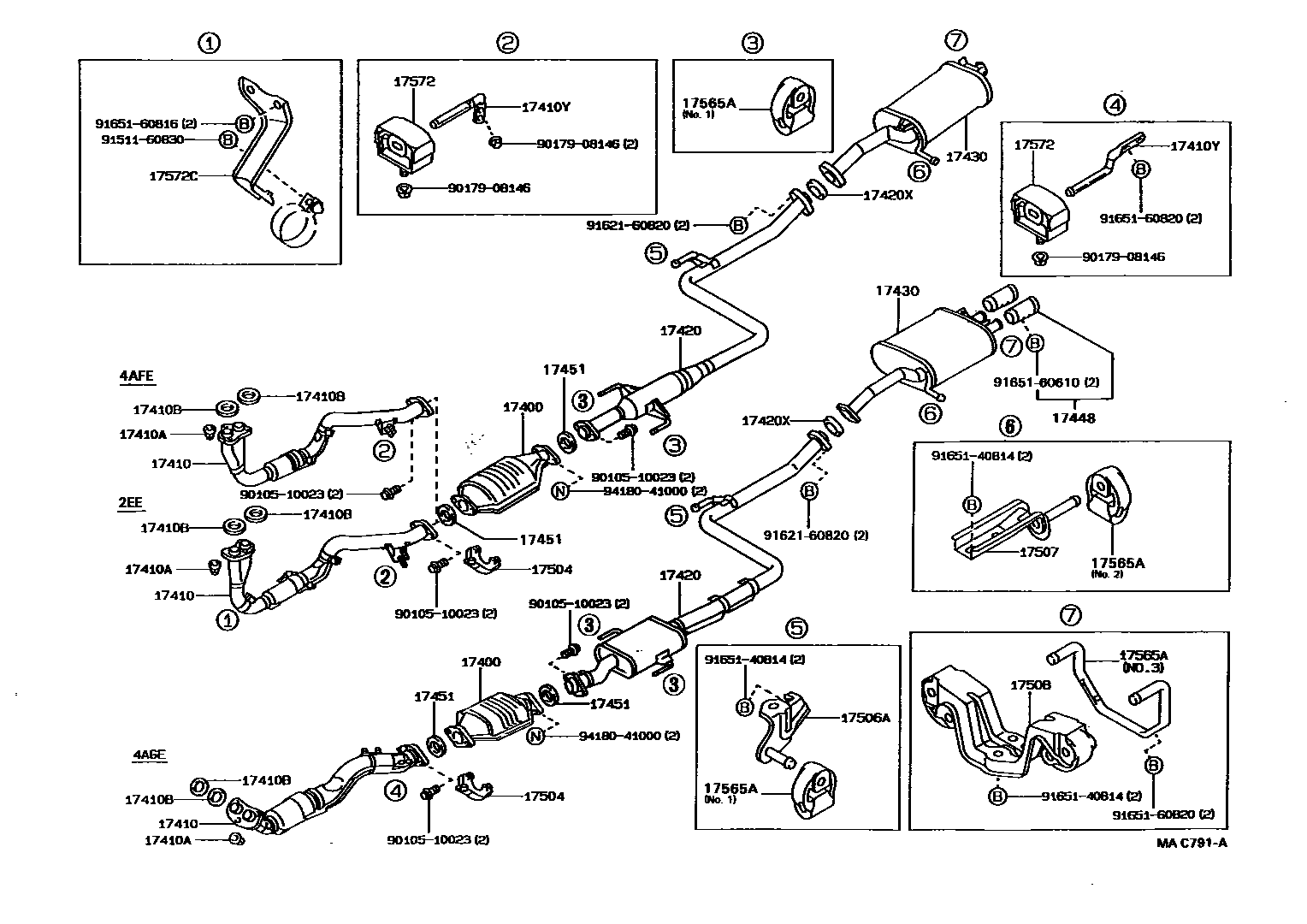

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-11050 · 18450-11060 · 18450-11110 · 18450-16140 · 18450-16190 · 18450-16230 · 18450-16250 · 18450-16340 · 18450-16390 · 18450-16450 |
| 17410 | Front exhaust pipe assembly | 17410-11280 · 17410-11290 · 17410-11300 · 17410-11301 · 17410-16370 · 17410-16410 · 17410-16420 · 17410-16440 · 17410-16450 · 17410-16680 · 17410-16700 · 17410-16710 · 17410-64270 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 · 90917-06006 · 90917-06037 · 90917-06038 · 90917-06039 · 90917-06064 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17561-16130 · 17561-16140 |
| 17419 | Three-way catalytic converter intake pipe | 17409-16020 |
| 17420 | Central exhaust pipe assembly | 17420-11060 · 17420-11061 · 17420-11070 · 17420-11080 · 17420-11110 · 17420-11120 · 17420-16100 · 17420-16120 · 17420-16130 · 17420-16140 · 17420-16150 · 17420-16330 · 17420-16340 · 17420-16390 · 17420-16420 · 17420-16430 · 17420-64090 · 17420-64091 |
| 17420X | Center exhaust pipe liner | 90917-06001 · 90917-06004 · 90917-06012 · 90917-06038 · 90917-06039 · 90917-06047 · 90917-06060 |
| 17430 | Exhaust tailpipe assembly | 17430-11200 · 17430-11201 · 17430-11270 · 17430-16360 · 17430-16400 · 17430-16440 · 17430-16470 · 17430-16710 · 17430-16800 · 17430-16820 · 17430-16850 · 17430-16890 · 17430-1A120 · 17430-64460 |
| 17448 | Exhaust pipe tail throat | 17448-16010 · 17448-19015 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06020 · 90917-06039 · 90917-06041 · 90917-06044 · 90917-06045 · 90917-06047 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16010 · 17504-16011 · 17582-41030 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15050 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15030 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15040 · 17565-15050 · 17565-15070 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17572B | No. 2 exhaust pipe bracket | 17572-64120 |
| 17572C | Front exhaust pipe bracket (for front) | 17571-11110 · 17571-64130 |
| 17578 | Pipe clamp | 17578-15020 |
