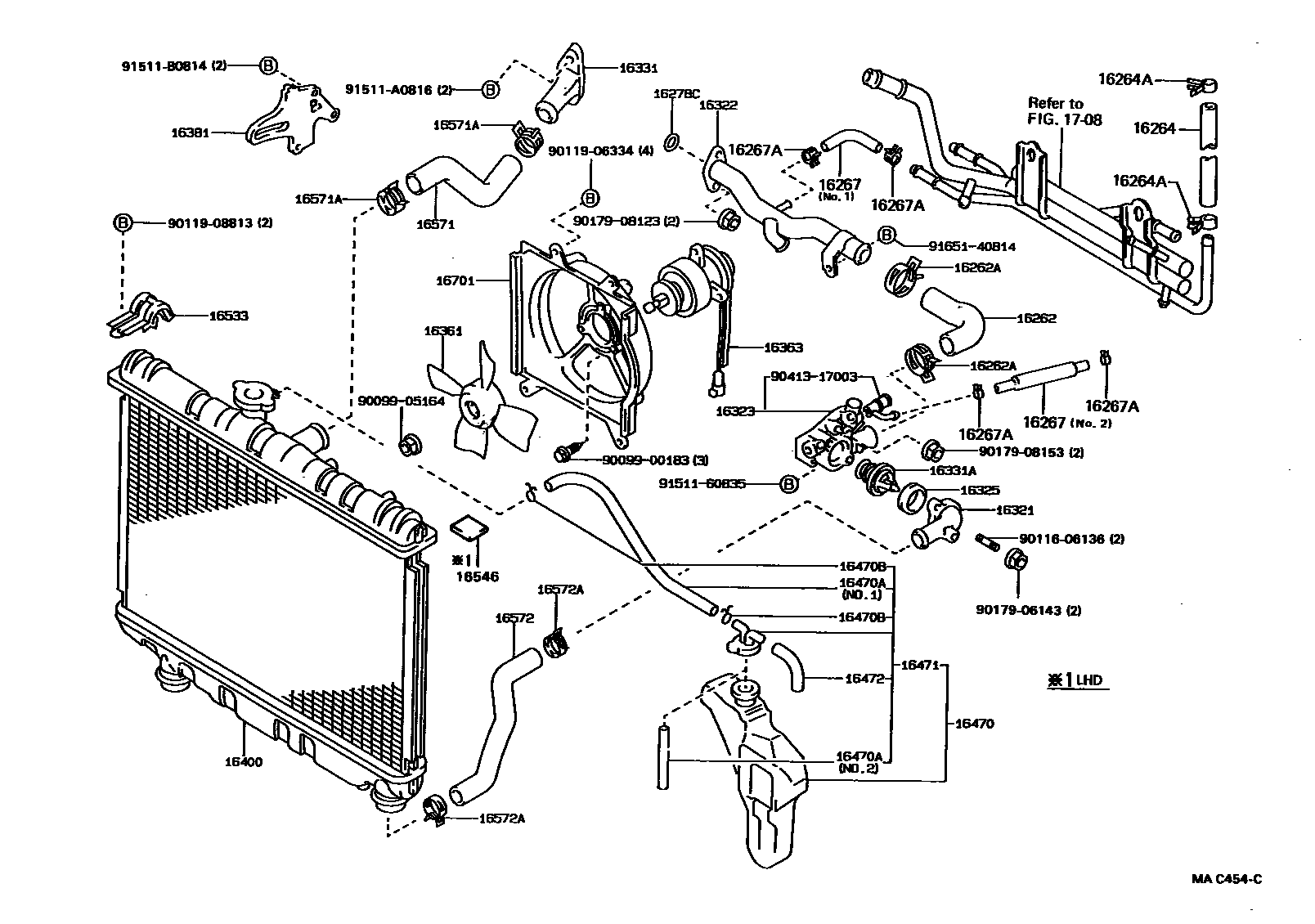

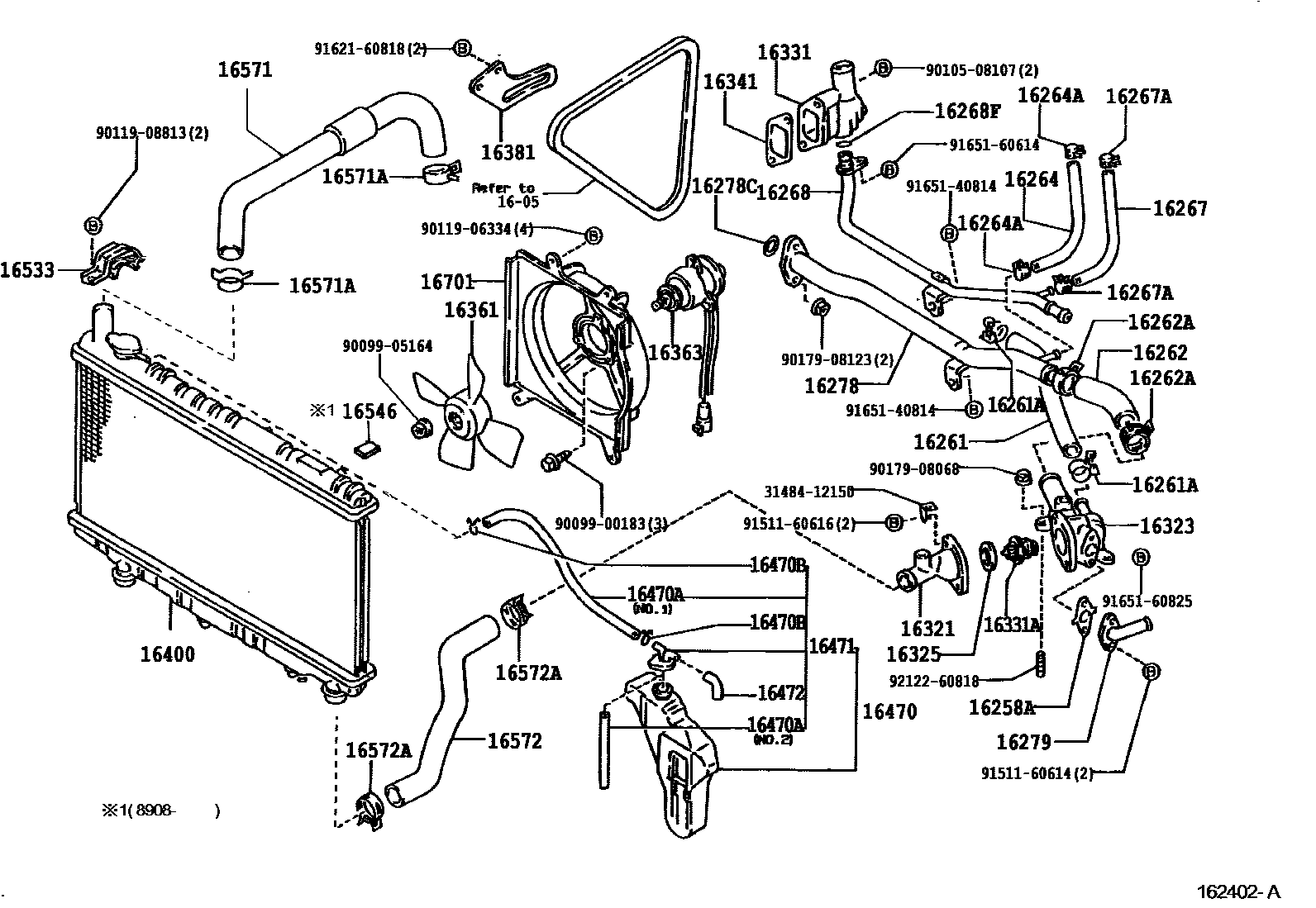

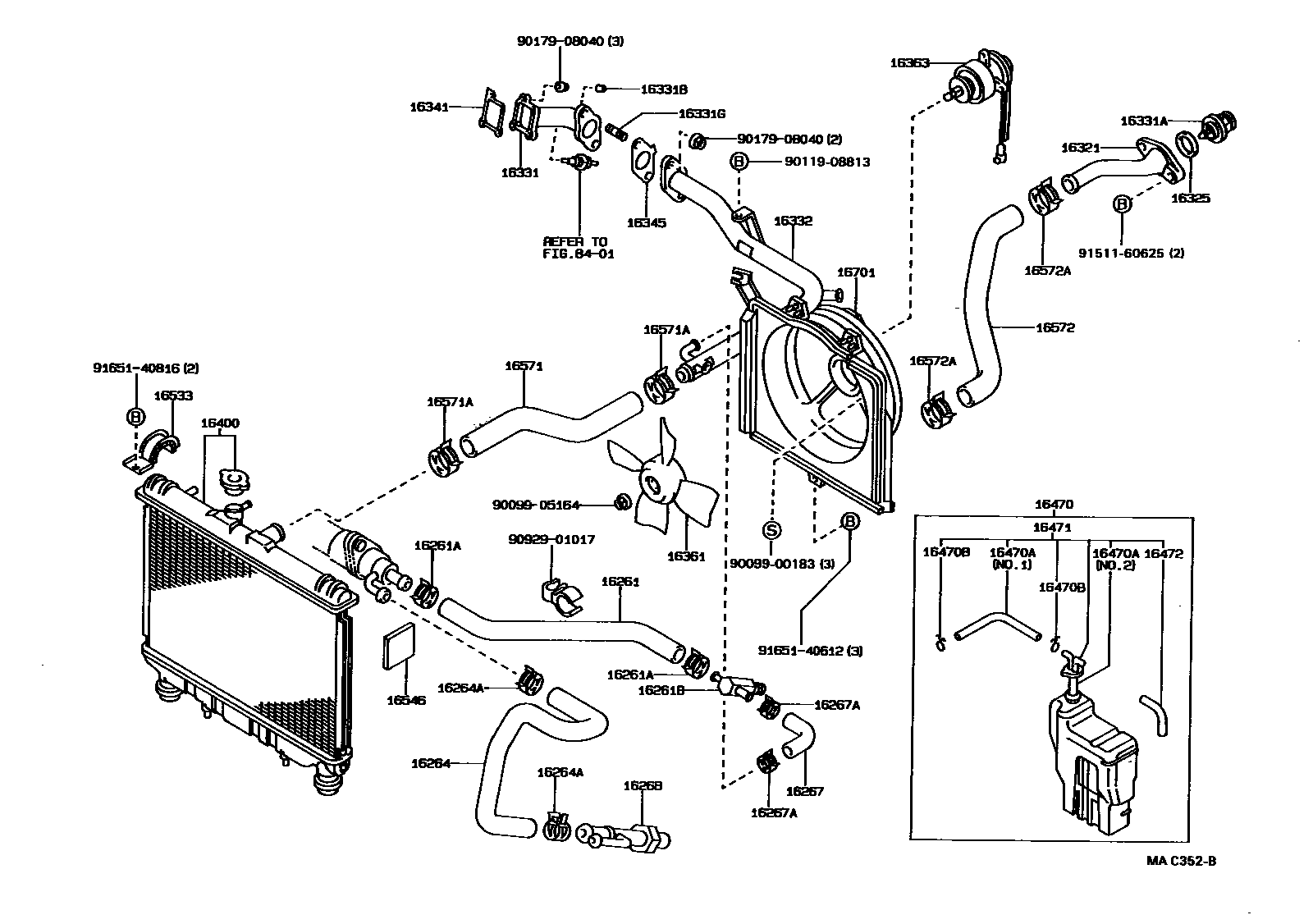

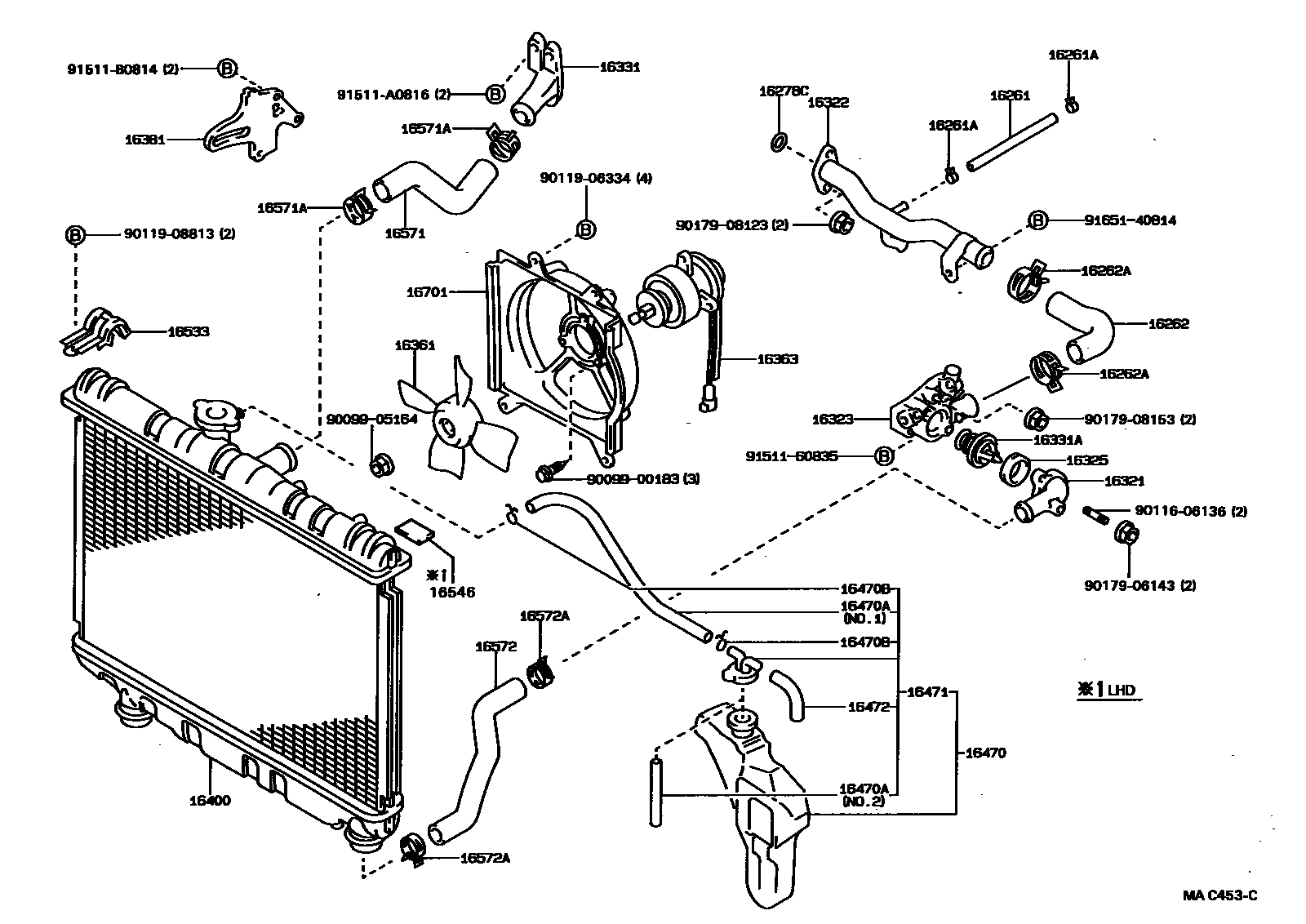

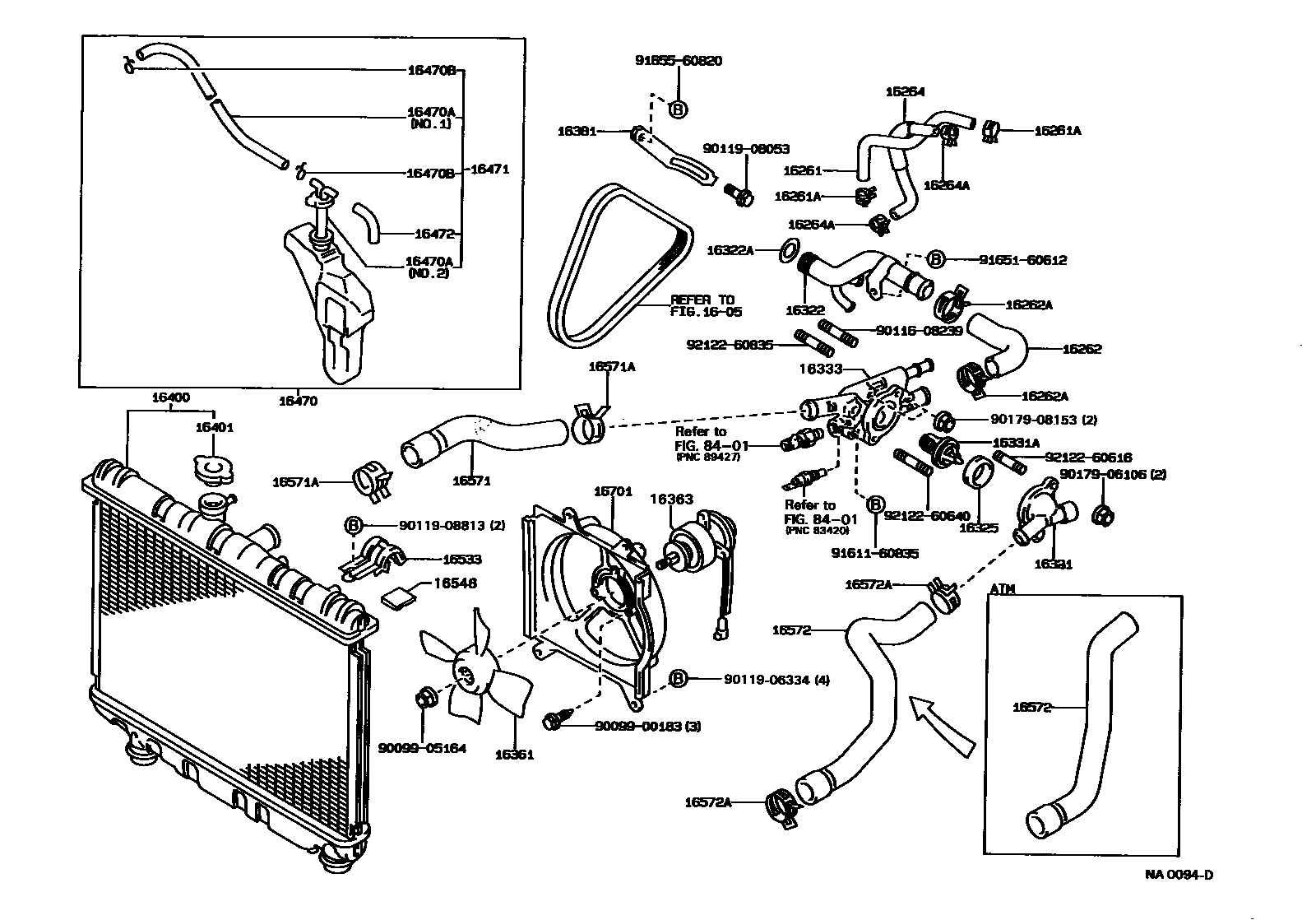

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-15011 |
| 16261 | HOSE, WATER BY-PASS | 16261-11011 · 16261-11020 · 16261-15010 · 16261-64060 · 99555-10200 · 99555-10220 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-13001 · 90467-15004 · 90467-15022 · 90467-22004 · 96135-41300 |
| 16261B | Connector (for water bypass hose) | 90404-53050 |
| 16262 | water inlet hose | 16262-10010 · 16262-10020 · 16262-15010 · 16262-15030 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-36001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11031 · 16264-11040 · 16264-16030 · 16264-16050 · 16264-64060 · 16265-11040 · 90910-05208 · 99555-00175 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-13001 · 90467-15004 · 90467-15022 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16264-16050 · 16267-16010 · 16267-16040 · 16267-64010 · 90447-15021 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 · 90467-13001 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-16070 · 16268-16090 · 16268-16091 · 16268-64040 |
| 16268F | O-ring (for water bypass pipe) | 96711-24013 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-16060 · 16278-16061 |
| 16278C | O-ring (for No. 2 water bypass pipe) | 96711-24035 |
| 16279 | No. 3 water bypass pipe | 16279-16010 · 16279-16011 |
| 16321 | water inlet | 16321-11011 · 16321-15020 · 16321-16030 · 16321-64020 |
| 16322 | PIPE, WATER INLET | 16322-11010 · 16322-11030 · 16322-11032 · 16322-11080 · 16322-11081 · 16322-15020 · 16322-15040 · 16322-15041 |
| 16322A | O-RING, WATER INLET | 96711-35028 |
| 16323 | HOUSING, WATER INLET | 16323-15060 · 16323-15090 · 16323-16060 · 16323-16080 · 16323-16090 · 16323-16110 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-15080 · 16331-16090 · 16331-64030 |
| 16331A | thermostat | 90916-03046 · 90916-03060 |
| 16331B | Screw plug (for water outlet) | 90344-53011 · 90345-53030 |
| 16331G | Stud bolts (for water inlet) | 92122-60816 |
| 16332 | No. 1 outlet pipe | 16332-64020 |
| 16333 | Water outlet shell | 16303-10011 · 16303-11050 · 16303-11070 · 16303-11080 · 16303-11100 · 16333-11070 · 16333-11190 |
| 16341 | GASKET, WATER OUTLET | 16341-16020 · 16341-64010 · 16341-64020 · 16341-64021 |
| 16345 | Outlet pipe gasket | 16345-64020 · 16345-64040 · 16345-64041 |
| 16361 | Fan | 16361-15080 |
| 16363 | cooling fan motor | 16363-16030 |
| 16381 | Fan belt adjustment lever | 16381-11020 · 16381-11030 · 16381-15060 · 16381-16050 |

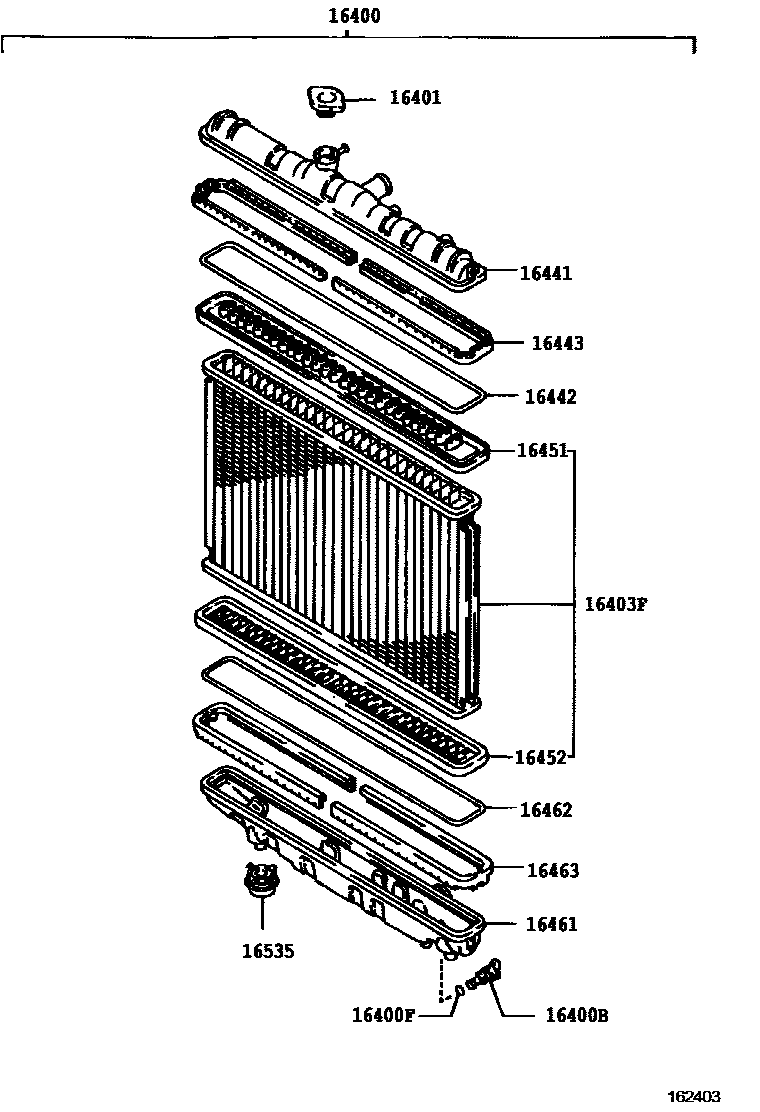

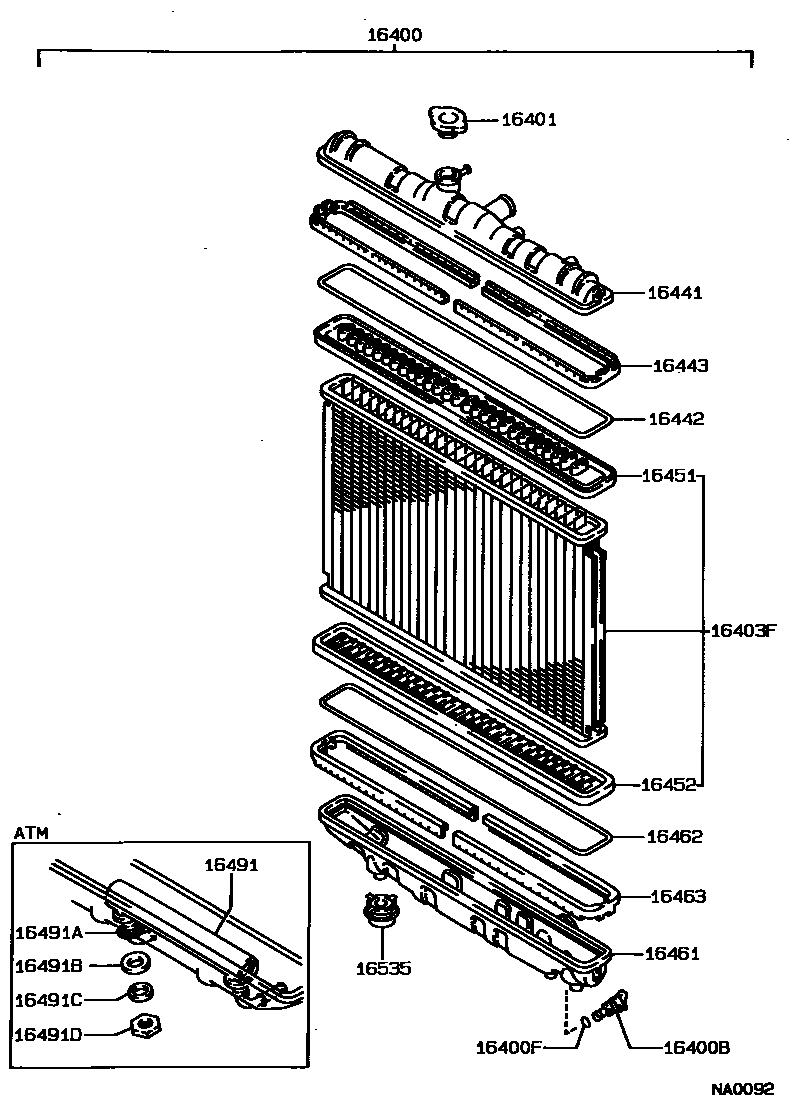

| 16400 | Radiator assembly | 16400-11170 · 16400-11180 · 16400-15370 · 16400-15371 · 16400-16130 · 16400-16150 · 16400-16200 · 16400-64430 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-24200 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-15210 · 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-11010 · 16403-11030 · 16403-14030 · 16403-15231 · 16403-15370 · 16403-74120 · 16403-74130 · 16403-74170 |
| 16441 | Radiator water tank | 16441-11180 · 16441-15370 · 16441-15371 · 16441-16140 · 16441-16200 · 16441-64070 |
| 16442 | O-ring (for radiator tank) | 16442-14030 · 16442-63030 · 16442-70080 · 16462-63030 |
| 16443 | Radiator upper tank locking plate | 16443-15301 · 16443-15321 · 16443-15370 · 16463-15320 |
| 16451 | Radiator core upper plate | 16451-14030 · 16451-63030 · 16451-70080 · 16452-64070 |
| 16452 | Radiator core lower plate | 16452-14030 · 16452-15370 · 16452-63030 · 16452-64070 |
| 16461 | Radiator lower tank | 16461-11180 · 16461-15370 · 16461-15371 · 16461-16150 · 16461-16170 · 16461-16200 · 16461-64450 |
| 16462 | O-ring (for radiator lower tank) | 16462-14030 · 16462-15370 · 16462-63030 |
| 16463 | Radiator lower tank locking plate | 16463-15300 · 16463-15320 · 16463-15370 |
| 16470 | Radiator reservoir assembly | 16470-15040 · 16470-16070 |
| 16470A | Hoses or tubes (for radiator reservoir) | 85338-16070 · 90445-12078 · 90445-12117 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15050 · 16405-16050 |
| 16472 | Breather hose | 85338-74040 |
| 16491 | Oil cooler (for ATM) | 16491-63040 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 |
| 16533 | Radiator upper bracket | 16533-15090 · 16533-64090 |
| 16535 | Radiator lower support | 16535-11020 · 16535-11030 · 16535-15020 · 16535-64050 |
| 16546 | Radiator protection device | 16546-64010 |
| 16571 | Radiator water inlet hose | 16571-11050 · 16571-15150 · 16571-16090 · 16571-64130 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90460-44002 · 90467-31003 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-11100 · 16572-11110 · 16572-11140 · 16572-15190 · 16572-16070 · 16572-64160 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90460-44002 · 90467-31003 · 90467-34003 · 90467-37002 |
| 16701 | Fan cover sub-assembly | 16711-15220 · 16711-64200 |
