Toyota COROLLA Water Pump — Figure 1601

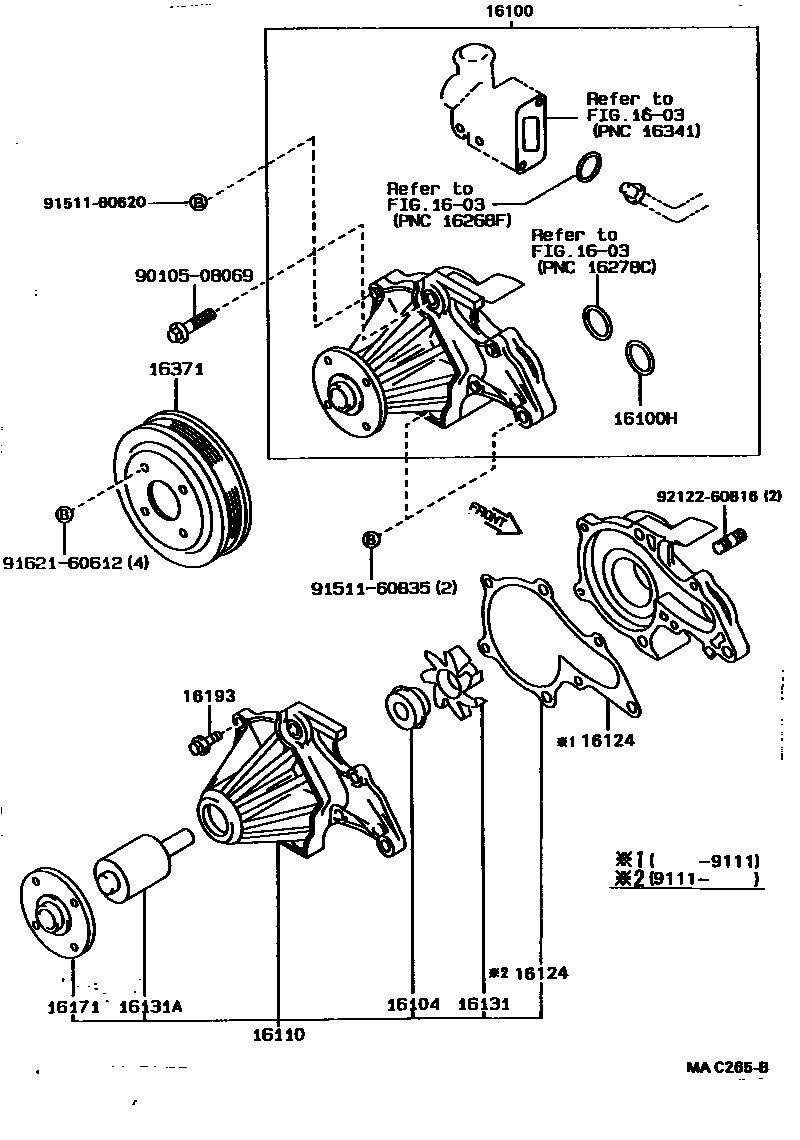

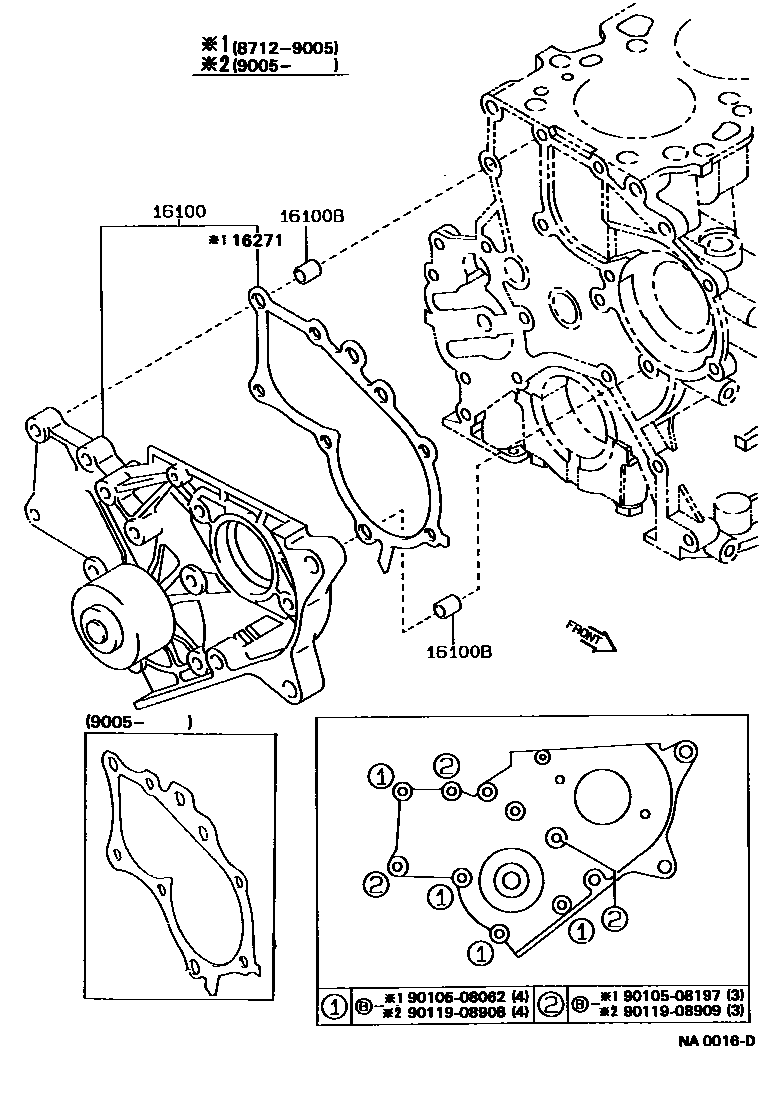

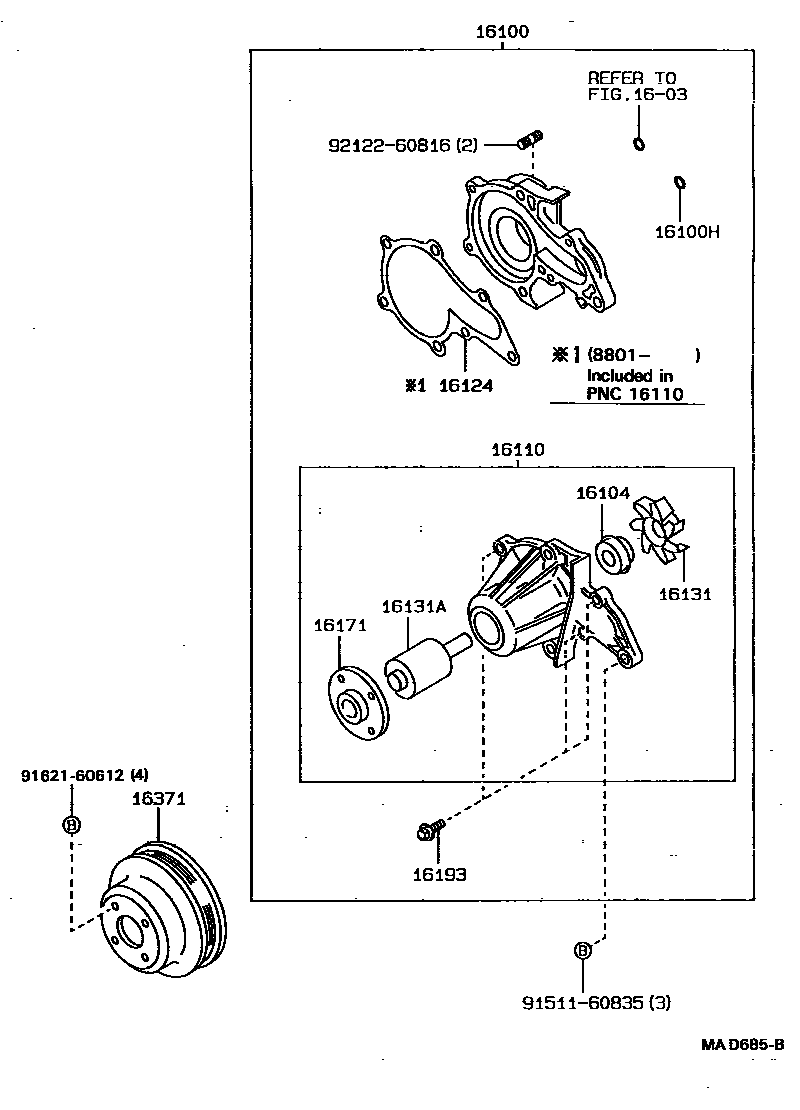

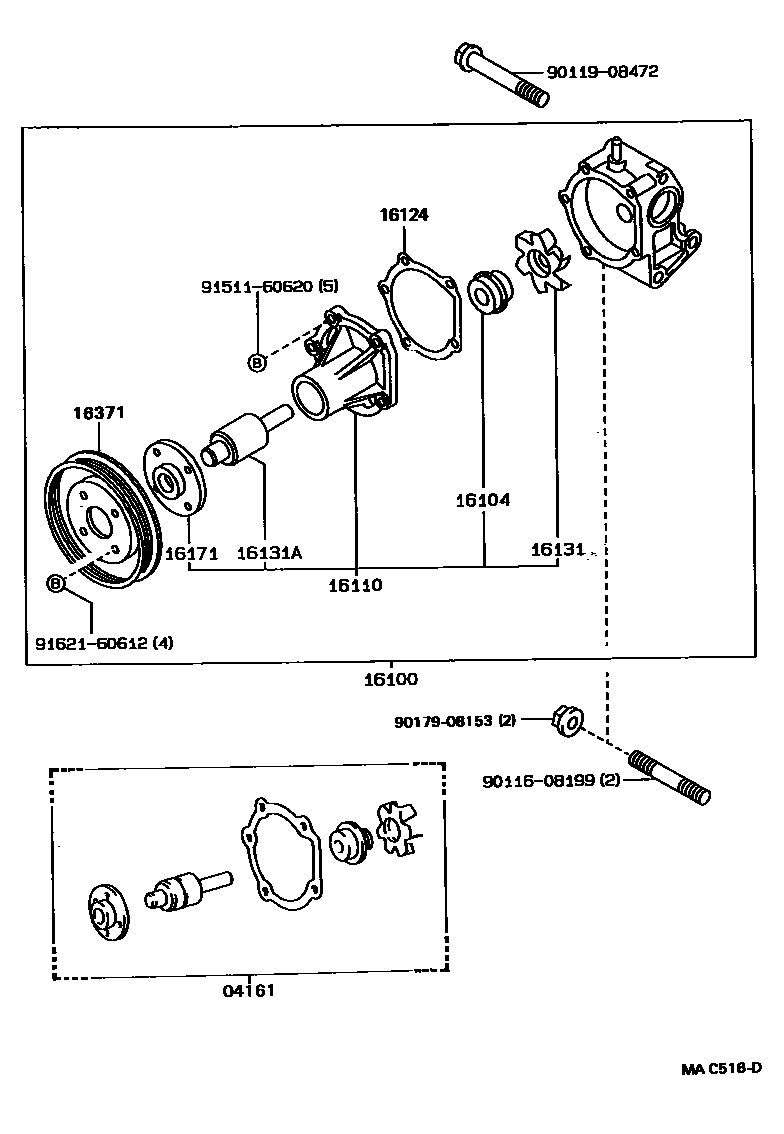

Toyota COROLLA EPC diagram 1601, Water Pump, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04161 | Water pump components | 04161-10010 · 04161-10020 · 04161-10021 |
| 16100 | Engine water pump assembly | 16100-19115 · 16100-19126 · 16100-19195 · 16100-19205 · 16100-19225 · 16100-69085 · 16100-69275 · 16100-69295 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 96711-24035 |
| 16104 | Water pump seal components | 16104-15020 · 16104-15060 · 16104-16040 · 16104-70010 |
| 16110 | Water pump assembly without coupling | 16110-16020 · 16110-19065 · 16110-19075 · 16110-19076 · 16110-19085 · 16110-19086 · 16110-19095 · 16110-19105 · 16110-19165 |
| 16124 | water pump cover gasket | 16124-10010 · 16124-15010 · 16124-15060 · 16124-15061 · 16124-16020 |
| 16131 | water pump rotor | 16131-15050 · 16131-15070 · 16131-15080 · 16131-16020 |
| 16131A | water pump bearings | 90029-36809 · 90369-30064 · 90369-35043 · 90369-35071 |
| 16171 | water pump pulley seat | 16171-10012 · 16171-15020 · 16171-15050 · 16171-15070 |
| 16193 | Studs (for water pump cover) | 16193-15011 · 16193-15060 · 16193-15100 |
| 16271 | water pump gasket | 16271-64010 · 16271-64020 · 16271-64030 |
| 16371 | fan pulley | 16173-10011 · 16371-15050 · 16371-15060 · 16371-16030 |
