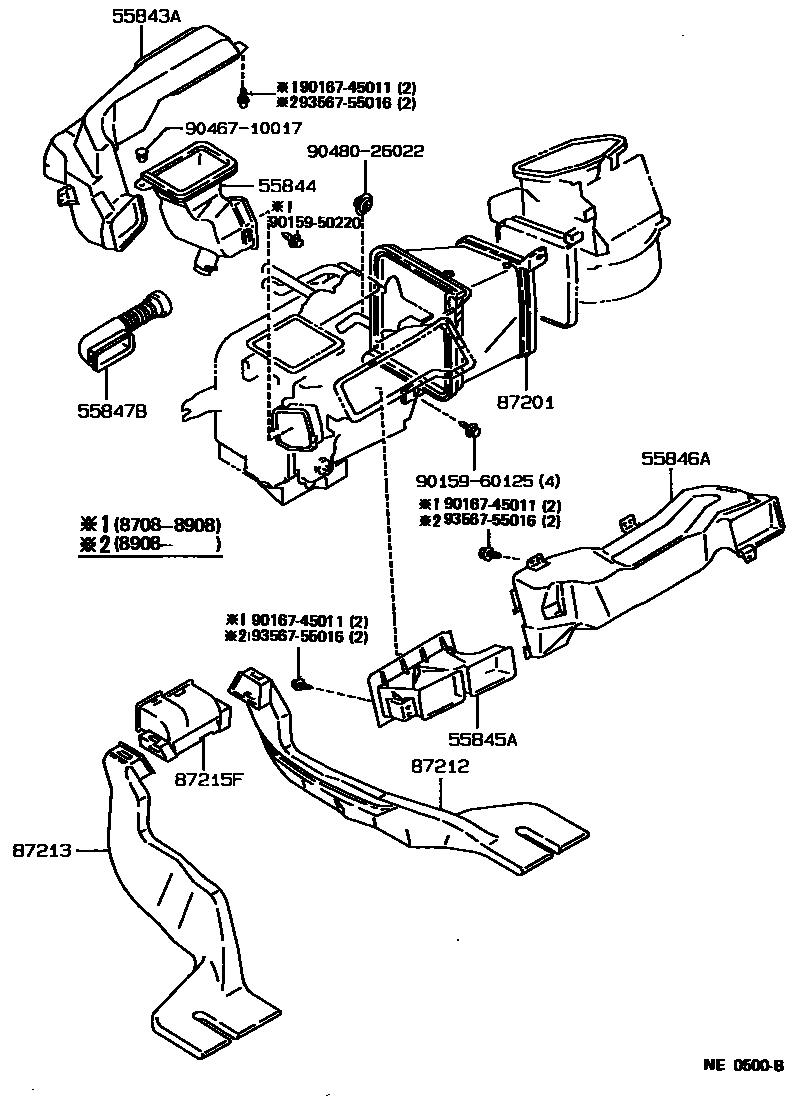

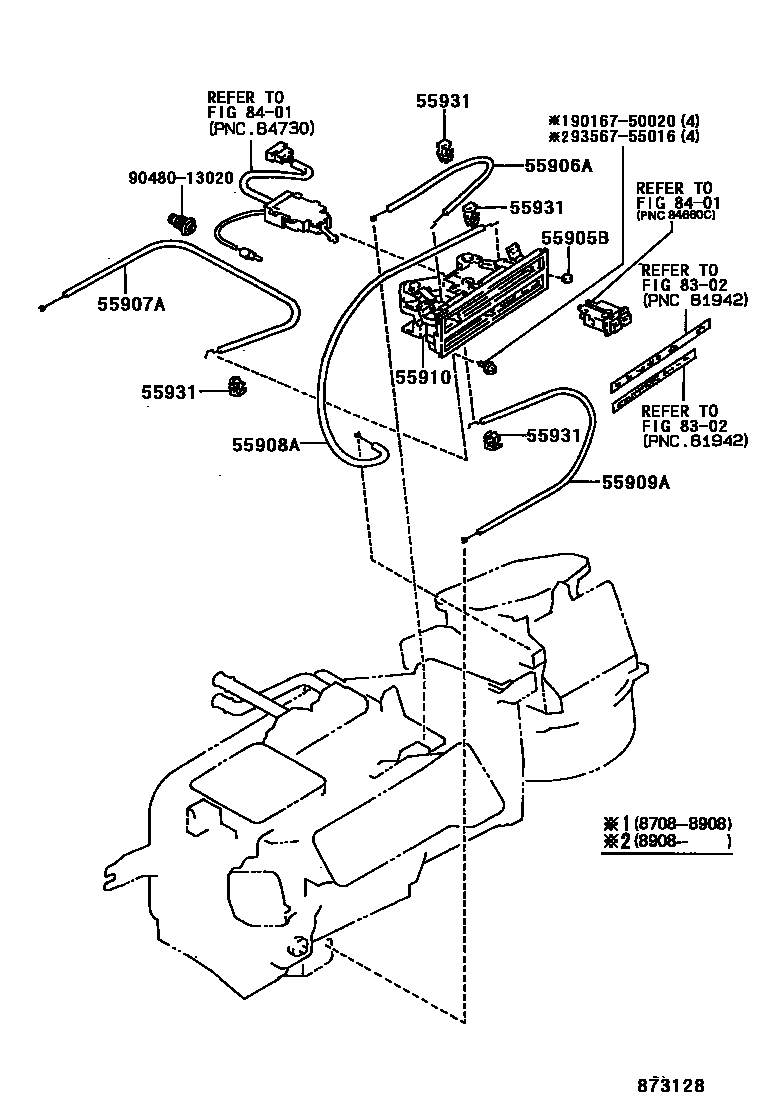

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-12200 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12260 · 55844-12280 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-12140 |
| 55846A | Air duct No. 4 from heater to air register | 55846-12140 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-12070 · 55847-12071 · 55847-12080 |
| 55905B | Heater control button 2 | 55905-12130 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12240 · 55906-12270 · 55906-12320 |
| 55907A | Water valve control cable sub-assembly | 55907-12310 · 55907-12350 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12220 · 55908-12250 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12210 · 55909-12230 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12510 · 55910-12511 |
| 55931 | Heater control harness clip | 55933-10010 |
| 87201 | No. 1 air duct sub-assembly | 87201-12130 · 87201-12140 |
| 87212 | No. 1 rear air duct | 87212-12060 |
| 87213 | No. 2 rear air duct | 87213-12030 |
| 87215F | No. 3 rear air duct | 87215-12010 |
