Toyota COROLLA 电子燃油喷射系统 — Figure 8404

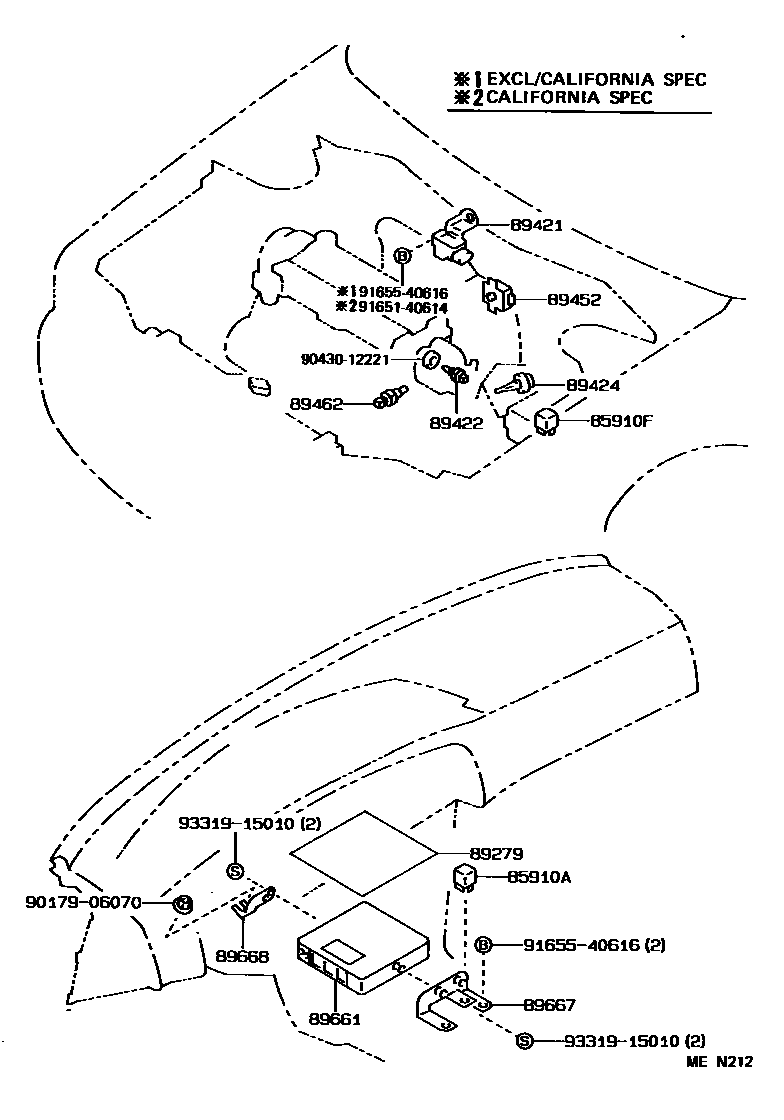

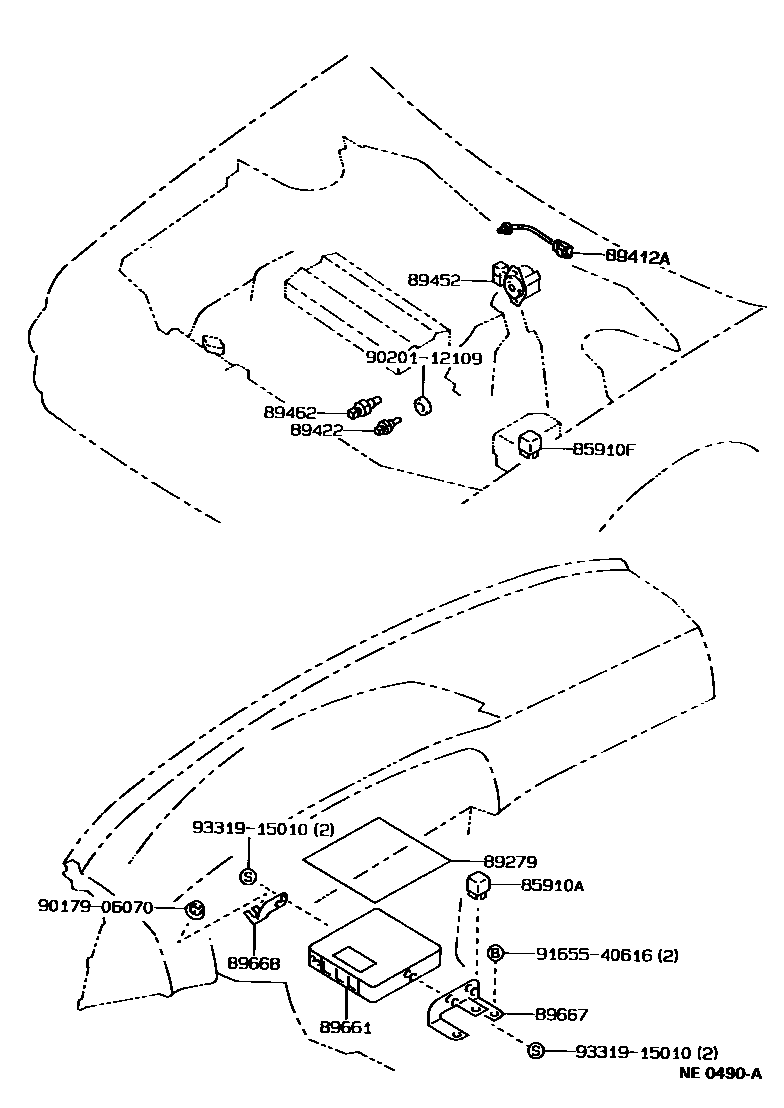

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-12010 · 85910-30050 |
| 85910F | ECU relay (for EFI) | 90987-02006 |
| 89279 | Engine control ECU cover | 89279-12020 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-12010 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-12040 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-12010 · 89422-20010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12040 · 89452-12050 · 89452-14020 · 89452-22010 · 89452-32020 |
| 89462 | Start injector timing switch | 89462-12010 · 89462-20030 |
| 89661 | Engine control ECU | 89661-12210 · 89661-12240 · 89661-12320 · 89661-12410 · 89661-12490 · 89661-12491 · 89661-12500 · 89661-12501 · 89661-12510 · 89661-12511 · 89661-12520 · 89661-12521 · 89661-12580 · 89661-12581 · 89661-12600 · 89661-12601 |
| 89667 | Engine control ECU bracket | 89667-12020 |
| 89668 | No. 2 engine control ECU bracket | 89668-12030 · 89668-12040 |
