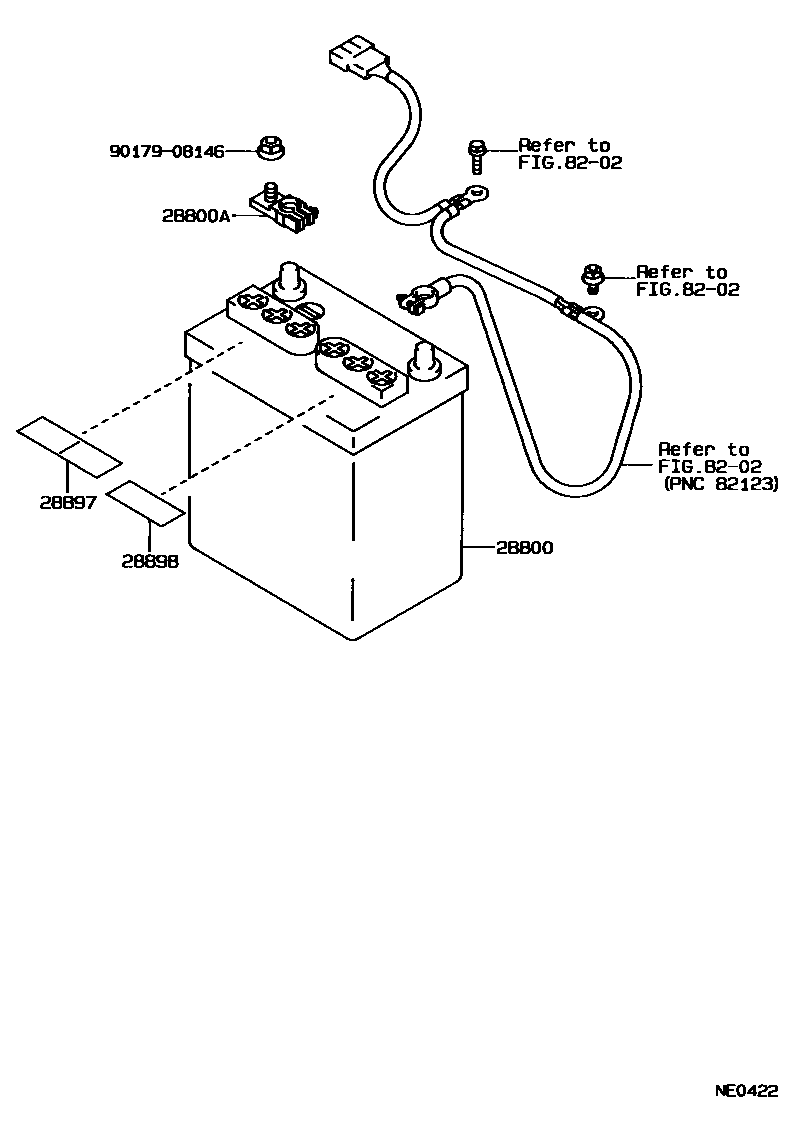

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-31200 · 28800-31210 · 28800-31220 · 28800-31230 · 28800-31240 · 28800-42030 · 28800-70060 |
| 28800A | battery positive terminal | 90982-05035 · 90982-05037 |
| 28897 | Battery warning nameplate | 28897-38010 |
| 28898 | battery plates | 28898-26010 |
