Toyota COROLLA 后牌照灯 — Figure 8113

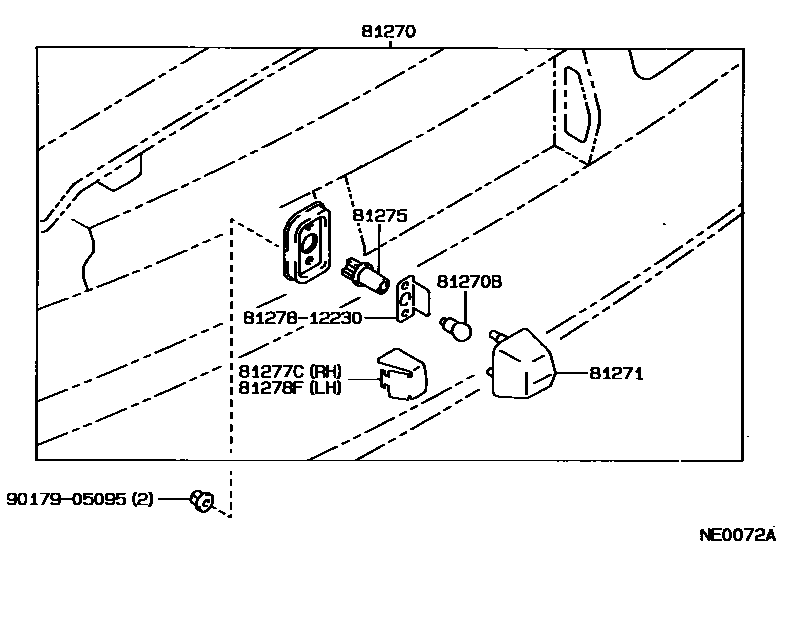

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12320 |
| 81270B | Bulb (for license plate light) | 99132-11075 |
| 81271 | license plate lamp shade | 81271-17010 |
| 81275 | License plate lamp holder and wiring harness | 81275-12230 |
| 81277C | Right license plate light shade | 81277-12230 |
| 81278F | Left license plate light shade | 81277-12230 |
