Toyota COROLLA 后组合灯 — Figure 8111

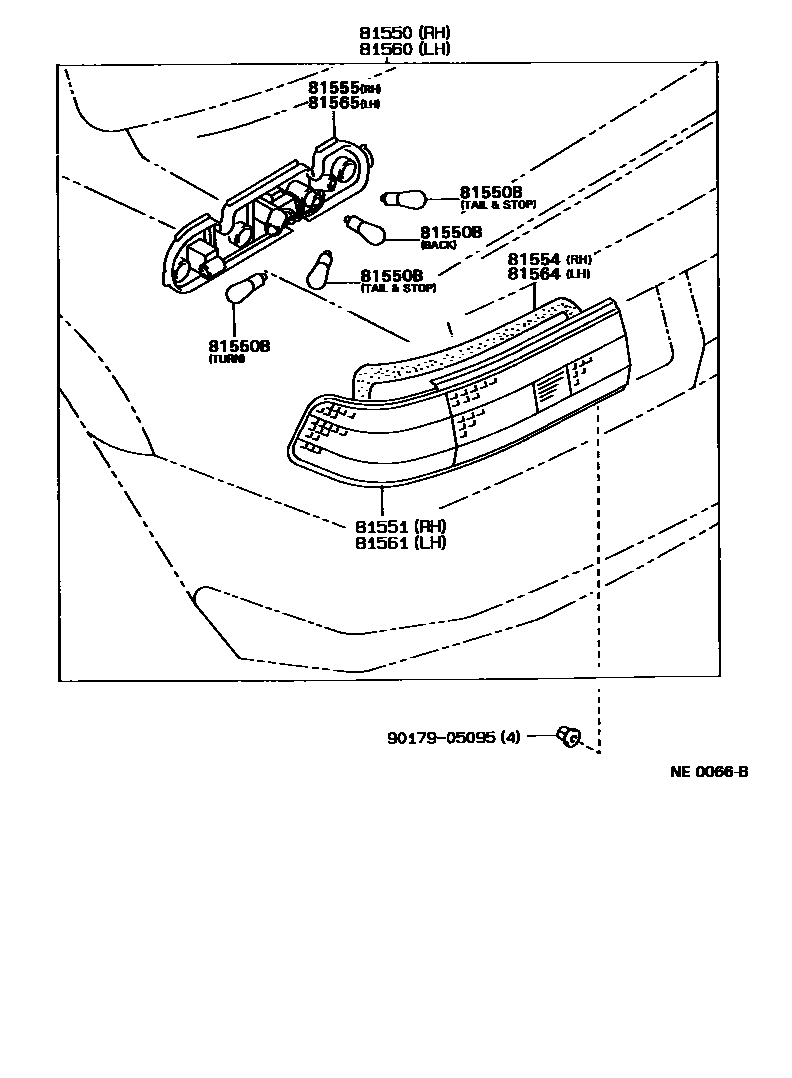

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-1A500 |
| 81550B | Bulb (for rear combination lights) | 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-1A490 |
| 81554 | Right rear combination lamp body gasket | 81499-12020 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A500 |
| 81560 | Left rear combination light assembly | 81560-1A500 |
| 81561 | Left rear combination lamp shade | 81561-1A490 |
| 81564 | Left rear combination lamp body gasket | 81499-12020 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-1A500 |
