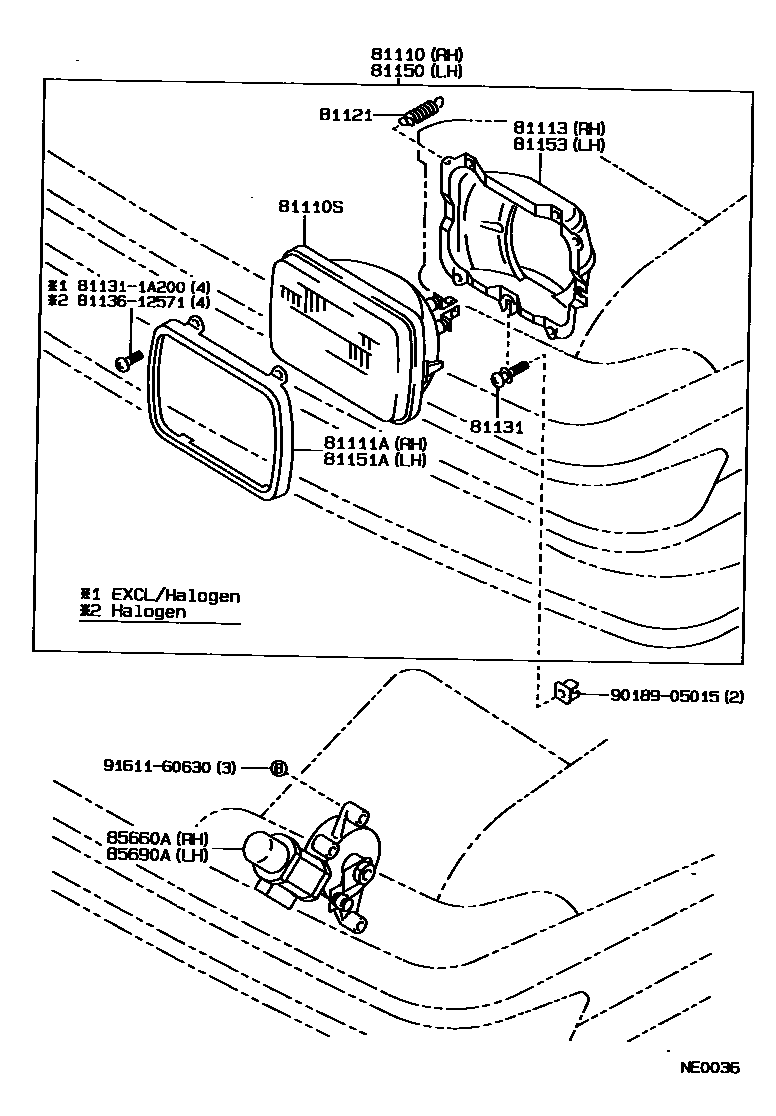

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-17030 · 81110-2B060 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04003 · 90981-04020 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-14710 · 81111-17010 |
| 81113 | Right No. 1 closed lamp seat | 81113-17010 · 81113-20840 |
| 81121 | headlight spring | 81121-14710 · 81121-17010 |
| 81131 | Headlight adjustment screw | 81131-14710 · 81131-17010 |
| 81150 | Left headlight assembly | 81150-17030 · 81150-2B020 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-14710 · 81111-17010 |
| 81153 | No. 1 closed lamp seat on the left | 81153-17010 · 81153-20690 |
| 85660A | Right side light telescopic motor assembly | 85660-12020 · 85660-12021 |
| 85690A | Left side car light telescopic motor assembly | 85690-12020 · 85690-12021 |
