Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

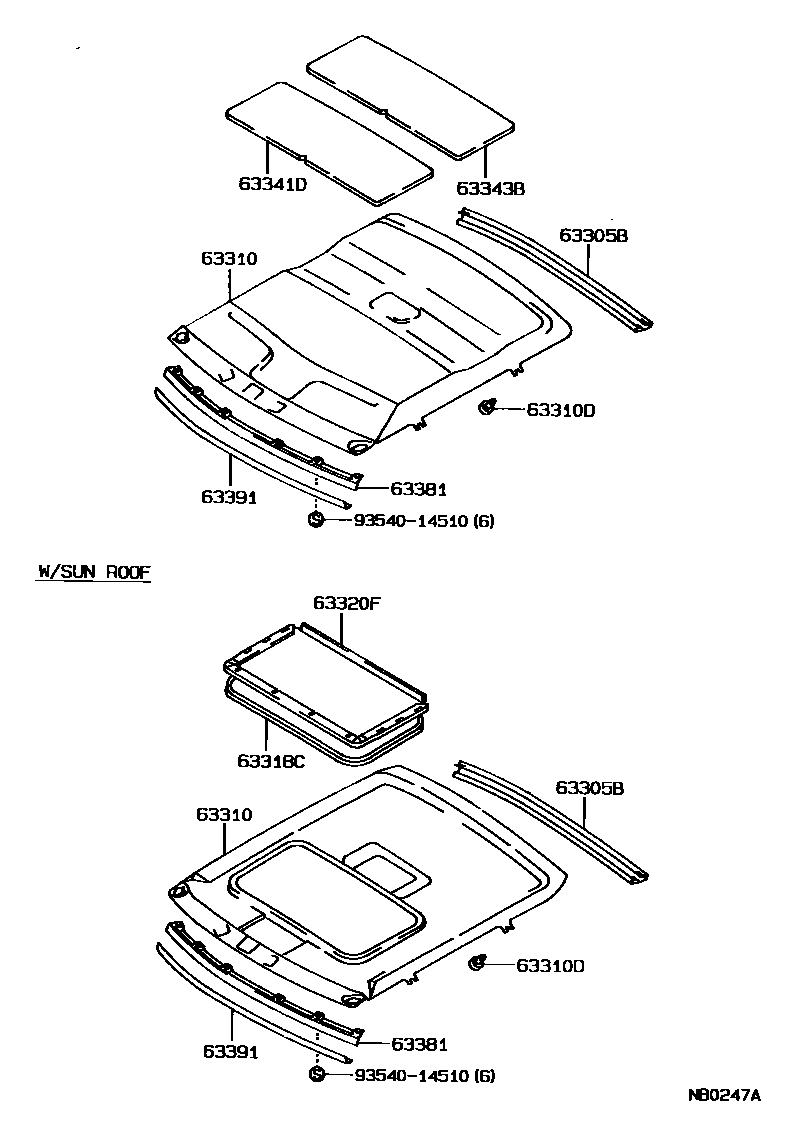

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 90467-07034 |
| 63341D | Front roof silencer pad | 63343-12050 |
| 63343B | Rear roof silencer pad | 63343-12050 |
| 63381 | Front lining fastener | 63381-12180 |
