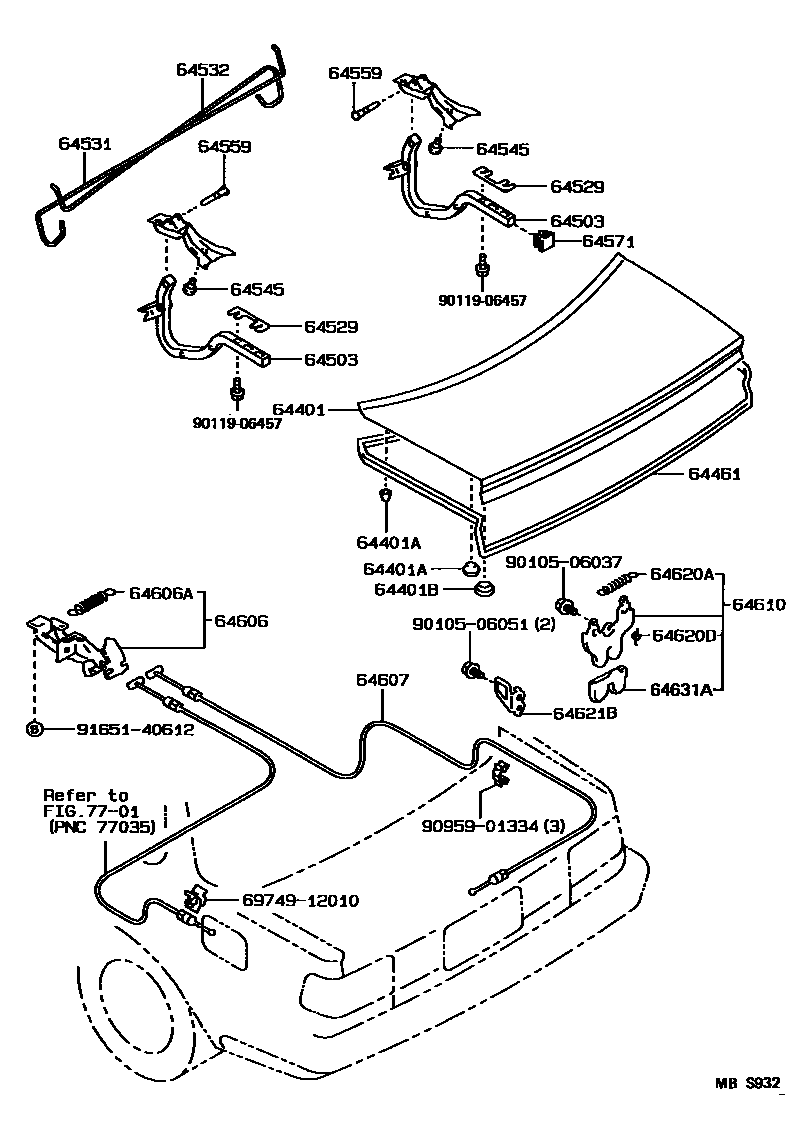

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-1A410 · 64401-1A420 · 64401-1A430 · 64401-1A440 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06076 · 90541-09056 · 90541-09068 |
| 64401B | Hole plug (for trunk door panel) | 90950-01579 |
| 64461 | Trunk door seal | 64461-12440 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12050 |
| 64529 | Trunk door hinge spacer | 64529-14010 |
| 64531 | Trunk door right hinge torsion bar | 64531-12290 · 64531-12300 |
| 64532 | Trunk door left hinge torsion bar | 64532-12280 · 64532-12290 |
| 64545 | Trunk door hinge cushion | 90541-07030 · 90541-11006 |
| 64559 | Trunk door hinge pin | 64559-12030 |
| 64571 | Trunk door hinge cover | 64571-30020 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-12050 |
| 64606A | Tension spring (for trunk door lock opening lever) | 90506-09034 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12410 |
| 64610 | Trunk door lock assembly | 64610-12140 |
| 64620A | Tension spring (for trunk door lock) | 90506-08001 |
| 64620D | Torsion spring (for trunk door lock) | 90508-09001 |
| 64621B | Trunk door latch | 64621-12070 |
| 64631A | Trunk door lock protector | 64631-12010 |
