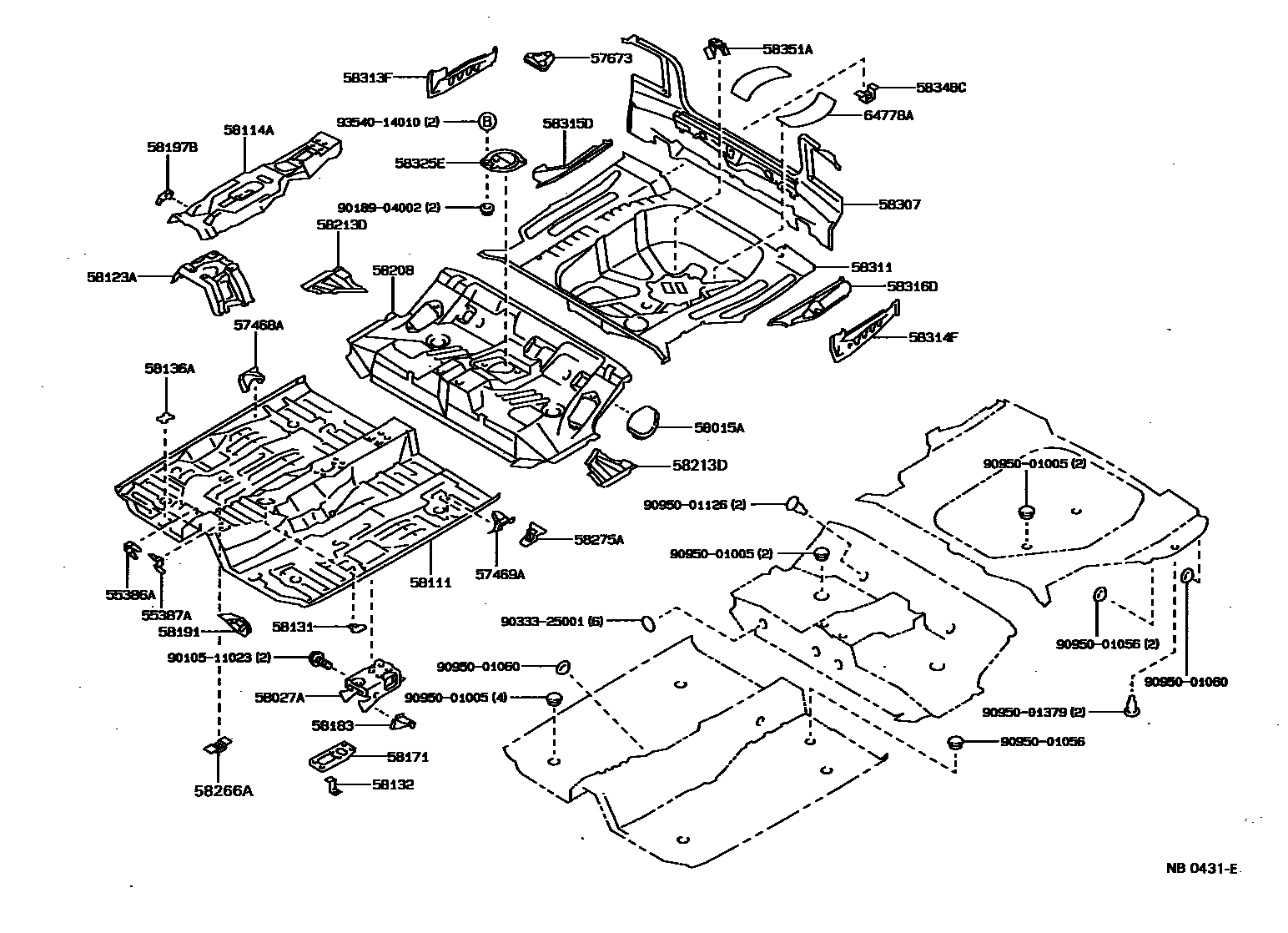

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55386A | No. 1 ECU mounting bracket | 55386-12040 |
| 55387A | No. 2 ECU mounting bracket | 55387-12020 |
| 57468A | Front right seat outer rear bracket | 57468-12030 |
| 57469A | Front left seat outer rear bracket | 57469-12030 |
| 57673 | Rear seat back hinge mounting bracket | 57673-12040 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12030 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12030 · 58027-12050 · 58027-12060 · 58027-12070 |
| 58111 | front floor pan | 58111-12200 |
| 58114A | front floor reinforcement | 58114-12050 |
| 58123A | shift lever bracket | 58123-12040 |
| 58131 | Front floor insulation pad bracket No. 1 | 58131-12060 |
| 58132 | Front floor insulation pad bracket No. 2 | 58132-32010 |
| 58136A | Front floor access hole cover | 58136-12020 |
| 58171 | Parking brake base reinforcement | 58171-12080 |
| 58183 | Front seat inner mounting bracket | 58183-12090 · 58184-12110 |
| 58191 | Front floor footrest | 58192-12040 · 58192-12050 |
| 58197B | Dashboard Bracket Mounting Bracket Fixture | 58197-12010 |
| 58208 | central floor base | 58211-12200 · 58211-12210 · 58211-12220 · 58211-12230 |
| 58213D | Central floor reinforcement | 58213-12030 · 58214-12020 |
| 58266A | Fuel pipe clamp bracket | 58266-22040 |
| 58275A | Rear seat back to center floor fixing | 58275-12030 |
| 58307 | Body lower back panel sub-assembly | 58307-1A140 · 58307-1A141 |
| 58311 | rear floor pan | 58311-12120 |
| 58313F | Rear floor pan to right side apron extension | 58313-12210 |
| 58314F | Rear floor pan to left side apron extension | 58314-12210 |
| 58315D | Rear floor pan right extension | 58315-12030 |
| 58316D | Rear floor pan left extension | 58316-12030 |
| 58325E | Rear floor access hole cover | 58325-12040 |
| 58348C | Rear floor insulation pad bracket No. 3 | 58348-12010 |
| 58351A | Spare tire rack bracket | 58351-12020 |
| 64778A | Spare tire protection device | 64778-12050 |
