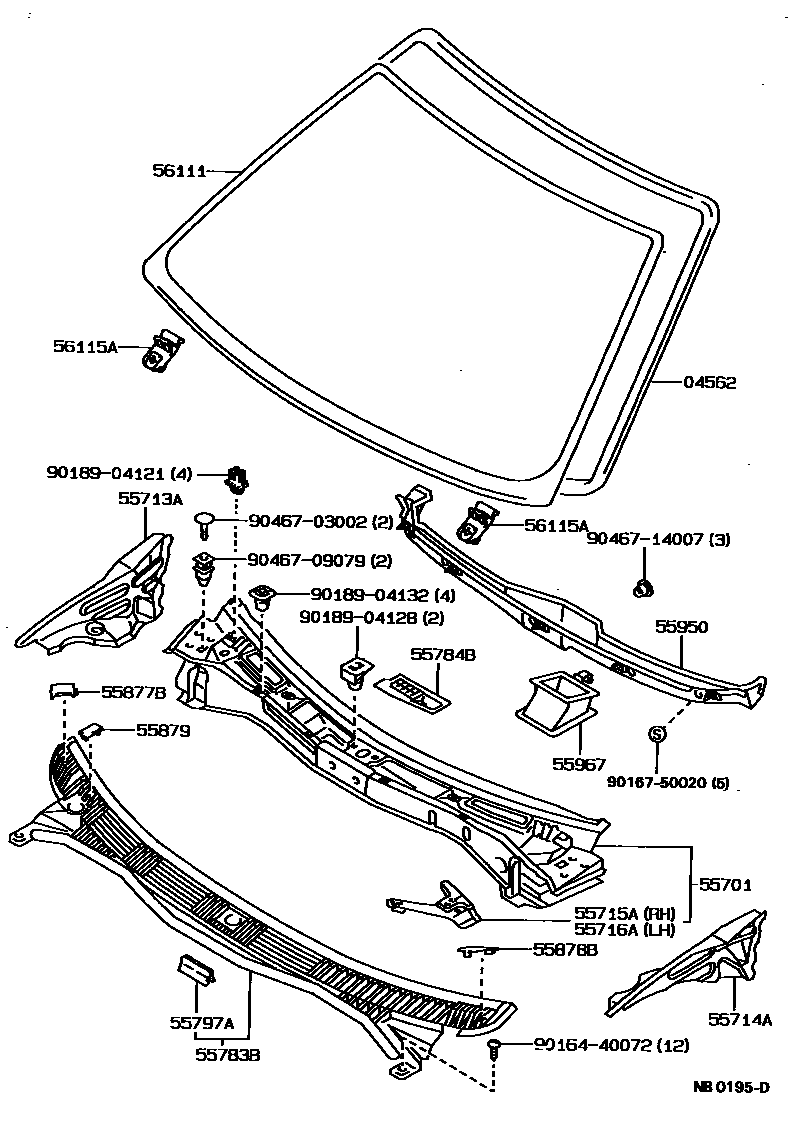

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55701 | Front apron sub-assembly | 55700-12600 · 55700-12610 |
| 55713A | Right front wall upper side panel | 55713-12070 |
| 55714A | Left front wall upper side panel | 55714-12070 |
| 55715A | From cowl upper cover to fender right stay | 55715-12090 |
| 55716A | From cowl upper cover to fender left stay | 55716-12090 |
| 55783B | Ventilation grille on center cowl No. 1 | 55708-12050 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-12080 |
| 55797A | Front wall pumping device seal | 55797-12010 |
| 55877B | Right front panel vent cover | 55877-12060 |
| 55878B | Left front panel vent cover | 55878-12020 |
| 55879 | front vent seal | 55879-12050 |
| 55950 | Defroster nozzle assembly | 55950-12130 |
| 55967 | Lower defroster nozzle | 55967-12030 |
| 56111 | windshield | 56111-1A070 · 56111-1A180 |
| 56115A | Windshield block No. 1 | 56115-12030 |
