Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 4 images and 10 PNC and OE references.

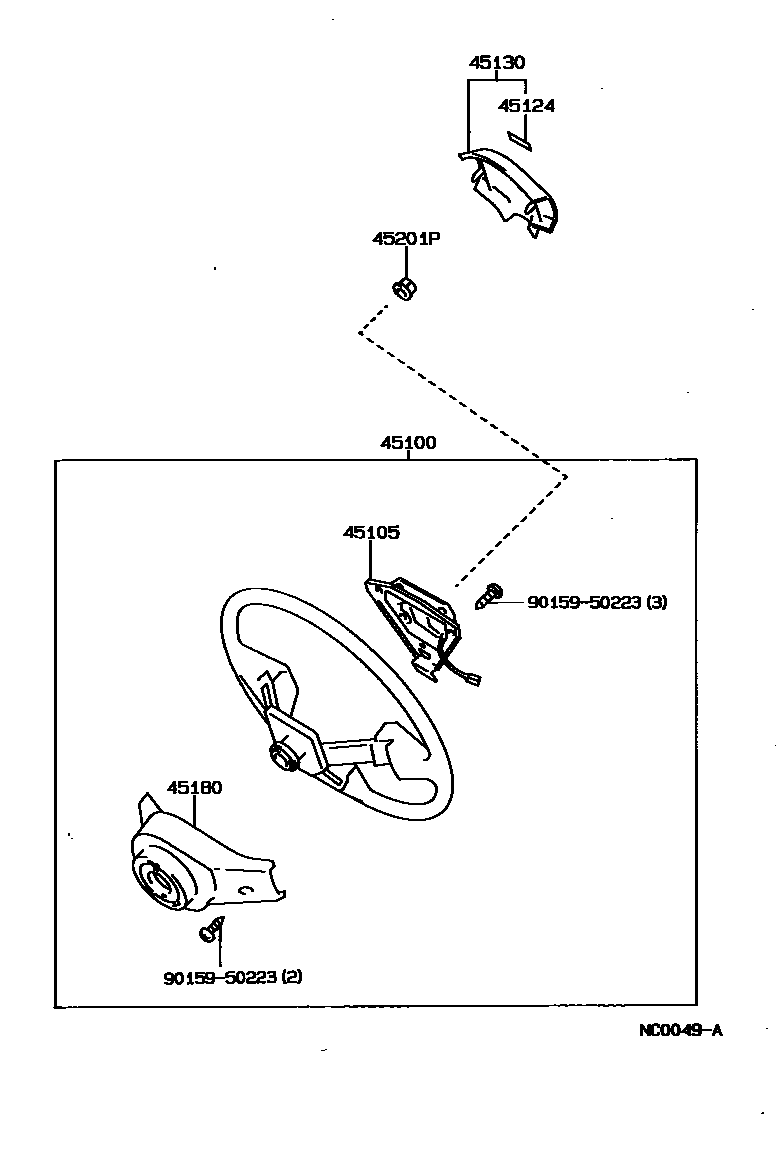

Toyota COROLLA Steering Wheel EPC diagram — NC0049A
Steering Wheel — NC0049A (198708 – 999999)

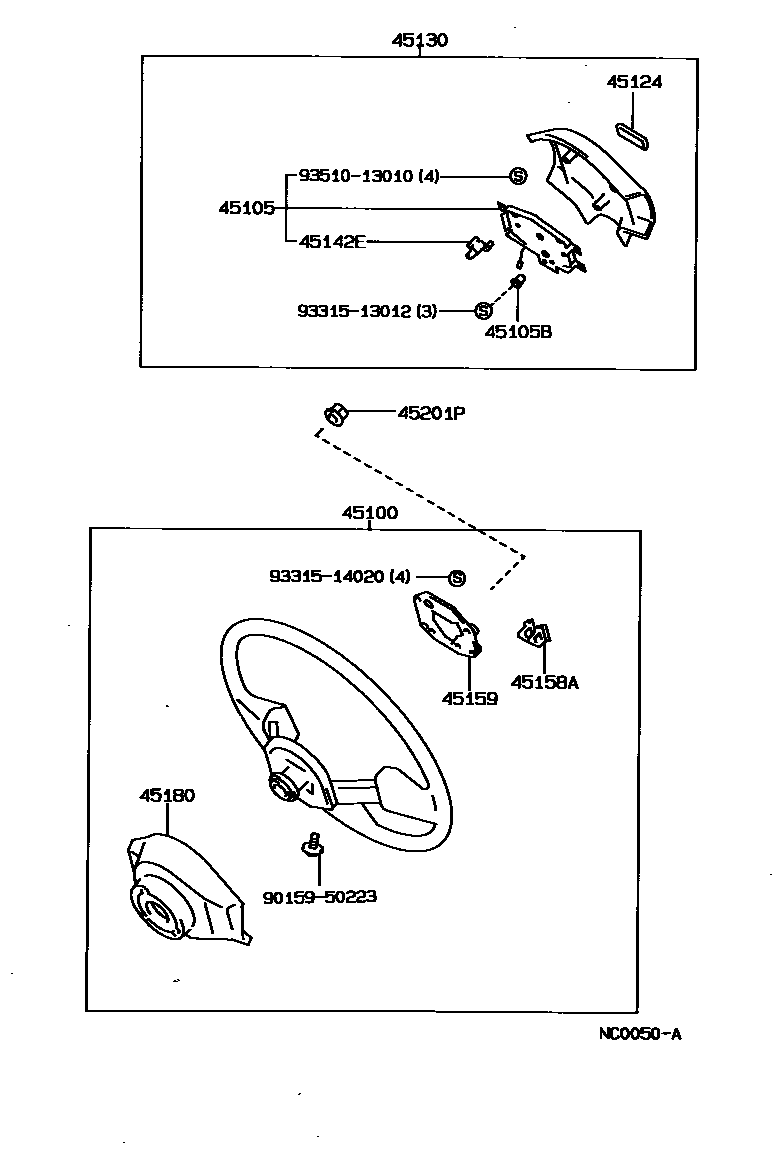

Toyota COROLLA Steering Wheel EPC diagram — NC0050A
Steering Wheel — NC0050A (198708 – 999999)

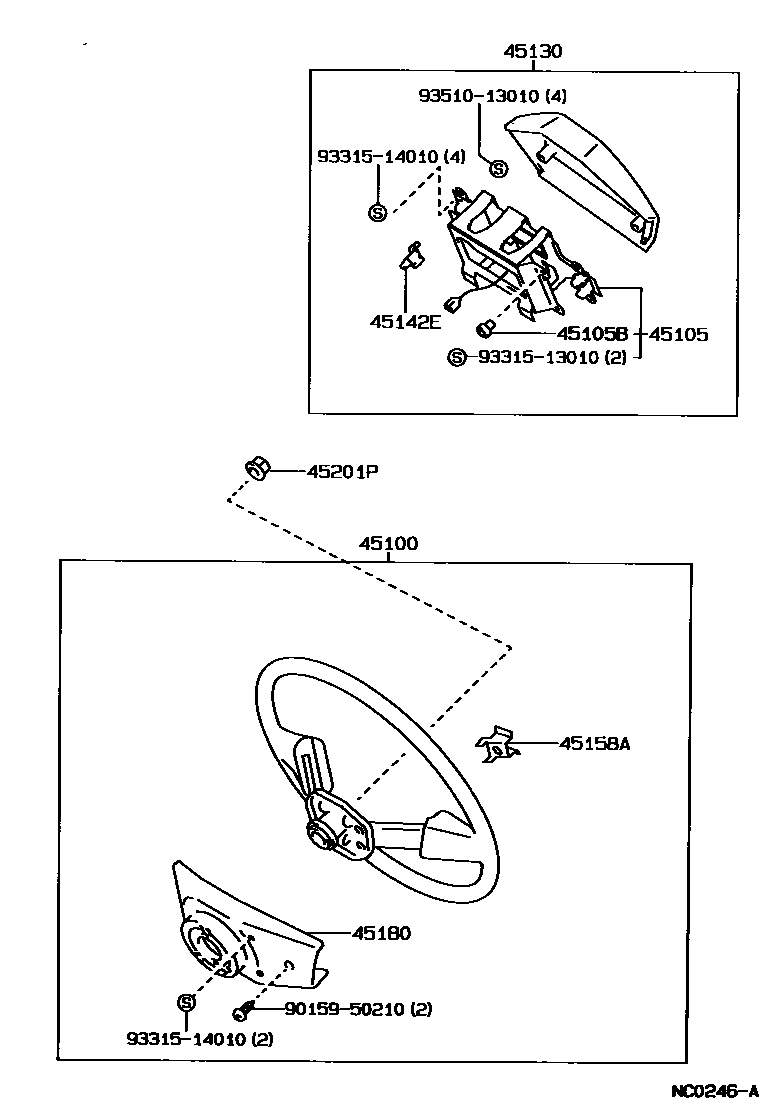

Toyota COROLLA Steering Wheel EPC diagram — NC0246A
Steering Wheel — NC0246A (198708 – 999999)

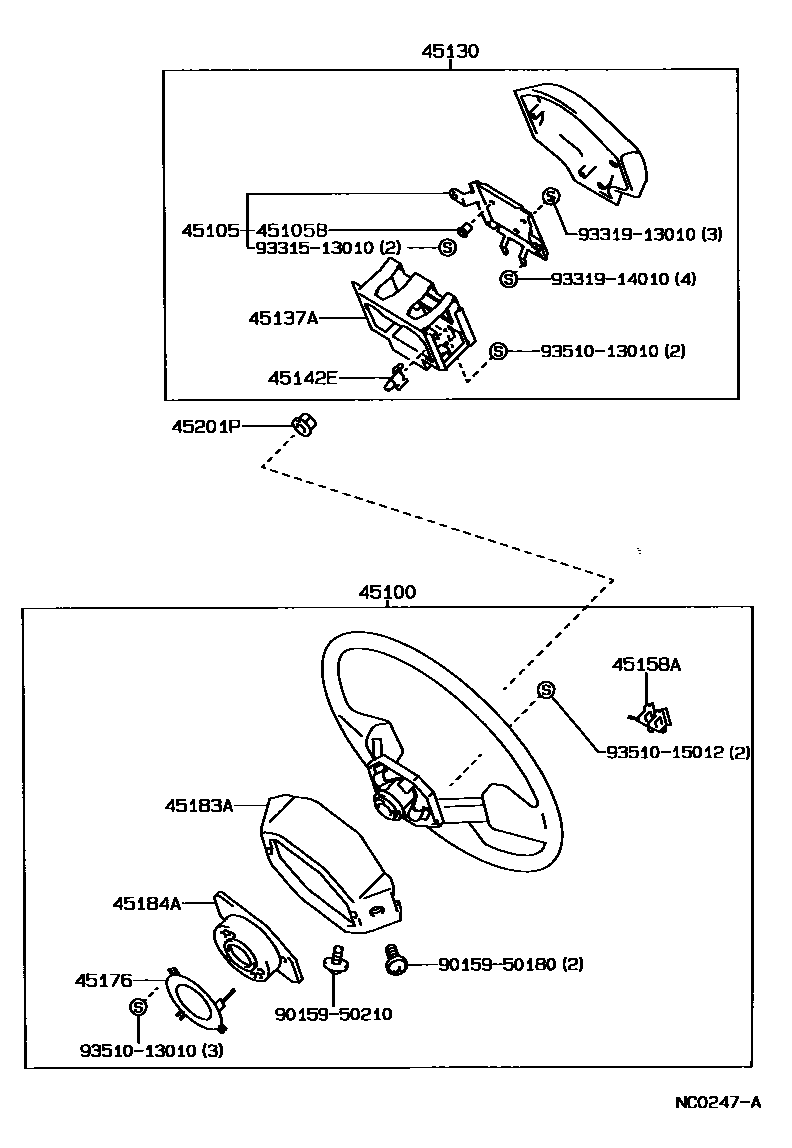

Toyota COROLLA Steering Wheel EPC diagram — NC0247A
Steering Wheel — NC0247A (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-12050 · 45105-12080 · 45105-12090 · 45105-12091 · 45105-12100 · 45105-12120
45105BSpacer (for horn button contact piece)90561-02001
45124Steering wheel mark trim45124-12040 · 45124-12070 · 45124-12160
45137ANo. 2 horn button contact piece45137-12040
45142ESpeaker contacts45142-12090 · 45142-20060
45158ASpeaker button connector sleeve45158-12020 · 45158-12030 · 45158-12040
45159Steering wheel decorative cover fixed retaining ring45159-12010 · 45159-12020
45176Speaker contact ring45176-20060
45184ANo. 2 steering wheel boss lower cover45184-20080
45201PSteering wheel fixing nut90179-12086
