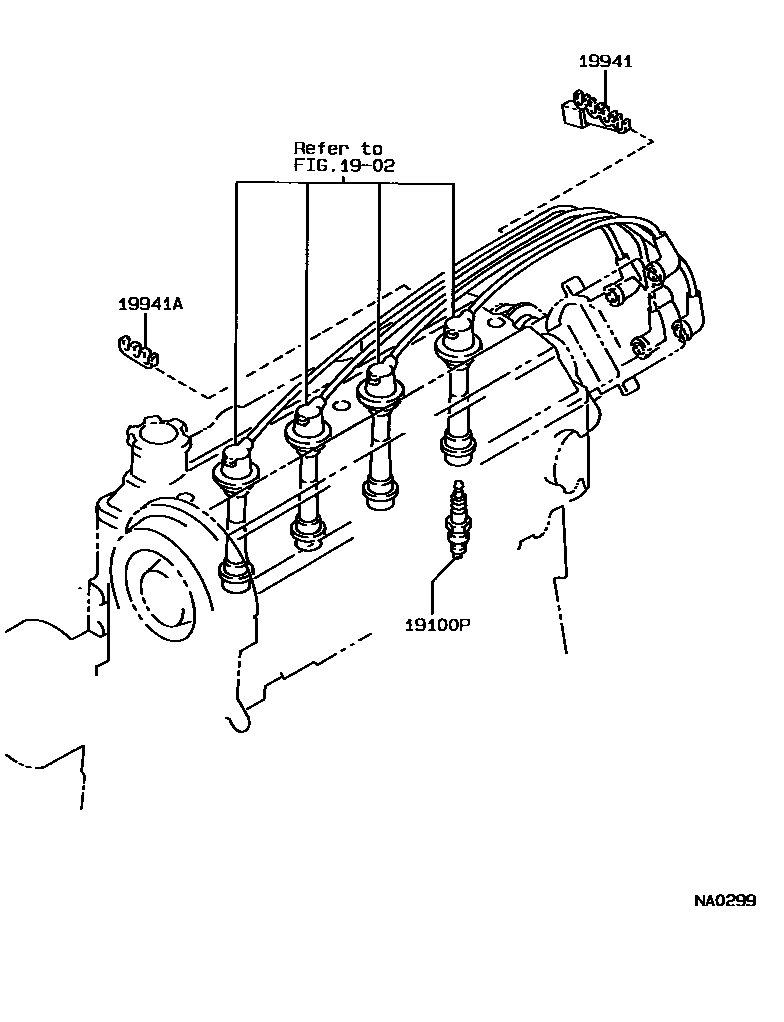

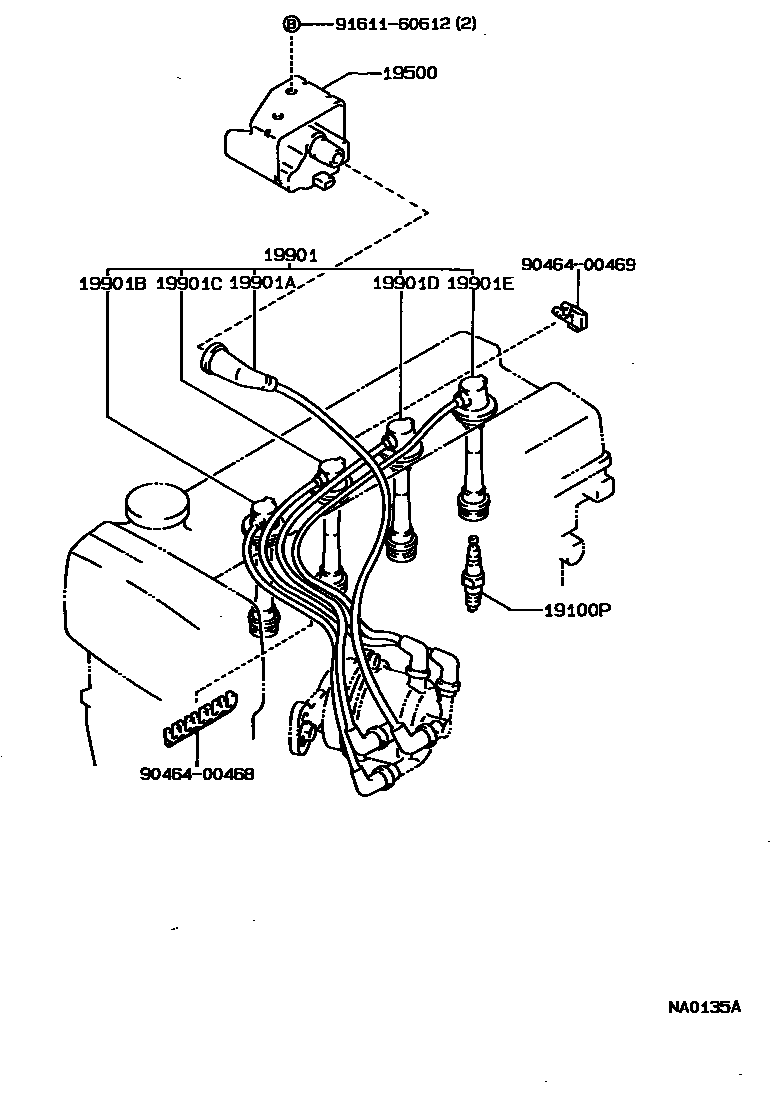

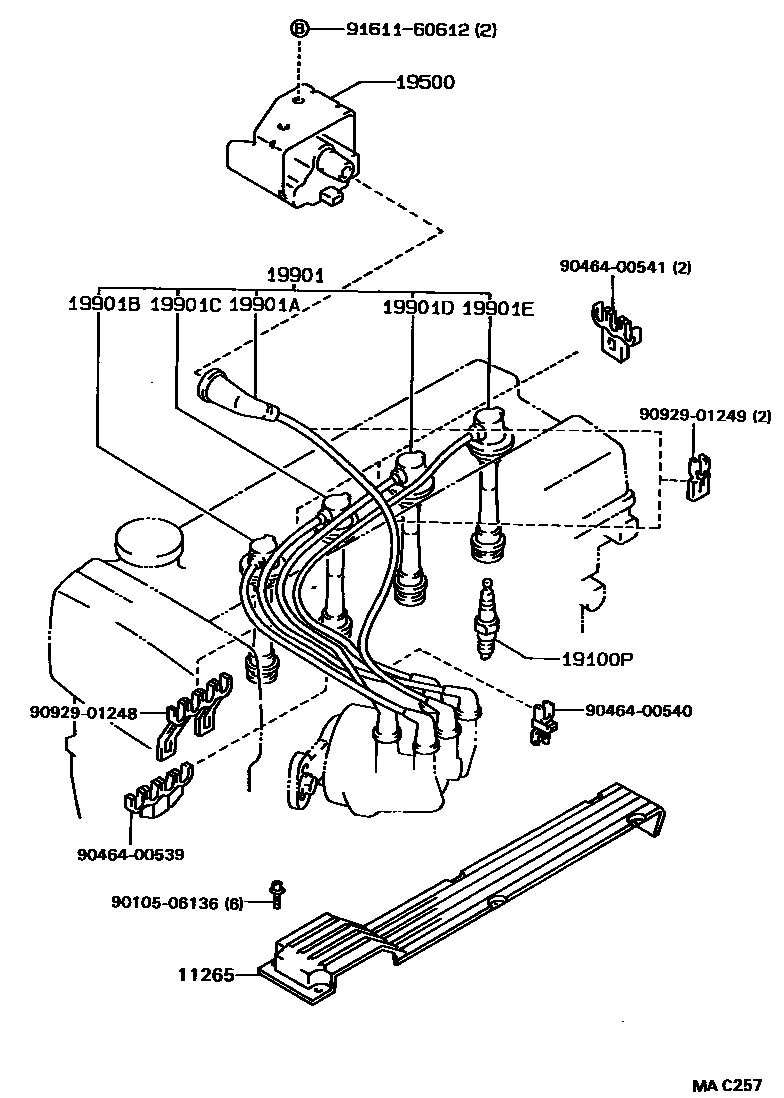

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-16010 |
| 19100P | spark plug | 90919-01121 · 90919-01129 · 90919-01153 · 90919-01180 |
| 19500 | Ignition coil assembly | 19080-16030 · 90919-02183 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21396 · 90919-21463 |
| 19901A | coil damping line | 90919-13265 · 90919-13338 |
| 19901B | No. 1 spark plug damper wire | 90919-12703 · 90919-12986 |
| 19901C | No. 2 spark plug damper wire | 90919-12704 · 90919-12987 |
| 19901D | No. 3 spark plug damper wire | 90919-12705 · 90919-12988 |
| 19901E | No. 4 spark plug damper wire | 90919-12706 · 90919-12989 |
| 19941 | No. 1 damping wire clip | 90929-01165 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 |
