Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 3 images and 24 PNC and OE references.

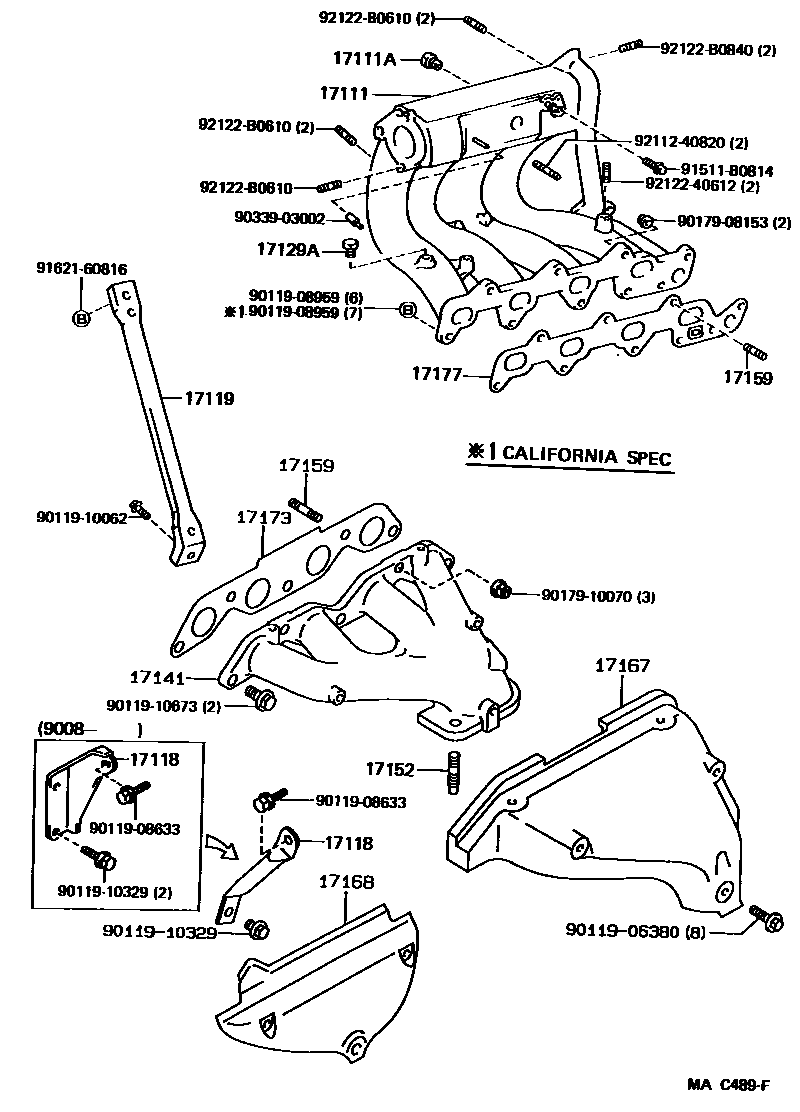

Toyota COROLLA Manifold EPC diagram — MAC489F
Manifold — MAC489F (198908 – 999999)

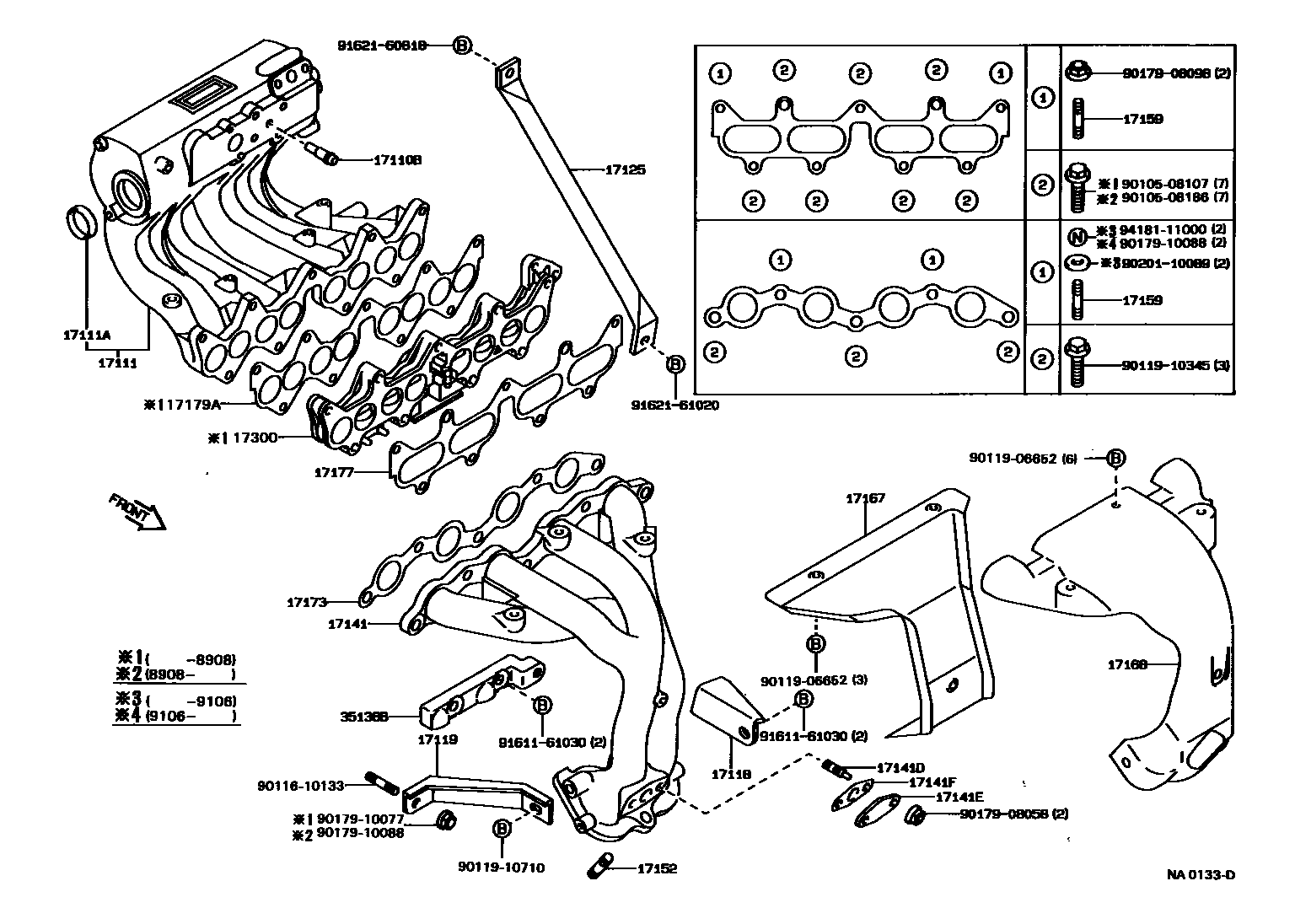

Toyota COROLLA Manifold EPC diagram — NA0133D
Manifold — NA0133D (198708 – 999999)

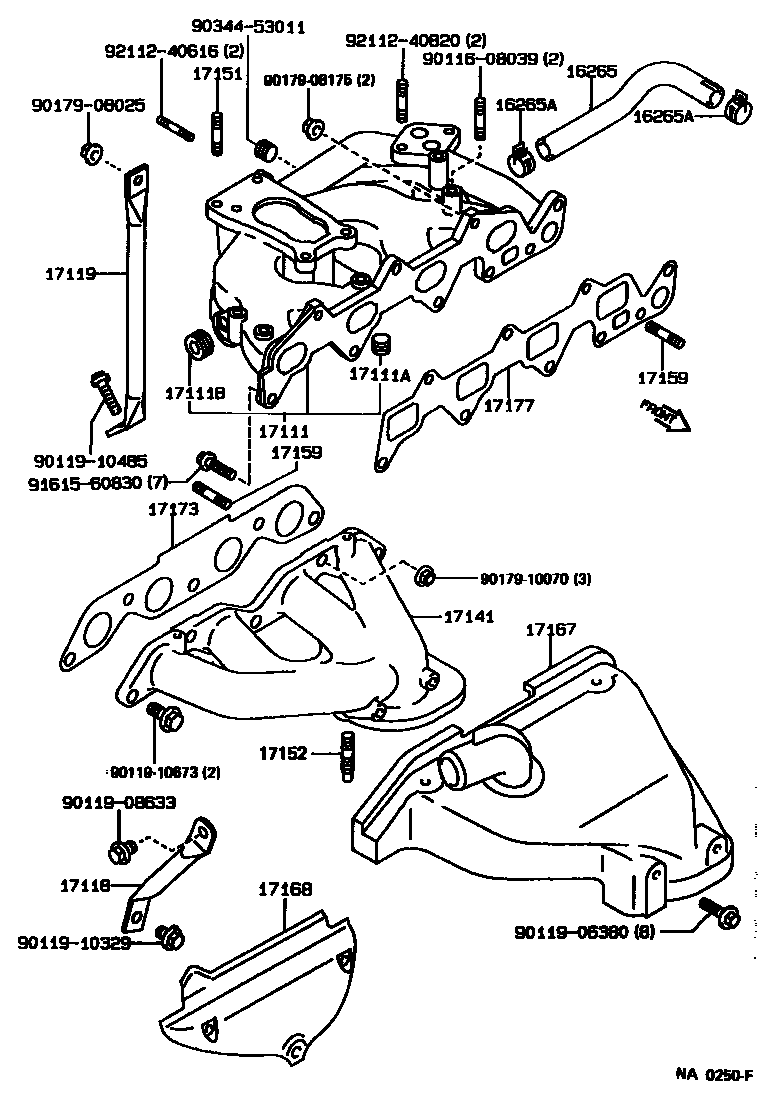

Toyota COROLLA Manifold EPC diagram — NA0250F
Manifold — NA0250F (198708 – 198908)

PNC and OE references

PNCPart nameOE numbers
16265Intake manifold water hose16265-15020
16265AHose clamp or clip (for intake manifold water hose)90467-21001 · 90467-21006
17110BFitting (for vent hose to manifold)90405-10009
17111Intake Manifold17101-16070 · 17101-16100 · 17101-16140 · 17101-16170 · 17101-16220
17111ANo. 1 screw plug90344-53011 · 90345-51006 · 96411-43500
17111BNo. 2 screw plug90344-54003
17118Manifold stays17118-16070 · 17118-16071 · 17139-16040
17119No. 2 manifold stay17118-16040 · 17139-15020 · 17139-16030
17125No. 1 pressure tank stay17125-16031 · 17125-16050
17129AConnector No. 190345-51006
17141exhaust manifold17141-16190 · 17141-16220 · 17141-16250 · 17141-16270
17141DStuds (for oxygen sensor)90116-08168
17141EExhaust manifold plate17148-41010
17141FGasket (for exhaust manifold plate)89466-20020 · 89466-30010
17151Studs (for manifold to carburetor)92112-40832 · 92112-60832
17152Studs (for manifold to exhaust)90116-10058 · 90116-10146 · 90126-10003
17159Studs (for manifold to cylinder head)90116-08218 · 90116-08317 · 90116-10037 · 92112-60825 · 92112-61028 · 92112-61032
17167Exhaust manifold No. 1 heat shield17107-16080 · 17167-16050 · 17167-16100
17168Exhaust manifold No.2 insulation pad17168-16060 · 17168-16070
17173Gasket (exhaust manifold to cylinder head)17173-15010 · 17173-15011 · 17173-16010 · 17173-16011
17177No. 1 gasket (intake manifold to cylinder head)17171-15020 · 17171-15021 · 17171-16030 · 17171-16031 · 17171-16040 · 17177-16012
17179ANo. 2 intake manifold gasket17171-16012
17300Intake control valve assembly17300-16011
35138BReinforcement plate connector35138-12020
